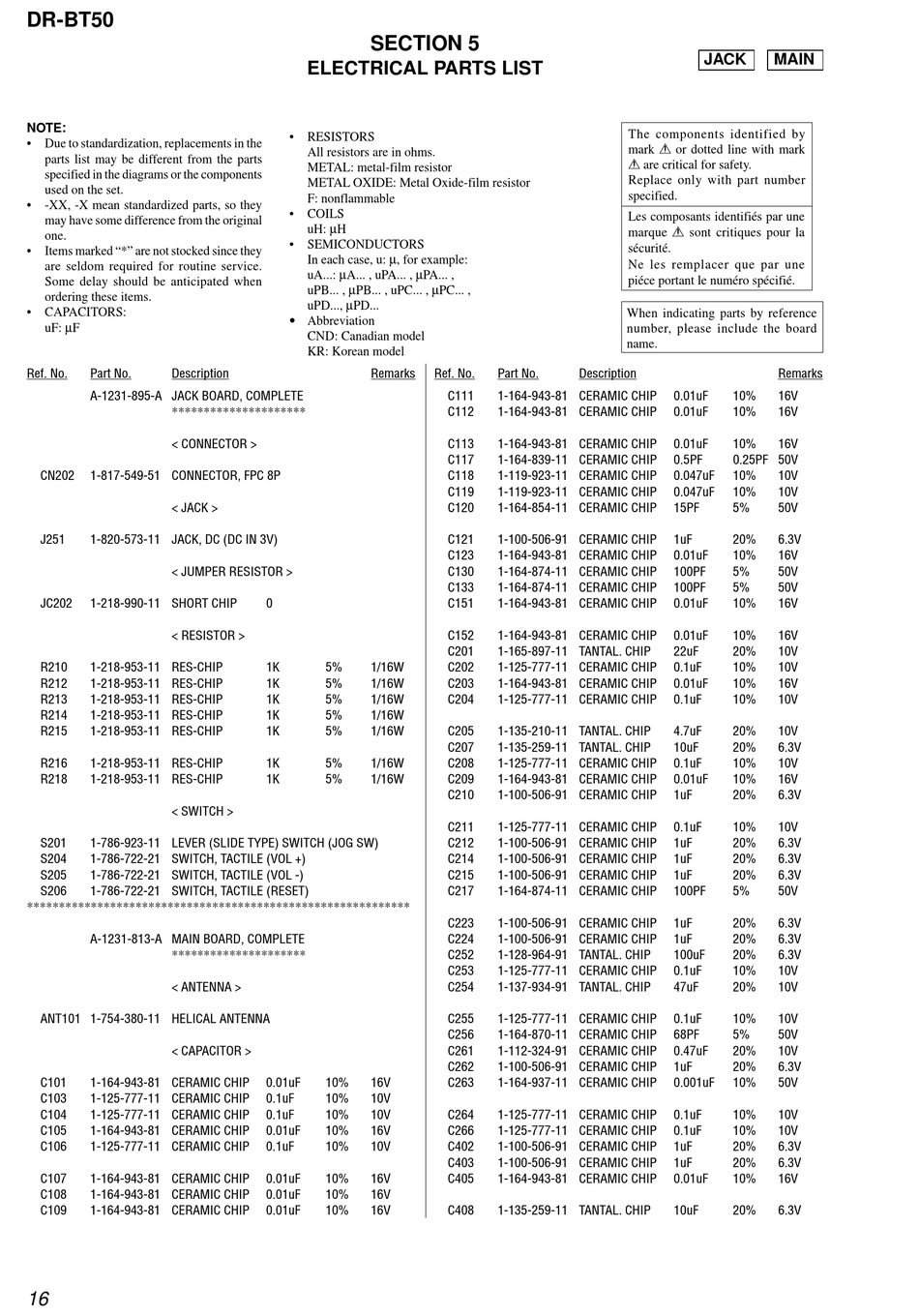

Electrical Parts List - Sony DR-BT50 Service Manual

DR-BT50
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS:
uF: µF
Ref. No. Part No. Description
A-1231-895-A JACK BOARD, COMPLETE
*********************
< CONNECTOR >
CN202 1-817-549-51 CONNECTOR, FPC 8P
< JACK >
J251 1-820-573-11 JACK, DC (DC IN 3V)
< JUMPER RESISTOR >
JC202 1-218-990-11 SHORT CHIP
< RESISTOR >
R210 1-218-953-11 RES-CHIP
R212 1-218-953-11 RES-CHIP
R213 1-218-953-11 RES-CHIP
R214 1-218-953-11 RES-CHIP
R215 1-218-953-11 RES-CHIP
R216 1-218-953-11 RES-CHIP
R218 1-218-953-11 RES-CHIP
< SWITCH >
S201 1-786-923-11 LEVER (SLIDE TYPE) SWITCH (JOG SW)
S204 1-786-722-21 SWITCH, TACTILE (VOL +)
S205 1-786-722-21 SWITCH, TACTILE (VOL -)
S206 1-786-722-21 SWITCH, TACTILE (RESET)
************************************************************
A-1231-813-A MAIN BOARD, COMPLETE
*********************
< ANTENNA >
ANT101 1-754-380-11 HELICAL ANTENNA
< CAPACITOR >
C101 1-164-943-81 CERAMIC CHIP
C103 1-125-777-11 CERAMIC CHIP
C104 1-125-777-11 CERAMIC CHIP
C105 1-164-943-81 CERAMIC CHIP
C106 1-125-777-11 CERAMIC CHIP
C107 1-164-943-81 CERAMIC CHIP
C108 1-164-943-81 CERAMIC CHIP
C109 1-164-943-81 CERAMIC CHIP
16
SECTION 5

ELECTRICAL PARTS LIST

• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
• Abbreviation
CND: Canadian model
KR: Korean model
Remarks Ref. No.
0
1K 5% 1/16W
1K 5% 1/16W
1K 5% 1/16W
1K 5% 1/16W
1K 5% 1/16W
1K 5% 1/16W
1K 5% 1/16W
0.01uF 10% 16V
0.1uF 10% 10V
0.1uF 10% 10V
0.01uF 10% 16V
0.1uF 10% 10V
0.01uF 10% 16V
0.01uF 10% 16V
0.01uF 10% 16V
Part No. Description
C111 1-164-943-81 CERAMIC CHIP
C112 1-164-943-81 CERAMIC CHIP
C113 1-164-943-81 CERAMIC CHIP
C117 1-164-839-11 CERAMIC CHIP
C118 1-119-923-11 CERAMIC CHIP
C119 1-119-923-11 CERAMIC CHIP
C120 1-164-854-11 CERAMIC CHIP
C121 1-100-506-91 CERAMIC CHIP
C123 1-164-943-81 CERAMIC CHIP
C130 1-164-874-11 CERAMIC CHIP
C133 1-164-874-11 CERAMIC CHIP
C151 1-164-943-81 CERAMIC CHIP
C152 1-164-943-81 CERAMIC CHIP
C201 1-165-897-11 TANTAL. CHIP
C202 1-125-777-11 CERAMIC CHIP
C203 1-164-943-81 CERAMIC CHIP
C204 1-125-777-11 CERAMIC CHIP
C205 1-135-210-11 TANTAL. CHIP
C207 1-135-259-11 TANTAL. CHIP
C208 1-125-777-11 CERAMIC CHIP
C209 1-164-943-81 CERAMIC CHIP
C210 1-100-506-91 CERAMIC CHIP
C211 1-125-777-11 CERAMIC CHIP
C212 1-100-506-91 CERAMIC CHIP
C214 1-100-506-91 CERAMIC CHIP
C215 1-100-506-91 CERAMIC CHIP
C217 1-164-874-11 CERAMIC CHIP
C223 1-100-506-91 CERAMIC CHIP
C224 1-100-506-91 CERAMIC CHIP
C252 1-128-964-91 TANTAL. CHIP
C253 1-125-777-11 CERAMIC CHIP
C254 1-137-934-91 TANTAL. CHIP
C255 1-125-777-11 CERAMIC CHIP
C256 1-164-870-11 CERAMIC CHIP
C261 1-112-324-91 CERAMIC CHIP
C262 1-100-506-91 CERAMIC CHIP
C263 1-164-937-11 CERAMIC CHIP
C264 1-125-777-11 CERAMIC CHIP
C266 1-125-777-11 CERAMIC CHIP
C402 1-100-506-91 CERAMIC CHIP
C403 1-100-506-91 CERAMIC CHIP
C405 1-164-943-81 CERAMIC CHIP
C408 1-135-259-11 TANTAL. CHIP
JACK MAIN
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
When indicating parts by reference
number, please include the board
name.
Remarks
0.01uF 10% 16V
0.01uF 10% 16V
0.01uF 10% 16V
0.5PF 0.25PF 50V
0.047uF 10% 10V
0.047uF 10% 10V
15PF 5% 50V
1uF 20% 6.3V
0.01uF 10% 16V
100PF 5% 50V
100PF 5% 50V
0.01uF 10% 16V
0.01uF 10% 16V
22uF 20% 10V
0.1uF 10% 10V
0.01uF 10% 16V
0.1uF 10% 10V
4.7uF 20% 10V
10uF 20% 6.3V
0.1uF 10% 10V
0.01uF 10% 16V
1uF 20% 6.3V
0.1uF 10% 10V
1uF 20% 6.3V
1uF 20% 6.3V
1uF 20% 6.3V
100PF 5% 50V
1uF 20% 6.3V
1uF 20% 6.3V
100uF 20% 6.3V
0.1uF 10% 10V
47uF 20% 10V
0.1uF 10% 10V
68PF 5% 50V
0.47uF 20% 10V
1uF 20% 6.3V
0.001uF 10% 50V
0.1uF 10% 10V
0.1uF 10% 10V
1uF 20% 6.3V
1uF 20% 6.3V
0.01uF 10% 16V
10uF 20% 6.3V
