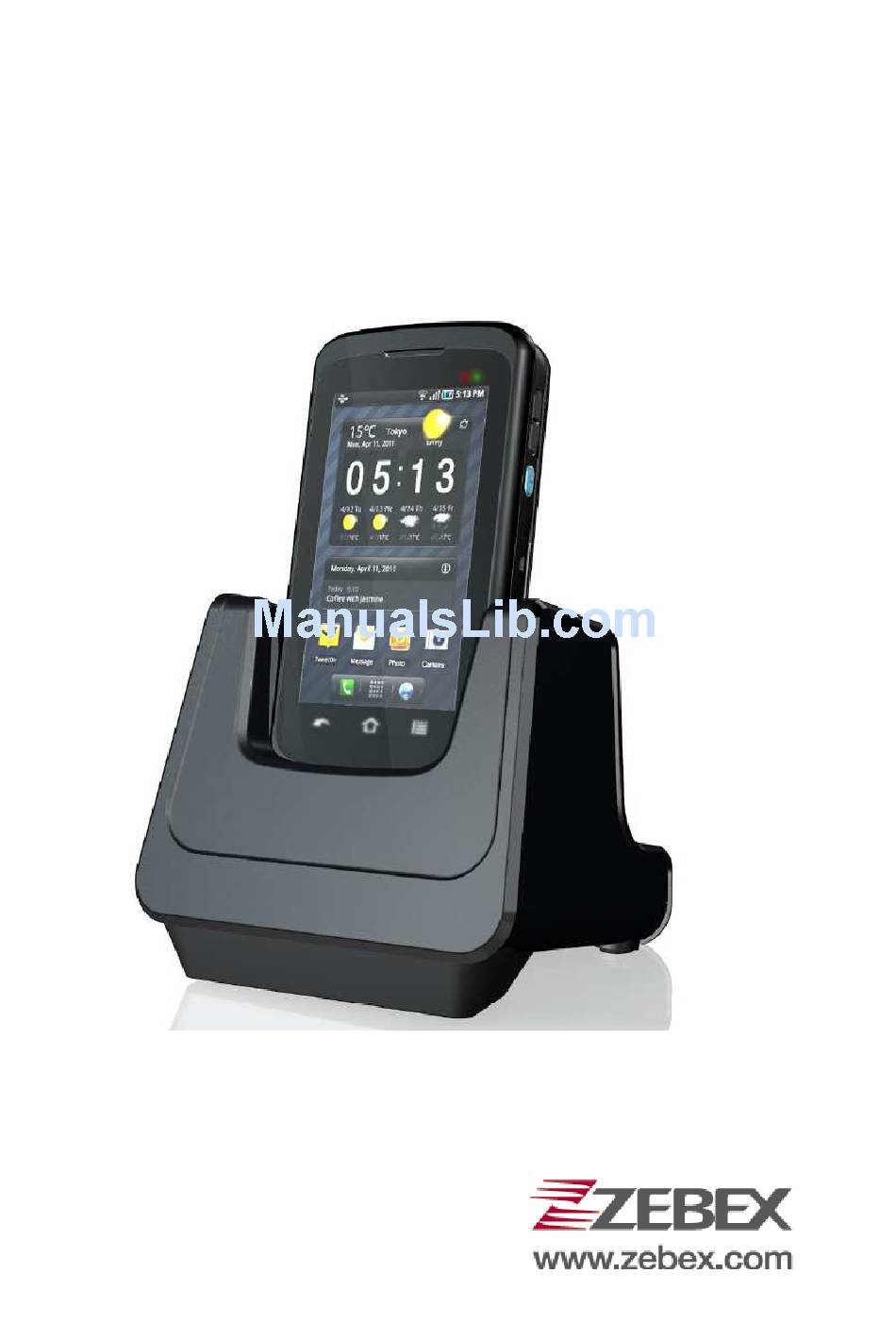

Z-2242 / Z-2240
QUICK START & REGULATORY GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-2242 and is the answer not in the manual?

Questions and answers

Related Manuals for Zebex Z-2242

Summary of Contents for Zebex Z-2242

  • Page 1 Z-2242 / Z-2240 QUICK START & REGULATORY GUIDE...

  • Page 2: Product Features

    Product Features:...
  • Page 3 Accessory Option :...
  • Page 4 Item Description System Qualcomm MSM8960 Processor Dual Core 1.5GHz Android OS Android Jeally Bean 4.2.2 Memory 1GB LPDDR2 SDRAM Storage Internal 8GB eMMC Flash (To be continued) Display, Camera and Scaning Size: 4.5" Resolution: WVGA 720(W)*1280(H) Display Type: TFT, Transmissive Display Contrast ratio: 900 (Typ) Brightness: 400 nits (Typ)
  • Page 5 Sensible Code, QR Code, Micro QR Code, Maxi Code, PDF 417, Micro PDF417, GS1 DataBar Composite, UPC/EAN Composite. Front Camera Sensor OmniVision MT9E013 Resolution: 8MP (3264H*2448V) Angle of view: 74.5°C Auto-Focus Type: VCM(Voice Coil Motor) Rear Camera Focus Range: 10cm~ Infinity Automatic Mode : AEC (Auto exposure Control), AGC (Auto Gain Control),...
  • Page 6 (1) AC adaptor charging (via micro USB) Charging method (2) docking station charging (no sleeve charging) (3) battery cartridge Wireless charger Qi (WPC V1.1) Compliant Power Supply (Optional) Peripheral 3-axis accelerometer Proximity sensor Ambient light sensor Sensors Magnetometer Gyroscope 2pcs Indicator (Indication of battery full, low battery, charging(including wireless charging) and BT)
  • Page 7 Ingress Protection IP65 Drop 1.5M on poly wood, 6 drops Air: ±8KV Contact: ±4KV Operating 0°C~ 45°C battery in charging mode Temperature (include -20°C+60°C battery in discharging mode LCM and battery) Storage Temperature -20~+60°C Accessories (in package) Adaptor Jack 1pcs, 5.35V/2A Micro USB to USB 1pcs, 100cm Cable...

  • Page 8: Getting Started

    Close the door after installation. Getting Started Charge the battery Before using the Z-2242 / Z-2240, charge the battery using one of the following accessories approved by ZEBEX: Micro USB cable through PC Micro USB cable + Power Adaptor Jack...
  • Page 9 Power Off To Power off the Z-2242 / Z-2240, press and hold the button until the device option dialog box appears, choose “Power off”. When the Power off dialog box appears, tap “OK”.

  • Page 10: Data Capture

    Data Capture Scan a Bar Code with Imager 1. Switch on the barcode Go to “Settings” find Barcode Scan Slide Barcode Scan to “ON” Settings...
  • Page 11 Go to “BarcodeScan” Type: To choose Barcode type Barcode Scan Select “ Beep”: To have beep sound after scan Select” Vibrate”: Need device vibration after scan Select” Automatic Carriage Return” Require to send enter key automatically after scan...
  • Page 12 2. Launch a bar code reading application or use Data Wedge. 3. Point the exit window at the bar code 4. Press and hold the two side Scan button Left/Right Side Key Set-up: Go to “Settings” Select “Remap button & Shortcut” Select “P1”...
  • Page 13 Select Remap Key Choose “Barcode Scan”...
  • Page 14 Using the rear camera to scan bar code. 1. Launch a bar code reading application or use Data Wedge. 2. Point the back of the Z-2242 / Z-2240 at the bar code. 3. Press the scan button Photo & Videos Using the rear camera to take photos and capture video.

  • Page 15: Gps Information

    GPS Information Acquiring satellite signals may take a few minutes. Without a clear view, acquisition takes longer and possible unable to catch the position quickly. Turn off GPS application if no use. Near Field Communication (NFC) Feature Allow Data exchange in short-range (less than 4cm) when the phone touches another device.
  • Page 16 Enable Android Beam Slide to “ON”...

  • Page 17: Regulatory Information

    Regulatory Information Caution: Only use ZEBEX approved accessories. Wireless Device Country Approval Regulatory markings, subject to certification, are applied to the device signifying the radio(s) are approved for use in the European countries under CE coverage. For 2.4GHz or 5GHz products : Europe includes Austria, Belgium, Bulgaria, Czech...
  • Page 18 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 19 Power Adaptor Use only a Z-2242 / Z-2240 approved Power Adaptor with electrical ratings : Output 5Vdc, min 2A, with a maximum ambient temperature of at least 45℃. Use of alternative power adaptor will invalidate any approvals given to this device and maybe dangerous.
  • Page 20 Use only a ZEBEX approved batteries. When batteries are stores over six (6) months, some irreversible deterioration in overall battery quality may occur. Store batteries at half of full charge in a dry, cool place, removed from the equipment to prevent loss of capacity, rusting of metallic parts and electrolyte leakage.
  • Page 21 Marking and European Economic Area (EEA) Frequency of Operation The use of 2.4 GHz RLAN's, for use through the EEA, have the following restrictions: Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 - 2.4835 GHz France, outside usage is restricted to 2.4 - 2.454 GHz.
