K&K Sound TRI-STAR Product Manual page 3

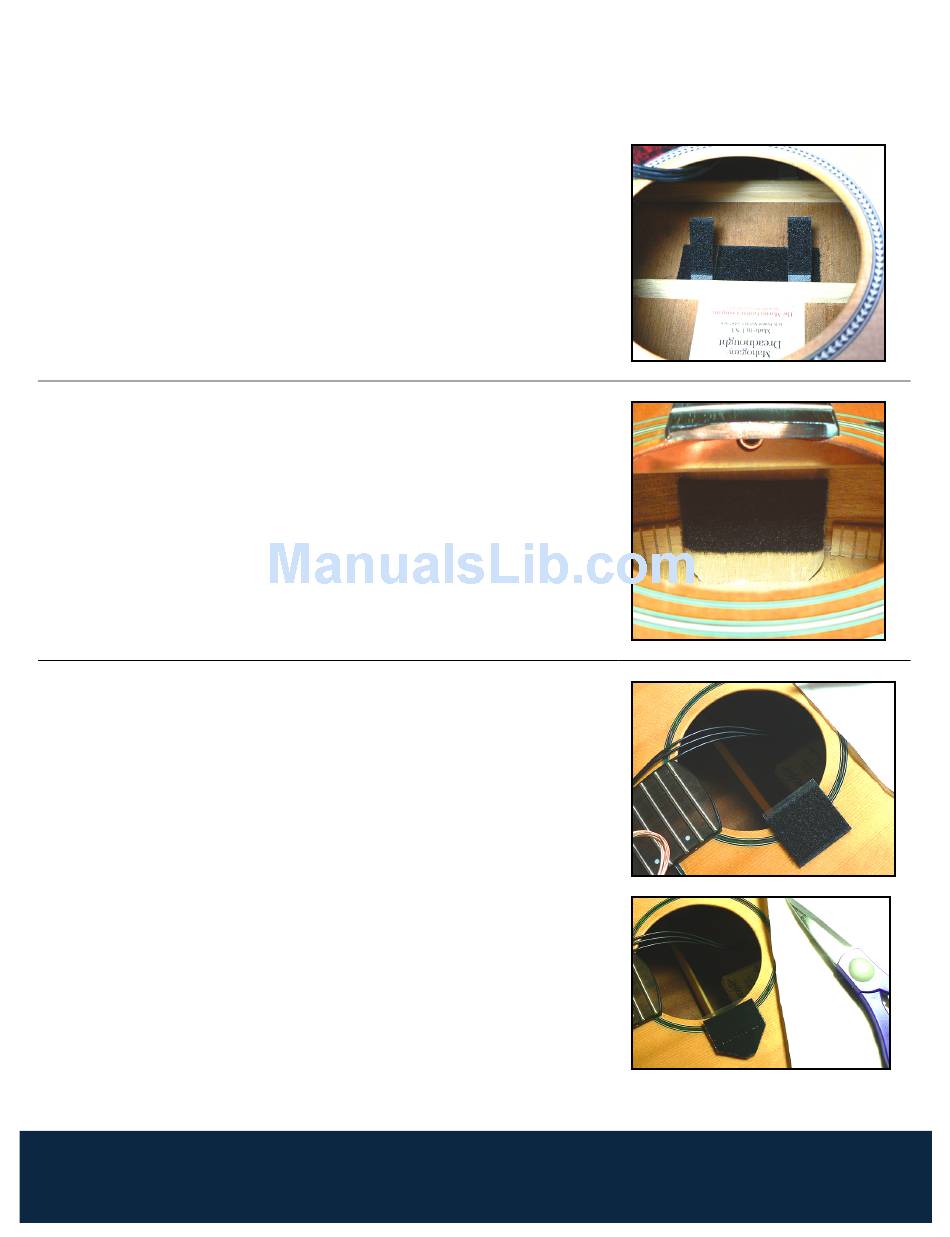

4. Locate the 2 mounting wedges (45-degree angle pieces) and mount
them on the Velcro as shown. They allow the main circuit board to be
in a convenient angle for trim-pot adjustment through the sound hole
using a long screwdriver.
NOTE: We recommend you install the pickup system first, before you
mount the wedges. It provides more clearance to work inside the guitar.
5. Locate the soft Velcro piece that is attached to the battery holder,
remove it and stick it onto the neck-block as shown.
NOTE: When changing the battery, we recommend pulling the complete
battery holder off the Velcro and removing it from the sound hole.
When inserting the battery, make 100% certain that it is inserted properly
and in the right direction. It takes some force to snap it into the contacts!
Tri-Star Pro Preamp only:
Locate the square soft Velcro piece for the master volume control element.
Trim it to fit the bracing in the area shown.
This exact location may differ depending on the guitar model.
Find a large enough spot anywhere on the low e-string side of the sound
hole. It depends on the support bracing around the sound hole.
Stick the Velcro (inside) to this location.
