Etross 3G WCDMA FWT-8848 User Manual

Wcdma to analog converter
Hide thumbs Also See for 3G WCDMA FWT-8848:

Advertisement

Quick Links

Download this manual
3G WCDMA FWT-8848 User's Manual
Version 1.0
3G WCDMA FWT-8848
User's Manual
3G WCDMA FWT-8848 Version 1.0 -2014
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3G WCDMA FWT-8848 and is the answer not in the manual?

Questions and answers

Related Manuals for Etross 3G WCDMA FWT-8848

Summary of Contents for Etross 3G WCDMA FWT-8848

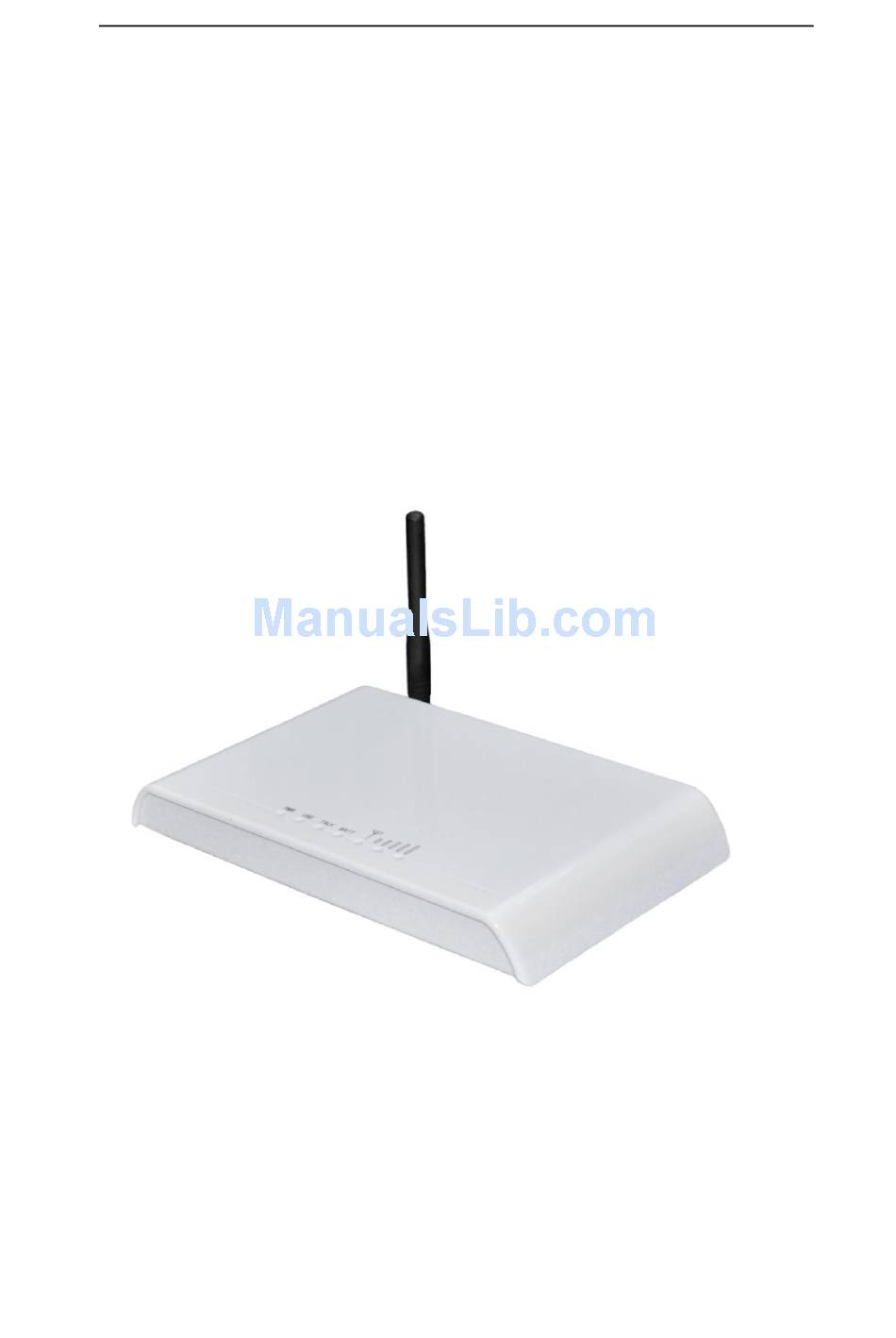

  • Page 1 3G WCDMA FWT-8848 User's Manual Version 1.0 3G WCDMA FWT-8848 User's Manual 3G WCDMA FWT-8848 Version 1.0 -2014...

  • Page 2: 1, General Description

    Version 1.0 1, General Description 3G WCDMA FWT-8848 is a WCDMA to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and u sed just like a local landline(PSTN) except your calls will go out the GSM network.
  • Page 3 3G WCDMA FWT-8848 User's Manual Version 1.0 unit Power Switch Rocker switch Power Socket 12V DC input Phone 2 RJ-11 ports RJ11 interface Antenna SMA-female interface From left to No.1: Power, No.2.in use, No.3, in talk, No.4, LED display right(front side Battery, if have, No.
  • Page 4 3G WCDMA FWT-8848 User's Manual Version 1.0 7) Compatible to most telephones, PBX device. 8) Strong signals with high gain antenna 9) Attractive plastic casing 10) SIM card supported (1.8V, 3V) 11) Caller ID display 12) Provides reversal polarity signal for metering...

  • Page 5: 6,Installation And Connection

    3G WCDMA FWT-8848 User's Manual Version 1.0 Storage temperature:-20C~70C Operation humidity:45%-95% Atmosphere pressure:86-106Kpa Environment noise: <60DB Transmitting Power:2W Sensitivity: <-104dbm Antenna Amplifying: >2.5db Dialing frequency: 450Hz Hanging voltage: 45V Picking current: 30mA/41mA 5, Packing List Name Quantity Remark 3G WCDMA FWT-8848...
  • Page 6 3G WCDMA FWT-8848 User's Manual Version 1.0 The Sketch for connecting ordinary Telephone Draw your attention: Because there are many types of ordinary telephone and their electric parameters are different. In order to avoid mutual disturbance between telephone and terminal and affect voice quality. The distance between telephone and terminal is 1.5m at least.
  • Page 7 3G WCDMA FWT-8848 User's Manual Version 1.0 3) The installation for connecting to PBX for call extentions If users want to connect small PBX to this terminal, connect terminal’s “Phone port” to the PBX. The sketch for connecting to PBX device.
  • Page 8 3G WCDMA FWT-8848 User's Manual Version 1.0 security purpose when PSTN failure or not available. The sketch for connecting to alarm system 7, Function Setting Before you do the following function settings, Lift handset or press hands free key of telephone set, then you can press the buttons according to the following instructions to finish setting, you will hear 2 beeps when you finish, this testify setting successfully.
  • Page 9 3G WCDMA FWT-8848 User's Manual Version 1.0 *#03#10# 03--command，10--amount，Max 16，Min 1, default setting is 10. 5) Setting local area code *#04#*0755# 10--command，*0755—area code，Max 5 numbers, use "*" instead if area code is less than 5 digits. 6) Setting IP numbers *#05#17911# 05--command，17911—IP numbers，Max 5 numbers, use "*"...
  • Page 10 3G WCDMA FWT-8848 User's Manual Version 1.0 Notice: Step 1 and Step 2, IMEI no. must be same. 12) Pin Lock &Network Lock Setting (optional)(Should confirm before order) 2)PIN Lock 1, Set to open PIN code check and automatic PIN lock function...
  • Page 11 3G WCDMA FWT-8848 User's Manual Version 1.0 Making Calls 1. Lift the handset or press “hand-free” key, you will hear dialing tone, then you can dial the telephone numbers you want to call. 2. Dialing: dialing the telephone numbers you want to call 3.

  • Page 12: Warranty Card

    3G WCDMA FWT-8848 User's Manual Version 1.0 Warranty Card Please fill in the blanks carefully, and keep it properly as the voucher for warranty. Type of Equipment 3G WCDMA FWT-8848 User’s name Contact with: Contact Tel.no. Address Date of Ex-works...
  • Page 13 FCC Statement Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
