INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
CK302R
Model Numbers / Nos. de Modelo:

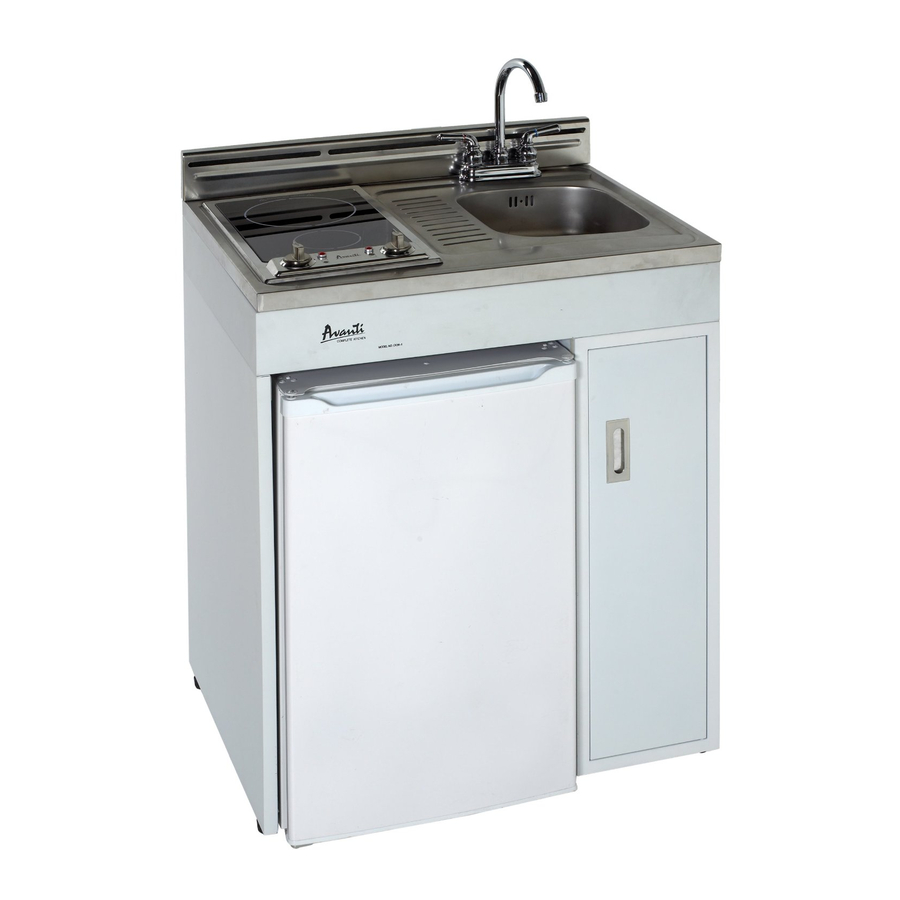

COMPACT KITCHEN WITH REFRIGERATOR
MINI COCINA INTEGRADA CON REFRIGERADOR
CK302R
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS AND SAVE FOR LOCAL ELECTRICAL INSPECTOR.
La sección en español empieza en la página 17
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
La política de Avanti es la de continuar mejorando sus productos y se reserva el derecho de cambiar los materiales y
especificaciones sin notificación alguna.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSTRUCTION MANUAL CK302R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avanti INSTRUCTION MANUAL CK302R

Summary of Contents for Avanti INSTRUCTION MANUAL CK302R

  • Page 1 Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. La política de Avanti es la de continuar mejorando sus productos y se reserva el derecho de cambiar los materiales y especificaciones sin notificación alguna.

  • Page 2: Table Of Contents

    Cleaning the Burners and Reflector Bowls Cleaning Your Induction Hotplate Power Failure Vacation Time Moving Your Compact Kitchen Troubleshooting (General) Service for Your Compact Kitchen Your Avanti Products Warranty Instrucciones en Español Registration Information and Registration Card TABLE OF CONTENTS 17 - 21...

  • Page 3: Help Us Help You

    Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call: Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

  • Page 4: Parts And Features

    PARTS AND FEATURES CK302R Backsplash Radiant Cooktop Cooktop Control Panel Countertop Refrigerator Water Faucet Sink Wire Shelves (2) Cabinet Door with Integrated Handle Leveling Legs...

  • Page 5: Important Safety Instructions

    . . . even if they will “just sit in the garage a few days”.  Before you throw away your old refrigerator: take off the doors. Leave the shelves in place so that children may not easily climb inside.

  • Page 6: Electrical Installation Instructions

    Install or replace the cover plate to the junction box and turn ON the A/C from the source or circuit breaker.  Then install the power cord of the refrigerator and the burners to the junction box of the unit.

  • Page 7: Installation Instructions

    Instruction Manual  Before connecting the refrigerator of your Compact Kitchen to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system of the refrigerator from handling during transportation.

  • Page 8: Electrical Connection

    3 hours before placing items in the compartment.  Electrical Connection Improper connection of the equipment-grounding can result in the risk of electrical shock. If the power cord of the range or refrigerator is damaged, have it replaced by an authorized Avanti Products service center. ...

  • Page 9: Power Supply Connections

    The electrical installation shown below must be performed by a qualified and licensed electrician, following all of the electrical codes and ordinances required by the State.  Power Supply Connections  Prepare the wiring in accordance to the National Electrical Code and/or local codes and ordinances by a qualified electrician.

  • Page 10: Water Faucet Installation And Water Line Connection

     Water Faucet Installation And Water Line Connection Connection to the water supply must be performed by a professional licensed plumber and comply with all Local Codes and Ordinances. IMPROPER WATER LINE CONNECTION MAY RESULT IN FLOODING YOU MUST USE A LICENSED PLUMBER REVIEW STATE AND LOCAL PLUMBING CODES BEFORE INSTALLATION Figure No.

  • Page 11: Installation Of Your Refrigerator

    Secure refrigerator leveling legs in place using the bottom bracket notches as shown in Figure No. 6.  Installation Of Side Tray NOTE: Side tray is not a standard supplied part. If you need it, please contact Avanti Service Center to buy it using the form provided. Figure No. 6 Figure No. 7...

  • Page 12: Operating Your Compact Kitchen

    The appliance is equipped with a junction box located under the countertop with two outlets. One outlet for burners and one outlet for refrigerator (see Figure No. 8). Once the unit is installed by a qualified electrician make sure that both, the burners and the refrigerator are properly connected to the box.

  • Page 13: Care And Maintenance

    Most power failures are corrected within a few hours and should not affect the temperature of your refrigerator if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

  • Page 14: Troubleshooting (General)

    The Refrigerator does not operate The Refrigerator turns on and off frequently. Vibrations. The Refrigerator seems to make too much noise. The refrigerator door will not close properly. Burners will not maintain a rolling boil or frying rate is not fast enough.

  • Page 15: Service For Your Compact Kitchen

    We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti Products appliances. With the purchase of your Avanti Products appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you.

  • Page 16: Your Avanti Products Warranty

    In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonably similar replacement product that is either new factory refurbished.All...
  • Page 17 CARACTERISTICAS 1. Panel Trasero 2. Plancha de Inducción 3. Panel de Control de la Plancha Inducción 4. Gabinete 5. Refrigerador 6. Fuente de agua 7. Fregadero 8. Parrillas del Gabinete (2) 9. Puerta del Gabinete 10. Patas Niveladoras...

  • Page 18: Instrucciones En Español

    INSTRUCCIONES EN ESPAÑOL PRECAUCIÓN  Lea todas las instrucciones antes de usar su electrodoméstico.  Peligro o Precaución: Existe el riesgo que los niños queden atrapados.  Niños atrapados o sofocamiento no son un problema del pasado. Los electrodomésticos son peligrosos aún si solo los deja en el garaje por un par de días.
  • Page 19 INSTRUCCIONES PARA LA CONECCION A TIERRA Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable de escape para la corriente eléctrica. Asegúrese de usar un plomero certificado para la conectar el agua a la unidad. NO USE UN CORDON DE EXTENSION Use un tomacorriente de pared exclusivo.
  • Page 20 CONEXION DE LA FUENTE DE AGUA La conexión de la fuente de agua debe ser realizada por un plomero profesional y licenciado. También debe cumplir con los códigos locales y estatales.  Ciérre la llave maestra del agua.  Instale las llaves de agua (vea figura 4). ...
  • Page 21 LIMPIEZA DE SU PLANCHA DE INDUCCION  Apague la hornilla, desconecte la unidad del suministro eléctrico A/C del enchufe de pared o interruptor, asegúrese que la superficie de la unidad este fría antes de proceder.  Exprima la esponja o trapito cuando limpie el área de los controles, o cualquier parte eléctrica.

  • Page 23: Registration Information And Registration Card

    Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products, A Division of The Mackle Co., Inc.
  • Page 24 VER1.0 PRINTED IN CHINA...
