Avanti IM320299 Instruction Manual

Avanti refrigerator ice maker combo model number: im320299
Hide thumbs
Table of Contents

Advertisement

Quick Links

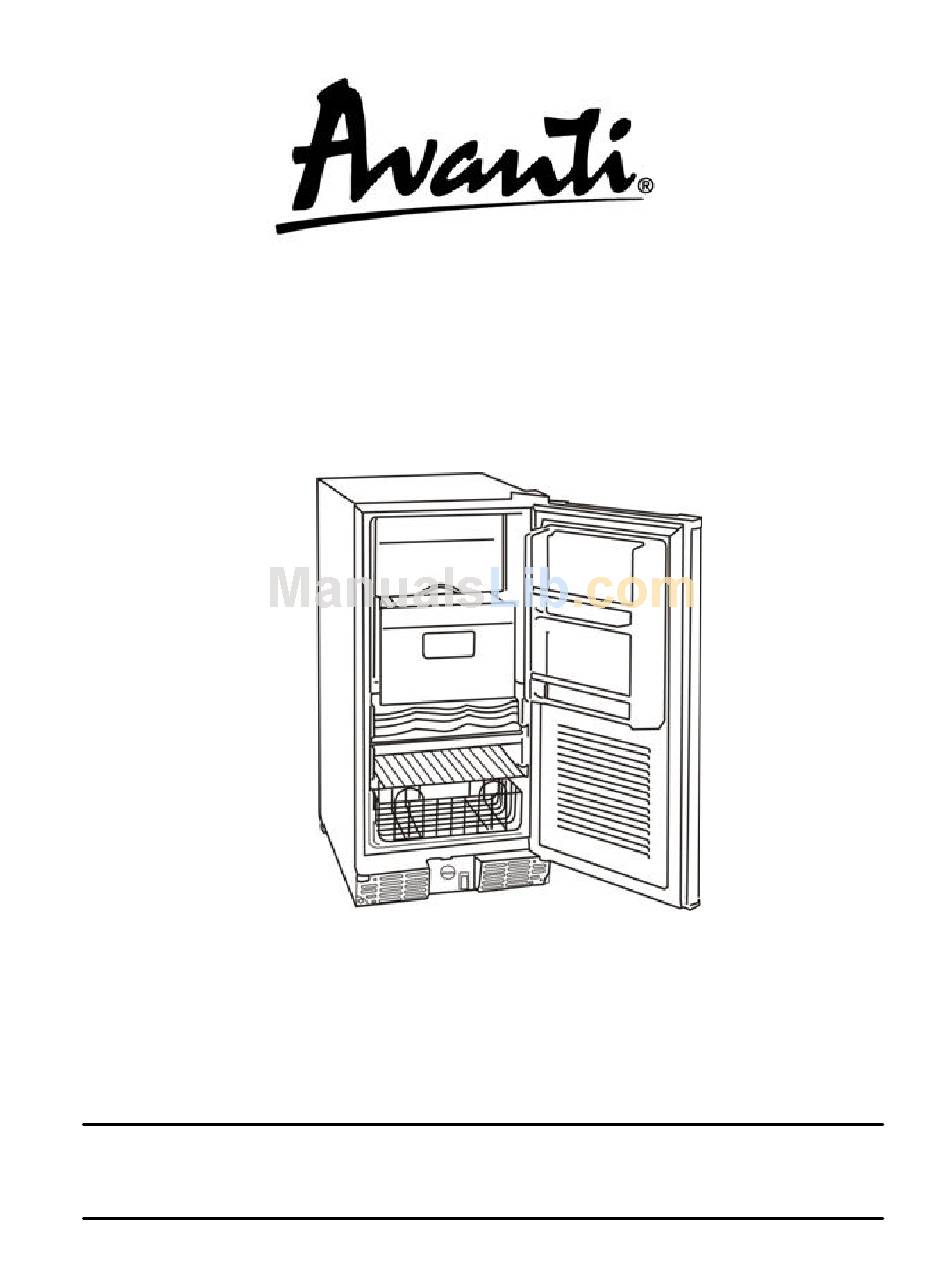

ICE MAKER COMBO / MAQUINA DE HACER HIELO CON REFRIGERADOR
INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
IM3202SS
MODEL NUMBER / NUMERO DE MODELO:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATI NG
INSTRUCTIONS.
LA SECCION EN ESPAÑOL EMPIEZA EN LA PAGINA 17.
AVANTI HAS A POLICY OF CONTINUOUS IMPROVEMENT ON ITS PRODUCTS AND RESERVES THE RIGHT TO CHANGE
MATERIALS AND SPECIFICATIONS WITHOUT NOTICE.
AVANTI PRODUCTS, A DIVISION OF THE MACKLE CO., INC.
P.O. BOX 520604 - MIAMI, FLORIDA 33152
WWW.AVANTIPRODUCTS.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM320299 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avanti IM320299

Summary of Contents for Avanti IM320299

  • Page 1 INSTRUCTIONS. LA SECCION EN ESPAÑOL EMPIEZA EN LA PAGINA 17. AVANTI HAS A POLICY OF CONTINUOUS IMPROVEMENT ON ITS PRODUCTS AND RESERVES THE RIGHT TO CHANGE MATERIALS AND SPECIFICATIONS WITHOUT NOTICE. AVANTI PRODUCTS, A DIVISION OF THE MACKLE CO., INC.

  • Page 2: Ice Maker Safety

    YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT. WE HAVE PROVIDED MANY IMPORTANT SAFETY M ESSAGES IN THIS MANUAL AND ON YOUR APPLIANCE. ALWAYS READ AND OBEY ALL SAFETY MESSAGES. THIS IS THE SAFETY ALERT SYMBOL. THIS SYMBOL ALERTS YOU TO POTENTIAL HAZARDS THAT CAN KILL OR INJURE YOU AND OTHERS.

  • Page 3: Important Safeguides

    IMPORTA NT SAFEGUIDES BEFORE THE APPLIANCE IS USED, IT MUST BE PROPERLY POSITIONED AND INSTALLED AS DESCRIBED IN THIS MANUAL,SO READ THE MANUAL CAREFULLY. TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY WHEN USING THE APPLIANCE, FOLLOW BASIC PRECAUTION, INCLUDING THE FOLLOWING: PLUG INTO A GROUNDED 3- PRONG OUTLET, DO NOT REMOVE GROUNDING PRONG, DO NOT USE AN AD A PTER, AND DO NOT USE AN EXTENSION CORD.

  • Page 4: Registration Information

    REGISTRATION INFORMATION THANK YOU FOR PURCHASING THIS FINE AVANTI PRODU CT. PLEASE FILL OUT THIS CARD AND RETURN IT WITHIN 100 DAYS OF PURCHASE TO RECEIVE THESE IMPORTANT BENEFITS AND RECEIVE THESE IMPORTANT BENEFITS TO THE FOLLOWING ADDRESS: AVANTI PRODUCTS, A DIVISION OF THE MACKLE CO., INC.

  • Page 6: Help Us And Help You

    KEEP IT HANDY TO ANSWER YOUR QUESTIONS. IF YOU DON'T UNDERSTAND SOMETHIN G OR YOU NEED MORE ASSISTANCE, PLEASE CALL: AVANTI CUSTOMER SERVICE 800-220-5570 KEEP PROOF OF ORIGINAL PURCHASE DATE (SUCH AS YOUR SALES SLIP) WITH THIS GUIDE TO ESTABLISH THE WARRANTY PERIOD.

  • Page 7: Parts And Features

    P ARTS AND FEATURES 1. ICE BUCKET 2. WINE BOTTLE SHELF 3. STRAIGHT SHELF 4. BOTTOM RACK 5. TEMPERATURE CONTROL 6. ON/OFF POWER SWITCH 7. BOTTOM GRILLE 8. DOOR BINS...

  • Page 8: Table Of Contents

    INTIAL START-UP ICE MAKING OPERATION CARE AND MAINTENANCE CLEANING YOUR APPLIANCE POWER FAILURE VACATION TIME/STORAGE MOVING YOUR APPLIANCE ENERGY SAVING TIPS TROUBLE SHOOTING GUIDE SERVICE FOR YOUR APPLIANCE YOUR AVANTI PRODUCTS WARRANTY WIRING DIAGRAM INSTRUCCIONES EN ESPAÑOL T ABLE OF CONTENTS 17~20...

  • Page 9: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ?WARNING? READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. DANGER OR WARNING: RISK OF CHILD ENTRAPMENT. CHILD ENTRAPMENT AND SUFFOCATION ARE NOT PROBLEMS OF THE PAST. JUNKED OR ABANDONED APPLIANCES ARE STILL DANGEROUS. . . EVEN IF THEY WILL “JUST SIT IN THE GARAGE A FEW DAYS.”...

  • Page 10: Electrical Connection

    PRONG FROM THE POWER CORD. ANY QUESTIONS CONCERNING POWER AND OR GROUNDING SHOULD BE DIRECTED TOWARD A CERTIFIED ELECTRICIAN OR AN AUTHORIZED AVANTI PRODUCTS SERVICE CENTER. ELECTRICAL CONNECTION IMPROPER USE OF THE GROUNDED PLUG CAN RESULT IN THE RISK OF ELECTRICAL SHOCK.

  • Page 11: Reversing The Door Swing Of Your Appliance

    IN THIS UNIT, THE CONTROL DIAL IS ALSO USED FOR SETTING THE TEMPERATURE IN THE ICE MAKER REFRIGERATOR SECTION USING POSITIONS 1 TO 4 (4 BEING THE COLDEST). 4. MAKE SURE THE WATER SUPPLY IS ON. AS SOON AS THE INNER MECHANISM REACHES THE PROPER TEMPERATURE, THE ICEMAKER MECHANISM WILL FILL THE MOLD WITH WATER.

  • Page 12: Care And Maintenance

    CARE AND MAINTENANCE CLEANING YOUR APPLIANCE TURN THE SWITCH CONTROL TO "OFF", UNPLUG THE APPLIANCE AND REMOVE BUCKET. WASH THE INSIDE WITH A WARM WATER AND BAKING SODA SOLUTION. THE SOLUTION SHOULD BE ABOUT 2 TABLESPOONS OF BAKING SODA TO A QUART OF WATER. WASH THE BUCKET WITH A MILD DETERGENT SOLUTION.

  • Page 13: Troubleshooting Guide

    PROBLEMS WITH YOUR APPLIANCE? YOU CAN SOLVE MANY COMMON APPLIANCE PROBLEMS EASILY, SAVING YOU THE COST OF A POSSIBLE SERVICE CALL. TRY THE SUGGESTIONS BELOW TO SEE IF YOU CAN SOLVE THE PROBLEM BEFORE CALLING THE SERVICER. TROUBLESHOOTING GUIDE PROBLEM APPLIANCE DOES NOT OPERATE.

  • Page 14: Service For Your Appliance

    PROFESSIONAL SERVICE TECHNICIANS THAT PROVIDE SERVICE ON YOUR AVANTI APPLIANCE. WITH THE PURCHASE OF YOUR AVANTI APPLIANCE, YOU CAN BE CONFIDENT THAT IF YOU EVER NEED ADDITIONAL INFORMATION OR ASSISTANCE, THE AVANTI PRODUCTS CUSTOMER SERVICE TEAM WILL BE HERE FOR YOU. JUST CALL US TOLL-FREE.

  • Page 15: Your Avanti Products Warranty

    YOUR AVANTI PRODUCTS WARRANTY WHAT IS COVERED LIMITED ONE- YEAR WARRANTY FOR ONE YEAR FROM THE DATE OF PURCHASE BY THE ORIGINAL OWNER, AVANTI PRODUCTS WILL, AT ITS OPTION, REPAIR OR REPLACE ANY PART OF THE APPLIANCE WHICH PROVES DEFECTIVE MATERIAL WORKMANSHIP UNDER NORMAL USE.

  • Page 16: Wiring Diagram

    WIRING DIAGRAM...

  • Page 17: Instrucciones En Español

    INSTRUCCIONES EN ESPAÑOL PRECAUCION LEA TODAS LAS INSTRUCCIONES ANTES DE USAR SU ELECTRODOMESTICO. PELIGRO O PRECAUCION: EXISTE EL RIESGO QUE LOS NIÑOS QUEDEN ATRAPADOS. NIÑOS ATRAPADOS O SOFOCAMIENTO NO SON UN PROBLEMA DEL PASADO. LOS ELECTRODOMESTICOS SON PELIGROSOS AUN SI SOLO LOS DEJA EN EL GARAJE POR UN PAR DE DIAS.
  • Page 18 ELECTRODOMESTICO ESTA CORRECTAMENTE INSTALADO A LA CORRIENTE ELECTRICA Y A TIERRA. SI EL CORDON DEL ENCHUFE DEL ELECTRODOMESTICO SE ENCUENTRA DAÑADO, DEBE SER REEMPLAZADO POR EL SERVICIO TECNICO DE AVANTI PRODUCTS. EL CORDON DEL ENCHUFE ESTA EQUIPADO CON TRES PUNTAS QUE ENCAJAN PERFECTAMENTE EN UN ENCHUFE DE PARED STANDARD PARA REDUCIR EL RIESGO DE UN CHOQUE ELECTRICO.
  • Page 19 1. CONECTE EL APARATO A UN ENCHUFE DE PARED DE 120V AC, POLARIZADO Y CON SALIDA A TIERRA. 2. PARA PRODUCIR HIELO, ENCIENDA LA UNIDAD COLOCANDO EL INTERRUPTOR EN LA POSICION “ON”. 3. COLOQUE EL CONTROL DE TEMPERATURAS EN LA POSICION 5 ó 6 (MARCADO ICE MAKING).
  • Page 20 CUIDADO Y MANTENIMIENTO ? LIMPIANDO SU MAQUINA DE HACER HIELO EMPUJE EL CONTROL A “0FF”. DESCONECTE EL APARATO Y RETIRE LOS HIELOS. LAVE EL INTERIOR CON AGUA TIBIA Y UN PAÑO SUAVE REMOJADO EN UNA SOLUCION DE BICARBONATO DE SODIO. LA SOLUCION CONSISTE EN 2 CUCHARADAS DE BICARBONATO DE SODIO EN UN LITRO DE AGUA.

This manual is also suitable for:
