Summary of Contents for Crown Royal Stoves RS7300MP

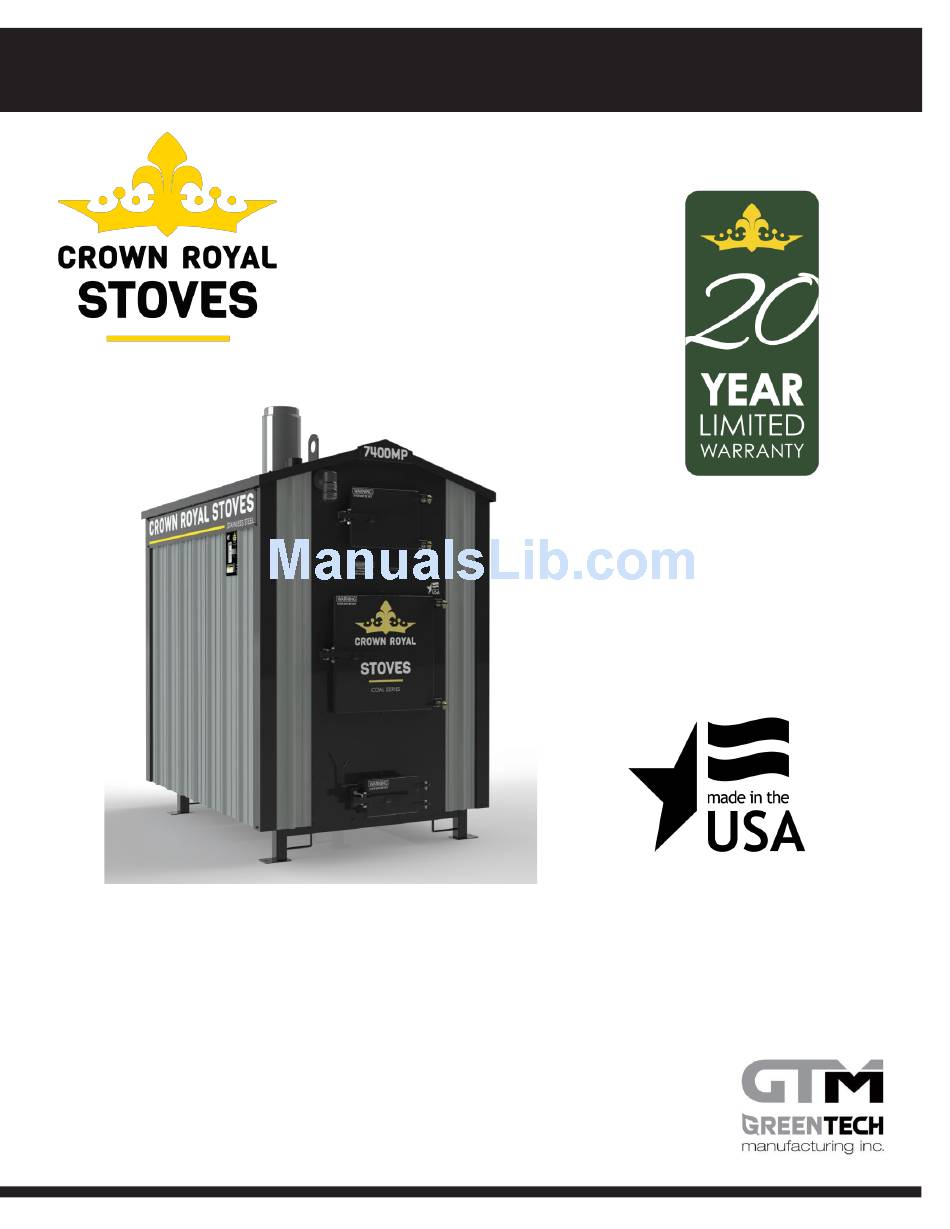

- Page 1 OWNER’ S MANUAL Models: RS7300MP • RS7400MP Installation, Operation & Maintenance Manual RETAIN THIS MANUAL CONSERVEZ CE MANUEL UL 391, UL 726 & CSA B366.1 Ph: 866-361-7355 Mailing: PO Box 1237 Shipping: 2716 Crescent Dr Fax: 218-283-5786 International Falls, MN 56649...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTIONS/SPECIFICATIONS ......................5 BEST BURN PRACTICES ..........................7 SAFETY INSTRUCTIONS & PRECAUTIONS ....................9 INSTALLATION............................10 CONCRETE PAD DIMENSIONS ........................11 CHIMNEY REQUIREMENTS ........................12 TRANSFER LINES ............................13 WATER & ELECTRICAL CONNECTIONS ...................... 14 PIPING INSIDE BUILDINGS ......................... 14 WIRING INSIDE BUILDINGS ........................ - Page 5 We know that you will be pleased with our continued commitment to your satisfaction while you enjoy the benefits of heating with a Crown Royal Stove. Crown Royal Stoves are manufactured with quality workmanship and designed to offer you value now and years to come.
-
Page 7: Best Burn Practices
BEST BURN PRACTICES Learn how to get the best burn possible from your Crown Royal Stoves. Instructions - Read and follow all operating instructions supplied by Greentech Manufacturing Inc. Fuels - Only burn coal which is the only approved fuel for your Crown Royal Stove. Burning materials not recommended play a major role in visible emissions. -
Page 9: Safety Instructions & Precautions
SAFETY INSTRUCTIONS & PRECAUTIONS • All installation and operations must follow federal, provincial, state, and local codes for wire plumbing, and installing chimney. • All work must be performed by qualified personnel only. • Read and understand all precautions before operating the furnace. •... -
Page 10: Installation
PRE - INSTALLATION All installation and operations must follow federal, provincial, state, and local codes for wire plumbing, and installing chimney. All work must be performed by qualified personnel only. Location When choosing the location of your furnace you should consider prevailing wind direction, distance from home for refueling and storage, and give consideration for any effect of your neighbors. -
Page 11: Concrete Pad Dimensions
CONCRETE PAD DIMENSIONS 7300MP 7400MP 49" 56" 62" 73" 13.5" 15" 13.5" 15" 6.5" 6.25" 6.5" 6.25"... -
Page 12: Chimney Requirements
(2) feet higher than the peak of the tallest roof. It is recommended that only a double insulated, stainless steel, Class A chimney pipe to be used. The RS7300MP uses a six (6) inch diameter pipe and the RS7400MP uses an eight (8) inch diameter pipe. -
Page 13: Transfer Lines
TRANSFER LINE - INSTALLATION Underground insulated pipe is a crucial part of your installation. It is designed to transfer hot water from your furnace to your home, garage or shop. Selecting the correct underground pipe depends on several factors such as climate and distance. Choosing a pipe with the least possible heat loss is the most effective way to ensure your furnaces efficiency. -
Page 14: Electrical Requirements
INSTALLATION Making Water and Electrical Connections at the Stove • After the stove has been placed on the concrete or pads, remove the panel at the back of the stove. • The return (cold water) pipe must be connected to the fitting at the upper position and the supply (hot water) at the fitting toward the bottom of the stove. -
Page 15: Existing Hot Water Heat
EXISTING HOT WATER HEAT - INSTALLATION ALL INSTALLATIONS AND OPERATIONS MUST FOLLOW FEDERAL, PROVINCIAL, STATE, AND LOCAL CODES FOR WIRING, PLUMBING AND INSTALLING CHIMNEY. ALL WORK MUST BE PERFORMED BY QUALIFIED PERSONAL ONLY. It is recommended that piping used is able to withstand 100 PSI at 180 F, and is at least 1” (inch) in diameter. 1 1/4 “(Inch) piping is recommended for larger systems. - Page 16 WIRING DIAGRAM FOR GAS BOILER - INSTALLATION Put ‘strap on Aqua stat on the supply side of the water-line from outdoor furnace. Run thermostat wire from the ‘strap on Aqua stat to R and G of fan control center. Run 115V power to white and black wire of fan center coil. Break one wire of gas boiler Aqua stat. Hook one side of wire to brown wire of fan control center contact.
-
Page 17: Domestic Hot Water & Forced Air
DOMESTIC HOT WATER & FORCED AIR - INSTALLATION ALL INSTALLATIONS AND OPERATIONS MUST FOLLOW FEDERAL, PROVINCIAL, STATE, AND LOCAL CODES FOR WIRING, PLUMBING AND INSTALLING CHIMNEY. ALL WORK MUST BE PERFORMED BY QUALIFIED PERSONAL ONLY. DOMESTIC HOT WATER The Domestic Hot Water Flat plate Kit consists of a Water to Water Heat Transfer unit and the fittings needed to hook it up. The unit goes on top of the domestic hot water heater and is connected as shown below. -
Page 19: Brazed Plate
BRAZED PLATE - INSTALLATION Brazed Plate Water to Water Exchanger The Brazed Plate water to water exchanger can be installed on either the cold side or the hot side of the hot water heater. If installed on the cold side, the hot water heater needs to be left on to maintain the temperature in the hot water heater. -
Page 20: Water To Air
WATER TO AIR SETUP - INSTALLATION Water to Air Heat Exchangers are for use in your hot air plenum of your existing forced air furnace, to transfer heat into your existing forced air system. PART NUMBER DESCRIPTION 10-007 1-1/4” COPPER ADAPTER C X FEMALE 15-003 1”... -
Page 21: Stove Components
Water Level Switch Grate Indicator Crown Royal Frame Ash Pans 490043 Upper Blower Damper 490055MP – Plate – 3.75” RS7300MP 490043 Lower 490049MP- Blower Damper RS7400MP Plate – 4.5” Control Chemical & Water Test Bottles – Free Annual Water Testing... -
Page 23: Control Panel
CONTROL PANEL The aqua stat powers the inducer draft blower to maintain the desired water temperature. The aqua stat is set at 160°F at the factory, which means the inducer will run until the water in the jacket reaches 160°F. As the outside air temperature drops as the season progresses into the winter the settings can be raised to a high of 180°F. -
Page 24: Start-Up & Operation
REEREERE START UP & OPERATION FILLING THE WATER JACKET Your outdoor furnace has a vent pipe that protrudes through the roof and is behind the chimney. By placing a garden hose in this pipe you can fill your furnace to the proper water level. Because this furnace is an open-to-atmosphere system, it is normal that water will have to be added annually. -
Page 25: Safety
OPERATION DAILY FUELING & FIRING ROUTINE Prior to opening the fuel door, pull the damper plate rod out, turn the inducer fan switch off and wait 60 seconds. After the 60 seconds has passed, open the fuel door slowly and stand behind the door so that the door is between you and the fire box. Allow another 60 seconds to pass before raking the coals, shaking down the ashes, cleaning the heat exchanger and filling the fire box. -
Page 26: Starting A Coal Fire
Once the coal is completely covering the grates and glowing orange you can load more coals and shut the damper controls. Do not fill the unit with more coal than as stated below. RS7300MP:60 LBS. RS7400MP: 80 LBS. -
Page 27: Maintenace
MAINTENANCE Usage of authorized Control chemical is required in all Crown Royal Stoves. To uphold your warranty annual water testing is necessary. Do not allow moisture to come in contact with ashes in firebox or heat exchanger. It is mandatory to have a rain cap on the termination of your chimney. -
Page 28: Creosote Formation & Removal
MAINTENANCE ASH REMOVAL, ROTATION & DISPOSAL CREOSOTE FORMATION & REMOVAL CAUTION! Ashes should never be allowed to accumulate above When fuel is burned, organic vapors and tar combine with the top of the pan. Ashes in contact with the bottom of the expelled moisture forming creosote, which clings to the interiors grates act as an insulator, thus intensifying the heat on the of the stove. -
Page 29: Troubleshooting
TROUBLESHOOTING If the furnace fails to heat up: • Check fire. • Check fan for operation. • Check that solenoid damper is open to allow air velocity. • Check water level of furnace. • Check for creosote blockage at chimney and bypass trough. •... - Page 31 Light Solenoid Solenoid Control Panel High Limit Aqua Stat Fan Speed Blower Blower Switch Solenoid Solenoid Load/Line/Neut Blue Red (to Blower) Blower Grn= Green Blk= Black Wht= White Red= Red Yel= Yellow = Wire nut GREENTECH MANUFACTURING INC. Blk Wht Grn www.green-techmfg.com P:866.361.7355 F:218.283.5786 MATERIAL...
-
Page 33: Smoke Troubleshooting
April 2004 Smoke Troubleshooting Checklist For Outdoor Furnaces Installation Issues (Improper Smoke Dispersal) Chimney height relative to nearest downwind neighbor If located 50 feet or less to any residence not served by the furnace, it is recommended that the stack be at least 2 feet higher than the eave line of that residence. - Page 34 Gasoline Rubber or tires Naphtha Material coated with petroleum products (e.g., particle board, railroad ties, pressure-treated wood) Leaves Paper products or cardboard III. Operational Issues Improper combustion air – Natural Draft Units (No Blower): Air inlet not restricted by debris (creosote, ash, etc.) Flame baffle/flue not restricted by debris Chimney not restricted by debris Door seal in satisfactory condition (provides air-tight seal when door is shut)
- Page 35 Discussion Wood, like other fuels is made up of various amounts of carbon, hydrogen, and other elements. The burning of wood is a chemical reaction that depends on many factors. The essential factors to complete wood burning are time, temperature, and turbulence. Some other factors to take into consideration are: intake air; amount and placement, density and moisture content of the fuel, size of the firebox compared to the size of the wood load, and adequate room for the combustion process to take place.
- Page 36 Burning materials not recommended by the manufacturer can play a major role in visible emissions. Materials such as plastics, garbage, rubber tires, and even wood products such as cardboard and paper that may be coated with petroleum products may emit excessive smoke. Fire starters such as gasoline, oil, and other chemicals can also make an ordinary wood fuel load seem very dirty once burned.
- Page 37 help reduce smoke is to only burn fuels recommended by the manufacturer and to not overload the furnace. In addition, the furnace size should be properly matched to the heat load so that cold starts and overfilling are avoided. Chimney height should be in accordance with the state and local codes, as well as surroundings, including neighbors.
- Page 39 AUTHORIZED FURNACE TREATMENT Greentech Manufacturing Inc. requires the usage of authorized furnace treatment to be used in all Crown Royal Stoves. Treatment is to be added to furnace water upon initial start up and is required to remain at satisfactory levels thought the life of the stove.
- Page 40 FURNACE TREATMENT PROCEDURE Initial Start-up Procedure for Water Treatment All Crown Royal Stoves purchases are required to purchase authorized water treatment for initial start-up. With each gallon of treatment you will be provided with two sample bottles and furnace information forms.
-
Page 41: Mandatory Water Treatment
Follow directions for collection of water sample and mail to facility for testing annually. Purchasing Water Treatment Water Treatment is specially formulated for Crown Royal Stoves. To uphold warranty no other chemical may be substituted. We encourage customers to contact your local dealership or call 866-361-7355 to purchase additional water treatment when needed. -
Page 42: Emergency Procedures
EMERGENCY PROCEDURE FOR CHEMICAL EMERGENCY FIRST AID PROCEDURES FOR FURNACE TREATMENT EMERGENCY PHONE NUMBER 1-800-424-9300 INHALATION: Remove from the area to fresh air. If not breathing, clear the airway and start mouth to mouth artificial respiration. GET IMMEDIATE MEDICAL ATTENTION. EYE CONTACT: Immediately rinse the eyes with water. - Page 43 20 YEAR LIMITED WARRANTY Thank you for making the choice to purchase your new Crown Royal Stove. We are certain that you will find great satisfaction with your stove’s ongoing reliability and performance. Greentech Manufacturing, Inc. warrants this furnace, to the original owner, to be free of defects in material and workmanship for a period of twenty (20) years from the date of purchase.
-
Page 45: Warranty
Warranty Claim Form Warranty Claim Form Date: Distributor/Dealer Name: Address: City: State: Zip: Phone: Fax: Customer’s Name: Address: City: State: Zip: Phone: Fax: Claim conditions apply and cannot exceed warranty statement and procedure policy! Please send this form, bill of sale and pictures back to jessica@green-echmfg.com. arranty work completed without prior authorization may be denied. - Page 46 Warranty Claim Form Have you turned in a warranty claim before? YES or NO If yes, is the leak in the same place? Yes or No Additional Notes or Comments: ______________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ Repairs Required: _________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
- Page 47 Please mark the affected area of the stove on the diagram below.
- Page 48 ...
-
Page 49: Precautions
16E09-101 Universal Electronic Temperature Control INSTALLATION AND OPERATION INSTRUCTIONS Save these instructions for future use! DESCRIPTION The 16E09-101 is a single stage electronic temperature con- trol, with a Nema 1 rated enclosure, and can be used for most applications within the temperature control range of -40° to 220°F, (-40°... -
Page 50: Installation
INSTALLATION To prevent electrical shock and/or equipment dam- The control has a user selection for changing the setpoint to age, disconnect electric power to system at main be either the Cut In or the Cut Out setting. The user must be fuse or circuit breaker box prior to installation or careful to understand how this effects the “range”... -
Page 51: Wiring
WIRING Wiring Instruction Notes Fig. 3 Line Voltage Application (Power Stealing) Switch Settings Alarm Output For optional connection Switch SW2 must be set for applications as shown: to customer alarm equipment PTC* (See "Special Note" Temperature in "Operation Section" Sensor for Alarm) Line Voltage (Power Stealing) Line Voltage (Non Power Stealing) -
Page 52: User Menu
USER MENU USER MENU OPERATION SETTINGS: Each press of results in forward movement to the next The control has user Menu settings that will determine how Menu item. If you need to change an item “passed”, you the control operates. The unit is shipped with factory de- must repeatedly press , return to the operating mode, fault settings. -
Page 53: Operation
USER MENU Options Menu Factory Press Item Description Default to select Comments Binary Input On or Off The default setting of Off will have no affect on the operation of the thermostat. When set to On, it allows an external binary input (switch or relay) to start a tem- perature set back. - Page 54 OPERATION Lock Panel (LP) Temperature out of range – If the temperature is more than 5° from the setpoint, continuously for the length of time set in The keypad can be locked to prevent unwanted tampering AL, the alarm relay output will close. The delay should be set with the control settings.
-
Page 55: Specifications
SPECIFICATIONS Operating Ambient Ratings (Control Enclosure): Load Output Relay: Ratings (Maximum): Operating Temperature: -29°F to 140°F (-34° to 60°C) 120VAC 208VAC 240VAC Full Load Amps NC & Load 16 A 9.2 A Storage Shipping Ambient Ratings: Locked Rotor Amps NC & Load 96 A 55.2 A 48 A... -
Page 56: Troubleshooting
TROUBLESHOOTING LCD display, display back-light and green status indica- Temperature differential is wider than set: tor LED turn off in Power Stealing mode: - Temperature change of customer's unit is fast, and the This “off” condition is normal for the control in power stealing Anti Short Cycle delay setting may be overriding the “call”... - Page 57 ...
- Page 58 OWNER’ S MANUAL...
