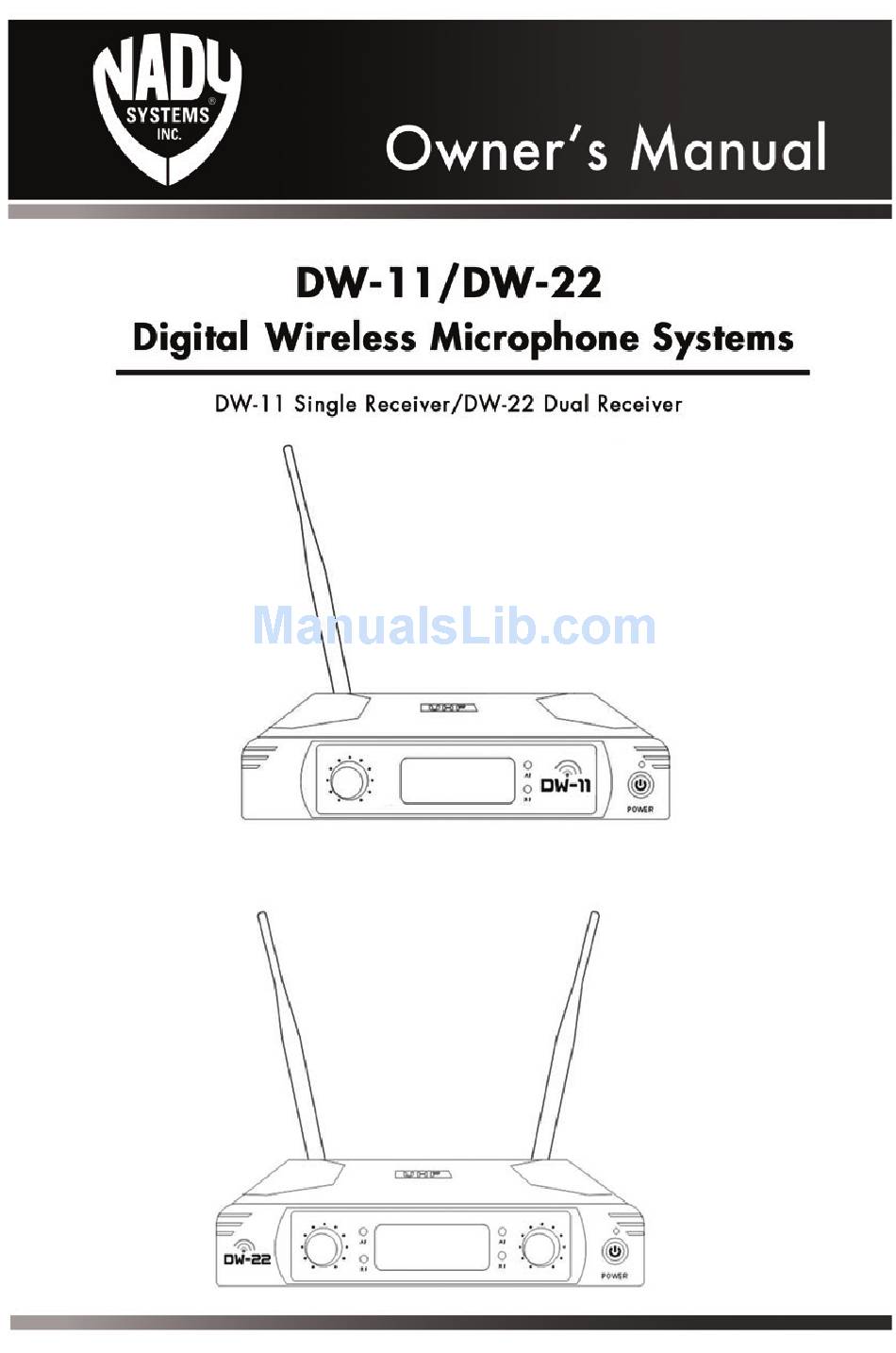

Nady Systems DW-11 Owner's Manual
  1. Manuals
  2. Brands
  3. Nady Systems Manuals
  4. Microphone
  5. DW-11
  6. Owner's manual

Nady Systems DW-11 Owner's Manual

Digital wireless microphone systems
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nady Systems DW-11

Summary of Contents for Nady Systems DW-11

  • Page 3: Table Of Contents

    Please read the instructions for your system completely before operating unit. This manual will first list the features of the DW-11/DW-22 systems and then will take you step by step to show you how to operate your new system. After reading the receiver instructions, turn to the section of the booklet that covers the type of transmitter used with your new system.

  • Page 4: System Features

    (DW-22 dual antennas). • Externally powered with included universal voltages 110V-220V AC / 13.5 VDC regulated 400mA adapter. • Optional RMT-1KUD available for rack mounting single or dual DW-11/DW-22 receivers. TRANSMITTERS • Choice of DIGITAL HT™ Handheld Microphone, and DIGITAL LT™ Bodypack Transmitter for operation with lavalier or headworn mics.

  • Page 5: Dw-11/Dw-22 Receivers

    4. Connecting the Audio Output The DW-11 and DW-22 receivers provide both a fixed Mic level BALANCED XLR (7) AUDIO OUTPUT and an adjustable line level UNBALANCED LINE/MIX 1/4” jack (8) AUDIO OUTPUT. Both ¼” and XLR outputs can be used at the same time. VOLUME CONTROL (6) is for UNBALANCED LINE/MIX 1/4”...
  • Page 6 6. LED Display The DW-11/DW-22 receivers are equipped with AF LED indicator (4) showing the audio present from the transmitter. If this LED lights continuously, decrease the volume to the Mic or overload distortion may result. The RF LED DISPLAY (3) showing the TRANSMITTERS(TX) is on.

  • Page 7: Digital Ht Handheld Microphone Transmitter

    2. Turn on the DIGITAL HT™ by sliding the POWER SWITCH (13) to turn on the TX first. The RF LED (3) on the DW-11/DW-22 receivers should now be lit, indicating a received signal from the transmitter. The BATTERY INDICATOR LED (12) will give a single quick flash, indicating usable battery strength.

  • Page 8: Digital Lt/Hm Bodypack Microphone Transmitter

    3. The microphone is now ready to use. When ready to speak, slide the audio POWER SWITCH (17) to the ON position. The RF LED (19) on the DW-11/DW-22 receivers should now be lit, indicating a received signal from the transmitter. Adjust the volume of the receiver per the Audio Output Microphone Connection section above.
  • Page 9 1/4” jack (8) AUDIO OUTPUT only. For separate control, use XLR outputs to each Mixer input, control the level from the Mixer. Power adapter connection as shown in the picture below. DW-11 and DW-22 Receiver Back ( showing the connection )

  • Page 10: Specifications

    Up to 11 Hours Digital HT™: 0.6lbs (272g) / 9.25”(L) X 2”(dia.) Weight and Dimensions : Digital LT™: 0.15lbs (68g)/ 2.5” X 4.25” X 0.5” (64 X 108 X 13mm) OPTIONAL ACCESSORIES RMT-1KUD rack tray for rackmounting either one or two DW-11/DW-22 receivers.

  • Page 11: Precautions And Troubleshooting

    PRECAUTIONS AND TROUBLESHOOTING Audio Feedback Avoid acoustic feedback (howling or screeching) by taking care in selecting P.A. volume, transmitter location and speaker placement. [ Note: the pickup pattern characteristics of the microphone selected: Unidirectional microphones are more resistant to feedback. However, they pick up sound sources best that are directly in front of the microphone.

  • Page 12: Miscellaneous Useful Tips

    MISCELLANEOUS USEFUL TIPS • The receiver antennas should be kept away from any metal surfaces whenever possible as they can reflect away or shield the incoming RF signal. • If the receiver’s volume control is set too high, it may overdrive the input of the attached audio mixer, causing distortion.

  • Page 13: Warranty

    3) Per the above, Nady will perform all warranty service and return the unit to you at no charge. Nady Systems will inform the buyer if product sent in does not meet the terms of this warranty and will provide a quote for fixing the unit and/or shipping it back exclusively at the buyer’s...

  • Page 14: Service

    Outside the U.S. For service or warranty matters please contact the Nady Systems, Inc. distributor in your country through the dealer/store from which you purchased this product. Do not attempt to service this unit by yourself as it can...
