Summary of Contents for OptoTest OP720

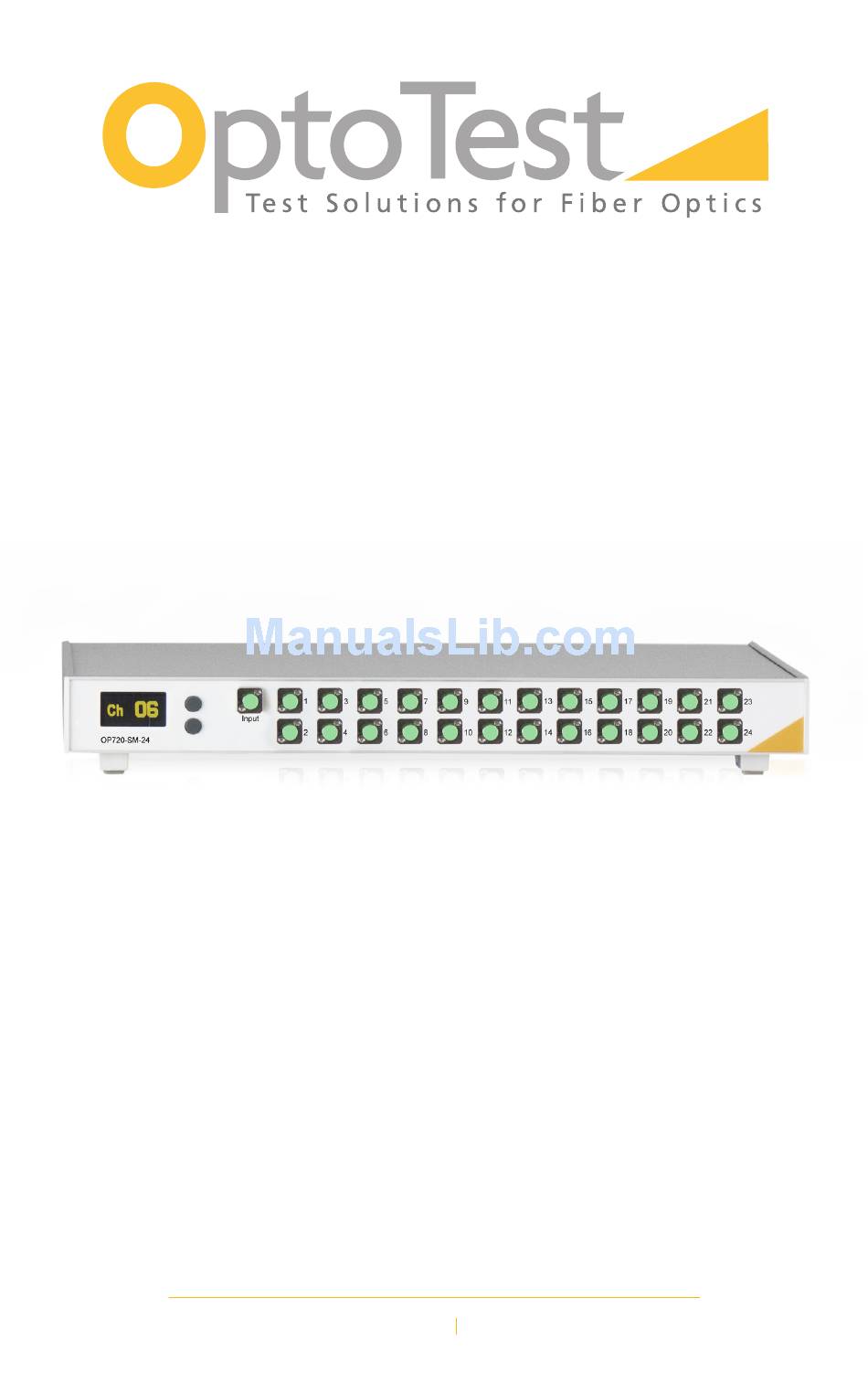

- Page 1 OP720 Multichannel Optical Switch Instruction Manual www.optotest.com 1.805.987.1700...
- Page 2 The design concepts and engineering details embodied in this manual, which are the property of OptoTest Corporation, are to be maintained in strict confidence. No element or detail of this manual is to be spuriously used or disclosed without the express written permission of OptoTest Corporation.
-
Page 3: Table Of Contents
OP720 Table of Contents Overview Features Initial Preparation Front Panel Operation & Display Multichannel Configuration Bidirectional Configuration USB Control of the OP720 Warranty Information 2 of 7... -
Page 4: Overview
OP720 Overview The OP720 is an optical switch for single mode or multimode applications available in a slim-line, ultra-compact frame. This optical switch is USB powered and incorporates the latest technology in high-speed switching. With high repeatability and low loss, the OP720 is ideally suited for high channel count optical devices such as DWDM, waveguides, and splitters. -
Page 5: Initial Preparation
Please retain the shipping container in case re-shipment is required for any reason. Damaged In Shipment All instruments are shipped F.O.B. Camarillo when ordered from OptoTest. If you receive a damaged instrument you should: 1. Report the damage to your shipper immediately. -
Page 6: Front Panel Operation & Display
OP720 Front Panel Operation & Display Multichannel Configuration Next Channel Current Previous Channel Channel Channel Selection By pressing the top button the instrument display switches to the next channel, it will loop at the last channel to the first channel. Similarly the bottom button switches the instrument to the previous channel. -
Page 7: Bidirectional Configuration
OP720 Front Panel Operation & Display Bidirectional Configuration Toggle Toggle Mode Mode Toggle Toggle Mode Current Mode Current Mode Mode Bar Mode Crossed Mode Mode Selection Both push buttons allow the user to toggle between crossed mode or bar mode. -
Page 8: Usb Control Of The Op720
OP720 USB Control of the OP720 The OP720 can be controlled via the USB bus. Upon request, OptoTest can supply the appropriate DLLs along with sample programs to facilitate the software creation process. For these DLLs please contact sales@optotest.com. Warranty Information OptoTest Corp. - Page 9 For Application Notes, more detailed Testing Instructions, and the most up-to-date OptoTest www.optobuzz.com News go to...
- Page 10 1.805.987.1700...
