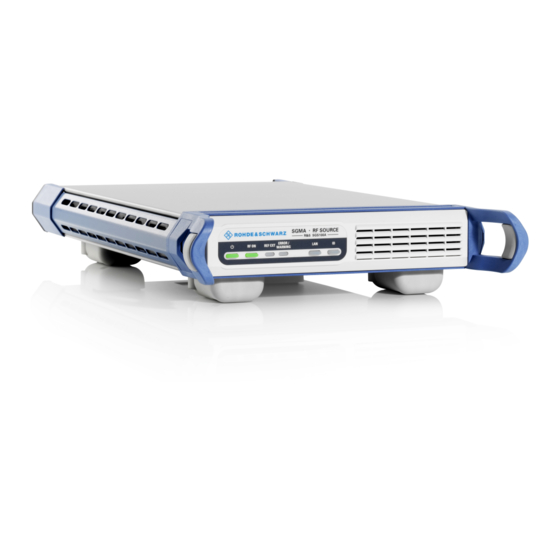

Rohde & Schwarz SGS100A Manual
Sgma rf source instrument security procedures
Hide thumbs
Also See for SGS100A:
- User manual (324 pages) ,
- Instrument security procedures (8 pages) ,
- User manual (326 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rohde & Schwarz SGS100A
Summary of Contents for Rohde & Schwarz SGS100A

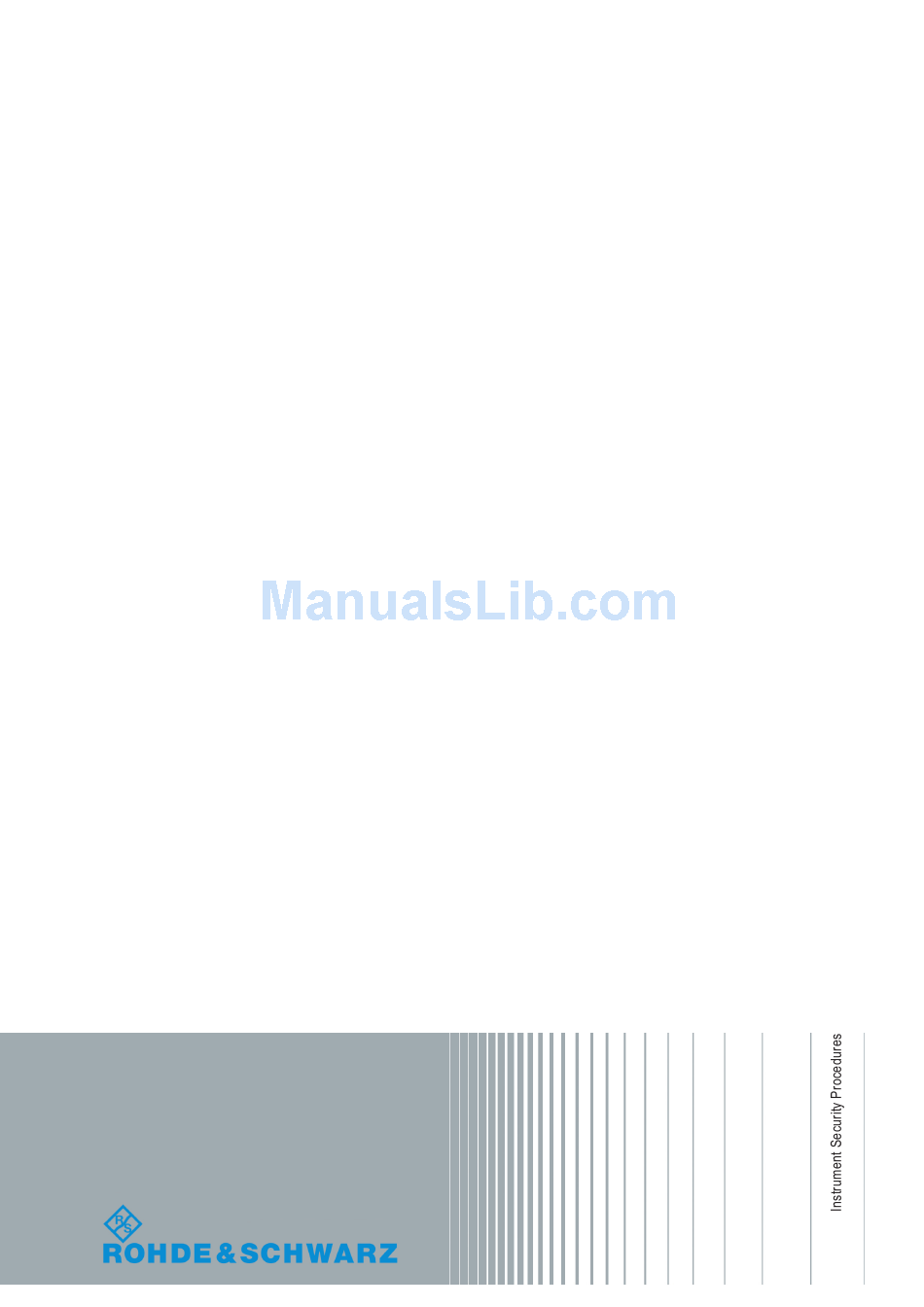

- Page 1 ® R&S SGS100A SGMA RF Source Instrument Security Procedures (;ÙÍP2) 1175.6332.02 ─ 04...
- Page 2 US Defense Security Service (DSS). 2 Instrument Models Covered Table 2-1: SGMA RF Source models Product name Order number R&S SGS100A 1416.0505.02 The SGMA RF Source base unit must be ordered together with one of the following frequency options: ●...
- Page 3 ® Security Terms and Definitions R&S SGS100A 3 Security Terms and Definitions Clearing The term "clearing" is defined in Section 8-301a of DoD 5220.22-M, "National Industrial Security Program Operating Manual (NISPOM)". Clearing is the process of eradicating the data on media so that the data can no longer be retrieved using the standard inter- faces on the instrument.
- Page 4 ® Types of Memory and Information Storage in the R&S SGS R&S SGS100A Non-Volatile Memory Memory type Size Content Volatility User Sanitization Data procedure SDRAM (CPU 256 Mbyte Temporary information storage Volatile Turn off instru- board) for operating system and...
- Page 5 ® Types of Memory and Information Storage in the R&S SGS R&S SGS100A Non-Volatile Memory All non-volatile memories of the R&S SGS are not a security concern. EEPROM The RF module as well as the processor module of the R&S SGS SGMA RF Source are equipped with in total four serial EEPROM devices with a size of 4 kbyte up to 1 Mbyte.
- Page 6 ® Instrument Declassification R&S SGS100A instrument operation nor can they be modified in parts. During firmware update, they are replaced in total. In the remaining JFFS area the following information is stored: – User data and instrument settings (automatically or manually saved instrument setups) –...
- Page 7 ® Special Considerations for USB Ports and LAN Services R&S SGS100A Special Considerations for USB Ports After a few seconds, the maintenence system is indicated by flashing LEDs. Sanitizing starts now. Erasing the Flash memory is indicated by a running red LED.
- Page 8 When disabled, no LAN connection can be established with the instrument. The enable/disable state of the LAN port is stored on the Flash memory. For more information concerning the security features, refer to the R&S SGS100A Operating Manual. © 2017 Rohde & Schwarz GmbH & Co. KG Mühldorfstr.
