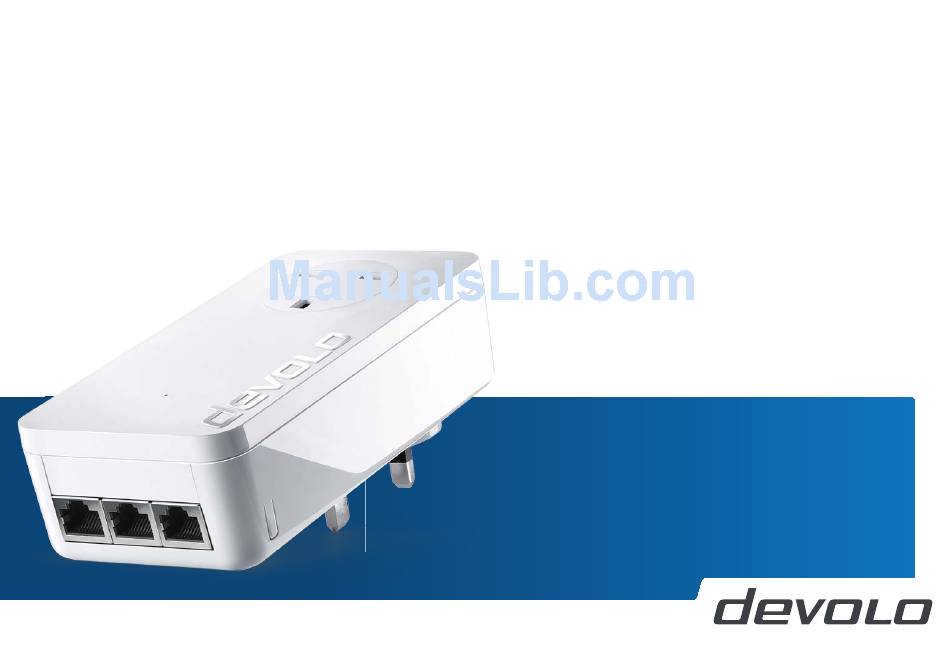

- Page 1 dLAN® 1200 triple + Manual The Network Innovation...
- Page 2 ® devolo dLAN 1200 triple+...
- Page 3 © 2017 devolo AG Aachen (Germany) While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only to the degree specified in the terms of sale and delivery.
-
Page 4: Table Of Contents
Activate encryption by means of devolo Cockpit ....... . . - Page 5 Warranty conditions ........... . . 26 devolo dLAN 1200 triple+...
-
Page 6: Preface
1 Preface Icons This section contains a brief description of the icons Thank you for placing your trust in this devolo used in this manual and/or on the rating plate, the product. device connector, as well as the icons used on the... - Page 7 Additional information, back- applicable European regulations ground material and configura- and has been subjected to the tion tips for your device. prescribed conformity assess- Indicates a completed course of ment procedures. action devolo dLAN 1200 triple+...
-
Page 8: Intended Use
In the event of damage, disconnect the The product conforms to the basic require- devolo device from the mains supply by pulling it or its ments of directives 2014/35/EU, 2014/30/ plug out of the electrical socket. Then contact qualified EU, 2011/65/EU and 2009/125/EC. -
Page 9: Devolo On The Internet
Do not insert any objects into the openings of with a connected earth wire devolo devices. devolo devices may be operated only on a mains devolo devices must not be placed directly next power supply as described on the rating plate. -
Page 10: Introduction
Networking via dLAN is fast and secure. The data is encrypted using a key to prevent interception by third parties. Fig. 1 devolo dLAN throughout the home devolo dLAN 1200 triple+... -

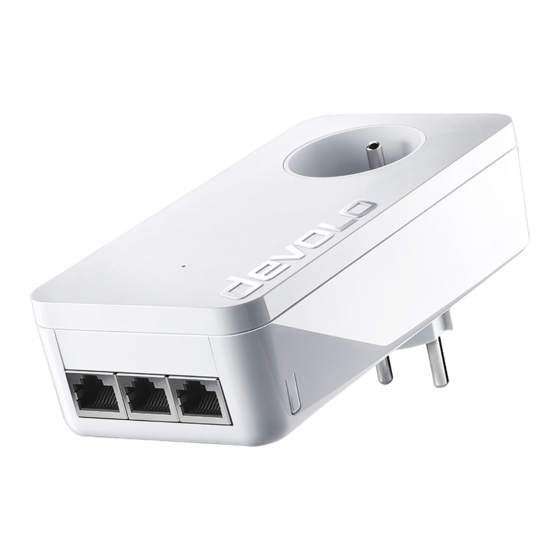

Page 11: The Dlan 1200 Triple
For more information about this, refer to 3.3 Connecting the dLAN 1200 triple+. Fig. 2 dLAN 1200 triple+ with country-specific connector and corresponding electrical socket devolo dLAN 1200 triple+... -
Page 12: Network Jacks
White Flashes at dLAN encryption ple+. The mains filter integrated into the dLAN 1200 intervals of 0.5 being established triple+ eliminates any noise of connected devices and sec. significantly improves data transmission in the (on/off) network. devolo dLAN 1200 triple+... -
Page 13: Initial Use
Hard copy of installation guide CE declaration This chapter tells you everything you need to know to devolo AG reserves the right to change the package set up and use your dLAN 1200 triple+. We describe contents without prior notice. -
Page 14: Connecting The Dlan 1200 Triple
For addition- interception protection, of the transmitted data. al technical information on our products, refer to the Service Centre area at www.devolo.com. The dLAN password can be set in different ways: 3.3.1 Starter Kit – Setting up a new dLAN... -
Page 15: Addition - Expanding An Additional Network
Cockpit: More information dLAN network encryption: can be found in Chapter 4.3 devolo Cockpit. dLAN network encryption: at the touch of a but- As soon as the white LED lights up steady on... -
Page 16: Removing A Dlan 1200 Triple+ From The Network
To integrate the device into a dif- ferent network after this, follow the steps described in Chapter 3.3 Connecting the dLAN 1200 triple+, depending on whether you are setting up a new net- work or adding the device to an existing one. devolo dLAN 1200 triple+... -
Page 17: Network Configuration
The dLAN password can be specified automatically by means of the encryption button or manually using the devolo Cockpit program. Please note the follow- ing basic principle when choosing your encryption method: For dLAN networks in which all associated dLAN devices are equipped with an encryp- Fig. - Page 18 17 Network configuration Fig. 4 Setting up dLAN encryption by means of the encryption button devolo dLAN 1200 triple+...
-
Page 19: Devolo Cockpit
Network configuration 18 4.3 devolo Cockpit The devolo Cockpit is a monitoring program that detects all accessible dLAN devices in your home network and combines them into one secure network. Fig. 5 The devolo Cockpit in action devolo dLAN 1200 triple+... -
Page 20: Installation Of Devolo Software
19 Network configuration 4.4 Installation of devolo software Downloading my devolo App The my devolo App is devolo's free app also for Installing devolo Cockpit software checking and configuring WiFi, dLAN and LAN connec- The devolo Cockpit computer program finds all... - Page 21 The adapter (Adapter settings). devolo Cockpit also offers you the option to centre the display of the adapter connected to the router. If you have multiple dLAN devices connected, you can switch between them.
- Page 22 21 Network configuration devolo Cockpit setting options on the lower The data sent to devolo pertains only to the per- edge of the screen: formance values of your dLAN devices. The in- formation is anonymised, statistically evaluated You can add a new dLAN adapter to your and used exclusively for the improvement of our present network using Add adapter.
-
Page 23: Activate Encryption By Means Of Devolo Cockpit
The selected dLAN adapter can be removed Scan for local adapter from the available dLAN network using Re- After devolo Cockpit is started, it starts by searching move Device. for the dLAN adapter connected directly to your computer. The above-mentioned setting options vary de-... - Page 24 "Show characters". If devolo Cockpit is called up again later after a suc- cessful initial installation, for example to integrate a new adapter into a network, the application remem- bers the devices that were entered earlier.
-
Page 25: Annex
Temperature (Storage/ -25°C to 70 °C / 0°C to 40°C Operating Dimensions (in mm, with- 143x72x41 (HxWxD) out plug) Ambient conditions 10-90% Humidity, non-con- densing Fig. 6 dLAN bandwidth optimisation Certifications CE Class B (EU, CH, NO) devolo dLAN 1200 triple+... -
Page 26: Disposal Of Old Devices
These types of devices may no longer be disposed of with household waste. Rather they can be given to a municipal collection point free of charge. Contact your municipal government to find out the address and hours of the nearest collection point. devolo dLAN 1200 triple+... -
Page 27: Warranty Conditions
War- if the damage occurred due to incorrect handling, especially to ranty services carried out by devolo do not result in an extension of non-observance of the system description and the operating the warranty period nor do they initiate a new warranty period. - Page 28 Claims for compensation of lost profits, indirect or consequen- tial detriments, are excluded. devolo is not liable for lost data or retrieval of lost data in cases of slight and ordinary negligence. In the case that the intentional or culpable negligence of...
- Page 29 Generating a secure password 23 Integrating the new adapter into the network 23 LAN (network connection) 11 LED status display 10 Network password 23 Package contents 12 Safety notes 7 Security ID 22 System requirements 12 devolo dLAN 1200 triple+...
