LG -H815 Service Manual page 99

7. PCB LAYOUT

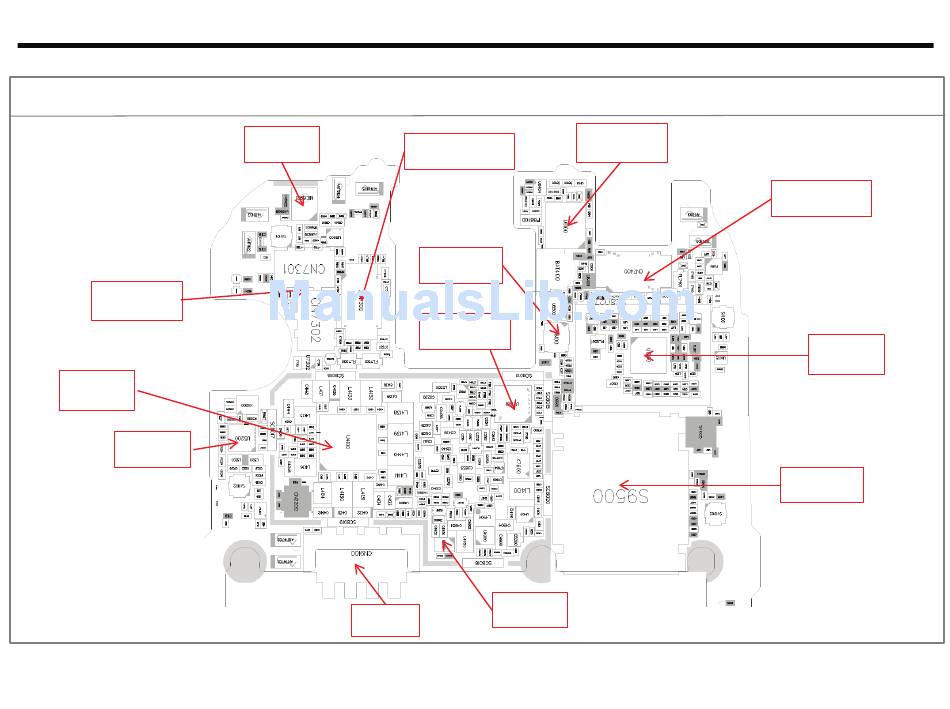

LG- H815 MAIN_BOT (1)
U6100(WCD)
MIC6921
CN7300
No Audio
No Sub Mic
No Main Camera
CN7400
No Front Camera
U8100(Gyro)
No Gyro Sensor
CN7301/7302
No Flash/LDAF
U7601
No Ext Display
U1300
No RF
U4100(PM)
No Power
U5200
No NFC
S9500
No SIM/SD
U4950
CN9100
No Memory
No Power
