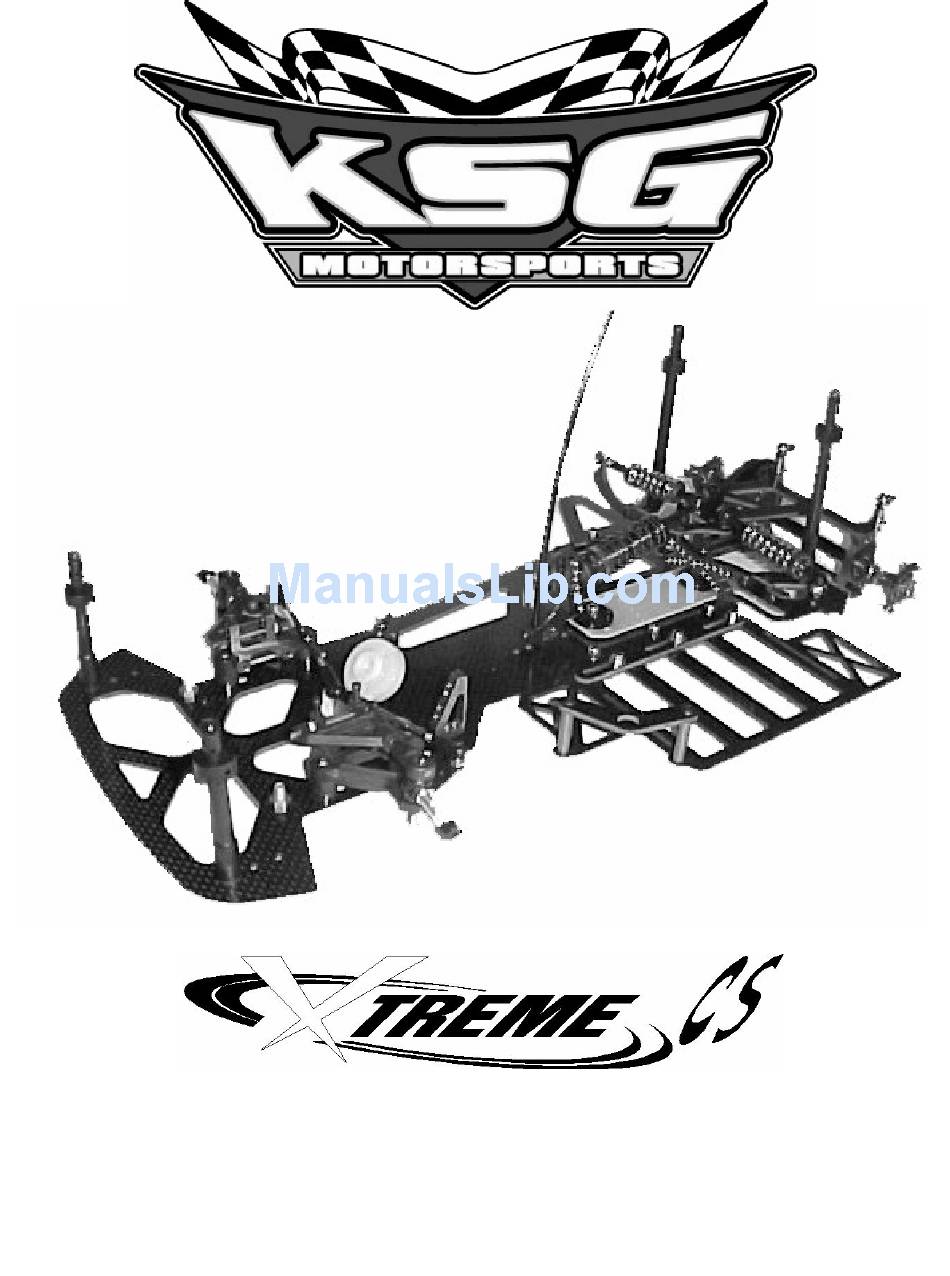

- Page 1 ARCOR & ROAR NATIONAL CHAMPION KSG Motorsports 319 1/2 Samlola Rd. Blountville, Tn 37617 423-323-3494...
- Page 2 We are pleased that you have purchased the most complete and competitive 1/10 oval car available today. The XCS (Xtreme Corner Speed) was designed and tested by Jim and Andy McClellan (2002 Arcor, Norrca, and Roar Pro Mod National Champion). We have tested and changed the design several times to ensure that the kit you have purchased will be very competitive when it hits the track for the very first time.
- Page 3 Your car kit comes with an Associated strut style front end. Follow the instructions included in the front end for assembly. We have included a set of KSG aluminum adjustable caster blocks (Bag A). These caster blocks will take the place of the stock ones that come with Fig.
- Page 4 The next step is very critical, so take your time in mounting the servo. (Bag A) The aluminum servo mounts are drilled with three holes so that you can move the servo front to rear, to adjust bump steer and ackerman, without re-drilling your chassis several times.
- Page 5 (Bag D) We are now going to assemble the pivot ball sockets and fasten them to the t-plate. *We suggest using 600 grit sandpaper to sand the steel balls and polishing them with polishing compound. * The sockets consist of two halves and one steel ball. Place the socket half with the shoulder on it into the t- plate.
- Page 6 proper alignment . Next place the .100 aluminum Fig. 7 spacer onto the center screw. Place the t-plate over these screws and fasten it with the locknuts. Attach the left and right bulkheads to the bottom plate with four 4-40x1/4 BHCS. Before we attach the top plate we need to place three ball studs in it.
- Page 7 cross mount with two 4-40x1/4FHCS, making sure that body posts are toward the rear of the car. The nerf wing is fastened with two 4-40x3/8FHCS and locknuts (Fig. 9). Your XCS comes with Associated VCS side and center Fig. 10 shocks.
- Page 8 The 1/4x3/8 un-flanged bearing goes on the outside of the diff hub. Now place one of the notched diff rings onto the axle making sure that the pin aligns in the notch. Now slide spur gear onto axle. Next slide diff hub with diff ring onto axle and down against spur gear making sure that both pins stay aligned in the diff rings.
-
Page 9: Bag Contents
BAG CONTENTS Bag A L&R caster block Twelve diff balls Four 2-56x3/8 SHCS Two .078 hinge pins Four .100 front end spacers Two titanium turnbuckles Two servo mounts Bag B Two 2 ½ body posts Two 3 ½ body posts Four body post collars Four 4-40x1/8 set screws Four body clips... - Page 10 STEP 1 STEP 2 STEP 3 STEP 4 STEP 5...
- Page 11 We want to again thank you for buying our product. To thank you we want to introduce you to a special Friend of ours. He loves and cares for us and has given his all for us. You may already have met Him and know Him personally. If so I’m sure you would agree that there is no greater Friend to be found.
- Page 12 Part # Description Pkg. Qty. Retail KSG-1000 XCS Car Kit $569.99 KSG-1010 XCS Chassis $79.99 KSG-1011 XCS Nerf $5.99 KSG-1012 XCS Bumper $24.50 KSG-1013 XCS Top Plate $15.99 KSG-1014 XCS Bottom Plate $15.99 KSG-1015 XCS VCS Side Shock Blue $17.99...
