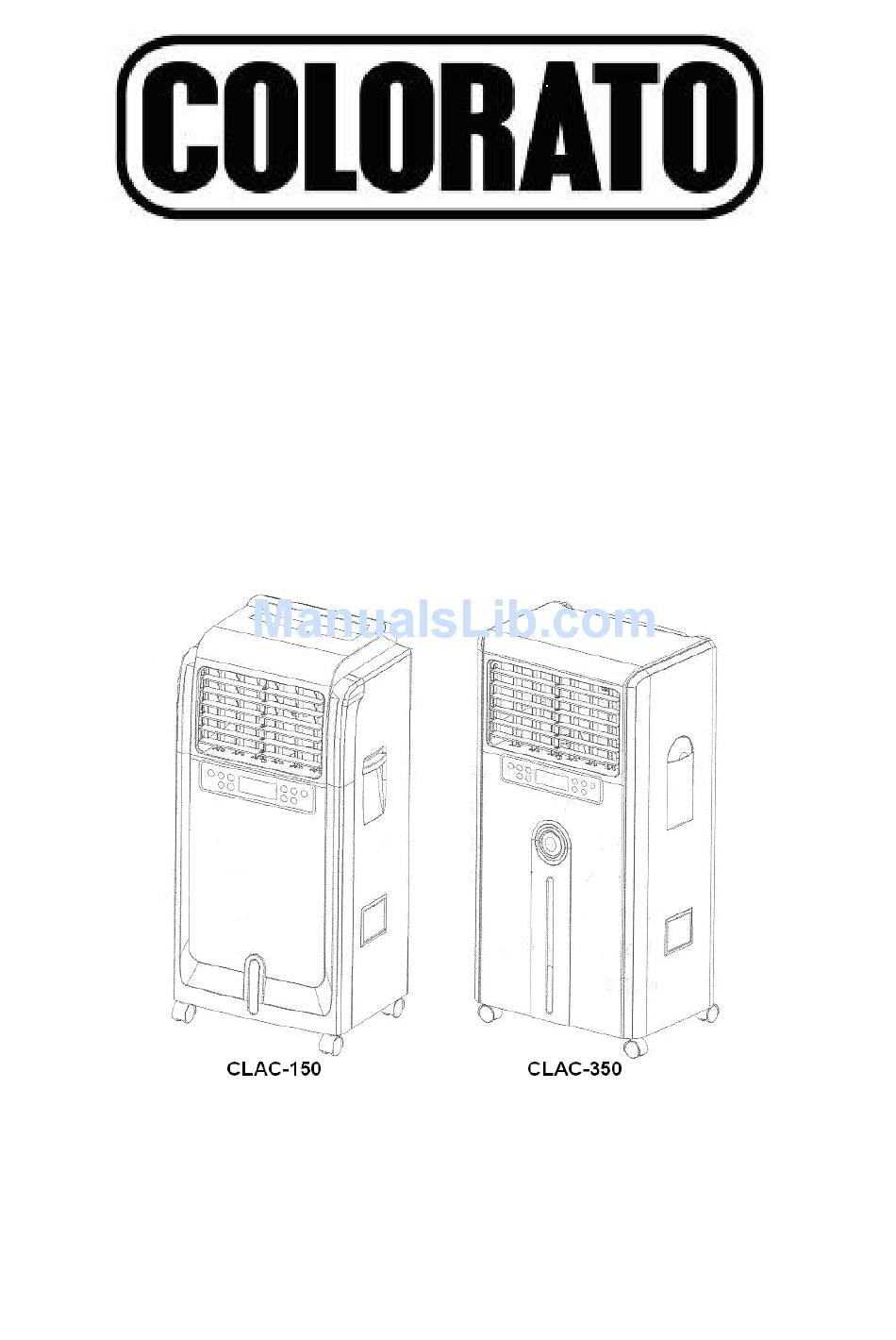

- Page 1 INSTRUCTION MANUAL AIR COOLER MODELS: CLAC-350, CLAC-150 Thank you for buying the AIR COOLER COLORATO. Read carefully these Instructions before using the appliance.
-
Page 2: Table Of Contents
CONTENTS PREFACE PACKAGE CONTENTS BASIC PRINCIPLES APPLICATION TECHNICAL SPECIFICATION SPECIAL FEATURES ADDED FEATURES IMPORTANT REMINDERS CAUTION CONTROL PANEL/ P.C.B. ILLUSTRATION DISPLAY DIAGRAM CONTROL FUNCTIONS OPERATING PROCEDURE EXTERNAL PARTS ILLUSTRATION MAINTENANCE TROUBLESHOOTING... -
Page 3: Preface
PREFACE Thank you for your trust, support and for choosing the Evaporative AIR COOLER COLORATO. Take note that the appearance of the actual product that you purchased may very from the one illustrated, photographed / shown in the operation / instruction manual due to continuous product upgrade. -
Page 4: Basic Principles
BASIC PRINCIPLES The Evaporative AIR COOLER COLORATO is a high-tech product from Europe. Its basic principle is the following: the water evaporation drives away the surrounding heat and causes the temperature to cool down. Its working principle is that negative pressure occurs because of wind draining by exhaust fan. -
Page 5: Technical Specification
TECHNICAL SPECIFICATIONS PARAMETER / MODEL CLAC-150 CLAC-350 Max Airflow (m³/h) 1500 3500 Power Supply / Frequency (V/Hz) 220/50 220/5 Power Consumption (W) Style Centrifugal Centrifugal Water Consumption (L/H) 1.8 ~2.5 Water Capacity (L) Dimensions (L x W x H) (mm) -
Page 6: Added Features
ADDED FEATURES The Evaporative Air Cooler COLORATO has these added advantages and other special features: 1. Specially designed powerful blade and waterproof fan motor. 2. With thicker and bigger cooling pad for better heat absorption. 3. Multi layered congruent wave and fiber cooling pad that makes the water cold. -
Page 7: Caution
CAUTION Use it in the following conditions: 1. Environment temperature: 18°C -- 45°C 2. Environment relative humidity: ≤85% 3. The supplied water should be softened and its temperature ≤45°C 4. The voltage error is limited at ±5% of the rated voltage Keep away from fire during transportation installation and operation. -
Page 8: Control Panel/ P.c.b. Illustration
CONTROL PANEL / P.C.B. ILLUSTRATION DISPLAY DIAGRAM... -
Page 9: Control Functions
CONTROL FUNCTIONS ON/OFF - Press to turn the unit “ON” or “OFF” - Press to turn the COOL function “ON” or “OFF”. Pressing repeatedly also COOL cycles to different functions. SPEED - Press to select the desired fan speed (Low, Med, High) SWING - Press to turn Swing function MODE... - Page 10 CONTROL FUNCTIONS 1. Add water Clean water must be used Pour water on the left side (water inlet) of the unit slowly to avoid water spillage and prevent the risk of electric shock. Fill up to “MAX” level only as it may overflow. 2.
-
Page 11: External Parts Illustration
ΕΙΚΟΝΟΓΡΑΦΗΣΗ ΕΞΩΤΕΡΙΚΩΝ ΜΕΡΩΝ... -
Page 12: Maintenance
MAINTENANCE NOTE: TO ENSURE THAT THE UNIT RELEASES FRESH AND CLEAN AIR, ALWAYS CHANGE THE WATER WHEN IT IS DIRTY AND REGULARLY CLEAN THE FILTER AND THE COOLING PAD. 1. Remove the filter net by removing the screw then press the lock. Rinse under running water to wash off dirt. -
Page 13: Troubleshooting
TROUBLESHOOTING Malfunction Reasons Remedy/Solutions - No power - Check the circuit - The indicator doesn’t - The master control goes wrong - Change the master control board light - The fuse is burnt - Change the fuse - The panel goes wrong - Change the panel - Power Off - Interfered by power... - Page 14 HEALTHY AND COMFORTABLE FUNCTION ENERGY SAVING & ENVIRONMENTAL FRIENDLY...
