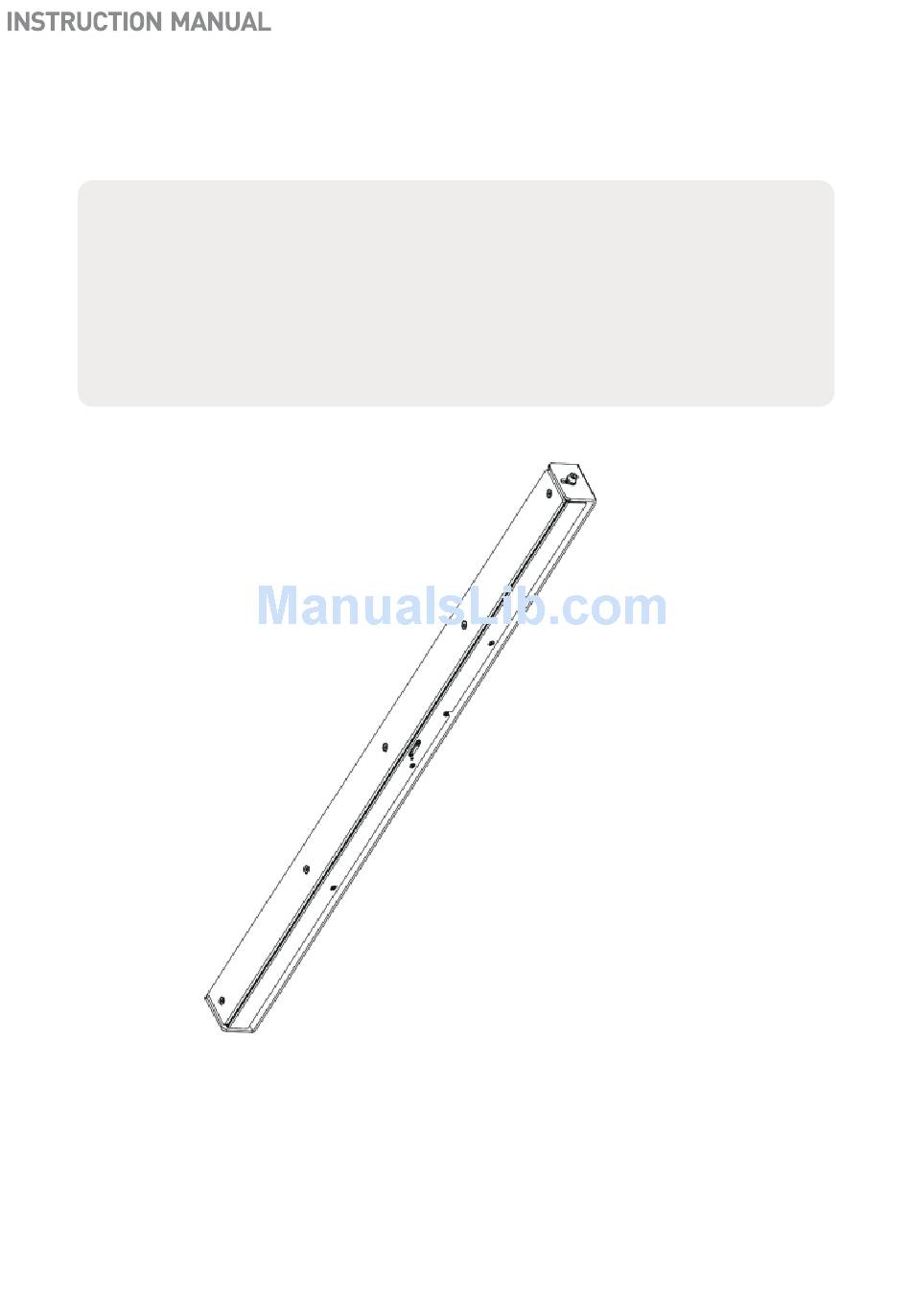

- Page 1 Height Strip Covert Camera Please read this manual thoroughly before use, and keep it handy for future reference. Design and specifications are subject to change without notice.
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. . Do not block any ventilat ion openings. Install in accord ance with the manufacturer`s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 5 Step 1 Drill feed-thru hole for cable on mounting surface 63.27" above the finished floor.
- Page 6 Step 2 Feed wire through the 1.0 inch hole on the gimble mount.
- Page 7 Step 3 Center the gimbal mount to mounting surface and mark the mounting holes for the gimbal mount on the surface. Secure the gimbal mount to the surface using installer supplied self tappers for aluminum frame structure. If mounting on soft surface such as drywall be sure to use to use anchors.
- Page 8 Step 4 Completing the housing installation Remove the five white head M4 screws that hold the face plate to the housing and set the face plate aside. Feed the wire coming through the gimbal mount through the 3/4" hole in the back of the camera housing.
- Page 9 Optional Camera Height Setting 1. The Height strip camera has the capability to be set in the housing at 5ft or 5.5ft above the floor. The default setting of the camera is set to 5.5ft. If the lower setting is desired the following housing change must be completed.
- Page 10 DIMENSIONS HEIGHT STRIP CAMERA...
-
Page 11: Structure Of The Setup Menu
STRUCTURE OF THE SETUP MENU <SETUP> LENS EXPOSURE BACKLIGHT <LENS> <EXPOSURE> WHITE BAL DAY&NIGHT SHUTTER IMAGE FUNCTION MANUAL SENS-UP SYSTEM BRIGHTNESS EXIT D-WDR DEFOG RETURN <BACKLIGHT> <WHITE BAL> <DAY&NIGHT> AUTO AWC->SET COLOR INDOOR HSBLC B&W OUTDOOR MANUAL <IMAGE> <FUNCTION> <SYSTEM> <RESET>... - Page 12 LENS The EXPOSURE menu is used to set the automatic light control method for the camera. It provides the ability to adjust the SHUTTER speed. AGC SENS-UP, BRIGHTNESS, D-WDR, and DEFOG functions of the camera. Select the DC mode. ▶INDOOR, OUTDOOR 1) DC Select the DC iris speed ▶...
- Page 13 BACKLIGHT The BACKLIGHT menu is used to the ability to prevent back lighting from the image. Prevents such a back light effect to secure a clear image under All illumination 1) BLC environments. Adjust the size of Back Light Compensation area. Select the BLC gain ▶...
-
Page 14: White Balance
WHITE BALANCE The screen color can be adjusted by using the Auto White Balance function. It compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Automatically adjust color temperature. -
Page 15: Day&Night
DAY&NIGHT The DAY&NIGHT menu is used to configure the day and night related . setting for the camera. 1) D&N AUTO -Input Method DAY&NIGHT mode are changed according to the sensor inputs D&N LEVEL Adjust levels of transition ▶ N&D LEVEL Adjust levels of transition ▶... - Page 16 The IMAGE menu provides the ability to adjust the SHARPNESS, LSC and D-EFFECT functions of the camera. 1) SHARPNESS Adjust the SHARPNESS level. ▶ OFF, AUTO (0 - 10) Select the lens Lens Shading Compensation. ▶ ON, OFF 2) LSC Select real or still mode ▶...
- Page 17 FUNCTION The IMAGE menu provides the ability to adjust the DNR, MOTION, PRIVACY and DEFECT DET functions of the camera. Select Digital Noise Reduction. 1) DNR ▶ OFF, LOW, MIDDLE, HIGH ▶ OFF, LOW, MIDDLE, HIGH Detects the Motioned Object in the image. ▶ ON, OFF 2) MOTION Select the Motion area ▶...
- Page 18 <DNR> FUNCTION MIDDLE MIDDLE MOTION RETURN PRIVACY DEFECT DET RETURN <MOTION> FUNCTION MOTION SELECT AREA1 MOTION DISPLAY PRIVACY SENSITIVITY |▪I▪▪▪| 10 DEFECT DET COLOR WHITE RETURN TRANS ALARM DEFAULT RETURN <PRIVACY> PRIVACY FUNCTION SELECT AREA1 DISPLAY COLOR MOTION PRIVACY COLOR WHITE TRANS DEFECT DET...
- Page 19 SYSTEM The IMAGE menu provides the ability to adjust the CAM TITLE, RS485, MONITOR, CVBS CROP, VIDEO OUT, LANGUAGE and VERSION functions of the camera. Maximum of 15 characters are allowed. 1) CAM TITLE Select the Monitor type ▶ LCD, CRT 2) MONITOR Adjust the Blue gain level ▶...
-
Page 21: Specifications
SPECIFICATIONS MODEL Height Strip Covert Camera Power Source DC12V ± 10% Power Power Consumption Max 2.2 Watts (180mA) Image Sensor 1/2.9" 2.1M Sony CMOS Total Pixels 2000(H) x 1121(V) Active Pixels 1920(H) x 1080(V) Scanning System Progressive Sync. System Internal General Video Frame Rate 1920×1080p@25 fps；1920×1080p@30 fps... - Page 22 Height Strip Covert Camera PRINTED IN KOREA 50304267A...
