- Page 1 Pilots Manual...
-
Page 2: Table Of Contents
CONTENTS Thank You Warning Your Ozium 2 Sizing Pod options Preparation Underseat Mousse Speed System Reserve Parachute Installation 08 Fitting Adjustments Shoulder Straps Lumbar Support Leg/Chest Straps Fine Tuning of the Pod Features Integrated Cockpit Hydration Access System Velcro Shoulder Mounting Care and Maintenance Inspection Changing the Pod Technical Specifications Materials Certification Towing Ozone Quality Guarantee v1.0 May 2017... -
Page 3: Thank You
• Be ready to continue your learning by attending advanced courses to follow the evolution of our sport, as techniques and materials keep improving. As a team of free flying enthusiasts, competitors and adventurers, Ozone’s mission is to produce paragliding equipment of the highest qual- • Use only certified paragliders, harnesses with protector and reserve parachutes that are free from modification, and use them only within their ity using cutting edge designs and the best technical materials available. Our development team is based in the south of France. This area, certified weight ranges. Please remember that flying outside of certified configurations may jeopardise any insurance (e.g. liability, life etc) you have. which includes the sites of Gourdon, Monaco and Col de Bleyne, guarantees us more than 300 flyable days per year. This is a great asset in It is your responsibility as the pilot to verify your insurance cover. the development of the Ozone range. We know that quality and value for money are essential considerations when choosing equipment, so • Make sure you complete a thorough daily and pre-flight inspection of all of your equipment. Never attempt flying with unsuitable or damaged to keep costs low and quality high we build all our wings and harnesses in our own production facility. During production all Ozone products equipment. undergo numerous rigorous quality control checks. This way we can guarantee that our equipment meets the same high standards that we expect ourselves. • Always wear a helmet, gloves and boots. • All pilots should have the appropriate level of license for their respective country and third party insurance. If you need any further information about Ozone, the Ozium 2, or any of our products please check www.flyozone.com. Or you can contact • Make sure that you are physically and mentally healthy before flying. your local dealer, paragliding school or any of us here at Ozone. • Choose the correct wing, harness and conditions for your level of experience. It is essential that you read this manual before using your harness for the first time. • Pay special attention to the terrain you will be flying and the weather conditions before you launch. If you are unsure do not fly, and always add a large safety margin to all your decisions. Safe Flying! • NEVER fly your glider in rain, snow, strong wind, turbulent weather conditions or clouds. Team Ozone • If you use good, safe judgment you will enjoy many years of paragliding. • Respect the environment and look after your flying sites. • If you need to dispose the wing, do so in an environmentally responsible manner. • Do not dispose of it with the normal household waste. Remember, PLEASURE is the reason for our sport! -

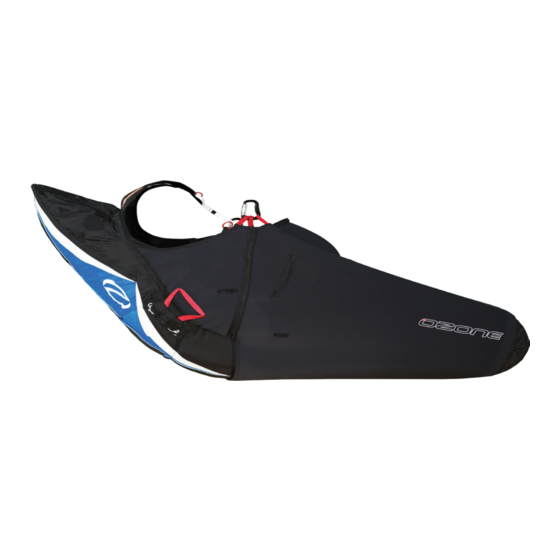

Page 4: Your Ozium 2
YOUR OZIUM 2 SIZING The harnesses structure is available in three different sizes; S, M, and L which can be combined with three different pod sizes; S, M, and L suitable for a wide range of pilot heights and body configurations. We recommend the following harness and pod combinations: Weight with Weight with Weight with Harness size Pilot height (cm) Pod size Lycra pod (kg) 570 pod (kg) 720 pod (kg) 2.36 2.39 2.65 155-165 160-175 2.40 2.43 2.69 170-185 2.46 2.49 2.74 180-195 2.50... -
Page 5: Preparation
PREPARATION UNDER-SEAT MOUSSE Shoulder adjustment straps The Ozium 2 comes as standard with an LTF/CE certified foam back protector. Cleverly designed, it offers excellent impact absorption properties Chest strap despite its low weight and volume. Available as an option is the ‘Full Mousse’ protection, also certified to the LTF/CE standards, it offers higher adjustment Main Hangpoints levels of comfort and protection but with a higher weight and volume. Anti-forget loop An optional rigid plate is available for the standard back protector, however it is not compatible with the Full Mousse version. The plate improves Foot plate angle the overall comfort and protection levels of the harness whilst the added rigidity gives a more direct, responsive feel to weightshift and to the air. Leg/chest strap adjustment buckles Upon delivery the under seat mousse must to be placed into the structure of the harness. Insert the mousse into the second, rear most zipped pocket located under the seat. Do not try to force it into the smaller front ballast pocket. The mousse is marked top and front, ensure that it is inserted correctly, the narrow end should be facing forwards. Lumber support adjustment strap Reserve parachute container Foot plate Leg strap Reserve handle adjustments It should be a snug fit but you should be able to close the pocket without forcing the zip. -
Page 6: Speed System
It is strongly recommended to use the deployment bag supplied with the harness. First untie the bar from the lines. Route the free end of one of the lines down through the small reinforced slit WARNING: Ozone strongly recommends that the reserve parachute system is installed by a qualified professional. found on the side panel of the harness. Always seek experienced advice if you have any doubts. Make sure you perform a practice throw from a static hang point. Not only does this ensure the correct functioning of your deployment system it also allows you to become more familiar with the installation process. - Page 7 The container can be closed by running both zips forward towards the reserve parachute opening, all the way to the eyelets, and then back again underneath the harness to secure the zips Please note, the Ozium 2 is only suitable for reserve parachutes with a short bridle. Open the reserve parachute container on the rear of the harness by opening the zips. Place the deployment bag in the space provided with white arrow on the deployment handle...
-
Page 8: Fitting
FITTING Before your first flight, we recommend to suspend the harness from a suitably strong point to check that it fits you correctly and to become familiar with the features and adjustments. You can set the shoulder Close the left hand flap, white loop 1 should be pulled through eyelet 2, and white loop A through eyelet B adjustment-straps to find the best fit, and adjust the lumber support so that they leave you in a comfortably reclined position. To put the harness on first place the shoulder straps over your The right hand flap can now be closed. White loop 1 should be pulled through eyelet 3 and white loop A through shoulders and bring the leg/chest strap through your legs. eyelet C Now the top flap can be pulled into position. The handle sits behind the exterior material of the top flap. Pass the nylon pins of the reserve handle through the gaps in the material just above the top flap eyelets. Fasten the leg/chest strap by placing the male buckles through the female through the female buckles on each side Pull the white loops through both top flap eyelets and push the pins through the white loops. The magnetic The automatic pod closing system should now be section can be wrapped around the handle and secured behind it to keep it neatly in place. connected. First attach the red loop of the left hand pod flap to the red ball situated under the maillon on the right hand side of the harness. The red ball goes through the red loop. -
Page 9: Adjustments
ADJUSTMENTS SHOULDER STRAPS Next pass the red loop of the anti-forget system through The length of the Shoulder straps can be modified using the adjustment straps. Adjust the shoulders whilst the eyelet on the right hand pod next to the instrument panel. standing up with the harness on so that they are comfortably snug. Whilst suspended in the seated position ensure the straps are comfortable and supportive, they should not be too tight nor too loose. LUMBER SUPPORT The Lumber support should be adjusted for a comfortable flying position. Precise adjustments can be made in the air so that your lower back is completely supported and there is no tension in your stomach muscles. Be sure to adjust the lumber supports carefully, setting them too loose will result in a very reclined position in the air. The red ball found under the left hand maillon should now be passed through the loop of the anti-forget system. LEG STRAPS/CHEST STRAP The length of the leg straps and chest strap affects the overall stability of the harness. For maximum weightshift the chest strap and leg straps should be left in their longest position. For greater roll stability the straps can be tightened. It is important to test fly and adjust to find the position that is best for your style of flying and overall comfort. The shoulder strap retainer clip should now be fastened. -
Page 10: Fine Tuning Of The Pod
FEATURES LEG SUPPORT ANGLE The angle of the leg support can be adjusted using with the knots on the short purple line. Using the higher INTEGRATED COCKPIT knot increases the support under your thighs. As standard, the Lycra and 570 pods are supplied with a lightweight flight deck. The larger Forza deck is available as an option for the Lycra and 570 pods but comes as standard with the 720 pod. Instruments can be attached either directly to the deck or alternatively to the optional angled Velco plate. In the air it rests over the top of the chest strap to make it easy to view the instruments. FINE TUNING OF THE POD The harness has been set up so that it will suite the majority of pilots and further adjustments should not be necessary, however if you wish to make changes it is possible to do so. This must be done on the ground and is not possible in the air. The foot plate at the end of the pod is supported by 4 HYDRATION ACCESS SYSTEM lines (purple), these control the overall length of the pod and the angle of the foot plate. The Ozium 2 includes a hydration access system with an opening on the left hand shoulder and anchor points for your hydration tube. Minor adjustments to the overall length of the pod can be made by moving the position of the knots on the upper anti-forget lines (grey) and the lower (purple) knots. VELCRO SHOULDER MOUNTING The opposite shoulder strap has a lightweight Velcro mounting point for a small vario, radio or GPS tracking device. The angle of the foot plate can also be changed by moving the position of the knots on the bottom (purple) lines. RADIO POCKET IMPORTANT: If any adjustments are made, make sure that the lines are symmetrical. If you do choose to make a change, take your time to find the position that suites you best, only make small adjustments each time. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE The Ozium 2 will last you many flights and many years if looked after correctly. To keep your harness clean and airworthy, please note the 1. Red pod loops on carabiners following: • Avoid excessive exposure to UV, heat and humidity. • Pack the harness dry and store in a cool dry place. • Never drag your harness. • Keep you harness clean of dirt, oils and any corrosive substance. • Use water and a cloth to clean. 2. Zips INSPECTION For safety, routine inspection of all of your equipment is vitally important. Ozone recommends a service interval of 12 months in addition to the usual pre flight checks. For inspection, visually check the stitching, webbing and all structurally important areas. Pay particular attention to the webbing around the hang point area under the carabiner, as this is where abrasion is most likely. If you find any damage or if you are in any doubt make sure the harness checked by a professional. IMPORTANT: Ensure the red REPLACING THE POD pod loops (1) are attached Replacement pods are available from your Ozone dealer. It is possible after many hours of use, or after an incident resulting in damage that to the carabiners. Failure the pod requires changing. To remove the old pod:... -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS MATERIALS Outer fabric (Cover) Harness, Carabiners, Reserve Bag & Handle (g) 1300 1340 1380 Nylon Oxford 210D PU2 Pod Lycra [light] (g) Structure fabric Pod 570 [midweight] (g) Nylon Oxford 210D PU2 Pod 720 [warmest] (g) Main webbing Lightweight Foam [standard] (g) Polyster 15 / 25 mm High Density Foam [option] (g) Polycarbonate Backplate [for Lightweight Foam, option] (g) Chest strap closure system Lightweight aluminium buckles... -
Page 13: Ozone Quality Guarantee
OZONE QUALITY GUARANTEE At Ozone we take the quality of our products very seriously. Our harnesses are made to the highest standards in our own manufacturing facility. Every harness manufactured goes through a stringent series of quality control procedures and all the components used are traceable. We always welcome customer feedback and are committed to customer service. Ozone guarantees all of its products against manufacturer’s defects or faults. Ozone will repair or replace any defective product free of charge. Ozone and its distributors provide the highest quality service and repair, any damage to products due to wear and tear will be repaired at a reasonable charge. If you are unable to contact your dealer then you can contact us directly at info@flyozone.com. Summary Safety is paramount in our sport. To be safe, we must be trained, practised and alert to the dangers around us. To achieve this we must fly as regularly as we can, ground handle as much as possible and take a continuous interest in the weather. If you are lacking in any of these areas you will be exposing yourself to more danger than is necessary. Every year many pilots get hurt launching; don’t be one of them. Launching is the time that you are most exposed to danger so practice it lots. Some launch sites are small and difficult and conditions aren’t always perfect. If you’re good at ground handling you’ll be able to confidently and safely launch whilst others struggle...practice as much as you can. You’ll be less likely to get hurt and more likely to have a great day’s flying. Respect the environment and look after your flying sites. When the harness comes to the end of its useful life, remove all the metal parts and dispose the rest in an environmentally friendlty manner. Finally, RESPECT the weather, it has more power than you can ever imagine. Understand what conditions are right for your level of flying and stay within that window. Happy flying & enjoy your Ozium 2. - Page 14 1258 Route de Grasse Le Bar sur Loup 06620 France...
