Summary of Contents for Thermalright TRUE Spirit 140 Power

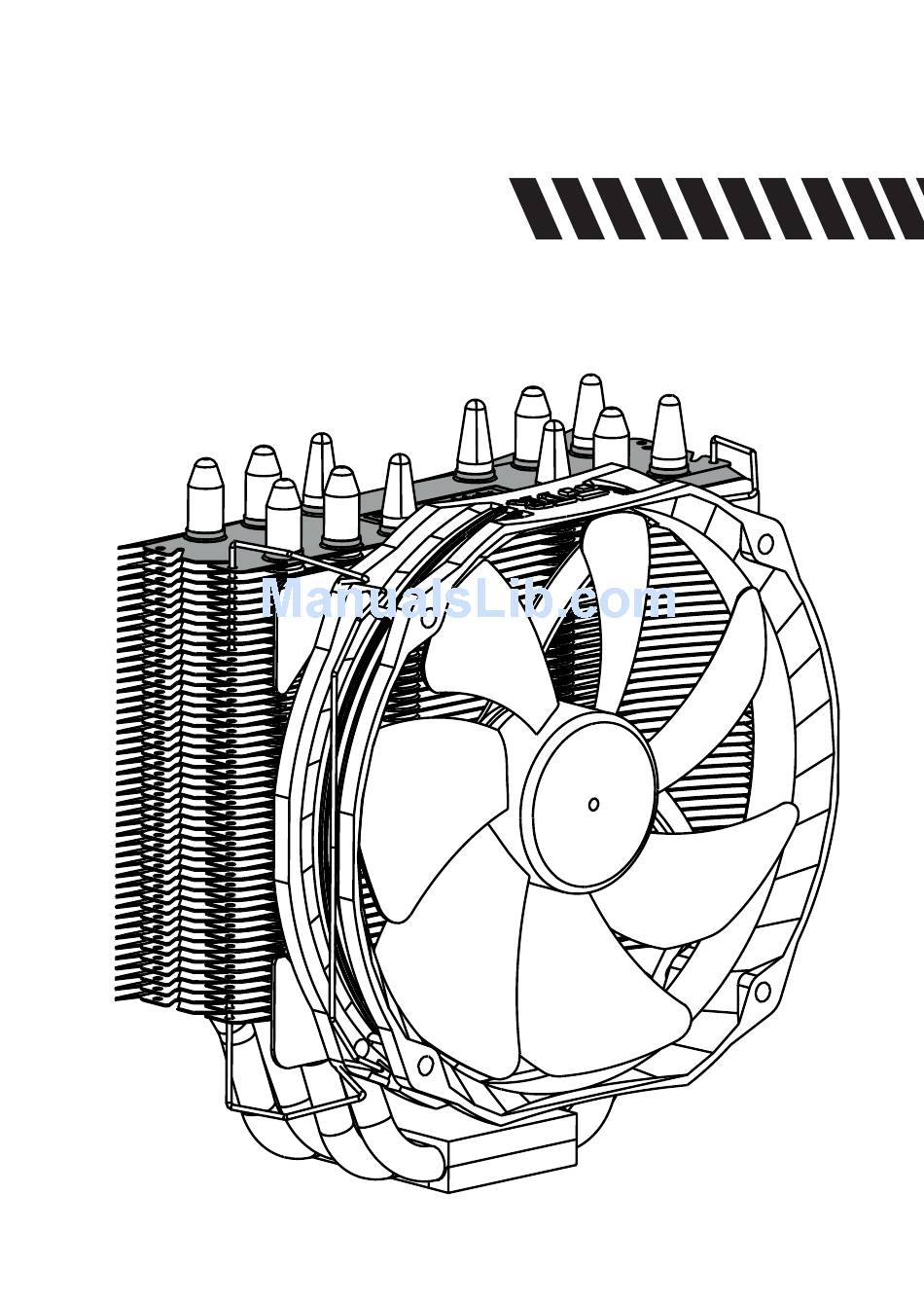

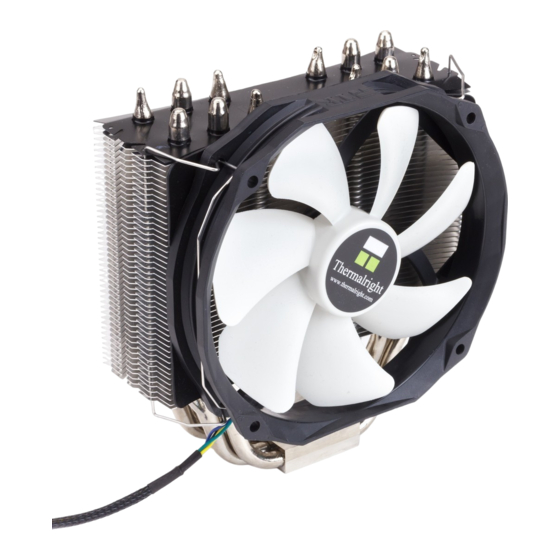

- Page 1 Thermalright TRUE Spirit 140 Power...
- Page 3 Assembly Package TRUE Spirit 140 Power × 4 × 1 × 4 × 8 × 7 × 4 × 4 × 5 × 1 × 1 Chill Factor × 1 × 4 × 1 × 1...
- Page 4 TRUE Spirit 140 Power Intel 775/1150/1155/1156/1366 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com 14cm Fan Clip Heatsink Body TY147 FAN Anti Vibration Pad M3 L6 Screw Anchoring Mount Screw Nut Mounting Plate...
- Page 5 M3 L10 Screw ×5 M3 L6 Screw ×7 14cm Fan Clip ×4 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 TY147 Fan ×1 Back Plate Cap ×1 Thermal Paste ×1 Mylar ×1 The Ultimate Cooling Solutions! www.thermalright.com...
-
Page 6: Heatsink
Installation Instructions: Step 1: 1366 1156 1155 Step 1 : Backplate Installation Choose the platform (775/1150/1155/1156/1366) you are in use. Make four M3L10 Screw Pillars go through the Metal Back Plate and the Mylar film from bottom towards top.And then place the Metal Back Plate on the table. -
Page 7: Mounting
Step 6: Step 6 : Part Installation Take out TS140 cooler from the paper box. Remove the TY-147 fan from the cooler by pulling the Fan Clips upwards in order to give room for ease of installation. And leave the fan clips on the Heatsink Body. -
Page 8: Anti Vibration
TRUE Spirit 140 Power Intel 2011 Exploded view Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com 14cm Fan Clip Heatsink Body TY147 FAN Anti Vibration Pad Anchoring Mount M3 L6 Screw LGA2011 Type B... -
Page 9: Metal Back
M3 L10 Screw ×5 M3 L6 Screw ×7 14cm Fan Clip ×4 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 TY147 Fan ×1 Back Plate Cap ×1 Thermal Paste ×1 Mylar ×1 The Ultimate Cooling Solutions! www.thermalright.com... - Page 10 Installation Instructions: Step 1: Step 1 : Screw Pillar Installation Screw on the four LGA2011 Type B Screw Pillars into the Heatsink studs on the ILM Assembly Frame around the processor socket. Step 2: Step 2 : Anchoring Mount Installation Place the Anchoring Mount onto the four LGA2011 Type B Screw Pillars, secure it by tightening it with 4 M3L6 Screws.
- Page 11 TRUE Spirit 140 Power Step 4: Step 5: Step 4 : Fan Clip Installation Step 5 : Mounting Plate Installation Pass each end of the Fan Clips through the Place the Heatsink Body on top of the CPU. Make mounting holes on the cooler body. Then stick Mounting Plate go through the Heatsink Body.
- Page 12 AM2/AM2+/AM3/AM3+/FM1/FM2 TRUE Spirit 140 Power Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com 14cm Fan Clip Heatsink Body TY147 FAN Anti Vibration Pad M3 L6 Screw Anchoring Mount Screw Nut Mounting Plate...
- Page 13 M3 L10 Screw ×5 M3 L6 Screw ×7 14cm Fan Clip ×4 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 TY147 Fan ×1 Back Plate Cap ×1 Thermal Paste ×1 Mylar ×1 The Ultimate Cooling Solutions! www.thermalright.com...
-
Page 14: Installation Instructions
Installation Instructions: Step 1: Step 1 : Backplate Installation Choose the platform (AMD) you are in use. Make four M3L10 Screw Pillars go through the Metal Back Plate and the Mylar film from bottom towards top. And then place the Metal Back Plate on the table. Put the four Washers (for AMD) around the Screw Pillars. - Page 15 Sink body. And then secure it with the 14 cm Fan socket on the motherboard. Installation complete. Clips, by pulling the Fan Clips to place the four ends at the four holes on the TY-147 fan. The Ultimate Cooling Solutions! www.thermalright.com...
- Page 16 TRUE Spirit 140 Power Technical Spec Heatsink Specifications: Dimension: Length 155mm x Width 53.4mm x Height 171.2mm Weight: 880g (Heatsink only) Heatpipe: 8mm heatpipe*6 units Copper Base: C1100 Pure copper nickel plated Fan Specification: Dimension: L152mm x H140mm x W26.5m...
- Page 17 TRUE Spirit 140 Power 16.86 40.63...
- Page 19 The Ultimate Cooling Solutions! www.thermalright.com TEL: +886-2-8663-6630 FAX: +886-2-8663-6645 EMAIL: sales@thermalright.com...
