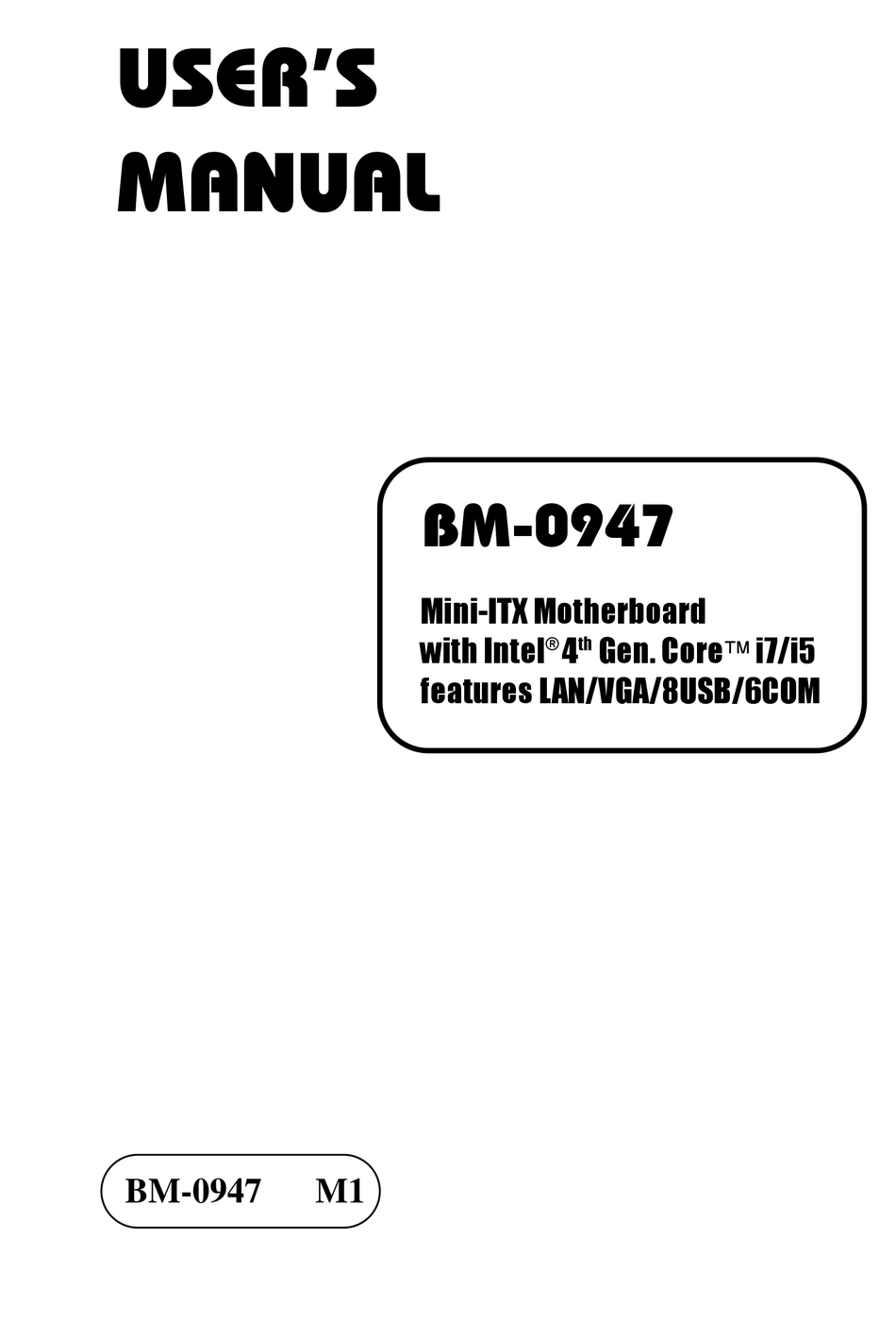

USER'S
MANUAL
BM-0947
BM-0947
Mini-ITX Motherboard
with Intel
features LAN/VGA/8USB/6COM
M1
®
th
4
Gen. Core™ i7/i5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM-0947 and is the answer not in the manual?

Questions and answers

Summary of Contents for Protech Systems BM-0947

  • Page 1 USER’S MANUAL BM-0947 Mini-ITX Motherboard ® with Intel Gen. Core™ i7/i5 features LAN/VGA/8USB/6COM BM-0947...
  • Page 2 BM-0947 ® With Intel Gen. Core ™ ™ ™ ™ Mini-ITX Motherboard COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in September 2014. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.
  • Page 3 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4: Table Of Contents

    Contents TABLE OF CONTENTS CHAPTER 1 INTRODUCTION About This Manual…............System Specification…............1-3 Safety Precautions…............. CHAPTER 2 HARDWARE CONFIGURATION Jumper & Connector Quick Reference Table…....Component Locations….…........... How to Set Jumpers…............COM Port…………………………………………………... COM Connector……………………………………………. VGA Port…………………………………………………... Keyboard & Mouse Port…..………………......LAN &...
  • Page 5 Contents CHAPTER 3 SOFTWARE UTILITIES Introduction……………..........…..® Intel Chipset Software Installation Utility……..……..…... ® Intel USB3.0 eXtensible Host Controller Utility…………. ® Intel Management Engine Components Utillity…………... VGA Driver Utility………………………………….……... LAN Driver Utility……...........…..Sound Driver Utility……………………………………….. CHAPTER 4 BIOS SETUP Introduction…............... Entering Setup…..............Main…………..............
  • Page 6: Chapter 1 Introduction

    CHAPTER INTRODUCTION This chapter gives you the information for BM-0947. It also outlines the system specifications. Sections included: About This Manual System Specifications Safety Precautions Experienced users can jump to chapter 2 on page 2-1 for a quick start. Page:1-1...
  • Page 7: About This Manual

    Chapter 1 Introduction 1-1. ABOUT THIS MANUAL ® Thank you for purchasing our BM-0947 Mini-ITX Motherboard with Intel Gen. Core™ i7/i5 processor, enhanced with LAN, VGA, 8 USB & 6COM, which is fully PC/AT compatible. The BM-0947 provides faster processing speed, greater expandability and can handle more tasks than before.
  • Page 8: System Specification

    2 x SATA III 1 port, supports Wake-on-LAN ® LAN1: Intel I217-LM/V Audio Realtek ALC888S-VD2-GR High Definition audio codec Line-in/Line-out/MIC Option: S/PDIF Keyboard/Mouse 1 x PS/2 Expansion Bus 1 x PCIe (16x) Gen. 2 Page: 1-3 ′ BM-0947 USER S MANUAL...
  • Page 9 Built-in processor to share the system memory. 1 x VGA 1 x LVDS (2CH 18/24 bits) Environment Operating Temp. 0 ~ 60°C (32 ~ 140°F) Storage Temp. -40 ~ 80°C (-40 ~ 176°F) Humidity Operating: 5~90% (non-condensing) Page: 1-4 ′ BM-0947 USER S MANUAL...
  • Page 10: Safety Precautions

    Always disconnect power when the system is not in use. Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. Page: 1-5 ′ BM-0947 USER S MANUAL...
  • Page 11: Chapter 2 Hardware Configuration

    CHAPTER HARDWARE CONFIGURATION ** QUICK START ** Helpful information describes the jumper & connector settings, and component locations. Sections included: Jumper & Connector Quick Reference Table Component Locations Configuration and Jumper settings Connector’s Pin Assignments Page 2-1...
  • Page 12: Jumper & Connector Quick Reference Table

    BIOS Recovery Mode Selection Fan Connector CPU_FAN1, SYS_FAN1, SYS_FAN2 SATA Connector SATA1, SATA2, SATA3 USB2.0 Port JUSB2, USB3, USB4 ATX Power Connector ATX_PWR1, ATX_PWR2 LVDS Connector LVDS1 LVDS Voltage Selection JP15 LCD Backlight Connector JINV1 Page: 2-2 BM-0947 USER ′ S MANUAL...
  • Page 13 COM6 COM3 COM4 JP15 ATX_PWR2 USB4 JLPC1 USB3 ATX_PWR1 ® Intel Gen. ® Intel Core™ i5/i7 H81/Q87 (LGA1150) DIMM2 SATA3 SATA2 CPU_ FAN1 SATA1 DIMM1 SYS_FAN1 BM-0947 Front Connector, Jumper and Component locations Page: 2-3 BM-0947 USER ′ S MANUAL...
  • Page 14 Chapter 2 Hardware Configuration BM-0947 Rear Component locations Page: 2-4 BM-0947 USER ′ S MANUAL...
  • Page 15 PIN1 & PIN2 to create one setting by shorting. You can either connect PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagrams look and what they represent. Page: 2-5 BM-0947 USER ′ S MANUAL...
  • Page 16 Jumper Block looks like this Jumper Settings 2 pin Jumper close(enabled) Looks like this 3 pin Jumper 2-3 pin close(enabled) Looks like this Jumper Block 1-2 pin close(enabled) Looks like this Page: 2-6 BM-0947 USER ′ S MANUAL...
  • Page 17 DSR# RTS# COM1/ CTS# DTR# COM5/ COM2: COM2 Connector, selectable as RS-232/422/485 Co-lay with the other COM port stacked over COM1. ASSIGNMENT RS-232 RS-422 RS-485 DCD# RS-485- RS-485+ COM2 DTR# DSR# RTS# CTS# Page: 2-7 BM-0947 USER ′ S MANUAL...
  • Page 18 COM3, COM4, COM6: COM3 & COM4 Connectors, fixed as RS-232 ASSIGNMENT ASSIGNMENT DCD# DSR# RTS# CTS# COM3/ DTR# COM4/ COM6/ 2-6. VGA PORT VGA1: VGA Port ASSIGNMENT ASSIGNMENT VCC5 GREEN1 BLUE VGA1 DDC_DATA HSYNC VSYNC DDC_CLK Page: 2-8 BM-0947 USER ′ S MANUAL...
  • Page 19 Chapter 2 Hardware Configuration 2-7. KEYBOARD & MOUSE PORT KB_MS1: PS/2 Keyboard & Mouse Port Keyboard: ASSIGNMENT ASSIGNMENT KBDATA VCC5 KBCLK Mouse: ASSIGNMENT ASSIGNMENT MSDATA VCC5 MSCLK KB_MS1 Page: 2-9 BM-0947 USER ′ S MANUAL...
  • Page 20 No LAN switch/hub connected. Right Side LED Yellow Color Blinking LAN Message Active No LAN Message Active USB3.0 signal: ASSIGNMENT ASSIGNMENT VCC5 VCC5 USBP0N USBP1N USBP0P USBP1P RX1_DN RX2_DN RX1_DP RX2_DP TX1_DN TX2_DN TX1_DP TX2_DP Page: 2-10 BM-0947 USER ′ S MANUAL...
  • Page 21 Chapter 2 Hardware Configuration 2-9. AUDIO JACK AUDIO1: Line-In, Line-Out & Microphone The connector can also support only Microphone. Line-In: ASSIGNMENT HD_LINE-IN-L HD_LINE-IN-R Line-Out: ASSIGNMENT LINE-OUT-L LINE-OUT-R AUDIO1 Mic-In: ASSIGNMENT HD_MIC1-L_L HD_MIC1-R_L Page: 2-11 BM-0947 USER ′ S MANUAL...
  • Page 22: Usb2.0 Port

    2-11.COM PORT RI & VOLTAGE SELECTION JPCOM1 & JPCOM2: COM1 & COM2 Ports RI & Voltage Selection SELECTION JUMPER ILLUSTRATION JUMPTER SETTING JP_COM2 JP_COM1 JP_COM2 JP_COM1 JP_COM2 JP_COM1 Note: Manufacturing default is RI. Page: 2-12 BM-0947 USER ′ S MANUAL...
  • Page 23: Com2 Rs-232/422/485 Selection

    1-2, RS-422 3-4, 9-10 1-2, RS-485 5-6, Note: Manufacturing default is RS-232. 2-13. COM2 AUTO-DETECT SELECTION JP7: COM2 Auto-detect Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Normal Auto Gating Note: Manufacturing default is Normal. Page: 2-13 BM-0947 USER ′ S MANUAL...
  • Page 24: Front Panel Connector & Selection

    2-14. FRONT PANEL CONNECTOR & SELECTION FP1: Front Panel Connector SELECTION PIN & JUMPER JUMPER ASSIGNMENT SETTINGS ILLUSTRATION 1. HDD_LED+ HDD LED 3. HDD_LED- 2. PWR_LED+ Power LED 4. PWR_LED- 5. GND Reset Button 7. RST_BTN Page: 2-14 BM-0947 USER ′ S MANUAL...
  • Page 25: Intel Me Selection

    9. GND ATX Power 9-11 Button 11. PWRBTNSW ® 2-15. INTEL ME SELECTION ® JP3: Intel ME Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Normal Open ME Disabled Close Note: Manufacturing Default is Normal. Page: 2-15 BM-0947 USER ′ S MANUAL...
  • Page 26: Clear Cmos Data Selection

    CMOS” as illustrated above. After five to six seconds, set the jumper back to “Normal” and power-on the computer. 2-17. BIOS RECOVERY MODE SELECTION JP1: BIOS Recovery Mode Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Recovery Open Normal Close Note: Manufacturing Default is Normal. Page: 2-16 BM-0947 USER ′ S MANUAL...
  • Page 27: Fan Connector

    SYS_FAN1: System Fan Connector ASSIGNMENT VCC12 CPU_FAN1/ SYS_FAN1/ SYS_FAN2: System Fan Connector ASSIGNMENT VCC12 SYS_FAN2 2-19. SATA CONNECTOR SATA1, SATA2, SATA3: Three Serial ATA Connectors ASSIGNMENT ASSIGNMENT RXNC SATA1/ TXPC RXPC SATA2/ TXNC SATA3/ Page: 2-17 BM-0947 USER ′ S MANUAL...
  • Page 28: Usb2.0 Port

    Chapter 2 Hardware Configuration 2-20. USB2.0 PORT JUSB2: Two stacked USB2.0 Ports ASSIGNMENT ASSIGNMENT VCC5 VCC5 USBP2N USBP3N USBP2P USBP3P JUSB2 USB3, USB4: USB2.0 Connectors ASSIGNMENT ASSIGNMENT VCC5 USBP USB3/ VCC5 USBN USB4/ USBN USBP Page: 2-18 BM-0947 USER ′ S MANUAL...
  • Page 29: Atx Power Connector

    Chapter 2 Hardware Configuration 2-21. ATX POWER CONNECTOR ATX_PWR1: ATX Power Connector ASSIGNMENT ASSIGNMENT +3.3V +3.3V +3.3V -12V PSON 5VSB +12V +12V ATX_PWR1 +3.3V ATX_PWR2: ATX Power Connector ASSIGNMENT ASSIGNMENT +12V +12V ATX_PWR2 Page: 2-19 BM-0947 USER ′ S MANUAL...
  • Page 30: Lvds Connector

    Chapter 2 Hardware Configuration 2-22. LVDS CONNECTOR LVDS1: LVDS Connector ASSIGNMENT ASSIGNMENT LVDS1_VCC LVDS1_CLKA_DP LVDS1_CLKA_DN LVDS1_CLKB_DN LVDS1_CLKB_DP LVDS1_A2_DP LVDS1_A2_DN LVDS1_B2_DN LVDS1_B2_DP LVDS1_A1_DP LVDS1_A1_DN LVDS1_B1_DN LVDS1_B1_DP LVDS1_A0_DP LVDS1_B3_DP LVDS1_A0_DN LVDS1_B3_DN LVDS1_A3_DP LVDS1_B0_DP LVDS1_A3_DN LVDS1_B0_DN LVDS1_VCC LVDS1_VCC LVDS1 Page: 2-20 BM-0947 USER ′ S MANUAL...
  • Page 31: Lvds Voltage Selection

    JP15: LVDS Voltage Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION 1-3, 3.3V JP15 3-5, JP15 Note: Manufacturing default is 3.3V. 2-24. LCD BACKLIGHT CONNECTOR JINV1: LCD Backlight Connector ASSIGNMENT ASSIGNMENT +12V +12V +12V Enable JINV1 Page: 2-21 BM-0947 USER ′ S MANUAL...
  • Page 32 CHAPTER SOFTWARE UTILITIES This chapter comprises the detailed information of VGA driver, LAN driver, and Sound driver. Sections included: Introduction. ® Intel Chipset Software Installation Utility ® Intel USB3.0 eXtensible Host Controller Utility ® Intel Management Engine Components Utility VGA Driver Utility LAN Driver Utility Sound Driver Utility Page: 3-1...
  • Page 33: Introduction

    Chapter 3 Software Utilities 3-1. INTRODUCTION Enclosed with our BM-0947 package are our driver utilities, which come in a format of CD ROM. Refer to the following table for driver locations: and go to the ® ® corresponding folder for the chipset Intel...
  • Page 34 D:\Q87\Driver\Plaform\Win7,Win8(64-bit)\VGA D:\Q87\Driver\Plaform\Win7,Win8(32-bit)\LAN Intel(R) Network Connections Software D:\Q87\Driver\Plaform\Win7,Win8(64-bit)\LAN D:\Q87\Driver\Plaform\Win7,Win8(32-bit)\Sound Realtek High Definition Audio System Software D:\Q87\Driver\Plaform\Win7,Win8(64-bit)\Sound D:\Q87\Driver\Flash BIOS BIOS update utility Note: Be sure to install the Utility right after the OS fully installed. Page:3-3 ′ BM-0947 USER S MANUAL...
  • Page 35 OS installation. Please follow the steps below: Insert the driver disk into a CD ROM device. Under Windows system, go to the directory where the Utility driver is located. Run the application with administrative privileges. Page:3-4 ′ BM-0947 USER S MANUAL...
  • Page 36: Intel ® Usb3.0 Extensible Host Controller Utility

    To install the utility, simply follow the following steps: Insert the driver disk into a CD ROM device. Under Windows system, go to the directory where the driver is located. Run the application with administrative privileges. Page:3-5 ′ BM-0947 USER S MANUAL...
  • Page 37 To install the utility, simply follow the following steps: Insert the driver disk into a CD ROM device. Under Windows system, go to the directory where the driver is located. Run the application with administrative privileges. Page:3-6 ′ BM-0947 USER S MANUAL...
  • Page 38: Vga Driver Utility

    Chapter 3 Software Utilities 3-5. VGA DRIVER UTILITY 3-5-1. Introduction The VGA interface embedded with our BM-0947 can support a wide range of display. You can display DVI simultaneously with the same mode. 1. Win 7 Series 2. Win 8 Series 3-5-2.
  • Page 39: Lan Driver Utility

    Chapter 3 Software Utilities 3-6. LAN DRIVER UTILITY 3-6-1. Introduction BM-0947 is enhanced with LAN function that can support various network adapters. Installation programs for LAN drivers are listed as follows: 1. Win 7 Series 2. Win 8 Series For more details on Installation procedure, please refer to Readme.txt file found on LAN Driver Utility.
  • Page 40: Sound Driver Utility

    Run the application with administrative privileges.. Follow the instructions on the screen to complete the installation. Once the installation is completed, shut down the system and restart in order for the changes to take effect. Page:3-9 ′ BM-0947 USER S MANUAL...
  • Page 41: Bios Setup

    CHAPTER BIOS SETUP This chapter shows how to set up the BIOS. Sections included: Introduction Entering Setup Main Advanced Chipset Boot Security Save & Exit Page: 4-1...
  • Page 42: Introduction

    Chapter 4 BIOS Setup 4-1. INTRODUCTION ® The board BM-0947 (with Intel H81) uses an AMI Aptio BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the BIOS Setup program, Power-on Self-Test (POST), the PCI auto- configuration utility, LAN EEPROM information, and Plug and Play support.
  • Page 43 The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the <Del> or <ESC> key after the POST memory test begins and before the operating system boot begins. The settings are shown below. Page: 4-3 ′ BM-0947 USER S MANUAL...
  • Page 44: Entering Setup

    Setup program. In a moment, the main menu of the Aptio Setup Utility will appear on the screen: Page: 4-4 ′ BM-0947 USER S MANUAL...
  • Page 45 You may move the cursor by up/down keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear at the bottom of the screen. Page: 4-5 ′ BM-0947 USER S MANUAL...
  • Page 46: Main

    Displays the date of current BIOS Time version. System Date Month, day, year Specifies the current date. System Time Hour, minute, second Specifies the current time. Access Level No changeable options Displays the current user level. Page: 4-6 ′ BM-0947 USER S MANUAL...
  • Page 47: Advanced

    Sub-Menu CPU Configuration. Parameters. SATA Configuration Sub-Menu SATA Configuration Parameters. USB Configuration Sub-Menu USB Configuration Parameters. F81866 Super IO Sub-Menu System Super IO Chip Parameters. Configuration F81866 HW Monitor Sub-Menu Monitor hardware status Page: 4-7 ′ BM-0947 USER S MANUAL...
  • Page 48 OS to instructions. choose from S3 allows the platform to enter Suspend to RAM mode. Both S1 and S3 available for OS to choose from allows the OS to choose the sleep state type. Page: 4-8 ′ BM-0947 USER S MANUAL...
  • Page 49 Chapter 4 BIOS Setup BIOS Setting Options Description/Purpose S3 Video - Disabled Enable or Disable S3 video Repost Repost - Enabled Page: 4-9 ′ BM-0947 USER S MANUAL...
  • Page 50 Chapter 4 BIOS Setup 4-4-2. CPU Configuration Page: 4-10 ′ BM-0947 USER S MANUAL...
  • Page 51 Displays size of L3 Cache. Active - All Indicates the number of cores to Processor enable in processor. Cores Limit CPUID - Disabled Enables for legacy operating systems Maximum to boot processors with extended - Enabled Page: 4-11 ′ BM-0947 USER S MANUAL...
  • Page 52 Windows XP Sp2, SuSE Linux 9.2, Redhat Enterprise 3 Update 3.) Intel -Disabled When enabled, a VMM can utilize the Virtualization additional hardware capabilities -Enabled Technology provided by Vander pool Technology. EIST -Disabled Enable or Disable EIST -Enabled Page: 4-12 ′ BM-0947 USER S MANUAL...
  • Page 53 - IDE Configures SATA as IDE, AHCI or Selection RAID(Q87 only) mode. - AHCI - RAID SATA 0/1/4 [drive] Displays the drive installed on this SATA port. Shows [Empty] if no drive is installed. Page: 4-13 ′ BM-0947 USER S MANUAL...
  • Page 54 Controller SATA controller can support. - Gen2 Speed - Gen3 Port 0/1/4 - Disabled Enables or disable SATA port. - Enabled Hot Plug - Disabled Designates this port as Hot Pluggable. - Enabled Page: 4-14 ′ BM-0947 USER S MANUAL...
  • Page 55 Solid State Drive or Hard Disk Drive. - Solid State Drive Spin Up Device - Disabled On an edge detect from 0 to 1, the PCH starts a COMRESET initialization - Enabled sequence to the device. Page: 4-15 ′ BM-0947 USER S MANUAL...
  • Page 56 - Disabled XHCI Hand- - Enabled This is a workaround for OSes without XHCI hand-off support. - Disabled EHCI Hand- - Disabled This is a workaround for OSes w/o EHCI hand-off support. - Enabled Page: 4-16 ′ BM-0947 USER S MANUAL...
  • Page 57 - Manual Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Page: 4-17 ′ BM-0947 USER S MANUAL...
  • Page 58 BIOS Setting Options Description/Purpose F81866 Super IO No changeable options Displays the super IO chip model and Chip its manufacturer. COM 1/2/3/4/5/6 Sub-menu Set Parameters for COM 1/2/3/4/5/6 F81866 Sub-menu Set watchdog time Watchdog Page: 4-18 ′ BM-0947 USER S MANUAL...
  • Page 59 - Auto Specifies the base I/O Settings address and interrupt - IO=3F8h; IRQ=4 request for the serial port 0 - IO=3F8h; IRQ=3,4,5,6,7,10,11,12 if enabled. - IO=2F8h; IRQ=3,4,5,6,7,10,11,12 - IO=3E8h; IRQ=3,4,5,6,7,10,11,12 - IO=2E8h; IRQ=3,4,5,6,7,10,11,12 Page: 4-19 ′ BM-0947 USER S MANUAL...
  • Page 60 4-4-5-2. F81866 Watchdog F81866 Watchdog screen BIOS Setting Options Description/Purpose Enable - Disabled Enable/Disable COM 1. watchdog - Enabled Count for Timer value The number of second Timer count for timer (1-255 (Seconds) seconds) Page: 4-20 ′ BM-0947 USER S MANUAL...
  • Page 61 No changeable options Displays fan speed of the CPU fan. System Fan No changeable options Displays fan speed of the system fan Speed VCORE No changeable options Displays voltage level of the +Vcore in supply. Page: 4-21 ′ BM-0947 USER S MANUAL...
  • Page 62 No changeable options Displays voltage level of the +5V in supply. VCC5 No changeable options Displays voltage level of the +5V in supply. VCC12 No changeable options Displays voltage level of the +12V in supply. Page: 4-22 ′ BM-0947 USER S MANUAL...
  • Page 63 Smart Fan Mode select. SysFan Samrt - Auto Duty-Cycle Mode Fan Control Manual Duty Duty value Set duty cycle(PWM fan type) 1-100 Mode Auto Duty- No selection Fan speed up/down is determined by Cycle Mode temperature Page: 4-23 ′ BM-0947 USER S MANUAL...
  • Page 64: Chipset

    Chapter 4 BIOS Setup 4-5. CHIPSET Chipset screen BIOS Setting Options Description/Purpose PCH-IO Sub-menu Sets Parameter for Panther Point Configuration (South Bridge) configuration. System Agent (SA) Sub-menu Sets Parameter for Ivy Bridge (North Configuration Bridge) configuration. Page: 4-24 ′ BM-0947 USER S MANUAL...
  • Page 65 No changeable options Displays onboard PCH chip revision. Sub-menu USB Configuration setting Configuration PCH Azalia Sub-menu PCH Azalia Configuration settings. Configuration PCH LAN - Disabled Enable or disable onboard NIC Controller - Enabled Page: 4-25 ′ BM-0947 USER S MANUAL...
  • Page 66 SB CRID - Disabled Enable or disable SB CRID workaround - Enabled Restore AC - Power off Select AC power state when power is Power Loss re-applied after a power failure. - Power on Page: 4-26 ′ BM-0947 USER S MANUAL...
  • Page 67 USB Ports Per-Port - Enabled Main control to enable or disable Disable Control USB ports. - Disabled USB Port - Enabled Enable or disable each USB ports. #0/1/2/3/8/9/10/11 - Disabled USB30 Port #0/1 Page: 4-27 ′ BM-0947 USER S MANUAL...
  • Page 68 Options Description/Purpose Azalia - Enabled Enable or disable internal HDMI - Disabled codec for Azalia. - Auto Azalia Docking - Enabled Enable or disable Azalia Docking Support - Disabled Support of Audio Controller Page: 4-28 ′ BM-0947 USER S MANUAL...
  • Page 69 - Enabled Enable or disable VT-d - Disabled Enable NB - Enabled Enable or disable NB CRID CRID workaround. - Disabled Graphics Sub-menu Configure Graphic Settings. Configuration Memory Sub-menu Memory Configuration Parameters Configuration Page: 4-29 ′ BM-0947 USER S MANUAL...
  • Page 70 Aperture Size - 128MB Select the Aperture Size - 256MB - 512MB DVMT Pre- - 32M ~ 1024M Select DVMT 5.0 Pre-Allocated Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Page: 4-30 ′ BM-0947 USER S MANUAL...
  • Page 71 Once the application is closed, the memory that was allocated for graphics usage is then released and made available for system use. LCD Control Sub-menu Display devices active selection Page: 4-31 ′ BM-0947 USER S MANUAL...
  • Page 72 Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display" Select Secondary Display Device Secondary IGFX - Disabled Boot Display - CRT - LVDS Page: 4-32 ′ BM-0947 USER S MANUAL...
  • Page 73 Chapter 4 BIOS Setup 4-5-2-2. Memory Configuration Memory Configuration screen BIOS Setting Options Description/Purpose Memory No changeable option . Displays the detail DRAM Information information on platform. Page: 4-33 ′ BM-0947 USER S MANUAL...
  • Page 74: Boot

    Enable/Disable Quiet Boot Options - Enabled Boot Option - [Drive(s)] Allows setting boot option listed in #1~#3 Hard Drive BBS Priorities. - Disabled CSM16 Sub-menu CSM features selection Parameters CSM parameters Sub-menu CSM features selection Page: 4-34 ′ BM-0947 USER S MANUAL...
  • Page 75 Chapter 4 BIOS Setup 4-6-1. Hard Drive BBS Priorities Hard Drive BBS Priorities screen BIOS Setting Options Description/Purpose Boot Option #1 - - [Drive(s)] Allows setting the boot order of - Disabled available drive(s). Page: 4-35 ′ BM-0947 USER S MANUAL...
  • Page 76 - Keep Current INT19 Trap - Immediate When enabled it allows host adapters Response ROM BIOS to capture Interrupt 19 - Postponed during the boot process and eventually boot from disk(s) connected to those adapters. Page: 4-36 ′ BM-0947 USER S MANUAL...
  • Page 77 OpROM policy Legacy PXE OpROM - UEFI only - Legacy only Launch Storage - Do not launch Controls the execution of UEFI and OpROM policy Legacy Storage OpROM - UEFI only - Legacy only Page: 4-37 ′ BM-0947 USER S MANUAL...
  • Page 78 - Legacy only - Legacy first - UEFI first Other PCI - UEFI OpROM For PCI devices other than Network, device ROM Mass storage or Video defines which - Legacy OpROM priority OpROM to launch Page: 4-38 ′ BM-0947 USER S MANUAL...
  • Page 79: Security

    Options Description/Purpose Administrator Password can be 3-20 Specifies the administrator Password alphanumeric characters. password. User Password Password can be 3-20 Specifies the user password. alphanumeric characters. HDD Security Sub-menu Set HDD password. Configuration: Page: 4-39 ′ BM-0947 USER S MANUAL...
  • Page 80 Reports if there is security feature frozen. HDD User Pwd No changeable options Reports if there is HDD User Status Password installed. HDD Master No changeable options Reports if there is HDD Master Pwd Status Password installed. Page: 4-40 ′ BM-0947 USER S MANUAL...
  • Page 81 Set User Password can be up to 32 Specifies the user password. (Need Password alphanumeric characters. TPM module) Set Master Password can be up to 32 Specifies the master password. Password alphanumeric characters. Page: 4-41 ′ BM-0947 USER S MANUAL...
  • Page 82: Save & Exit

    Reset system without saving any and Reset changes Save Changes No changeable options Saves the changes done in BIOS settings so far. Discard Changes No changeable options Discards the changes done in BIOS settings so far. Page: 4-42 ′ BM-0947 USER S MANUAL...
  • Page 83 Save the changes done so far as User Defaults Defaults Restore User No changeable options Restore the User Defaults to all the Defaults setup options Boot Override - [Drive(s)] Forces to boot from selected [drive(s)]. Page: 4-43 ′ BM-0947 USER S MANUAL...
  • Page 84: Pcie Bus

    EXPANSION APPENDIX This appendix indicates the pin assignments of expansion bus. Sections included: PCIe Bus Page: A-1...
  • Page 85 Appendix A Expansion Bus PCIE BUS PCI_E1 with 164 pins is optional on BM-0947. The pin assignments are as follows: PCI_E1 PCI_E1: PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT ASSIGNMENT Reserved A42 GND +12V EXP_A_TX_6_D +12V A43 EXP_A_RX_6_D +12V +12V A44 EXP_A_RX_6_D...
  • Page 86 A78 Reserved B37 EXP_A_TX_5_D Reserved A38 GND A79 Reserved B38 EXP_A_TX_5_D Reserved A39 EXP_A_RX_5_D A80 Reserved B39 GND Reserved A40 EXP_A_RX_5_D A81 Reserved B40 GND Reserved A41 GND A82 Reserved B41 EXP_A_TX_6_D Reserved Page: A-3 ′ BM-0947 USER S MANUAL...
  • Page 87 APPENDIX TECHNICAL SUMMARY This section introduce you the maps concisely. Sections included: Block Diagram Interrupt Map DMA Channel Map I/O Map Memory Map Watchdog Timer Configuration Flash BIOS Update Page: B-1...
  • Page 88: Block Diagram

    64Mbit SPI Flash ROM LOW PIN COUNT 80 port for Debug Connector COM 1/3/4/5/6 RS232 FINTEK Com1/2 support 5V/12V HW monitor LPC SIO COM2 F81846AD-I RS232/422/485 Keyboard Mouse VR12.5 ISL95816 3 Phase PWM TPS51216 For DDR3 Page: B-2 ′ BM-0947 USER S MANUAL...
  • Page 89: Interrupt Map

    Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Page: B-3 ′ BM-0947 USER S MANUAL...
  • Page 90 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Page: B-4 ′ BM-0947 USER S MANUAL...
  • Page 91 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Page: B-5 ′ BM-0947 USER S MANUAL...
  • Page 92 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System ® 4294967283 Intel I210 Gigabit Network Connection #3 Page: B-6 ′ BM-0947 USER S MANUAL...
  • Page 93 8 Series/C220 Series PCI Express Root Port #4 - 8C16 ® 4294967294 Intel 8 Series/C220 Series PCI Express Root Port #1 - 8C10 Note: These resource information were gathered on Windows 7 (the IRQ could be assigned differently depending on your OS.) Page: B-7 ′ BM-0947 USER S MANUAL...
  • Page 94: Dma Channels Map

    Appendix B Technical Summary DMA CHANNELS MAP TIMER CHANNEL ASSIGNMENT Channel 4 Direct memory access controller Page: B-8 ′ BM-0947 USER S MANUAL...
  • Page 95 0x00000063-0x00000063 Motherboard resources 0x00000064-0x00000064 Standard PS/2 Keyboard 0x00000065-0x0000006F Motherboard resources 0x00000065-0x0000006F Motherboard resources 0x00000067-0x00000067 Motherboard resources 0x00000070-0x00000070 Motherboard resources 0x00000070-0x00000070 System CMOS/real time clock 0x00000072-0x0000007F Motherboard resources 0x00000080-0x00000080 Motherboard resources 0x00000080-0x00000080 Motherboard resources Page: B-9 ′ BM-0947 USER S MANUAL...
  • Page 96 ® 0x000003C0-0x000003DF Intel HD Graphics 4600 0x000003E8-0x000003EF Communications Port (COM3) 0x000003F8-0x000003FF Communications Port (COM1) 0x000004D0-0x000004D1 Motherboard resources 0x000004D0-0x000004D1 Programmable interrupt controller 0x00000680-0x0000069F Motherboard resources 0x00000A00-0x00000A0F Motherboard resources 0x00000A10-0x00000A1F Motherboard resources 0x00000A20-0x00000A2F Motherboard resources Page: B-10 ′ BM-0947 USER S MANUAL...
  • Page 97 - 8C02 ® 0x0000F0C0-0x0000F0C3 Intel 8 Series/C220 Series SATA AHCI Controller - 8C02 ® 0x0000F0D0-0x0000F0D7 Intel 8 Series/C220 Series SATA AHCI Controller - 8C02 0x0000FFFF-0x0000FFFF Motherboard resources 0x0000FFFF-0x0000FFFF Motherboard resources 0x0000FFFF-0x0000FFFF Motherboard resources Page: B-11 ′ BM-0947 USER S MANUAL...
  • Page 98: Memory Map

    8 Series/C220 Series SATA AHCI Controller - 8C02 ® 0xF7D3F000-0xF7D3F00F Intel Management Engine Interface 0xFED00000-0xFED003FF High precision event timer ® 0xF7800000-0xF7BFFFFF Intel HD Graphics 4600 ® 0xE0000000-0xEFFFFFFF Intel HD Graphics 4600 0xF7D34000-0xF7D37FFF High Definition Audio Controller Page: B-12 ′ BM-0947 USER S MANUAL...
  • Page 99 8 Series/C220 Series SMBus Controller - 8C22 ® 0xA0000-0xBFFFF Intel HD Graphics 4600 0xA0000-0xBFFFF PCI bus 0xD0000-0xD3FFF PCI bus 0xD4000-0xD7FFF PCI bus 0xD8000-0xDBFFF PCI bus 0xDC000-0xDFFFF PCI bus 0xE0000-0xE3FFF PCI bus 0xE4000-0xE7FFF PCI bus 0x3E200000-0xFEAFFFFF PCI bus Page: B-13 ′ BM-0947 USER S MANUAL...
  • Page 100: Watchdog Timer Configuration

    To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. Page: B-14 ′ BM-0947 USER S MANUAL...
  • Page 101 ;------ Enter to extended function mode -------------------------------------------------------- ;------ Select Logical Device 7 of watchdog timer -------------------------------------------- ;------ Enable Watch dog feature -------------------------------------------- ;------ Enable Watch PME-------------------------------------------- 0FAh ;------ Set second as counting unit -------------------------------------------------------------- 0f5h Page: B-15 ′ BM-0947 USER S MANUAL...
  • Page 102 Appendix B Technical Summary ;------ Set timeout interval as 30seconds and start counting --------------------------------- 0f6h ;------ Exit the extended function mode -------------------------------------------------------- 0aah Page: B-16 ′ BM-0947 USER S MANUAL...
  • Page 103: Flash Bios Update

    System will go into the BIOS setup menu. Select [Boot] menu. Select [Hard Drive BBS Priorities], set the USB bootable device to be the boot device. Press <F4> key to save configuration and exit the BIOS setup menu. Page: B-17 ′ BM-0947 USER S MANUAL...
  • Page 104 The recommended options for BIOS ROM update consist of following parameters: program main BIOS image program Boot Block program NVRAM don’t check ROM ID Page: B-18 ′ BM-0947 USER S MANUAL...
  • Page 105 Erasing NVRAM Block ..done Updating NVRAM Block ..done Verifying NVERAM Block ..done C:\AFUDOS> You can restart the system and boot up with new BIOS now. Update is complete after restart. Page: B-19 ′ BM-0947 USER S MANUAL...
  • Page 106 Verify during following boot that the BIOS version displayed at initialization screen has changed. Version: 2.15.1226. Copyright (C) 2012 American Magatrends, Inc. BIOS Date: 05/29/2014 10:09:57 Ver: M9470TH6 Press <DEL> or <F2> to enter setup. Page: B-20 ′ BM-0947 USER S MANUAL...
