OTP Programmer

Holtek¢s OTP devices are fully supported by a range of programmers. For engineering level OTP
device programming, Holtek supplies its stand alone programming tool which provides a quick
and efficient means for low volume OTP programming. The HT-ICE In-Circuit Emulators has inte-
grated a writer as part of the hardware package, facilitating complete design, debug and OTP de-
vice programming all within the HT-ICE. More programmers from other suppliers are available
which provide more efficient and higher volume production capability. Refer to our website for fur-
ther suppliers information.

OTP Adapter Card

The Holtek OTP programmers are supplied with a standard Textool chip socket. The OTP Adapter
Card is used to connect the Holtek OTP programmers to the various sizes of available OTP chip
packages that are unable to use this supplied socket.

System Configuration

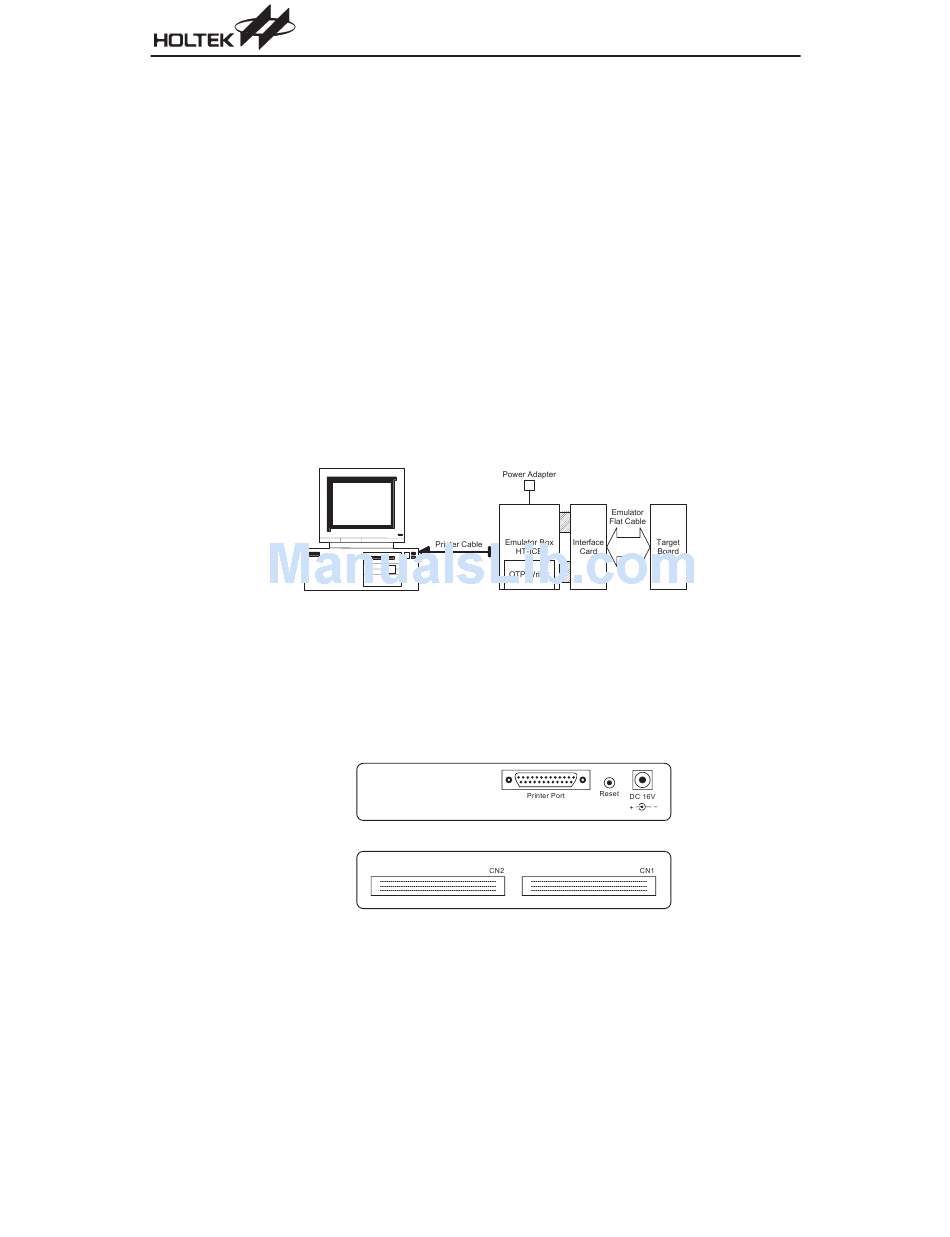

The HT-IDE system configuration is shown below, in which the host computer is a Pentium compat-
ible machine with Windows 95/98/NT/2000/XP or later. Note that if Windows NT/2000/XP or later
systems are used, then the HT-IDE3000 software must be installed in the Supervisor Privilege
mode.
The HT-IDE system contains the following hardware components:
· The HT-ICE box contains the emulator box with 1 printer port connector for connecting to the
host machine, I/O signal connector and one power-on LED
· I/O interface card for connecting the target board to the HT-ICE box
· Power Adapter, output 16V
· 25-pin D-type printer cable
· Integrated OTP writer
Chapter 5 MCU Programming Tools
H T - I C E R e a r V i e w
H T - I C E F r o n t V i e w
153
