Page 1: User Manual
User Manual Video Fluoroscopy Table 6210 Sonesta manufactures and sells tables and chairs for urology, gynecology, urodynamic diagnostics and upper GI procedures... - Page 2 Copyright © 2017 Sonesta Medical AB. All rights reserved. The contents of this manual are the property of SONESTA MEDICAL AB. Any reproduction in whole or in part is strictly prohibited. At the time of printing, this manual correctly described the device and its functions. However, as modifications may have been carried out since the production of this manual, the system package may contain one or more amendments to the manual.
-
Page 3: Table Of Contents
Contents Contents ................................3 Safety Information ............................4 Symbols .................................5 Video Fluoroscopy Table 6210 ........................6 Controls .................................7 Emergency Stop ..............................7 Battery Back Up System ..........................7 Pelvic Rotation ..............................8 Standing Position ............................8 Accessories ..............................9 Maintenance ..............................11 Cleaning ................................11 Mattres Cleaning Instructions ........................12 Technical Data ..............................13 Measures and Weights ..........................13... -
Page 4: Safety Information
Ensure that the patient is never left unattended. A patient should never enter the chair by using the footrests to stand on while the 6210 is in a chair position or in a vertical position, unless the footrests are flushed with the floor. -
Page 5: Symbols
Symbols Explanations of the symbols found on the body of the device: Attention, see accompanying documents Type B, equipment providing a particular degree of protection against electric shock The device complies with the EC directive 93/42/EEC on medical devices IPX6 Degree of protection, EN 60529 (ingress of water and foreign objects) -250 kg Maximum safe workload icon, maximum safe workload 250 kg... -
Page 6: Video Fluoroscopy Table 6210

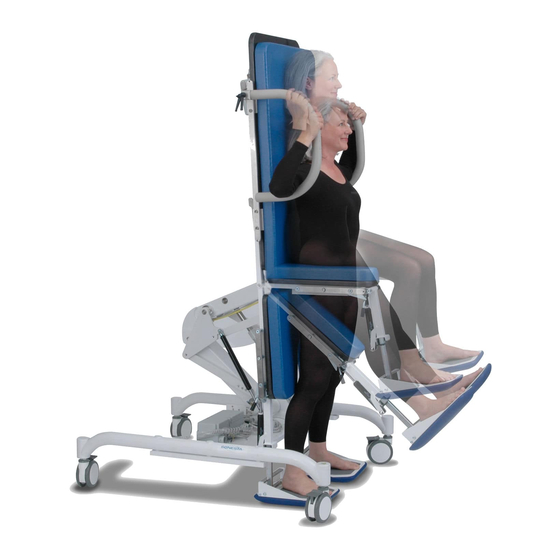

Video Fluoroscopy Table 6210 Intended Use The 6210 is intended to position the patient in a desired position during urodynamics or video fluoroscopy examinations and procedures. Description 1. Detachable side rail 2. Detachable arm rest holder 3. Detachable right arm rest 4. -
Page 7: Controls
Controls General Operation The table is operated with the hand control. Maximum Duty Cycle 2 minutes per 18 minutes Hand Control 1. Up (seat) 2. Down (seat) 3. Up (chair) 4. Down (chair) 5. Up (back) 6. Down (back) 7. Reverse Trendelenburg 8. -
Page 8: Pelvic Rotation
Control of Pelvic Position The chair can be used to rotate the pelvic area, this is described in the following section. Pelvic Rotation: Hand control buttons: Back up and back down Reverse Trendelenburg and Trendelenburg Move back cushion into up-right position, Use the hand control to rotate the table with the hand control. -
Page 9: Accessories
Accessories The 6210 has several accessories, either standard or optional. These are described in the following sections. Standard accessories 1 Hand control 524-6356 1 Plastic funnel w/drainage 524-6325-9 1 Arm rest holder 524-6338-4 1 Arm rest 524-6021-6 2 Leg rest holder... - Page 10 Leg rest holder Standard Installation (5 mm Allen wrench required): Leg rest Standard Installation: Foot rest Standard Installation:...
-
Page 11: Maintenance
Maintenance On a weekly basis, test the device for proper function and inspect cables for cuts and other damage. If in doubt, replace the relevant parts. The device should be cleaned routinely, as described in the Cleaning section. Additional preventive maintenance is required according to the Service Manual. -
Page 12: Mattres Cleaning Instructions
Mattress cleaning instructions The following cleaning and decontamination materials are known to be compatible with medical devices made of coated-flexible-foam and UltraFoam materials and rigid formed plastics, including rigid parts reinforced with carbon fiber or glass fiber: • Rubbing alcohol (70 % isopropyl alcohol). •... -
Page 13: Technical Data
Technical Data Model Video Fluoroscopy Table, 6210, three motors (lift, seat, back). Power Supply Power consumption: max 5.8A (120V~), 3.0A (230V~). Input: 120 V ~ 60 Hz. 230 V ~ 60/50 Hz. Output: 24VDC (to Motor). Type of Protection: Class 1, Type B. -
Page 14: Imaging Area
Technical Lifetime This product has a technical lifetime, which by Sonesta Medical AB is considered to be 10 years. At the time of delivery the product fulfils the existing regulations and standards, but as all other electro-mechanical products, the Sonesta Video Fluoroscopy table is subjected to age and wear, and even though the product undergoes regular and prescribed service, Sonesta Medical AB can not guarantee the product’s safety after the expiry of the technical lifetime. -
Page 15: Notes
Notes... -
Page 16: Service Centers
Service Centers Sweden Sonesta Medical AB Sonesta Medical Inc Tegeluddsvägen 76 2 DeBush Avenue unit C3 SE-115 28 Stockholm Middleton, MA 01949 Sweden United States Tel: +46 8 50257280 Tel: +1 630-519-3450 E-mail: info@sonestamedical.se E-mail: infous@sonestamedical.se http://www.sonestamedical.se http://www.sonestamedical.se Manufactured by Sonesta Medical AB Tegeluddsvägen 76...
