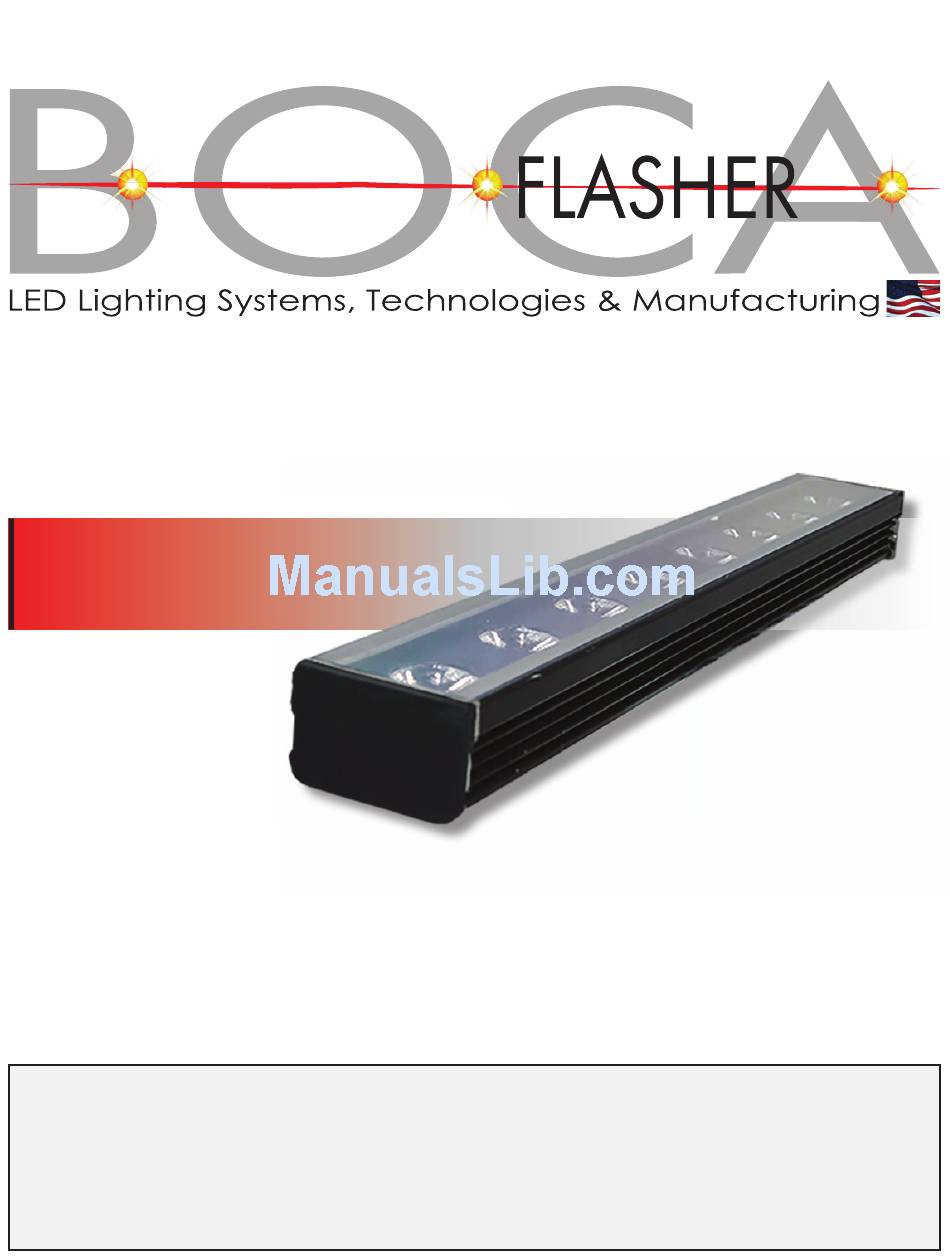

Installation Manual
HPNFC-HO
WARNING: Do Not lIft fIxtuRe by cAbles.
This could result in permanent damage to both the fixture and the cables. Damage resulting from grasping cables and/or putting
undue pressure on the cable connections will not be covered under the warranty! Do not attempt to install or use the HPNFC-HO
fixture without reading the installation instructions and safety labels completely. Failure to adhere to these instructions could result in
serious injury or property damage. Do not modify, alter or attempt to service the HPNFC-HO. Doing so will void the warranty.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPNFC-HO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boca Flasher HPNFC-HO

Summary of Contents for Boca Flasher HPNFC-HO

  • Page 1 This could result in permanent damage to both the fixture and the cables. Damage resulting from grasping cables and/or putting undue pressure on the cable connections will not be covered under the warranty! Do not attempt to install or use the HPNFC-HO fixture without reading the installation instructions and safety labels completely.

  • Page 2: Maintenance

    Introduction: The Boca HPNFC-HO is a line voltage fixture that eliminates the need for secondary transformers, making installation contractor friendly. The housing is a clear anodized aluminum with a durable finish making it weather and abrasion resistant. It is UL Listed for dry, damp or wet location (model dependent).
  • Page 3 (clip edge or hole) and space the clips according to the length of each fixture (see figure A). Clip placement: Boca Flasher recommends clips to be installed 1.5” from end cap. (see figure 3A) 2.
  • Page 4 Install security screw using supplied screw and driver. 3” arc & 6” arc Bracket installation Screw Information: Screws not provided by Boca Flasher. Boca Flasher recommends wide washer pan head Phillips #8 screw (not to exceed .418” in diameter). 3. Length of screw will vary depending on mounting surface.
  • Page 5 Installation Instructions HPNFC-HO 3. clIP PosItIoNING Fixed Mounting Clip FIXTURE LENGTH FIXTURE LENGTH Swivel Mounting Clip Changing fixture mount angle adjustable swivel clips only FIXTURE LENGTH FIXTURE LENGTH 1. Loosen screw shown on figure 1, on both ends of light fixture.
  • Page 6 Installation Instructions HPNFC-HO Installation of clips for light fixtures with tWIst lock connections 1. Light fixtures that have twist lock connections on each end may be installed in areas where the surface plane may be at slightly different levels between fixtures. Also, the light fixtures do not have to be in straight alignment and can be laid out to different angles and patterns.
  • Page 7 6. coNNect to A DIMMING systeM *nOtE: These fixtures can dim on forward (leading) or reverse (trailing) phase dimmers. Boca Flasher does not recommend the use of a “Smart” or phase-adaptive dimming module. 7. ReMoVING fIxtuRes fRoM clIPs IF nECESSARY...

  • Page 8: Important Safety Reminders

    For specific requirements, contact your Boca Flasher sales representative. Boca Flasher, Inc. 552 NW 77th Street Boca Raton, Florida 33487 USA Phone: 561.989.5338 Fax: 561.982.8323 © 2015 Boca Flasher, Inc. All rights reserved. All names and trademarks are property...
