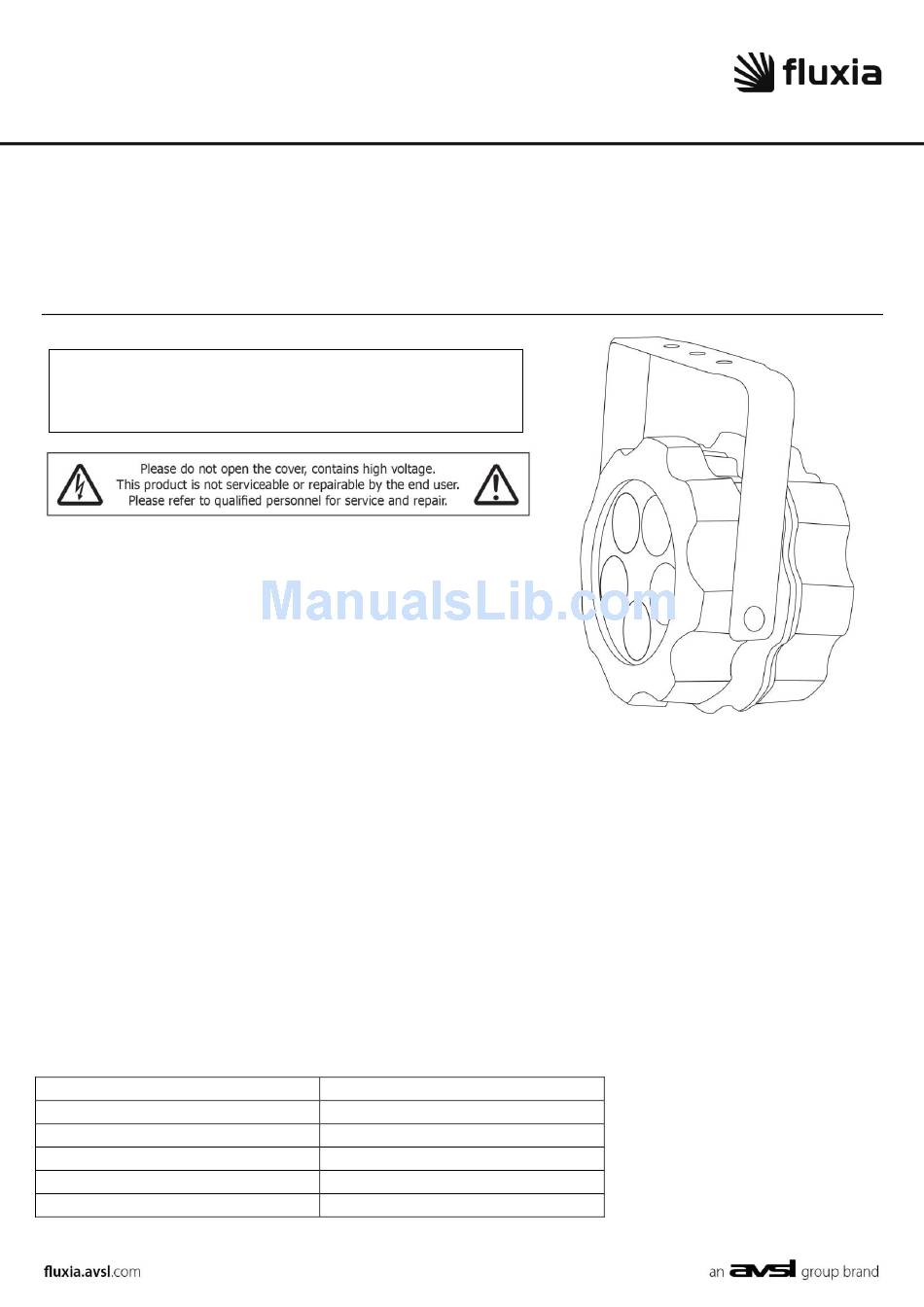

fluxia PD5H-25 User Manual

Please read through this manual thoroughly before
use, any damage caused by misuse of the product will
not be covered by the warranty.
A weatherproof LED lighting PAR48 can in aluminium housing
with adjustable stand bracket. Full colour mixing can be
accessed through stand-alone control or via DMX512 input.
Built-in 6-in-1 HEX LEDs are capable of displaying red, green,
blue, white, amber and UV. These LEDs allow for richer and
warmer colour blending. A versatile fixture for adding dynamic
colour to indoor or outdoor areas.
Installation:
This PAR can is powered by mains, therefore installation should be carried out certified electrician
only. Before installation, always ensure the mains is switched OFF at the consumer unit and the fuse
block should be removed on the circuitry that you are working on to ensure the mains will not be
accidentally switched back on while working.
This PAR can is supplied with a double bracket for free standing on the floor or overhead mounting.
There is also a fixed U bracket at the back for the unit to be mounting on a spade bracket.
IP65 rating applies to the unit only. If more units are requiring connect together at a distance longer
than attached leads, we recommend to strip the water proof connector and extend the connections
using waterproof junction box and gland or waterproof resin jointing kit for full IP65 protection.
Below table shows wire colour and connection, please ensure all connections are made correctly.
Wire colour reference
Colour
Brown
Blue
Yellow/Green
Red
White
COMPACT OUTDOOR DMX HEX-LED PAR48 CAN
Carries
Mains – live
Mains – neutral
Mains – earth
DMX – dmx+ signal
DMX – dmx- signal
PD5H-25
Item ref: 154.321UK
User Manual
