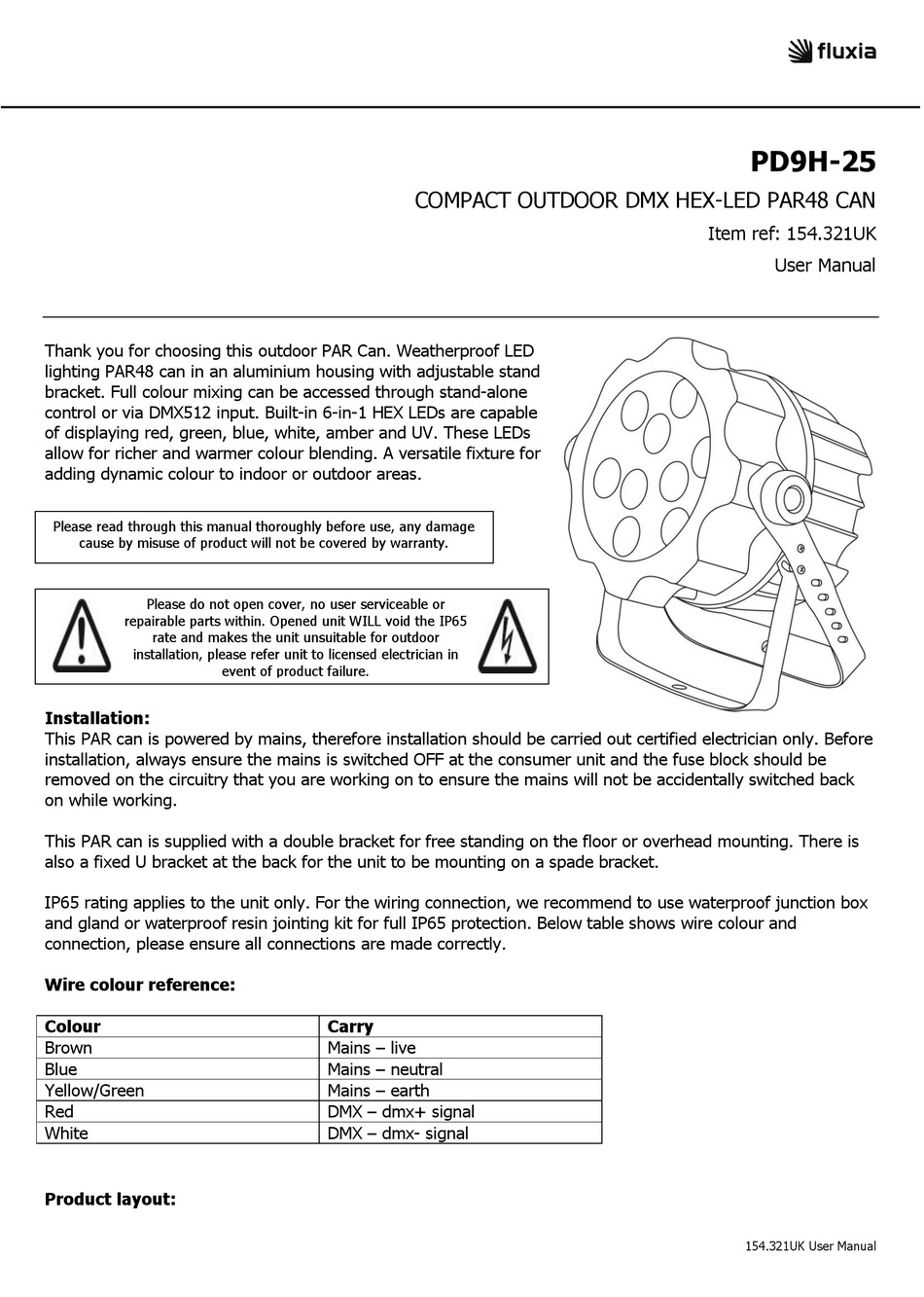

fluxia PD9H-25 User Manual

Thank you for choosing this outdoor PAR Can. Weatherproof LED
lighting PAR48 can in an aluminium housing with adjustable stand
bracket. Full colour mixing can be accessed through stand-alone
control or via DMX512 input. Built-in 6-in-1 HEX LEDs are capable
of displaying red, green, blue, white, amber and UV. These LEDs
allow for richer and warmer colour blending. A versatile fixture for
adding dynamic colour to indoor or outdoor areas.
Please read through this manual thoroughly before use, any damage
cause by misuse of product will not be covered by warranty.
Please do not open cover, no user serviceable or
repairable parts within. Opened unit WILL void the IP65
rate and makes the unit unsuitable for outdoor
installation, please refer unit to licensed electrician in
Installation:
This PAR can is powered by mains, therefore installation should be carried out certified electrician only. Before
installation, always ensure the mains is switched OFF at the consumer unit and the fuse block should be
removed on the circuitry that you are working on to ensure the mains will not be accidentally switched back
on while working.
This PAR can is supplied with a double bracket for free standing on the floor or overhead mounting. There is
er or professional when unit malfunction.
also a fixed U bracket at the back for the unit to be mounting on a spade bracket.
IP65 rating applies to the unit only. For the wiring connection, we recommend to use waterproof junction box
and gland or waterproof resin jointing kit for full IP65 protection. Below table shows wire colour and
connection, please ensure all connections are made correctly.
Wire colour reference:
Colour
Brown
Blue
Yellow/Green
Red
White
Product layout:
event of product failure.
Carry
Mains – live
Mains – neutral
Mains – earth
DMX – dmx+ signal
DMX – dmx- signal
COMPACT OUTDOOR DMX HEX-LED PAR48 CAN
PD9H-25
Item ref: 154.321UK
User Manual
154.321UK User Manual
