  • Page 1: Quick Guide

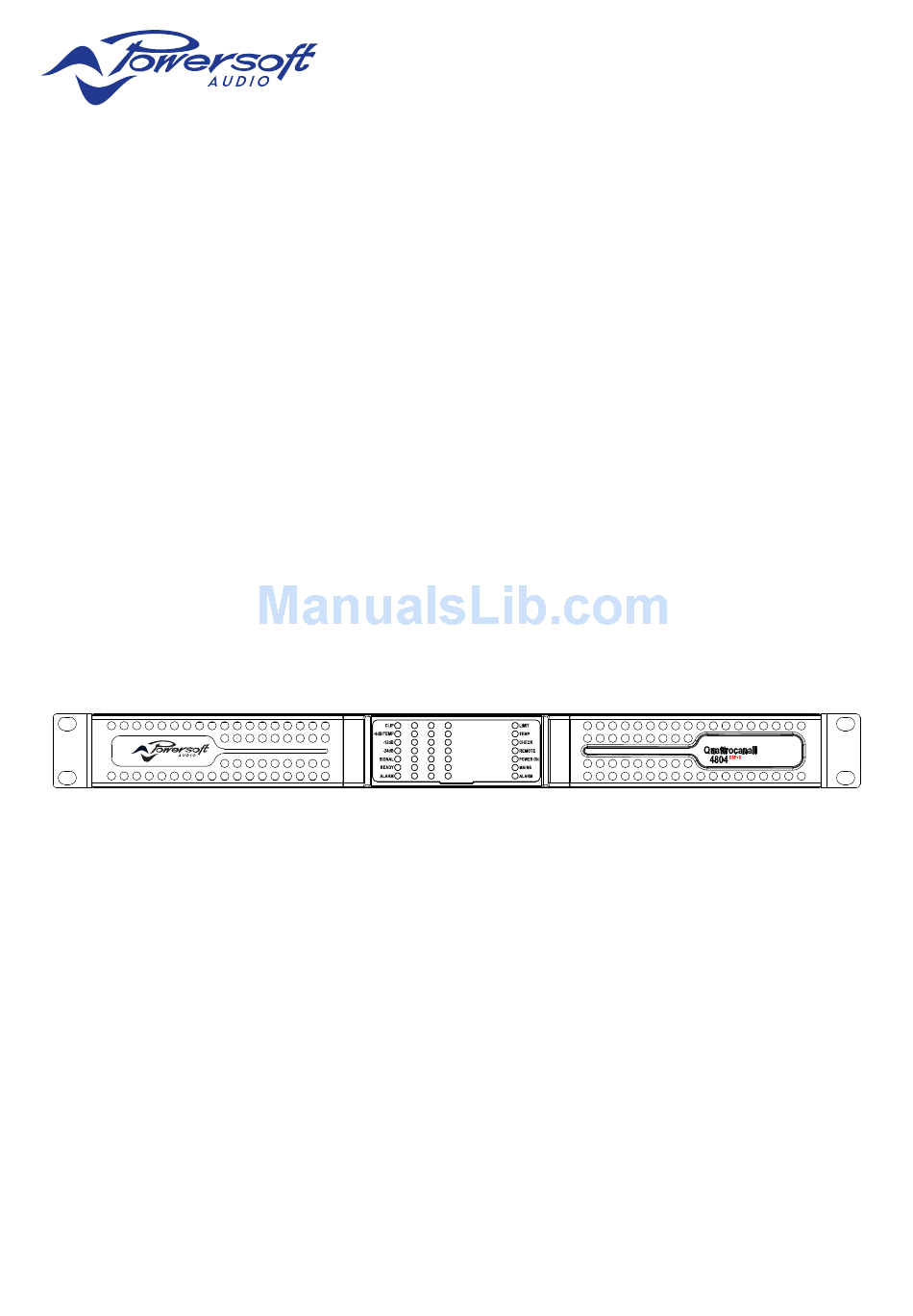

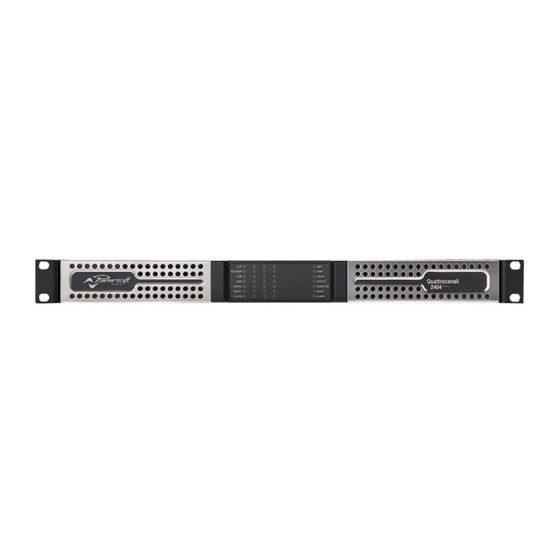

    Quattrocanali Series quick GuiDE Quattrocanali 4804 Quattrocanali 4804 DSP+D Quattrocanali 2404 Quattrocanali 2404 DSP+D Quattrocanali 1204 Quattrocanali 1204 DSP+D ©2017 Powersoft Keep this manual DO000209.02 R8 for future reference...
  • Page 2 Para obter atualizações, consulte a versão em inglês disponível online em www.powersoft-audio.com. Designed in Italy by Powersoft S.p.A. (via E. Conti, 5 - 50018 Scandicci, Firenze) Factory 1: MW.FEP S.p.A. (Via Modena, 68 - 40017 San Giovanni in Persiceto, Bologna - Italy)

  • Page 3: Table Of Contents

    3 : 4. Precautions regarding installation 9 : 2. Assistance 3 : 5. AC mains supply 9 : 2.1. Drop off at a Powersoft Authorized Service Centre near you 3 : 6. Switch ON/OFF 9 : 2.1.1. In-Warranty repairs: 3 : 7. Energy save 9 : 2.1.2.
  • Page 4 4 | Quattrocanali Series...
  • Page 5 2 3 4 5 6 Control panel ON LED and STANDBY LED Armonía callback push button Soft Reset push button Hard Reset push button Self Check Global status LED strip LED panel Channel status LED bars 10. Channel 4 level potentiometer 11.
  • Page 6 4 Phoenix MC 1,5/12-ST-3,81 1803675 INPUT (Analog Inputs not in use) REMOTE ON | REMOTE OFF Phoenix MC 1,5/4-ST-3,81 1803594 * quattrocanali 4804 without DSP only quattrocanali 2404 without DSP only quattrocanali 1204 without DSP only 6 | Quattrocanali Series...
  • Page 7 Bill of connectors Name Plug iNPuT Phoenix Mc 1,5/12-ST-3,81 1803675 OuTPuT Phoenix Pc 5/ 8-STF1-7,62 1777891 ground GPO/ALARM Phoenix Mc 1,5/12-ST-3,81 1803675 REMOTE ON|OFF Phoenix Mc 1,5/4-ST-3,81 1803594 mains Ac MAiNS iEc c19 Low-Z High-Z 100V HPF @ 35 Hz HPF @ 70 Hz •...
  • Page 8 1 2 3 4 5 6 7 8 RJ45 color code (TiA/EiA-568-B) ORANGE / WHiTE ORANGE GREEN / WHiTE BLuE Mounting brackets BLuE / WHiTE Supports de fixation Soportes de montaje GREEN BROWN / WHiTE BROWN 1 Ru 1 Ru 1 Ru 8 | Quattrocanali Series...

  • Page 9: Weee Directive

    The following harmonized standards are applied: it to Powersoft S.p.A. for reprocessing. For more information EN 55103-1: 2009 /A1: 2012 about where you can send your waste equipment for EN 55103-2: 2009 /IS: 2012 recycling, please contact Powersoft S.p.a.

  • Page 10: Important Safety Instructions

    ONLY BATTERiES, cHARGERS, AND OTHER AccESSORiES 13. unplug this apparatus during lightning storms or when APPROVED BY POWERSOFT FOR uSE WiTH THiS DEVicE. unused for long periods of time. PLEASE REALiZE THAT BATTERiES MiGHT cAuSE DAMAGES LikE LEAkiNG, FiRE OR EXPLODE WHEN MiSuSE OR DEFEcTiVE.

  • Page 11: Quattrocanali Series

    Powersoft. shipping company or retailer immediately. The quattrocanali Series is specifically designed for The box contains the following: installation applications.

  • Page 12: Installation

    Disconnect the AC mains source before attempting to clean any part of the amplifier quattrocanali Series amplifiers are meant to be installed into rack cabinets. in order to limit the risk of mechanical damages, the amplifiers must be secured to the rack using both frontal in order to clean the vent filters you need to remove the and rear mounting brackets.

  • Page 13: 5.Ac Mains Supply

    Series amplifiers implement an universal of attached amplifier to the same Ac mains is such that one switching mode power supply with power factor correction...

  • Page 14: Connections

    4 : 2.1. Remote level adjustment person and the use of ready made leads. Take care to secure The level of each channel of the quattrocanali Series the output terminal before switching the device on. amplifiers can be remotely adjusted by means of a linear 10 Output connections are made via the Phoenix k�...

  • Page 15: 6.Gain Selection

    DSP+D amplifiers. The quattrocanali’s GPO – general purpose output – system implements triggering signals to broadcast alarms. quattrocanali Series provides a pair of paralleled general purpose output connections per channel: one Normally Open NO and one Normally closed The connections are available on the back panel via the 12-pin Phoenix Mc 1.5/12-ST-3.81 1803675 connector: see...

  • Page 16: Led Chart

    OR critical Faults in order to exit the self check test and resume normal operations, press once the self check push button. Red LED lights on in case of any kind of PSu fault that prevents normal operating. 16 | Quattrocanali Series...

  • Page 17: 1.1. Global Faults

    FIG. 3: System OK. Networking 6 : 1.1. Global faults FIG. 4: quattrocanali amplifiers support star network topology Power supply fault via the Ethernet port and Dante networking via the Dante port only. The Ethernet port is designed to allow the remote control of the amplifier through Armonía Pro Audio Suite FIG.

  • Page 18: Armonía Pro Audio Suite

    8 : 1.Signal routing and DSP architecture 1. Set Lo-Z and Hi-Z loads and filters on output channels. 2. Load the loudspeaker presets or manually configure the Signal processing on Powersoft quattrocanali DSP+D loudspeaker layout (grouping output channels, limiting, amplifiers accomplishes multiple functions that affect speaker processing, etc.).

  • Page 19: Warranty And Assistance

    Powersoft Hq Goods can be returned to Powersoft only after they have f The repair time has been set from the Powersoft Hq and been granted a Return Merchandise Authorization (RMA) it’s equally applied in all the authorized service centre number to be attached to the external packaging.

  • Page 20: 2.2.1. Shipment From Non-Ce Countries

    After having applied the aforementioned procedure, you will receive an Email containing the Return Merchandise Authorization (RMA form) for each unit returned. All returned Powersoft units must be shipped to the following address: Powersoft spa Factory service centre Via Enrico conti N. 13 – 15...

  • Page 21: Specifications

    Specifications Quattrocanali 4804 Quattrocanali 4804 DSP+D channel Handling Output Stage Maximum output power per channel @ 8 Ω 1200 W 4 Hi-Z or Lo-Z Number of output channels Phoenix Pc 5/8-STF1-7,62 (bridgeable per ch. pair) Maximum output power per channel @ 4 Ω 1200 W Number of input channels Maximum output power per channel @ 2 Ω...
  • Page 22 483 x 44.5 x 358 mm Dimensions Standards compliance auto-sensing Fast Ethernet (iEEE 802.3u, 100 Mbit/s) 19.0 x 1.75 x 14.1 in Weight 6.8 kg (15.0 lb) Supported topologies Star Remote interface Armonía Pro Audio Suite™ 22 | Quattrocanali Series...
  • Page 23 Quattrocanali 1204 Quattrocanali 1204 DSP+D channel Handling Output Stage Maximum output power per channel @ 8 Ω 300 W 4 Hi-Z or Lo-Z Number of output channels Phoenix Pc 5/8-STF1-7,62 (bridgeable per ch. pair) Maximum output power per channel @ 4 Ω 300 W Number of input channels Maximum output power per channel @ 2 Ω...
  • Page 24 Powersoft S.p.A. Via Enrico conti, 5 50018 Scandicci (Fi) italy Tel: +39 055 735 0230 Fax: +39 055 735 6235 Sales & general inquiries: sales@powersoft.it Application & technical support: support@powersoft.it Service & maintenance: service@powersoft.it compliance requests: compliance@powersoft.it powersoft-audio.com...
