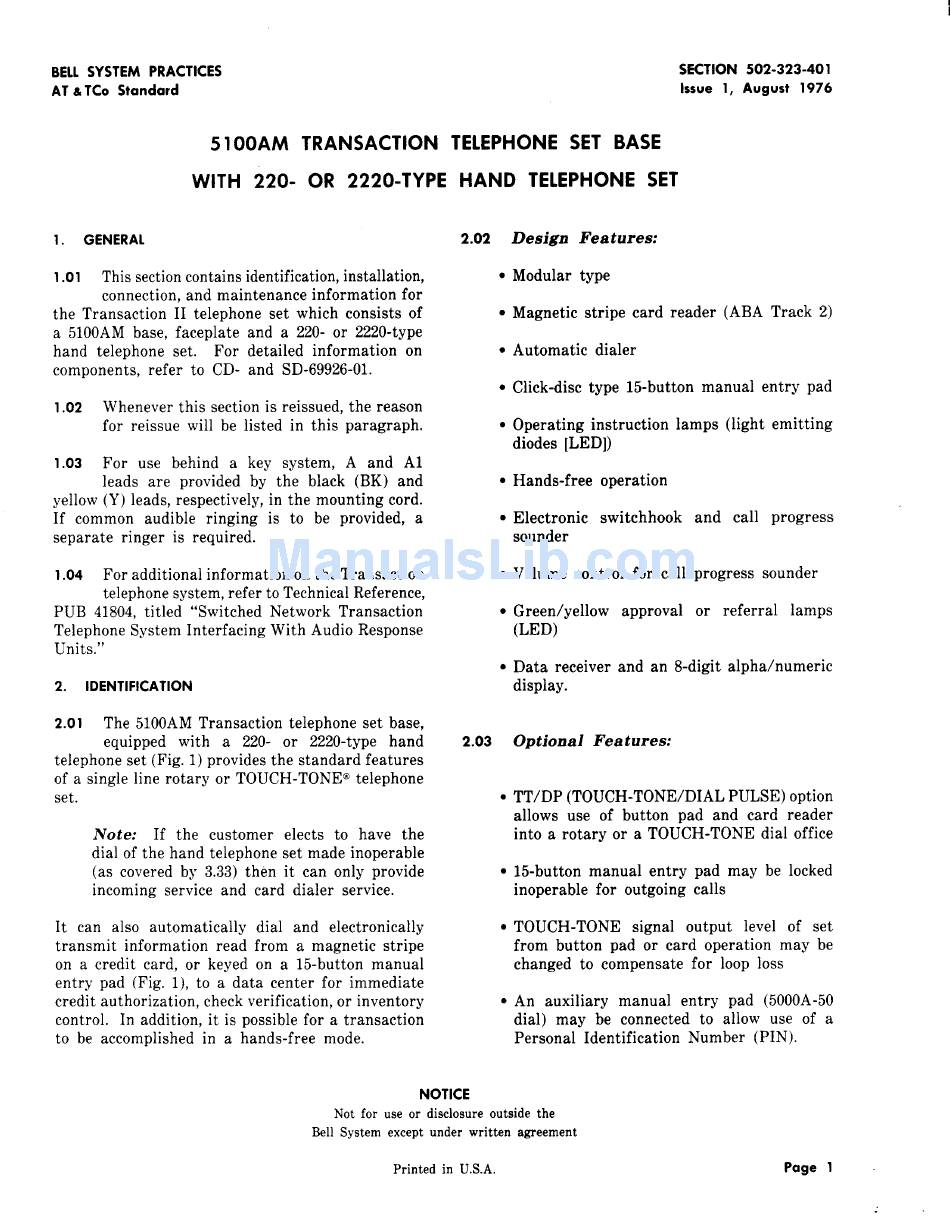

BELL SYSTEM PRACTICES
AT & TCO Skmdad
5 100AM TRANSACTION TELEPHONE SET BASE
SECTION 502-323-401
Issue 1, August 1976
WITH 220- OR 2220-TYPE
1.
GENERAL
1.01 This section contains identification, installation,
connection, and maintenance information for
the Transaction II telephone set which consists of
a 51OOAM base, faceplate and a 220- or 2220-type
hand telephone set.
For detailed information on
components, refer to CD- and SD-69926-01.
1.02
Whenever this section is reissued, the reason
for reissue will be listed in this paragraph.
1.03
For use behind a key system, A and Al
leads are provided by the black (BK) and
yellow (Y) leads, respectively, in the mounting cord.
If common audible ringing is to be provided, a
separate ringer is required.
1.04
For additional information on the Transaction
telephone system, refer to Technical Reference,
PUB 41804, titled "Switched Network Transaction
Telephone System Interfacing With Audio Response
Units."
2. IDENTIFICATION
2.o1
The 51OOAM Transaction telephone set base,
equipped with a 220- or 2220-type hand
tele~hone set (Fig. 1) provides the standard features
of a
set.
single line rotary or TOUCH-TONE" telephone
Note: If the customer elects to have the
dial of the hand telephone set made inoperable
(as covered by 3.33) then it can only provide
incoming service and card dialer service.
It can also automatically dial and electronically
transmit information read from a magnetic stripe
on a credit card, or keyed on a 15-button manual
entry pad (Fig. 1), to a data center for immediate
credit authorization, check verification, or inventory
control. In addition, it is possible for a transaction
to be accomplished in a hands-free mode.
HAND TELEPHONE SET
2.02
Design Features:
b
2.03
NOTICE
Modular type
Magnetic stripe card reader (ABA Track 2)
Automatic dialer
Click-disc type 15-button manual entry pad
Operating instruction lamps (light emitting
diodes [LED])
Hands-free operation
Electronic switchhook and call progress
sounder
Volume control for call progress sounder
Green/yellow approval or referral lamps
(LED)
Data receiver and an 8-digit alpha/numeric
display.
optional Features:
TT/DP (TOUCH-TONE/DIAL PULSE) option
allows use of button pad and card reader
into a rotary or a TOUCH-TONE dial office
15-button manual entry pad may be locked
inoperable for outgoing calls
TOUCH-TONE signal output level of set
from button pad or card operation may be
changed to compensate for loop loss
An auxiliary manual entry pad (5000A-50
dial) may be connected to allow use of a
Personal Identification Number (PIN).
Not for use or disclosure outside the
Bell System except under written agreement
Printed in U.S.A.
Page 1
