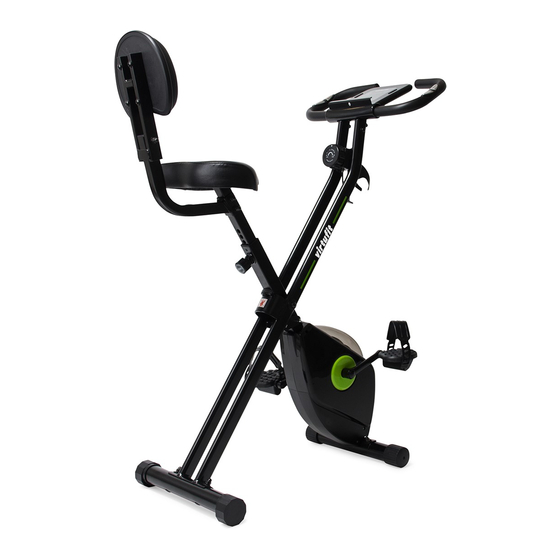

- Page 1 Folding Bike User manual For questions or missing parts please contact Fitness Benelux: Twekkelerweg 263 +31 (0)74-7600219 Fitness 7553 LZ Hengelo service@ tnessbenelux.nl Benelux Benelux The Netherlands www. tnessbenelux.nl Uw partner in fitness...
-
Page 2: Table Of Contents
PARTS LIST ....................................... 9 - 10 RESISTANCE ADJUSTMENT ................................. 11 LEVELLING THE BIKE ..................................11 HOW TO FOLD ....................................12 HOW TO ADJUST ................................... 13 CONTROL PANEL OPERATION ..............................14 - 16 APP INSTRUCTION..................................17 VirtuFit iBiking Folding Bike... -
Page 3: Safety Instructions
If you feel any discomfort, immediately stop the exercise! conformity Weight Limit This product conforms to: 220 LBS / 15.6 Stones / (EN 957-1 & EN 957-5), HOME USE – Class (C). 100 KG or less. It is NOT suitable for therapeutic purposes. VirtuFit iBiking Folding Bike... -
Page 4: Checklist
Water bottle holder Pedal(L) Pedal(R) water bottle holder water bottle holder water bottle holder water bottle holder Tools XX 4 4 VirtuFit iBiking Folding Bike... -
Page 5: Assembly
AssEMBLY INstRUctIoN stEP 1 Assemble Rear & Front Stabilizer, Pedal (L / R). VirtuFit iBiking Folding Bike... - Page 6 AssEMBLY INstRUctIoN stEP 2 Assemble Saddle. VirtuFit iBiking Folding Bike...
- Page 7 AssEMBLY INstRUctIoN stEP 3 Assemble Handlebar & Exercise Monitor complete! VirtuFit iBiking Folding Bike...
-
Page 8: Exploded View
ExPLodEd dRAWING VirtuFit iBiking Folding Bike... -
Page 9: Parts List
End Cap Pedal (R&L) Chain Cover (R&L) Pulley Brush Flywheel Pulley Bracket Lower Drive Wheel Upper Drive Wheel Shaft Upper Drive Wheel Sensor Bracket Magnet Crank Guard Trim Pulley Waved Washer Spring Washer M4*20mm Self-tapping Screw VirtuFit iBiking Folding Bike... -
Page 10: Parts List
M8 Dome Nut M8 Nylon LockNut Flat Washer Outer Brush Inner Brush Lock Ring Bearing Flat Washer M10 Nylon LockNut Pulley M8 Curved Washer M8 Spring Washer M6 Spring Washer Handlebar cap Water bottle holder M10 Nut VirtuFit iBiking Folding Bike... -
Page 11: Resistance Adjustment
If necessary, use a rubber mat underneath to reduce the possibility of slipping in use. If you need to make a fine adjustment, simply twist the end of either Rear Frame Stabiliser Adjustable Hex End Cap (27) to compensate for uneven floors. VirtuFit iBiking Folding Bike... -
Page 12: How To Fold
Using the Locking Pin (3) to fold and unfold the bike. When in use, the Locking Pin (3) is in Position A. WhEN FoLdEd Using the Locking Pin (3) to fold and unfold the bike. When folded, the Locking Pin (3) is in Positon B. VirtuFit iBiking Folding Bike... -
Page 13: How To Adjust
Seat Support Tube (6). Position the Seat Support Tube to the desired height allowing for a slight bend in the knee at the lowest pedal position and retighten the Seat Adjustment Knob (26) . VirtuFit iBiking Folding Bike... -
Page 14: Control Panel Operation
999.9 (KM/H) 999.9 (KM) 9999 (KM) 9999 (Cal) 230 (Beats per Minute) 1. MONITOR 2. ODOMETER 3. CALORIES SCAN ODOMETER SPEED CALORIES DISTANCE PULSE 4. PULSE TIME 5. MODE 6. TIME 7. DISTANCE 8. SPEED 9. SCAN VirtuFit iBiking Folding Bike... - Page 15 5. Battery Spec: 1.5V UM-3 or AA (4 PCS). Power on : LCD will display all segments with Beep sound as Drawing A (next page). Without any signal been transmitted into the monitor for 4 minutes, the monitor enters to SLEEP. VirtuFit iBiking Folding Bike...
-
Page 16: Control Panel Operation
When the display show Drawing D, it means the batteries need to be changed . If there is no signal when you pedal, please check if the cable is well connected. Drawing A Drawing B Drawing C Drawing D VirtuFit iBiking Folding Bike... -
Page 17: App Instruction
QR code. Fit Hi Way iBiking NOTE: 1. Once console is connected to device via Bluetooth, the 2. Please exit Fit Hi Way or iBiking Bluetooth from the smart device, then the console will power on again. VirtuFit iBiking Folding Bike... - Page 18 For questions or missing parts please contact Fitness Benelux: Twekkelerweg 263 +31 (0)74-7600219 Fitness 7553 LZ Hengelo service@ tnessbenelux.nl Benelux Benelux The Netherlands www. tnessbenelux.nl Uw partner in fitness...
