Summary of Contents for Fitness Benelux virtufit

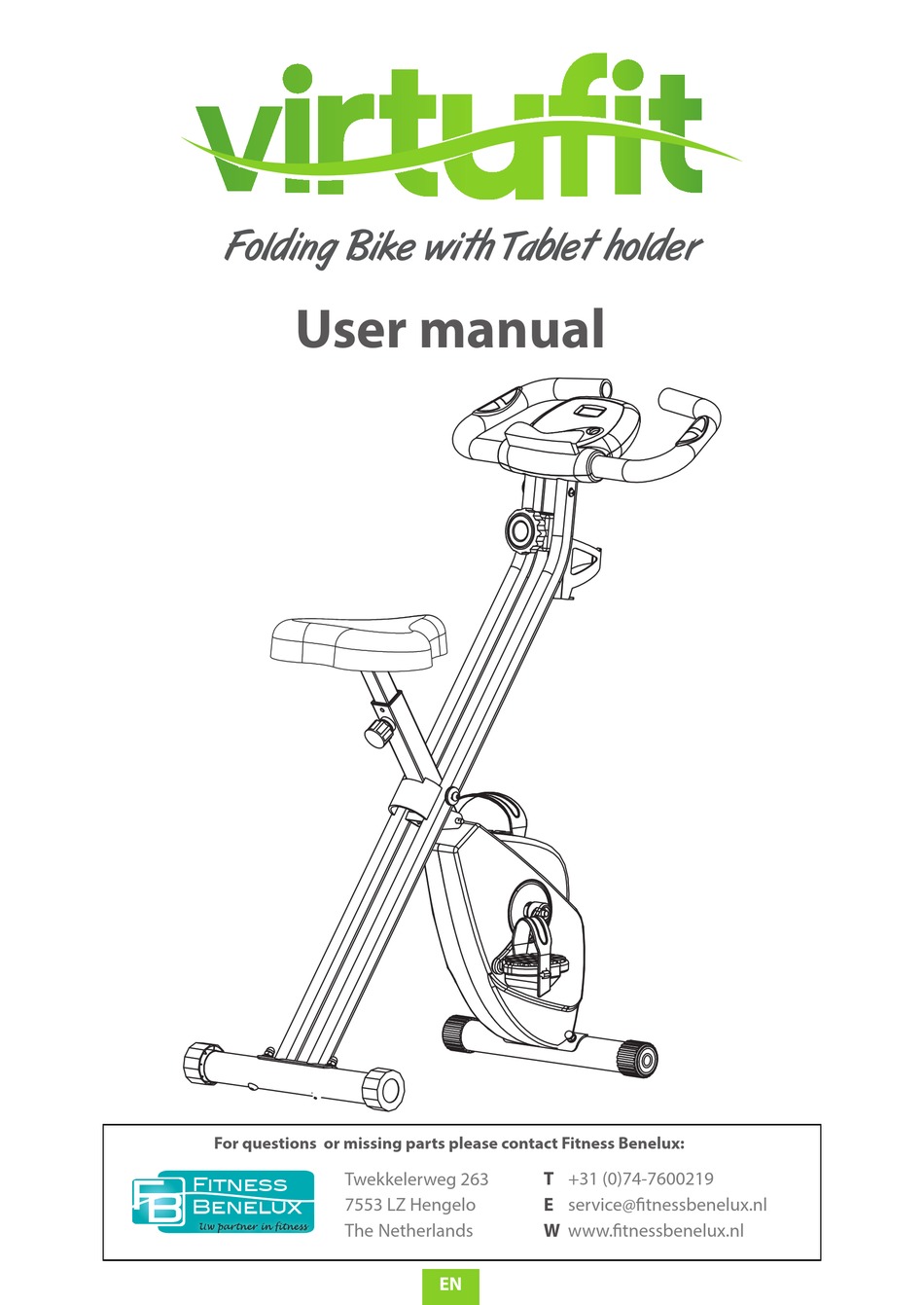

- Page 1 Folding Bike with Tablet holder Folding Bike User manual For questions or missing parts please contact Fitness Benelux: Twekkelerweg 263 +31 (0)74-7600219 Fitness 7553 LZ Hengelo service@ tnessbenelux.nl Benelux Benelux The Netherlands www. tnessbenelux.nl Uw partner in fitness...
-
Page 2: Table Of Contents
Assembly exploded view Parts list 9-10 resistance adjustment Levelling the bike how to fold how to adjust control panel operation 14-16 Virtufit Folding Bike... -
Page 3: Safety Instructions
Weight Limit This product conforms to: 220 LBS / 15.6 Stones / (EN 957-1 & EN 957-5), HOME USE – Class (C). 100 KG or less. It is NOT suitable for therapeutic purposes. Virtufit Folding Bike... -
Page 4: Checklist
When you open the carton, you will find the below parts in the carton: Main Frame & Rear Frame Saddle Exercise monitor & Handlebar Saddle support Front stabilizer Adjuster Knob Locking pin Rear stabilizer Water bottle holder Pedal(L) Pedal(R) Tools Virtufit Folding Bike... -
Page 5: Assembly
AsseMBLY iNstructiON steP 1 Assemble Rear & Front Stabilizer, Pedal (L / R) Virtufit Folding Bike... - Page 6 AsseMBLY iNstructiON steP 2 Assemble Saddle Virtufit Folding Bike...
- Page 7 AsseMBLY iNstructiON steP 3 Assemble Handlebar & Exercise Monitor cOMPLete! Virtufit Folding Bike...
-
Page 8: Exploded View
Virtufit Folding Bike... -
Page 9: Parts List
Gear Piece Saddle Saddle Stem Insert Seat Adjustment Knob Adjustable Hex and Cap End Cap Pedal (R&L) Chain Cover (R&L) Pulley Brush Flywheel Pulley Bracket Lower Drive Wheel Upper Drive Wheel Shaft Upper Drive Wheel Sensor Bracket Magnet Virtufit Folding Bike... -
Page 10: Parts List
M8 Dome Nut M8 Nylon LockNut Flat Washer Outer Brush Inner Brush Lock Ring Bearing Flat Washer M10 Nylon LockNut Pulley M8 Curved Washer M8 Spring Washer M6 Spring Washer Handlebar cap Water bottle holder M10 Nut Virtufit Folding Bike... -
Page 11: Resistance Adjustment
If you need to make a fine adjustment, simply twist the end of either Rear Frame Stabiliser Adjustable Hex End Cap (27) to compensate for uneven floors. Virtufit Folding Bike... -
Page 12: How To Fold
Using the Locking Pin (3) to fold and unfold the bike. When in use, the Locking Pin (3) is in Position A. WheN FOLded Using the Locking Pin (3) to fold and unfold the bike. When folded, the Locking Pin (3) is in Positon B. Virtufit Folding Bike... -
Page 13: How To Adjust
Seat Support Tube (6). Position the Seat Support Tube to the desired height allowing for a slight bend in the knee at the lowest pedal position and retighten the Seat Adjustment Knob (26) . Virtufit Folding Bike... -
Page 14: Control Panel Operation
0 - 9999 (km) CALORIES 0.0 - 999.9 (kcal) PULSE 40 - 240 (beats per minute) 1. MONITOR SCAN 2. ODOMETER SPEED CALORIES DISTANCE PULSE 3. CALORIES TIME 4. PULSE 5. MODE 6. TIME 7. DISTANCE 8. SPEED 9. SCAN Virtufit Folding Bike... - Page 15 5. ODO: Automatically accumulates workout distance when starting exercise. 6. PULSE: Press the MODE key until the pointer advance to PULSE function and put ear-clip to ear or the hand take hole of the sensor about 3 seconds show out. Virtufit Folding Bike...
-
Page 16: Control Panel Operation
3. If you see an improper display on the monitor, please replace the batteries. To ensure a good result, replace the batteries at the same time. 4. The monitor use 2pcs of 1.5v “AAA” batteries. For questions or missing parts please contact Fitness Benelux: +31 (0)74-7600219 Twekkelerweg 263...
