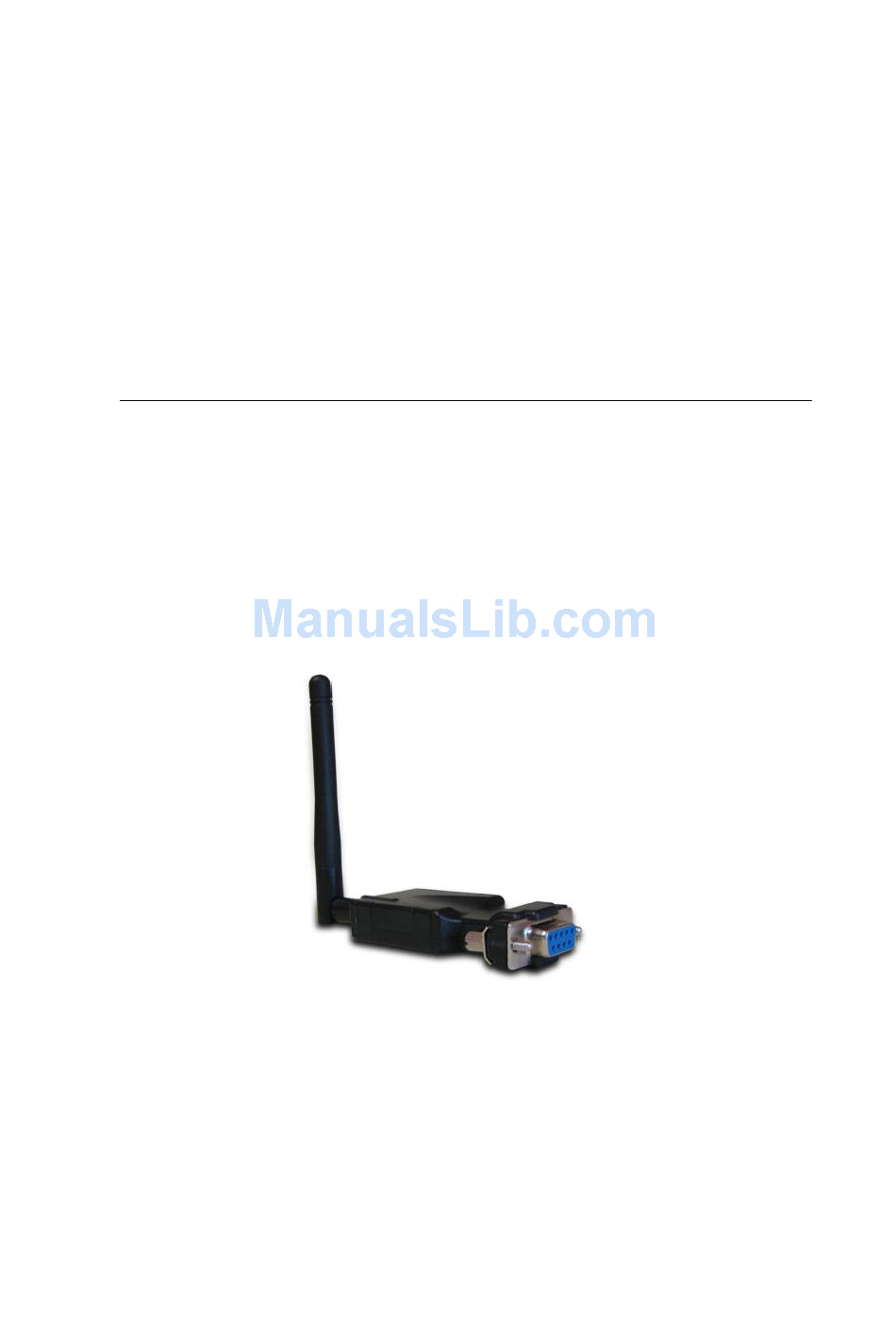

- Page 1 Bluetooth to RS-232 Converter XC4130 Bluetooth Adaptor Operation Manual First Edition, Nov 2007...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ……………………………………………………………….. 2 2. Package checklist ………………………………………………………….. 3 3. Product Specification …………………………………………………... 4 4. Product Panel Views Description ……………………………………. 5 E-BT232 Product Views ……………………………………………………… 5 DC-In Power Outlet …………………………………………………………... 5 Antenna Connecter …………………………………………………………… 6 Serial I/O Port of RS-232 …………………………………………………….. 6 Synchronous Button …………………………………………………………... -
Page 3: Introduction
Introduction Thank you for your purchase of XC4130 as the Bluetooth to Serial Adapter. Featuring Bluetooth wireless technology, it is for replacement of standard RS232 cable perfectly, with standard RS232 interface, so it can be easily adopted for industrial machines with RS232 interface. XC4130 is compatible with all Bluetooth V.2.0-certified and is backward compatible with v1.1/1.2 devices. -
Page 4: Package Checklist
Package checklist A complete XC4130 package includes following items: n 1 unit of XC4130 Bluetooth to RS232 converter with Antenna n 1 unit of Power Adaptor (5V DC, 200mA) n Quick Installation Guide of software CD NOTE: Please notify your sales representative if any of the above items is... -
Page 5: Product Specification
Product Specification l Serial Port No. of Port: RS-232 x 1 Port ● Port Type : DB9 female ● Speed : 1200 bps〜115.2K bps ● Parity : None , Odd , Even ● Data Bit : 8 ● Stop Bit : 1 , 2 ●... -
Page 6: Product Panel Views Description
Power Outlet DC-In Power Outlet The XC4130 Bluetooth to RS232 is powered by a single 5V DC (Inner positive / outer negative) power supply and 200mA of current. A suitable power supply adapter is part of the packaging. Connect the power line to the power outlet beside of antenna connector and put the adapter into the socket. -
Page 7: Antenna Connecter
(RS-232 RX/TX has been CROSS OVER) Set-up Button The purpose is for synchronizing between XC4130 device and “BT RS232 Config Tool” software. After finishing setup parameter of “BT RS232 Config Tool” software, when you click icon of “Connect” in “BT RS232 Config Tool”... -
Page 8: Led Indicators
LED Indicators Red Color LED： Power indicator (When power on, the red color LED will be on all the time.) Green Color LED： Before connecting to synchronize between device and “BT RS232 Config Tool” software, the green LED will be blinking. After connecting to synchronize between device and “BT RS232 Config Tool”... -
Page 9: Hardware Installation
XC4130 Hardware Installation 1. Connect XC4130 Bluetooth adapter to COM Port of PC and then to connect DC power adapter and jack into power outlet and DC-in outlet. You will see the red LED is going to be on and the green LCD will be blinked. -
Page 10: Bt232 Config Tool Installation & Setup
BT RS232 Config Tool Installation & Setup When setting up XC4130 adapter for the first time, you have to install and run “BT1.exe” as “BT RS232 config tool” first in your computer device. The utility CD is enclosed in the device box. Before using XC4130 adapter, you have to pair it with another E-BT232 device. -
Page 11: Bt232 Config Tool Parameters Configuration
XC4130 Config Tool Parameters Configuration Double click the icon of BT1 as “BT RS232 Config Tool”, the configuration screen will pop-up as the above picture. A. COM Port Select COM port number, you have to avoid the port conflict with other devices in computer and use port number is available. - Page 12 E. PIN Code PIN code for the purpose of security consideration during as like a pass key. Device uses this “PIN Code” to identify during connecting and communication. F. Role Role is for identifying role of the device as master or slave. The item of “Role”...
-
Page 13: Apply "Connect
Apply “Connect” After finishing the parameters configuration, click the icon of “Connect” in BT RS232 Config Tool screen and meanwhile press the SET-UP button immediately on the left side of the device. And then the next screen of parameters configuration pop-up. The icon of “Connect” changes to “Disconnect”... -
Page 14: Apply "Write
Apply “Write” Click the bottom of “Write”, means saving all parameters after configuring into the “BT RS232 Config Tool”. Apply “Read” Click the bottom of “Read”, means to loading all parameters as last saving from the “BT232 Config Tool”. The local address will be updated as the real device address at first time. -
Page 15: Appendix A - Pin Outs And Cable Wiring
PIN 6 : DTR PIN 7 : CTS PIN 8 : RTS PIN 9 : DC 5V □ □ RS-232 Wiring Diagram □ Serial Device XC4130 Converter 2 RX 2 TX 3 TX 3 RX 5 GND 5 GND (Flow Control)
