- Page 1 4 x 2HDMI Matrix Switcher Splitter – AC1714 User manual...
- Page 2 Introduction This is a high performance HDMI Matrix with 4 x HDMI inputs & 2 x HDMI outputs. It allows any 4 connected source (Blue-Ray player, HD DVD player, console, etc.) to be shown on the any of the two displays simultaneously, and supports 4K×2K, 3D, 12-bit Deep Color.
- Page 3 Package HDMI Matrix ------------------------------------------------------------------------------------ 1PCS 5V1A DC Power Supply adaptor ------------------------------------------------------------- 1PCS Operation Manual ------------------------------------------------------------------------------- 1PCS Remote controller---------------------------------------------------------------------------------1PCS Specifications Frequency Bandwidth 2.97Gbps Input Ports 4 x HDMI Female input ports Output Ports 2 x HDMI Female output ports Power Supply DC 5V 1A ESD Protection Human Body Model:...

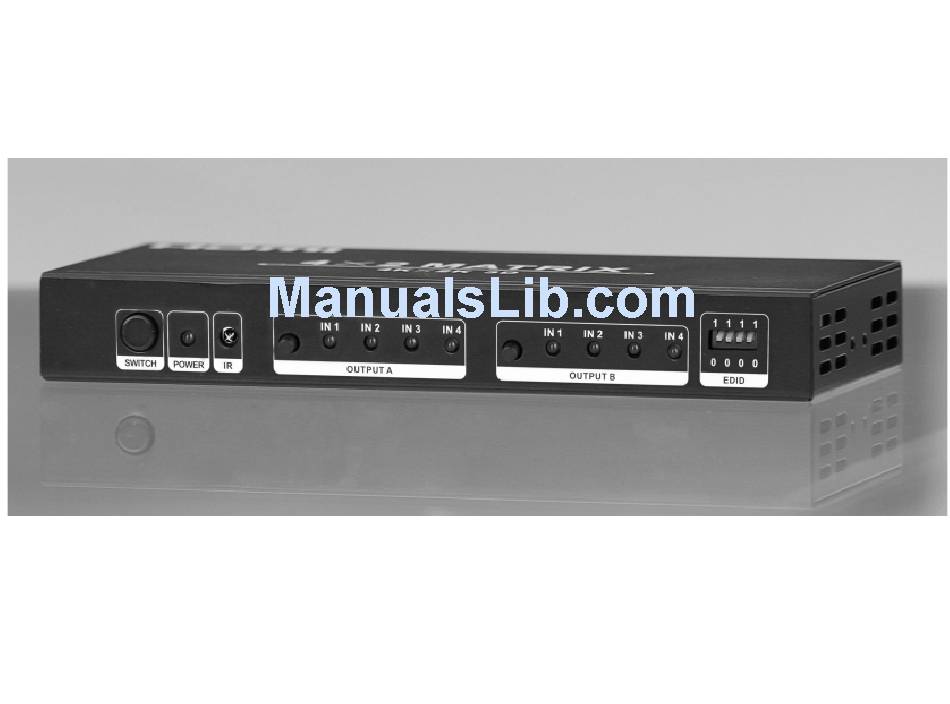

- Page 4 Operation controls and Functions Front Panel ON/OFF: Power on/off switch. POWER LED: This red LED illuminate when the device is connected to power & switched on. IR IN: Remote control receiver. OUTPUT A: Press this button to select input sources to HDMI OUT A，and the LED will indicate the corresponding input source.
- Page 5 EDID Selector: Select HDMI output signal format use the EDID Selector. Number EDID Selector Video / Audio Format Number EDID Selector Video / Audio Format 0000 1080p / Stereo Audio 2.0 1001 4K2K / Stereo Audio 2.0 0001 1080p / Dolby/DTS 5.1 1010 4K2K / Dolby/DTS 5.1 0010...
- Page 6 Rear Panel HDMI OUTPUT: These sockets connect to a HDTV or monitor using HDMI cable. HDMI INPUT: These sockets connect to HDMI source’s output, i.e. from DVD player, game console, etc DC IN: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.
-
Page 7: Application Example
Application Example... - Page 8 Remote control OUTPUT A: Press IN1\IN2\IN3\IN4 button to select input source to HDMI OUTPUT A, and the LED will indicate the corresponding input source. Press button OUTPUT A will cycle from input IN1\IN2\IN3\IN4. OUTPUT B: Press IN1\IN2\IN3\IN4 button to select input source to HDMI OUTPUT B, and the LED will indicate the corresponding input source.
