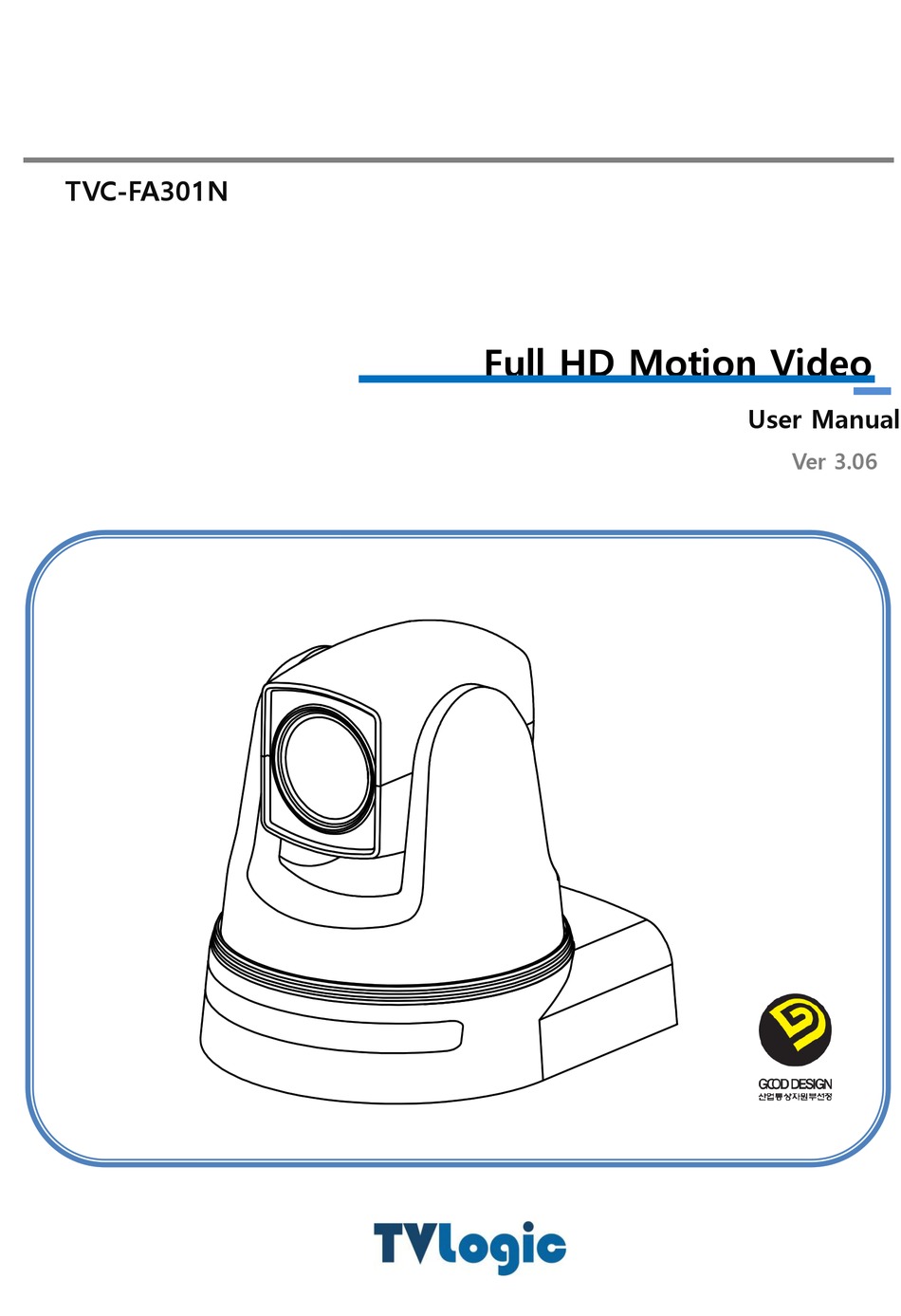

TVC-FA301N
Full HD Motion Video
Camera
User Manual
Ver 3.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVC-FA301N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TVLogic TVC-FA301N

Summary of Contents for TVLogic TVC-FA301N

  • Page 1 TVC-FA301N Full HD Motion Video Camera User Manual Ver 3.06...

  • Page 2: Table Of Contents

    Contents Caution ···················································································································································· 4 Introduction ··········································································································································· 6 Features ···································································································································································································6 Products & Accessories ···································································································································································8 Ceiling Type Bracket(ZCB-100) Installation ·····························································································································9 Wall Mount Bracket(ZWB-100)Installation ··························································································································· 10 Installation ··········································································································································· 11 ① Camera ADDRESS [ID] Setup ··············································································································································· 11 ② Communication PROTOCOL Setup ···································································································································· 12 ③ OutputVideo Format SYSTEM SELECT Setup ··············································································································· 12 ④...
  • Page 3 ➏ Motion/Action Setup ·························································································································································· 27 Motion ······················································································································································································ 27 Home Position Setup ························································································································································· 28 North Direction Setup ······················································································································································· 28 Preset Setting ········································································································································································ 29 Edit Scene-Preset Setup ··················································································································································· 29 Edit Label-Preset Setup ···················································································································································· 30 Swing Setup ··········································································································································································· 30 Pattern Setup ········································································································································································· 31 Group Setup ···········································································································································································...

  • Page 4: Caution

    Caution Caution Don’t open. There may be electric shock. To avoid the risk of electric shock, do not arbitrarily open the cover or disassemble the <Cautio product. There are no user serviceable replacement parts. Get service from qualified service personnel. n>...
  • Page 5 Important Important Safeguard Read all of the safety and operating instructions before using the product. Save these instructions for future reference. Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Do not use this product near water or moisture.

  • Page 6: Introduction

    Optical x20/30 ZOOM Lens 1/2.8 inch, 2.14 mega pixels “Exmor” CMOS Sensor installed Including digital x12 zoom, enables you to reach up to x360(TVC-FA301N) Full HD Output Format Various format of HD video output is available, and if you select CVBS. down-graded (squeezed) video source will be sent out.
  • Page 7 Various Protocol & Communication VISCA RS232,RS422 PELCO D/P RS485 IR CUT-Filter In order to improve the sensitivity by keeping the light absorption time longer at low light level such as at night, Slow shutter function and Day & Night switching function are provided so that users can select color change according to illumination.

  • Page 8: Products&Accessories

    Products&Accessories Basic Components  IR remote (with battery) Camera Camera Bracket Bolt Manual AC Adapter 9P Connector 232C to UTP Cable Camera Body Bracket Ceiling Bracket Cam body/ Ceiling Bracket Ceiling -Bracket Screw Plastic Anchor Screw...

  • Page 9: Ceiling Type Bracket(Zcb-100) Installation

    Ceiling Type Bracket(ZCB-100) Installation Procedure  1) Use the ceiling bracket and the screws(4EA) to fix it 2) Use the screws(4EA) to fix it the camera body to the on the ceiling where you wish to install the camera. camera body bracket. 3) Put the camera body bracket to the ceiling bracket 4) To secure the camera, assemble provided screws on using the cam body/ceiling bracket screws.(4EA)

  • Page 10: Wall Mount Bracket(Zwb-100)Installation

    Wall Mount Bracket (ZWB-100) Installation ZWB-100 Components(Optional)  Wall mount bracket Wall mounting screws Plastic Anchor Cam body/ Ceiling Bracket Screw Installation Instruction  1) Use the bracket and the screws(4EA) to fix it on the 2) Fix the bracket to the camera body using the camera wall where you wish to install the camera.

  • Page 11: Installation

    Installation ① Camera ADDRESS [ID] Setup Set the camera ID by changing the switch as shown below. - Up to 15 addresses can be set for multiple identical camera controls. ※ DO NOT USE NUMBER 0 FOR CAM ADDRESS. - Default ID is No. 1. When operating multiple units with the controller, set the ID switches separately.

  • Page 12: ② Communication Protocol Setup

    ② Communication PROTOCOL Setup Set the communication protocol by changing the switch as shown below. : Default Setting Protocol BAUDRATE Switch 9600 bps VISCA 38400 bps 2400 bps PELCO-D 9600 bps 38400 bps 4800 bps PELCO-P 9600 bps Match the protocol used by the controller. Be sure to change the protocol when the power is off.

  • Page 13: ④ Communication Setup

    ④ COMMUNICATION Setup (OFF: Upward direction / ON: Downward direction) Set RS-422, RS-485 or RS-232C by using ON/OFF DIP switch no.1 and 2. COMMUNICATION RS-422 RS-485 RS-232C By using ON/OFF DIP switch no.3(Rx) and 4(Tx), set the terminating resister as shown below. ●...

  • Page 14: ⑤ Connection

    ⑤ Connection Connect a controller that sends and receives PTZ control commands. ● RS-232C VISCA Connector(Mini DIN 8Pin, Female) PIN NO. VISCA IN VISCA OUT DTR IN DTR OUT DSR IN DSR OUT TXD IN TXD OUT RXD IN RXD OUT NOT CONNECTED NOT CONNECTED NOT CONNECTED...
  • Page 15 ● RS-422/485 Connector PIN NO. RS-422 RS-485 TXD IN+ RXD IN+ TXD IN- RXD IN- RXD IN+ NOT CONNECTED RXD IN- NOT CONNECTED NOT CONNECTED TXD OUT+ RXD OUT+ TXD OUT- RXD OUT- RXD OUT+ NOT CONNECTED RXD OUT- NOT CONNECTED otion Video Camera...

  • Page 16: ⑥ Installation Check List

    ⑥ Installation Check List  Check the cable connection before putting the power in.  Check the ID of each camera, and select the right camera that you wish to control from the controller. You can check the ID of each camera on the display(screen) or ID setup switch. If the controller is eligible for various protocols, check if the protocol that was set on the ...

  • Page 17: Main Features

    Main Features Screen Menu While viewing the menu displayed on the connected monitor, you can change various status settings such as camera shooting conditions, system IR remote TVR-200H settings, information, and GO to MENU or functions. DATA SCREEN EXIT Joystick button or Save HOME/SET Cancel...

  • Page 18: Preset

    PRESET Preset is a function that saves and recalls the video status, white balance, and exposure adjusted by pan / tilt and zoom / focus. Number of assignable presets depends on its protocol Preset 255 VISCA Preset 224 PELCO D/P When using VISCA protocol, pattern, swing, group will be carried out in each range from 1 to 8.

  • Page 19: Swing

    SWING Swing function allows you to make camera move between 2 preset positions repeatedly. When swing function activates, the camera moves from the first preset to the second preset position, and then from the second preset position to the first preset position.

  • Page 20: Group

    GROUP Group function is a function that repeatedly activates preset combinations of the preset, swing, and pattern functions. Max. eight groups can be assigned, and each group can set up to 20 actions (presets, swings, patterns). The presets set in the group can specify the operation speed, and pattern and swing can specify the number of repetitions.

  • Page 21: Other Functions

    Other Functions This function enables to resume the last action executed before power down. Only Preset, Swing, Pattern, Group, and Preset1 actions are performed again Power Up Action and PTZ adjustment is excluded from this function. If the tilt angle exceeds 90 °, this function will automatically flip the image. If Smart Flip is activated, the screen displays the letter F.

  • Page 22: Menu Function

    Menu Function OSD(On Screen Display) Preset Label Displays preset name during preset operation. Smart Flip Displays the image flip status by Smart Flip function. Camera ID Displays the current Camera ID. The following information is displayed in the Action Title. - Set Preset xxx: When setting the preset position - Preset xxx: When moving to the preset position Action Title...

  • Page 23: Main Menu

    Main Menu Focus/Zoom : Controls focus and zoom White Balance : White balance setting. AE Mode : Sets exposure value by selecting brightness, aperture, shutter speed. Picture : Sets detailed value of exposure of the camera Image : Sets screen setting value Motion/Action : Sets movement such as preset swing, pattern and group.

  • Page 24: ➋ White Balance

    ➋ White balance Calibrates the colors for better reproduction based on the exact white color under the various light sources. Mode : Auto and ATW are set automatically, and Sodium is set based on sodium, etc. Manual sets the camera chromaticity(Red / Blue Gain) manually.

  • Page 25: ➍ Picture

    Iris Level : Adjusts the aperture. [F1.6~F14, CLOSE] ※ Only activates when the AE Mode is set to Iris Pri. Gain Level : Adjusts the Gain level. If the value is higher than the Gain Limit, the actual setting value is set to the value of the Gain Limit.

  • Page 26: ➎ Image

    ➎ Image Image Flip : Flips the current image up, down, left, and right. Set to Off when using in forward direction, and On when using in reverse direction. [On/ Off] Defog Mode : Use when exposed to fog or smoke. [Off/ Low/ Mid/ High] Picture Effect : When setting Neg.Art, Negative and Positive are...

  • Page 27: ➏ Motion/Action Setup

    ➏ Motion/Action Setup Motion : Sets general motion operation settings. Preset : Sets general preset operation settings. Swing : Sets general swing operation settings. Pattern : Sets general pattern operation settings. Group : Sets general group operation settings. Parking Action : Sets Parking Action.

  • Page 28: Home Position Setup

    Preset Speed: Used to set the preset speed. [5°/sec~360°/sec] PT SPEED : Used to set PT Max Speed and PT With Zoom functions. -PT Max Speed : Used to set the maximum operation speed. The operation speed is linked to the zoom magnification (PT with Zoom ON), so the larger the zoom magnification, the slower the speed.

  • Page 29: Preset Setting

    Preset Setting Preset No. : Select the preset number you want to set. If you select a predefined preset number, preset move is performed and the set label is displayed. If the selected preset is not defined, "Undefined" is displayed below the preset number. [1~255] ※...

  • Page 30: Edit Label-Preset Setup

    Edit Label-Preset Setup The highlighted portion of the label is the current cursor position, and the character moves to the right. Select the letter specified in the Character Map section at the bottom of the label. Move the cursor to the desired character position by using the IR remote or the controller and press the NEAR or joystick button to select the character.

  • Page 31: Pattern Setup

    Pattern Setup Pattern No. : Used to select the pattern number to be set. If the selected pattern is not defined, "Undefined" is displayed below the pattern number. [1~8] Clear Pattern : Used to delete the current pattern setting. [Cancel/ Ok] Edit Pattern : Used to start modifying the pattern in the submenu.

  • Page 32: Edit Group-Group Setup

    Edit Group-Group Setup Acton ### [None/Preset/Swing] : Select the pattern number to set. If the selected pattern is not defined, "Undefined" is displayed below the pattern number.[1~8] Dwell [0 sec.~4 min.] : Used to set the delay after completion of the action. : Sets the preset moving speed for preset actions or the number of repetitions for swing actions.

  • Page 33: Parking Action Setup

    5. After finishing the setting for the desired item, press the NEAR or joystick button to return to the previous step. Use the UP / DOWN keys to move to another item number and set. 6. After completing the setting for all items, press FAR or BACK key to move the cursor to 'SAVE' item. Press NEAR or the joystick button to save the setting Parking Action Setup This function automatically executes the specified operation when the camera is not operated...

  • Page 34: Area Label Setup

    Action Title : Displays the current preset, swing, pattern, and group information. [On/ Off/ Auto/ Semiauto] Preset Label : Displays the predefined preset label. Displays the current preset, swing, and group information. [On/ Off/ Auto] IR Info. : Used to set whether to display the number pad key on the IR remote. [On/ Off] Area Label : Sets the section and the LABEL for that section.

  • Page 35: Edit Scene

    Edit Scene You can pan the camera only in a clockwise direction. When setting the setting area, Image Flip is automatically set to Off. After completing the setting, Image Flip will return to the original setting value. Up to 16 areas can be set. Move to the beginning point of the first area and press NEAR or the joystick button to save.

  • Page 36: Edit Label

    Edit Label Area Label No.[1~16] : Select the area number to be set. If the selected area is not yet defined, Undefined displays under the area number. Edit Area Label : Used to set the area label in the sub menu. Max.

  • Page 37: ➑ System Info

    ➑ System Info. Mecha F/W ver. : Displays the version of the camera‘s control software. Video F/W ver. : Displays the version of the video‘s control software. System Select : Displayed the selected Video Format. ※ Check the output video format setting section. Protocol : Displays the selected protocol.

  • Page 38: Additional Info

    Additional Info. Camera Type : Displays the camera’s zoom type. Camera ver. : Displays the camera’s zoom version. Pan Rotation : Displays the number of Pan rotations. System Initialize : Used to initialize the settings to the factory default or reboot the system. System Initialize Factory Default : Initializes the display setting value, camera...

  • Page 39: Ir Ir Remote

    IR Remote Control otion Video Camera...
  • Page 40 1. POWER : Turn On/ Off the camera 2. MENU : Enter menu or exit menu. 3. PRESET/SWING/PATTERN/GROUP : Select to operate, set, or save. 4. Number pad(0~9) - Used to set the camera ID to be controlled with the CAM button. - Used to select a number for operating, setting, or saving the selected preset, swing, pattern, and group.
  • Page 41 7. FOCUS AUTO : Sets Auto focus. 8. P/T SPEED : Changes the camera’s up / down / left / right movement speed. The speed can be adjusted from 5˚ /sec to 360˚. 9. FOCUS : It is set manually. Use the NEAR or FAR button to adjust the focus. 10.

  • Page 42: Controller

    Controller TVR-200H, controller for TVC-FA301N   Compact type keyboard controller  Up to 4 cameras can be controlled  LAN JACK support for convenient installation  422 communication interface  LCD display  Variable speed control of PAN/TILT/ZOOM using Joystick ...
  • Page 43  4 Line Text LCD is used to check and input the menu control operation status.  You can easily operate Preset, Pattern, Swing and Group functions by using Function key. * For more information, refer to TVR-200H manual or http://www.tvlogic.tv. otion Video Camera...

  • Page 44: Problem Solving

    Problem Solving If an error occurs in the camera, check the following. If the problem persists after checking, please contact the distributor from whom you purchased this product. Problem Check Make sure that the power of this product and the monitor are connected. Make sure that the video cable is connected correctly.

  • Page 45: Menu Structure

    Menu Structure You can check the all menu structure. Please refer to the relevant page for more detailed function and usage. * Bold letters indicate default values. Main menu Submenu Submenu Submenu Submenu Focus Mode Semiauto/ Auto/ Manual 1cm/ 11cm/ 30cm/ 0.8m/ 1.2m/ 1.4m/ 1.65m/ 2.0m/ Focus Near Limit 2.5m/ 3.1m/ 4.2m/ 6m/ 10m/...
  • Page 46 Image Stabilizer On/ Off/ Hold Day/Night Day/ Night/ Auto Threshold Level 0~28 Image Flip On/ Off Defog Mode Off/ Low/ Mid/ High Picture Effect Off/ Neg.Art/ B/W High Sensitivity On/ Off <Image> Noise Reduction Off/ 1~3~5 Gamma Standard/ Straight Aperture 0~10~15 Freeze in Preset On/ Off...
  • Page 47 Group No. <Group> Clear Group Cancel/ Ok <Edit Group> Park Enable On/ Off 1min.~10min.~4hou Wait Time <Parking Action> Home, Preset, Parking Action Swing, Group, Pattern Camera ID On/ Off PTZ Information On/ Off/ Auto Flip status On/ Off/ Auto <Display> Action Title On/ Off/ Auto Preset Label...

  • Page 48: Default Value

    Default Value Menu category Saved Presets Setting value Default Value Camera setting value Focus Mode ● Semiauto Focus Near Limit ● 0.8m AF Sensitivity ● Normal Digital Zoom ● Zoom Speed ● White Balance - Mode ● Auto Red Gain ●...
  • Page 49 Gamma ● Standard Aperture ● Freeze in Preset ● User setting value Preset 1~ 255 Undefined Swing 1~8 Undefined Pattern 1~8 Undefined Group 1~8 Undefined Motion setting Value Action Lock ❍ Power Up Action ❍ Smart Flip ❍ PT Direction Normal ❍...

  • Page 50: Specifications

    Specifications Model TVC-FA301N Module 1/2.8" “Exmor” CMOS Valid pixels 1920[H]x1080[V] (Approximately 2.38 million pixels) 1920x1080p60, 1920x1080i60, 1920x1080p30, 1280x720p60, 1280x720p30, Video output format 720x576i50(CVBS only), 1920x1080p59.94, 1920x1080i59.94, 1280x720p59.94, 1920x1080p50, 1920x1080i50, 1920x1080p25, 1280x720p50, 1280x720p25, 720x480i60(CVBS only) HD-SDI, HDMI, DVI-I Video output CVBS[1.0V p-p Composite Signal(75 ohms)]...
  • Page 51 Aperture 10, 0~15 Auto/ Indoor/ Outdoor/ One Push/ ATW/ Manual/ Outdoor White Balance Auto/ Sodium Auto/ Sodium/ Sodium Out Auto Program AE Full Auto/ Bright/ Shutter Pri/ Iris Pri/ Manual Off/ On/ VE Off/ On Pan: -172˚~ 172˚ (Non-Endless), Tilt: -30˚~210˚ (Auto Flip), - Moving Angle 30˚~95˚...

  • Page 52: Dimension

    Dimension PTZ Camera(TVC-FA301N) ...
  • Page 53 Ceiling Bracket (ZCB-100)  Wall mount Bracket (ZWB-100)(Optional)  otion Video Camera...

  • Page 54: Glossary

    Glossary  HD-SDI(High Definition-Serial Digital Interface signal) The digital video interface with 1.5 Gb/s transfer rate is standardized in SMPTE 292M. It supports 1080i /59.94 signals and can transmit signals up to 208M (stable distance 145.6M) when coaxial cable is connected. The advantages of HD-SDI include no signal delay, video and audio reporting, and time code signals.
  • Page 55  IRIS In the camera, IRIS refers to the aperture. Iris is an important factor in determining depth, which improves image quality and depth so that you can see both distant and near objects clearly.  GAIN It is a function to electronically amplify the signal when the light source is not illuminated enough and the image signal level is not enough.

  • Page 56: Index

    Index Ａ Action Lock ····························································································································································································· 27 Action Title ······························································································································································································ 33 Additional Info ······················································································································································································ 37 AE Mode ·································································································································································································· 24 AF Sensitivity ·························································································································································································· 23 Aperture ··································································································································································································· 26 Area Label································································································································································································ 33 ATW ············································································································································································································ 54 Ｂ BAUDRATE ······························································································································································································· 55 BLC ·············································································································································································································· 25 Ｃ Camera ID································································································································································································ 33 CVBS ···········································································································································································································...
  • Page 57 Gain Limit ································································································································································································ 24 GAMMA ···································································································································································································· 55 GROUP ······································································································································································································ 20 Ｈ HDMI·········································································································································································································· 54 HD-SDI ······································································································································································································ 54 High Sensitivity ····················································································································································································· 26 Home Position ······················································································································································································· 28 HR Mode ·································································································································································································· 25 Ｉ Image Flip ································································································································································································ 26 Image Stabilizer ···················································································································································································· 25 IR Info. ······································································································································································································· 33 IRIS ··············································································································································································································...
  • Page 58 PTZ Information ···················································································································································································· 33 Ｓ Shutter Speed ························································································································································································ 55 Slow Shutter ··························································································································································································· 25 Smart Flip ································································································································································································ 21 SWING ······································································································································································································· 19 System Select ························································································································································································· 37 Ｔ Threshold Level ····················································································································································································· 25 Ｖ Video F/W ver. ······················································································································································································· 37 VISCA ········································································································································································································· 54 Ｗ WDR ··········································································································································································································· 25 Ｚ...
  • Page 59 MEMO...
  • Page 60 MEMO MEMO MEMO...
  • Page 61 MEMO MEMO...
  • Page 62 MEMO...
  • Page 63 MEMO...
  • Page 64 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan digital 1-ro, Geumcheon-gu, Seoul, 153-802, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@tvlogic.co.kr...
