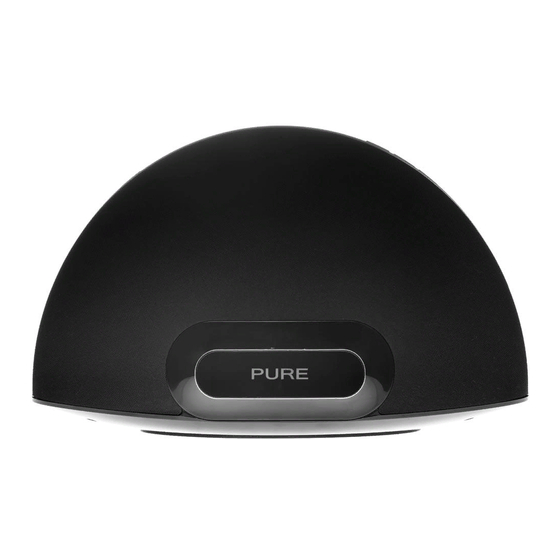

PURE Contour 200i Air Owner's Manual

Wireless, with airplay and dock
Hide thumbs Also See for Contour 200i Air:
Table of Contents

Advertisement

Quick Links

Owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Contour 200i Air and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PURE Contour 200i Air

Summary of Contents for PURE Contour 200i Air

  • Page 1 Owner’s manual...

  • Page 2: Safety Instructions

    4. Follow all instructions – All operating and use instructions should be Trademarks followed. Contour 200i Air, PURE, the PURE logo, PURE, the PURE logo, EcoPlus, the EcoPlus 5. Do not use this apparatus near water – The appliance should not be logo, Imagination Technologies, and the Imagination Technologies logo are used near water or moisture –...

  • Page 3: Table Of Contents

    Setting up AirPlay ..............11 Introduction ......................... 11 Stage 1: Connecting your setup device to Contour 200i Air .......... 11 Stage 2: Adding Contour 200i Air to your wireless network ........... 12 Stage 3: Checking your Contour 200i Air is visible ............17 Using AirPlay to play audio ............

  • Page 4: Getting Started

    When using the wired connection method, an Ethernet cable needs to be connected between the Ethernet port on the back of Contour 200i Air and one of the available Ethernet ports on your router. With this setup method, your iPad, iPod or iPhone connects to Contour 200i Air via the...

  • Page 5: Wireless Setup

    3. Plug in to the mains supply. 4. A network connection between your computer and Contour 200i Air will then be established automatically. When the red Status LED on the front has stopped flashing, Contour 200i Air is in Standby.

  • Page 6: Wired Setup

    3. Plug in to the mains supply. 4. A network connection between your computer and Contour 200i Air will then be established automatically. When the red Status LED on the front has stopped flashing, Contour 200i Air is in Standby.

  • Page 7: Connection Methods

    (once attached) and is waiting for a source to be selected (the Status LED is dimmed red). Refer to page 10 for more information on the Status LED. To enter Standby, press and hold Standby for four seconds on Contour 200i Air, or the remote until the Status LED is bright red.

  • Page 8: Controls And Connectors

    Controls and connectors Standby Mute Press to switch between Volume down Sleep, Standby and On. Volume up See page 7. Press repeatedly to cycle between sources. Status Fault DC In Digital Coaxial Wi-Fi Setup Aux In Ethernet Connector for Connector for Button used when Connector for Connector for...

  • Page 9: Remote Control

    Remote control Mode: Hold to enter Standby Press once to exit Standby/Sleep Sleep Hold button to enter Standby Press button once to return to last active state. Standby Press to enter last active state. Source Once in On, press to switch between AirPlay, iPod and Auxiliary input.

  • Page 10: Front Panel Status Led

    Front panel Status LED When Contour 200i Air is powered on, the Status LED is visible through the front speaker mesh. This LED indicates the various states of the Contour 200i Air, by colour. These states are as follows: Standby / Starting up (flashing) / Sleep (dimmed)

  • Page 11: Setting Up Airplay

    1. Ensure that Contour 200i Air is in Sleep or On. 2. Press the Wi-Fi Setup button on the back of the Contour 200i Air for five seconds. This will turn on Contour 200i Air’s temporary wireless network. The Status LED will flash red while the temporary wireless network starts up.

  • Page 12: Stage 2: Adding Contour 200I Air To Your Wireless Network

    2. The main configuration web page will display: 3. The Contour 200i Air main configuration page features three tabs. In most cases, you only need to configure the settings on the Connection tab. The other available tabs are: Advanced The Advanced tab opens the Manual Network Setup page.
  • Page 13 200i Air to a corporate wireless network. Automatic wireless setup 1. If you prefer, you can change the name of your Contour 200i Air by typing the name (e.g. ‘Lounge Contour’) in the Product Name box and clicking Update. This is this name that you will see on your network and in iTunes or on your Apple device.
  • Page 14 2. Enter the passphrase/key needed to connect to your network in the box below, if one is required. 3. Click Connect. The Status LED will then flash red to indicate that Contour 200i Air is resetting. If Contour 200i Air connects to the network successfully, the Status LED will be...
  • Page 15 DHCP checkbox and click Connect. To use a static IP address carry out the following. 1. Enter the IP address that you want to assign to the Contour 200i Air into the IP Address box. 2. Enter the subnet mask that you want to assign to the Contour 200i Air into the Netmask box.

  • Page 16: Status Tab

    Status tab The Status tab displays a summary of Contour 200i Air’s firmware/hardware information and also displays information about the state of the wireless connection. Connection Indicates if Contour 200i Air is connected to a wireless network or not. Also Status indicates the wireless LAN type, i.e.

  • Page 17: Stage 3: Checking Your Contour 200I Air Is Visible

    Stage 3: Checking your Contour 200i Air is visible Once you have successfully added Contour 200i Air to the same network as your iTunes computer, iPod touch, iPhone or iPad, it should be automatically detected. In iTunes, the AirPlay symbol is located in the bottom status bar of the iTunes window.

  • Page 18: Using Airplay To Play Audio

    (it will be listed with the name given to it when it was configured). Select the track you wish to play. If Contour 200i Air is in sleep, it will wake up and switch the source to AirPlay. The Status LED will change to white when AirPlay is active.

  • Page 19: Listening To A Docked Ipod/Iphone/Ipad

    Listening to a docked iPod/ iPhone/iPad Compatibility The dock on Contour 200i Air is compatible with most iPod, iPhone and iPad models. For the latest information, check the compatibility table on our website: www.pure.com/products/ipod- compatibility. Docking your device Dock your device onto the connector.

  • Page 20: Using The Digital Output

    Using the digital output Using an external digital output device You can connect Contour 200i Air to a digital output device, such as compatible hi-fi system. Any audio playing through Contour 200i Air will also be sent to the attached device.

  • Page 21: Updating The Firmware

    Firmware updates for your Contour 200i Air will automatically be delivered via the Wi-Fi connection when Contour 200i Air initially boots up. If there is a new version of firmware available, the Status LED will alternately flash red/green/blue/white while the firmware is being installed.

  • Page 22: Help

    Hints and tips I cannot connect to my wireless network Ensure that your Contour 200i Air is within range of your wireless base station and that you are not located in a dead spot. The Status LED is flashing white Your Contour 200i Air has Airplay selected as the source but does not currently have a connection to a wireless network.

  • Page 23: Specifications

    CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/ EC and 2006/95/EC). ETSI EN 300 401 compliant. Hereby, PURE Digital declares that this Band II LPD device is in compliance with the essential requirements and other provisions of the Directive 1999/5/EC.

  • Page 24: Pure Warranty Statement For Australia

    If you have any questions about your warranty you can call us toll free ..1800 988 268 What’s covered by this warranty? • PURE agrees to refund, repair or replace, at your election, without charge to you, any part found to be defective during the warranty period. •...

  • Page 25: Warranty Information

    Should you have a problem with reserves the right to revise this publication and to make your unit please contact your supplier or contact PURE Support at the address shown on changes in it from time to time without obligation of the rear of this manual.
  • Page 26 Australia http://support.pure.com/de sales.au@pure.com http://support.pure.com/au Contour 200i Air is a member of the PURE EcoPlus™ product family. All EcoPlus products are designed and manufactured to minimise their environmental impact. EcoPlus Documentation is printed on 100% recycled paper using soya-based ink.
