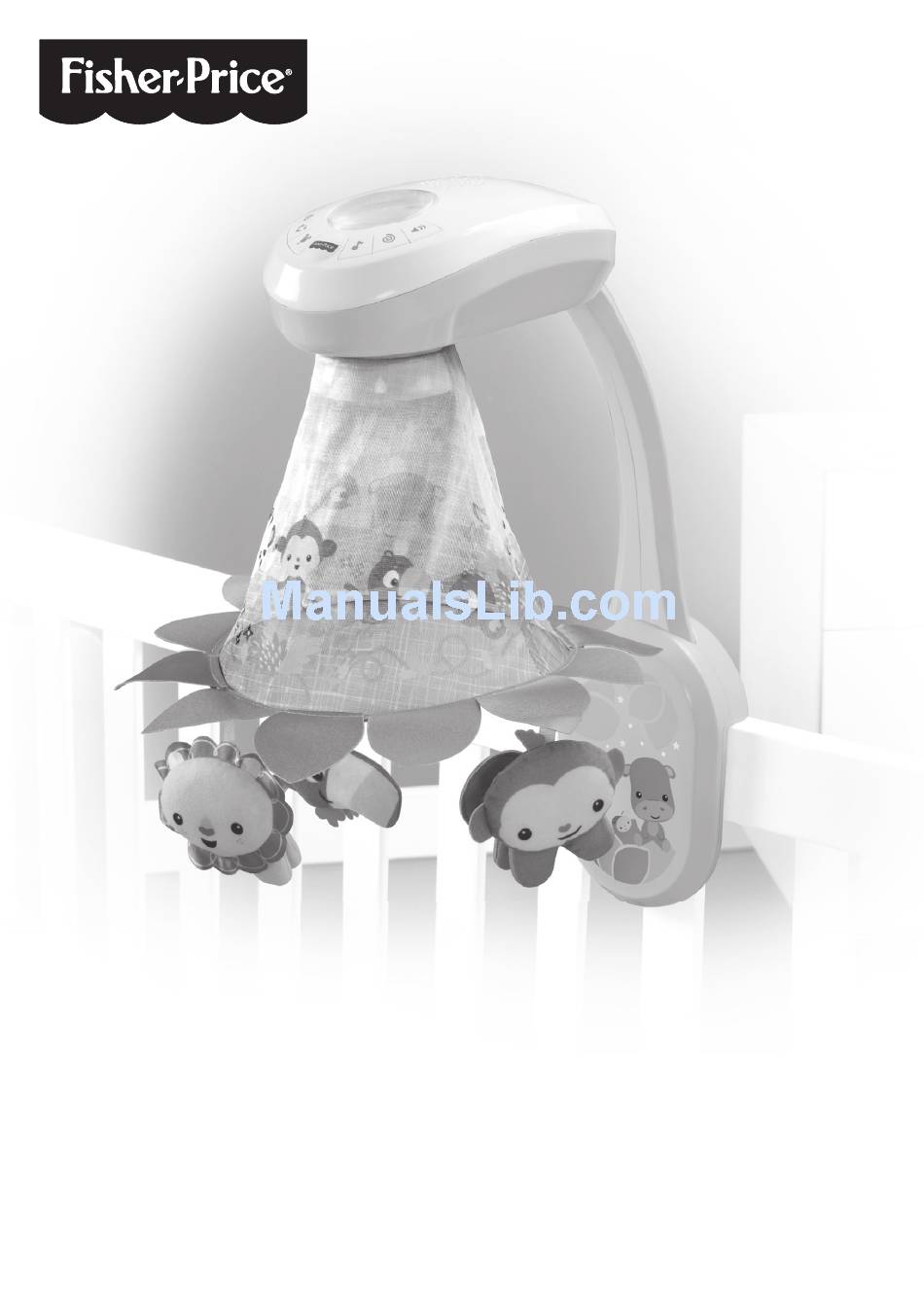

DFP09
Keep this instruction sheet for future reference,
as it contains important information.
Requires two C (LR14) alkaline batteries for soother
operation and two AAA (LR03) alkaline batteries for
remote operation (batteries not included).
Adult assembly is required.
Tool required for assembly: Phillips screwdriver (not included).
fisher-price.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFP09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price DFP09

Summary of Contents for Fisher-Price DFP09

  • Page 1 DFP09 Keep this instruction sheet for future reference, as it contains important information. Requires two C (LR14) alkaline batteries for soother operation and two AAA (LR03) alkaline batteries for remote operation (batteries not included). Adult assembly is required. Tool required for assembly: Phillips screwdriver (not included).

  • Page 2: Consumer Information

    Consumer Information WARNING Prevent Entanglement Injury • Keep mobile out of baby’s reach. • Remove mobile portion of product from crib or playpen when baby begins to push up on hands and knees. • This product may not attach to all crib designs. Do not add additional strings or straps to attach to crib or playpen.
  • Page 3 Parts Mobile Canopy Mobile Arm Battery Door Mobile Base Remote Soother Note: All of the screws used to assemble this toy are attached to the product. Follow these instructions carefully to fully secure the screws. Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.
  • Page 4 Mobile Assembly/Setup Assembly step 1 is a one-time/permanent assembly. Steps 2-4 complete assembly/setup for mobile use. Mobile Arm Mobile Base • "Snap" the mobile arm into the mobile base. Soother Soother Mobile Canopy Canopy • Fit the mobile canopy into the opening in the soother , then slide the mobile canopy until you hear a "click"...
  • Page 5 Mobile Assembly/Setup Battery Door IMPORTANT! The battery door must be assembled to the soother for proper function. You may want to assemble the batteries in the soother before completing the assembly/setup. See the Battery Installation section. • Fit the battery door into the opening in the soother. Hint: The battery door is designed to fit one way.
  • Page 6 These limits are designed to provide reasonable protection against harmful interference in a residential installation. This Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. equipment generates uses and can radiate Hearing-impaired consumers: 1-800-382-7470. radio frequency energy and, if not installed...

  • Page 7: Battery Installation

    Battery Installation For longer life, use alkaline batteries. For longer life, u 1,5V x 2 C (LR14) Soother • Loosen the screws in the battery compartment door with a Phillips screwdriver and remove the door. • Insert two C (LR14) alkaline batteries. •...
  • Page 8 Mobile Crib Attachment Crib Top Rail Base Buckles Buckles • Position the base so that the decorated side faces the inside of the crib. • Fit the base onto the crib top rail. • Make sure the top strap is hanging over the crib top rail. Pull the bottom strap through the crib rails.
  • Page 9 Mobile Crib Attachment • Tie the base strings to a crib spindle. Note: It is better the tie the strings in a knot than a bow, since a bow may be easily untied. Bottom of Base Bottom of Base At Least 7 Inches (18 cm) At Least 7 Inches (18 cm) Mattress Mattress...

  • Page 10: Remote Use

    Remote Use Control Panel Use • Press the power button to turn the soother ON. Press the power button again to turn the soother OFF. • Press the motion button to turn mobile motion ON. Press the button again to turn motion and projection OFF.
  • Page 11 Convert to Dresser Top Soother with ceiling projection! Loosen the screws in the battery compartment door and remove the door. Slide the switch on the bottom of the soother. Slide the mobile canopy over and lift to remove from the soother. While holding the switch down, remove the mobile arm from the soother.
  • Page 12 Convert to Crib Mobile with canopy projection! Replace the battery compartment door and tighten the screws. Loosen the screws in the battery compartment door and remove the door. “Snap” the mobile arm into the socket in the soother. Fit the mobile canopy into the opening in the soother , then slide the mobile canopy until you hear a "click"...
