Keter OPTIMA WONDER Assembly Instructions Manual

Keter OPTIMA WONDER Assembly Instructions Manual

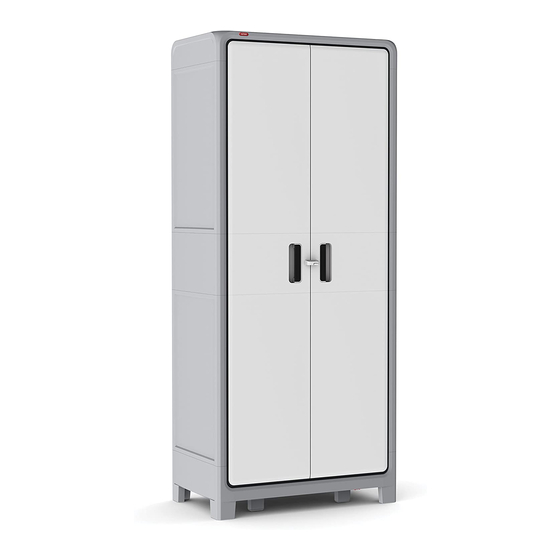

Indoor multipurpose cabinet

Advertisement

Quick Links

®
OPTIMA WONDER
ASSEMBLY INSTRUCTIONS
EN
INSTRUCCIONES DE MONTAJE
ES
IMPORTANT: Please contact Customer Service if you have any problems or discover any missing parts.
EN
IMPORTANT: Veuillez contacter notre Service Clientèle pour tout problème ou pièce manquante.
FR
WICHTIG: Bitte wenden Sie sich an unseren Kundenservice, falls Sie irgendwelche Probleme haben oder feststellen, daß Teile fehlen.
GE
IMPORTANTE: Sírvase contactar con nuestro Servicio al Cliente por cualquier problema, o pieza que pudiera faltar.
ES
IMPORTANTE: Si prega di contattare il Servizio Clienti per eventuali necessità.
IT
BELANGRIJK: Neemt u in geval van problemen of missende onderdelen a.u.b. contact op met de klantenservice.
NL
IMPORTANTE: favor entrar em contato com o Serviço ao Cliente se houver problemas ou se faltar peças.
PT
ΣΗΜΑΝΤΙΚΟ: παρακαλώ επικοινωνήστε ε την Εξυπηρέτηση Πελατών αν αντι ετωπίσετε κάποιο πρόβλη α ή αν λείπει έρο από την συσκευασία.
GR
USA & Canada: 1-(888)-374-4262
UK: Tel: 0121-5060008, Fax: 0121-4220808
Other European Countries: Tel: +31-1612-28301, Fax: +31-1612-28322
A-2258 Optima.indd 1
INSTRUCTIONS DE MONTAGE
FR
ISTRUZIONI DI MONTAGGIO
IT
Indoor Multipurpose Cabinet
MONTAGEANLEITUNG
MONTAGEVOORSCHRIFT
GE
NL
INSTRUÇÕES DE MONTAGEM
PT
Ο ΗΓΙΕΣ ΣΥΝΑΡΜΟΛΟΓΗΣΗΣ
GR
A-2258 / 570096
WWW.KETER.COM
14/12/14 10:36
