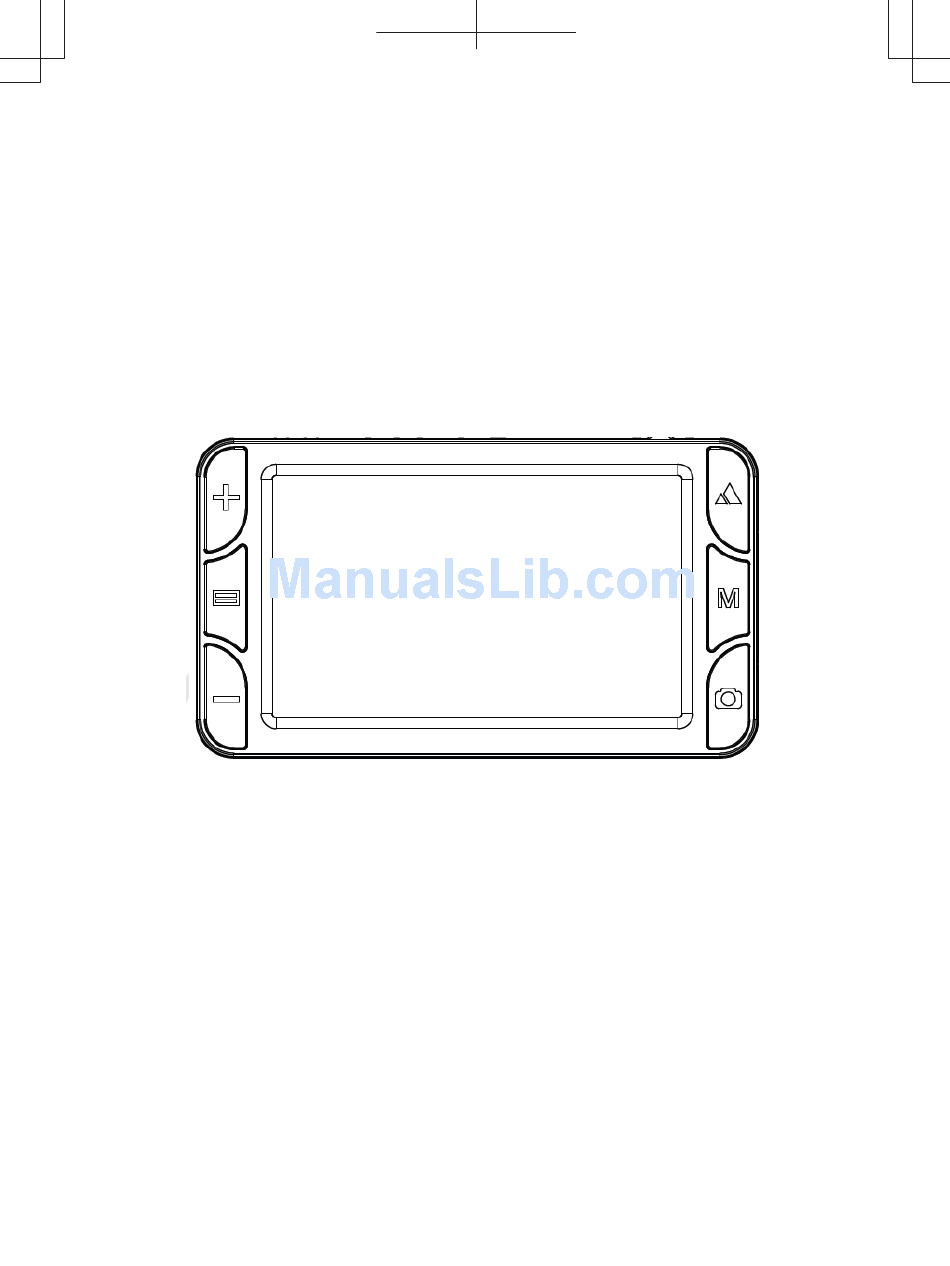

- Page 1 ViSee™ 5.0” Digital Portable Video Magnifier Model: LVM-500 User's Guide Oasis Scientific Inc. V.2.2015...
-
Page 2: Table Of Contents
Content Welcome ……………………..........2 Features of LVM-500 Magnifier..........2 Packaging Accessories............3 Technical Specification............4 Product Configuration............5 Instruction for Use..............6 1、Installing the Battery.............6 2、Charging the Battery............6 3、Power on and Power off..........6 Functions ……………............7 1、Switchover of Color Modes..........7 2、Mangification Adjustment..........7 3、Switchover between Far-Focal Lens and Near-Focal Lens..7 4、Images Freeze and Unfreeze........7... -
Page 3: Content Welcome
It will help you use the product better and get the optimal video magnifying effect. Features of our product This product, LVM-500, is a 5” high-definition portable video magnifier with high performance and an affordable price. ●New technology platform enables top speed 60fps, no stagnation between image changes, no image shadowing, and smooth reading. -
Page 4: Packaging Accessories
ViSee™ Portable Digital Video Magnifier ●Supports the function of voice prompt which is simple to operate and convenient for visually impaired people; ●Supports the adjustable backlight which can make eyes comfortable and protect eyes at the same time; the backlight can be adjusted and turned off, which makes it suitable for reading materials on the phone, tablet PC and other electronic devices. -
Page 5: Technical Specification
Portable Digital Video Magnifier Technical specification ●Screen size: 5.0” HD colorful LCD screen(800X480) ●Zoom range: 4X to 32X continuous magnification ●Resolution: 1.2 megapixel (far focal), 0.3 megapixel (near focal) ●Color mode: 15 kinds ●Dual lens: one close view lens and one far view lens ●Adjustment of Fill-in light: support ●Adjustment of luminance: support ●Memory function: support... -
Page 6: Product Configuration
Portable Digital Video Magnifier Product Configuration 12 13 14 15 16 18 19 20 21 22 23 24 1.Zoom in key 10.Handle tip 19.Battery charging 2.Curtain key 11.Fill-in light Indicator light(red) 3.Zoom out key 12.Loudspeaker 20.Micro USB /DCIN interface 21.HDMI-C interface 4.Distance key 13.Back shell 5.Mode key... -
Page 7: Instruction For Use
ViSee™ LVM-500 Portable Digital Video Magnifier Instruction for Use 1、Install the Battery a、Turn the product over b、Press against the battery cover, then push and slide outward to open the battery cover. c、Install the battery according to the hint of the positive and negative terminals, and push the battery in right place. -
Page 8: Functions
Portable Digital Video Magnifier Functions 1、Switchover of Color Modes With mode key, the image enhanced modes of the LCD screen can be switched to accommodate various requirements. This machine provides 15 image enhancement modes: 9)yellow-background and black-text mode 1)color mode 10)blue-background and yellow-text mode 2)negative mode 11)yellow-background and blue-text mode... -
Page 9: The Function Of Electronic Curtain
Portable Digital Video Magnifier 5、Electronic Curtain Function The Electronic Curtain can cover up images outside the desired reading area, which can benefit individuals who are sensitive to light or have other visual problems where additional words or images can be distracting. -
Page 10: The Function Of Music Play
Portable Digital Video Magnifier 7、Music Play Function With the function of the music play, the user can read and appreciate music that they have previously saved on their computer. Copy the music: 1. Connect the video magnifier with PC through a Micro USB. 2. -
Page 11: Adjustment Of Fill Light Intensity
Portable Digital Video Magnifier 9、Intensity Adjustment of Fill Light Press/Hold Down the distance key, and then press the zoom in key or zoom out key to adjust the intensity of the fill light to improve the effect. The machine provides 6 intensity levels, such as shut, 20%, 40%, 60%, 80% and 100%. -
Page 12: Memory Function
Portable Digital Video Magnifier Attention: in the process of playing music, the voice prompt will automatically be shut down. 13、Memory Function After the machine is turned on, it will automatically save all the last settings of to remember the usage habits of the user. 14、Power Saving Function The machine owns intelligent power saving function. -
Page 13: Connecting To A Tv Or Monitor
Portable Digital Video Magnifier If using your left hand to write, you simply need to rotate the video magnifier 180 degrees. 18、Connect to a TV or monitor Connecting the device to a TV though an AV video line, can provide a larger and clearer display effect. -
Page 14: Troubleshooting
AV input. When using HDMI line, please switch the TV input source to HDMI input. Make sure the video line is correctly connected to the video magnifier and Oasis Scientific Inc. www.oasisscientific.com info@oasisscientific.com 1-864-469-0919 (Tel)
