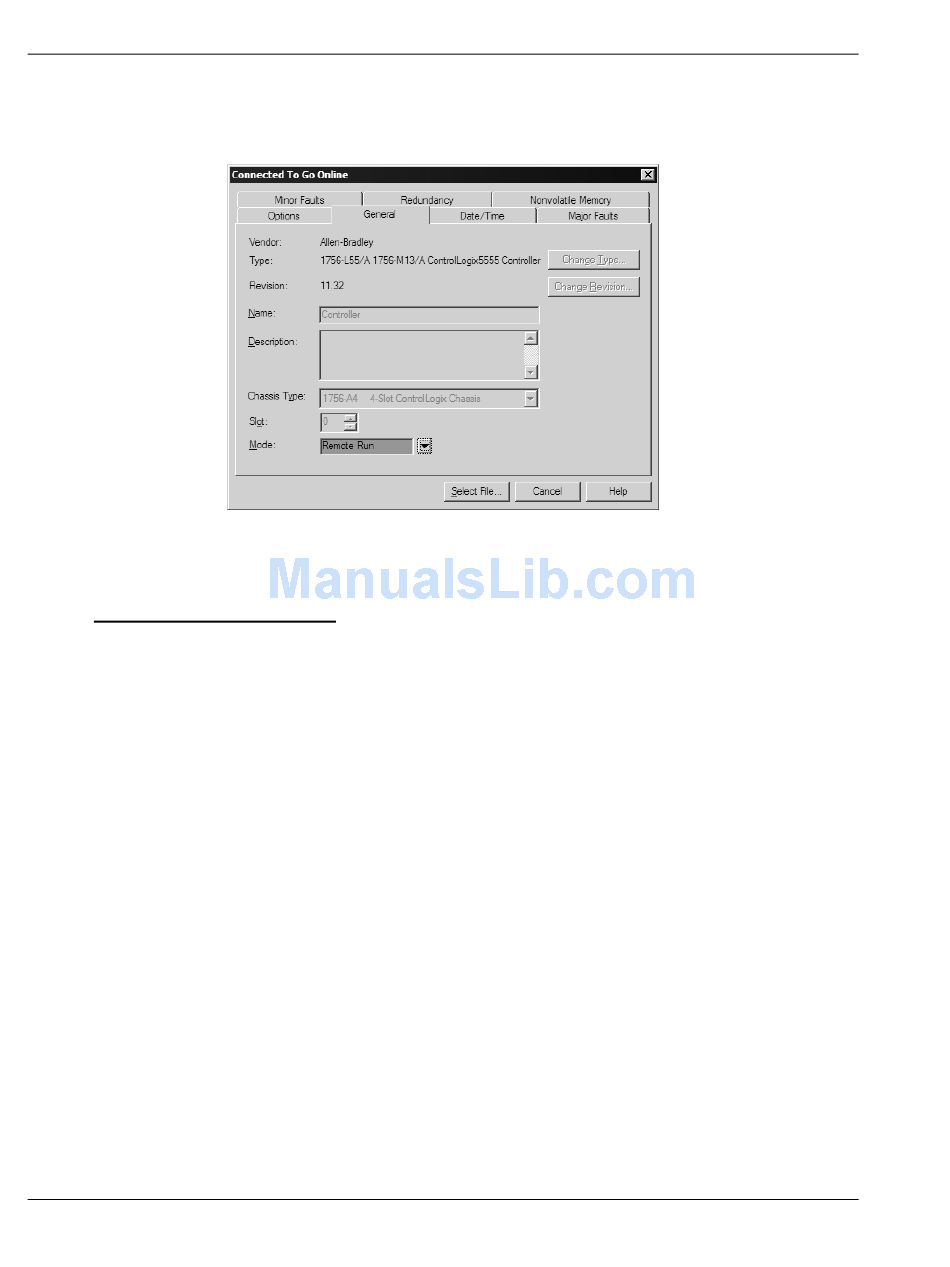

5 In the Connected To Go Online dialog box, click the G
shows information about the processor, including the Revision (firmware)
version. In the following illustration, the firmware version is 11.32
6 Select the sample ladder logic file for your firmware version.
To open the sample program
1 On the Connected to Go Online dialog box, click the S
2 Choose the sample program file that matches your firmware version, and
then click the S
3 RSLogix will load the sample program.
The next step is to configure the correct controller type and slot number for your
application.
