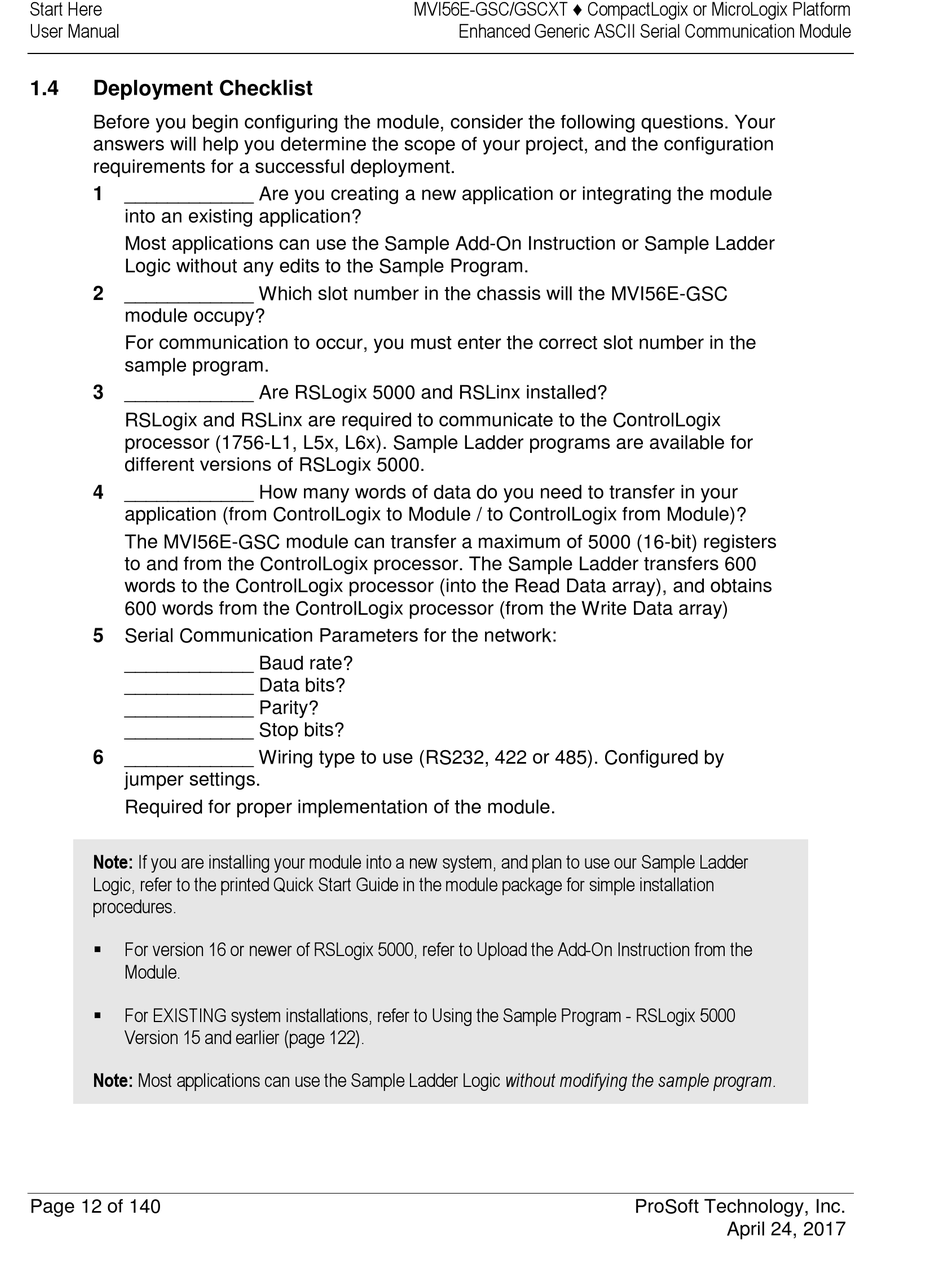

Deployment Checklist

Before you begin configuring the module, consider the following questions. Your
answers will help you determine the scope of your project, and the configuration
requirements for a successful deployment.
1 ____________ Are you creating a new application or integrating the module
into an existing application?
Most applications can use the Sample Add-On Instruction or Sample Ladder
Logic without any edits to the Sample Program.
2 ____________ Which slot number in the chassis will the MVI56E-GSC
module occupy?
For communication to occur, you must enter the correct slot number in the
sample program.
3 ____________ Are RSLogix 5000 and RSLinx installed?
RSLogix and RSLinx are required to communicate to the ControlLogix
processor (1756-L1, L5x, L6x). Sample Ladder programs are available for
different versions of RSLogix 5000.
4 ____________ How many words of data do you need to transfer in your
application (from ControlLogix to Module / to ControlLogix from Module)?
The MVI56E-GSC module can transfer a maximum of 5000 (16-bit) registers
to and from the ControlLogix processor. The Sample Ladder transfers 600
words to the ControlLogix processor (into the Read Data array), and obtains
600 words from the ControlLogix processor (from the Write Data array)
5 Serial Communication Parameters for the network:
____________ Baud rate?
____________ Data bits?
____________ Parity?
____________ Stop bits?
6 ____________ Wiring type to use (RS232, 422 or 485). Configured by
jumper settings.
Required for proper implementation of the module.
Note: If you are installing your module into a new system, and plan to use our Sample Ladder
Logic, refer to the printed Quick Start Guide in the module package for simple installation
procedures.
For version 16 or newer of RSLogix 5000, refer to Upload the Add-On Instruction from the

Module.
For EXISTING system installations, refer to Using the Sample Program - RSLogix 5000

Version 15 and earlier (page 122).
Note: Most applications can use the Sample Ladder Logic without modifying the sample program.
