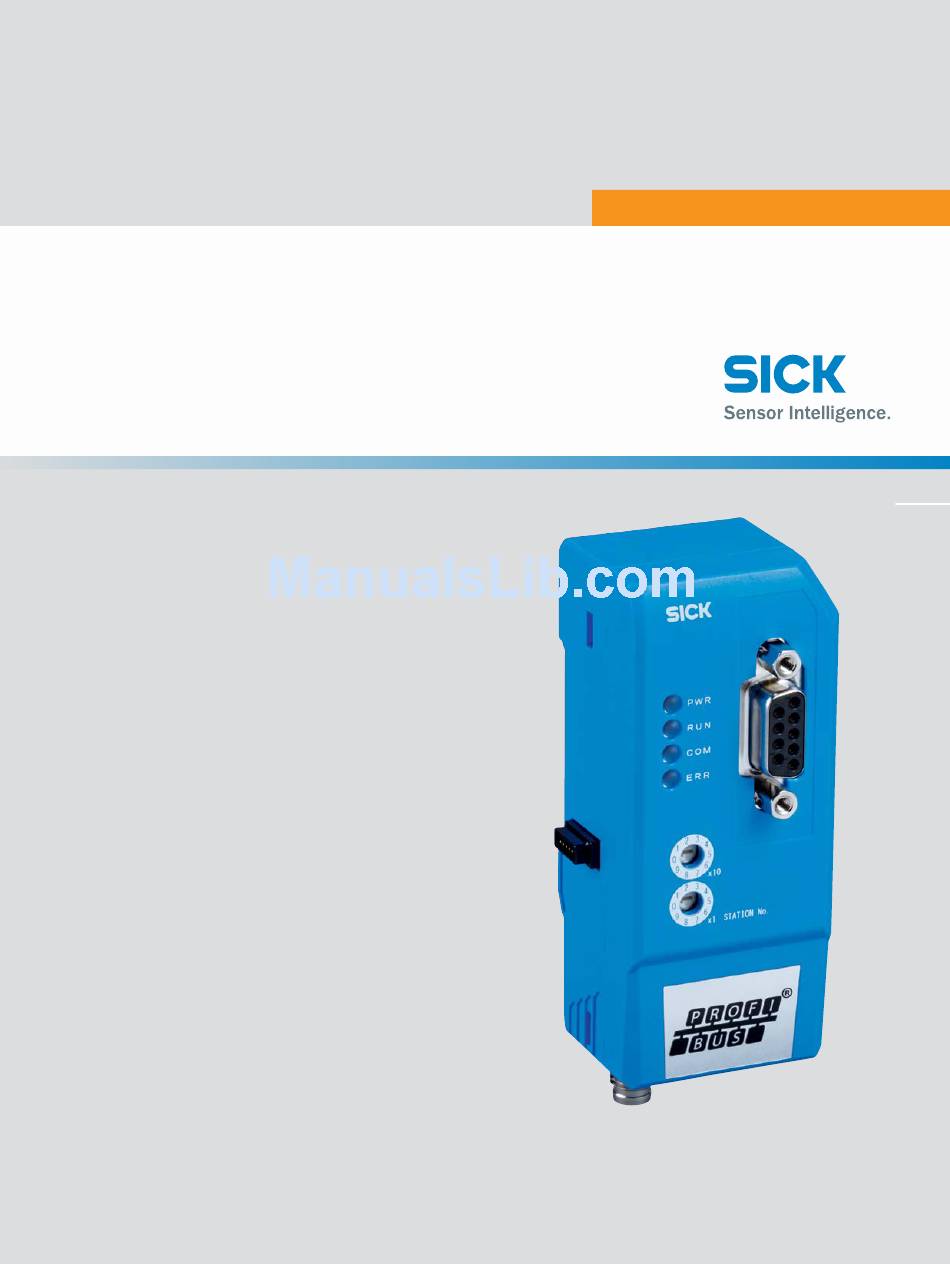

- Page 1 O P E R A T I N G I N S T R U C T I O N S WI180C-PB WI180C-PB PROFIBUS coupler...
- Page 2 Legal information This document is protected by copyright. The associated rights are reserved by SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal provisions of Copyright Law. Any modification, abridgment or translation of this document is prohibited without the express written permission of SICK AG.
-
Page 3: Table Of Contents
Write access ....................19 WI180C-PB index map overview ................20 WLL180T index map overview (via WI180C-PB) ............21 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G W I 1 8 0 C - P B | P R O F I B U S C O U P L E R... - Page 4 Fault indicators ....................24 LED fault indicators ....................24 Error codes ........................24 8.2.1 Diagnostic faults for the WI180C-PB............24 8.2.2 Diagnostic faults for the WLL180T ............25 8.2.3 Communication error ................25 Decommissioning ..................26 Dismantling .......................26 Disposal ........................26 Technical data ....................27 10.1 Dimensional drawings ....................27 10.2 Technical data ......................28...
-
Page 5: About This Document
Electrical installation − Commissioning and configuration Furthermore, when planning and using sensors such as the WI180C-PB(Sxx), technical expertise is required, which is not covered in this document. Official and legal regulations for operating the WI180C-PB(Sxx) volume measurement system must always be complied with. -
Page 6: Symbols And Document Conventions
ABOUT THIS DOCUMENT Symbols and document conventions WARNING! A warning indicates a specific or potential danger. This is intended to protect you against accidents. Read and follow the warnings carefully! Symbol Meaning Danger (general) Danger of electric shock Danger in potentially explosive environments Danger due to explosive substances Danger due to inflammable substances Danger due to oxidizing agents... -
Page 7: Product Information
ABOUT THIS DOCUMENT Product information Product name WI180C-PB, WI180C-PB(Sxx) Device version PROFIBUS Manufacturer SICK AG Further information www.sick.com The following information is available on the Internet: − Other language versions − Data sheets and application examples − CAD data of drawings and dimensional drawings −... -
Page 8: Safety Information
The WI180C-PB is not designed as a safety product. Correct use Correct use requires that the WI180C-PB is used industrially indoors without any spe- cific climatic and atmospheric requirements. Any use outside of the areas mentioned in each case will be considered to be incorrect use and void any warranty claims against SICK AG. -
Page 9: Product Description
Product description Product characteristics The WI180C-PB is an interface coupler, which can be used to connect connected devices (e.g. WLL180T) to the PROFIBUS DP. The relevant devices are connected via a simple plug system on the side of the coupler. -
Page 10: Interfaces
PRODUCT DESCRIPTION Interfaces 3.3.1 PROFIBUS Pin assignment Not assigned Not assigned RxD+/TxD+ DGND +5 VDC Not assigned RxD-/TxD- Not assigned 3.3.2 Power supply Pin assignment +12–24 VDC Not assigned Not assigned W I 1 8 0 C - P B | P R O F I B U S C O U P L E R 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G Subject to change without notice... -
Page 11: Grounding
3.3.3 Grounding The WI180C-PB is grounded via the mounting rail by means of a spring contact: 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G W I 1 8 0 C - P B | P R O F I B U S C O U P L E R... -
Page 12: Transport And Storage
(see page 28). Storage If you want to store the WI180C-PB for a relatively long time, pack it as you would for transport. Make sure that the storage location complies with the permitted environ- mental conditions (see page 28). -
Page 13: Mounting
Mount a grounded mounting rail in the same area as the application. Lay the two pre-assembled cables so that they can easily be connected to the connections of the WI180C-PB. If necessary, use cable channels, cable ties and cable grips. -
Page 14: Connecting The Device
MOUNTING Push the series-connected devices onto the 5-pin connection on the left side of the WI180C-PB. Make sure that the sequence is correct (see the operating instructions for the relevant device). Fix the connected devices on the mounting rail without any spaces. -
Page 15: Commissioning
The upper rotary switch "×10" represents a multiple of 10. The lower rotary switch "xy" represents a value between 0 and 9. The WI180C-PB must be restarted after every change of address by switching off and on again, before the new address is transferred. -
Page 16: Operation
Carry out a daily functional check (see page 16). − If you want to connect devices to the WI180C-PB or remove devices, switch off the power supply first. − Only operate the WI180C-PB under the specified operating conditions (see page 28). -
Page 17: Addressing The Devices
Addressing the devices The individual devices are addressed in accordance with the following scheme: Slot number Device Example byte Function address Output WI180C-PB Teach-in version b0: Reset fault Input Channel 1 status Channel 2 status External input status Device #1... -
Page 18: Communication Via Profibus
Standard function blocks: − Read SFB52 RDREC dataset − Write SFB52 WRREC dataset Device-specific SICK function blocks − Function block for interpreting the acyclic service data − Parser function for interpreting the cyclic process data When read, the device's response returns a 4 byte header and the requested data. -
Page 19: Write Access
Access type Profibus slot Index Dataset length 0x5F (write) 1 byte 1 byte 1 byte Example An 8 byte tag name should be written to the WI180C-PB. Value Access type 0x5F Profibus slot 0x00 (Slot 0) Index 0x08 (8) Dataset length... -
Page 20: Wi180C-Pb Index Map Overview
OPERATION WI180C-PB index map overview Index no. Function Details Access Length Description (Byte) Product/series b15–12 Manufacturer 1: SICK AG b11–8 Category 5: Communication unit b7–0 Family 1: WI180C-PB Product type 1: WI180C-PB Firmware version Protocol version Product revision Vendor name 2–16... -
Page 21: Wll180T Index Map Overview (Via Wi180C-Pb)
OPERATION WLL180T index map overview (via WI180C-PB) Index no. Function Details Access Length Description (Byte) Product/series b15–12 Manufacturer R 1: SICK AG b11–8 Category 1: Fiber photoelectric sensor b7–0 Family 1: WLL180T, 1 output 2: WLL180T, 2 outputs Product type... - Page 22 OPERATION Index no. Function Details Access Length Description (Byte) Response time 0: 16 µs 1: 70 µs 2: 250 µs 3: 3 ms 4: 8 ms Transmitting power 0: low 1: medium 2: normal Input 0: External teach-in 1: Test input 2: Synchronization 3: Reset the counter 4: Master teach-in...
- Page 23 OPERATION Index no. Function Details Access Length Description (Byte) Cancel zero reset desired value 1-point teach-in 1: CH1 2: CH2 2-point teach-in 204...209 Reserved Warm start 3: execute Return to main menu Return to factory 3: execute settings 213...254 Reserved System, reserved 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G W I 1 8 0 C - P B | P R O F I B U S C O U P L E R...
-
Page 24: Fault Indicators
No communication with DP master cyclically Table 2:X: on, –: off Error codes 8.2.1 Diagnostic faults for the WI180C-PB Error code Description 0x06 Number of connected bus devices was reduced 0x09 Different number of registered and actually connected bus devices... -
Page 25: Diagnostic Faults For The Wll180T
FAULT INDICATORS 8.2.2 Diagnostic faults for the WLL180T Error code Description 0x12 End of the data 0x13 Attempt to write blocked parameters 0x14 Teach different output channel 0x15 Attempt to apply 2-point teach to a mode that does not support it 0x16 Forbidden parameter value for warm start or initialization 0x17... -
Page 26: Decommissioning
Remove the WI180C-PB from the mounting rail. Disposal At the end of its service life, the WI180C-PB must be disposed of correctly as waste electronics. Take the regulations in your country into account also. W I 1 8 0 C - P B | P R O F I B U S C O U P L E R 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G... -
Page 27: Technical Data
TECHNICAL DATA Technical data 10.1 Dimensional drawings 38.2 25.3 33.2 37.9 Description Description PWR-LED Switch station no. (x1 and x10) RUN-LED Power supply connection (M8), 4-pin COM-LED Bus male connector (system bus) ERR-LED D-sub connection (RS-485), 9-pin, PROFIBUS 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G W I 1 8 0 C - P B | P R O F I B U S C O U P L E R Subject to change without notice... -
Page 28: Technical Data
10.2 Technical data Description Value Electrical Supply voltage 12 – 24 VDC ± 10% Power consumption Switch-on delay (WI180C-PB) 500 ms Switch-on delay (overall system) 2000 ms Profile PROFIBUS DP-V1 Maximum number of modules to be con- nected Transmission rates in kbit/s 9.6/19.2/45.45/93.75/187.5/500/... -
Page 29: Ordering Information, Accessories
TECHNICAL DATA Temperature range (storage) -40 – +70 °C Temperature range (Operation, ≤3 connected -25 – +55 °C devices) Temperature range (Operation, ≤8 connected -25 – +50 °C devices) Temperature range (Operation, ≤16 connected -25 – +45 °C devices) 10.3 Ordering information, accessories Part number Type... - Page 30 W I 1 8 0 C - P B | P R O F I B U S C O U P L E R 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G Subject to change without notice...
- Page 31 8018416.YM10/COMAT/ 2015-03-13 | S I C K A G W I 1 8 0 C - P B | P R O F I B U S C O U P L E R Subject to change without notice...
- Page 32 Phone +386 (0)1-47 69 990 E-Mail ghk@sick.com.hk E-Mail office@sick.si Hungary South Africa More representatives and agencies Phone +36 1 371 2680 Phone +27 11 472 3733 E-Mail office@sick.hu E-Mail info@sickautomation.co.za at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
