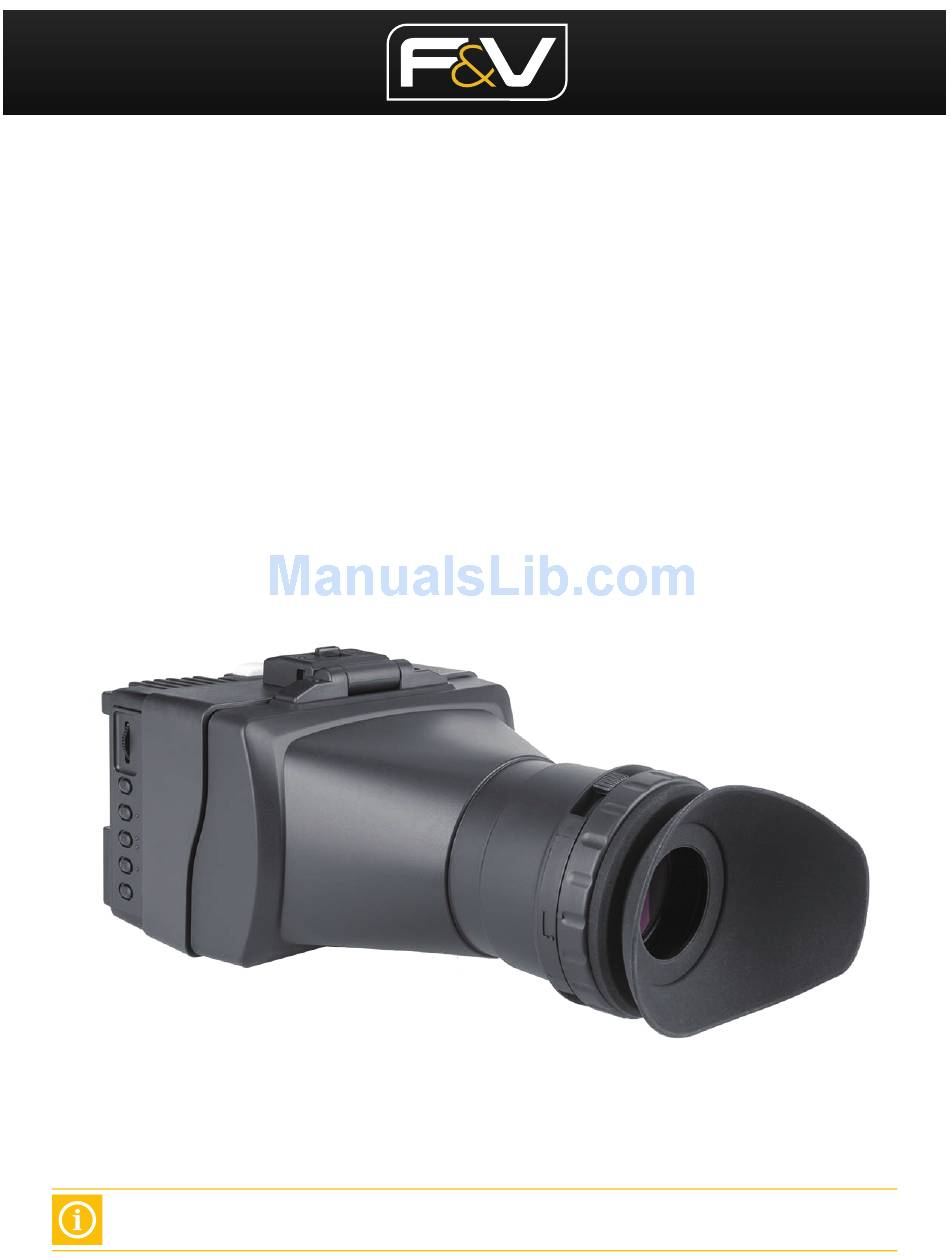

Page 1: User Manual
User Manual SpectraHD 4 Field Monitor When using the SpectraHD 4 with the loupe, please take precaution to not leave the loupe half open. Leaving the loupe half open may cause your screen to “burn in” from the sun. -
Page 2: Table Of Contents
MENU SpectraHD 4 Caution ....................Components ..................Control & Functions ................Compatible Input Formats ..............Menu Tree & Adjustment ..............OSD (On-screen Display) Menu ............[1] Color ..................[2] Display ..................[3] Frame Guide ................[4] Advanced ................. [5] Waveform Check .............. -
Page 3: Caution
CAUTION SpectraHD 4 • Always use set voltage. (DC 6.8-18V) • If any of the following conditions occurs, unplug the power cord from the DC outlet, • All operating instructions must be read and and request a qualified service person to understood before the product is operated. - Page 4 CAUTION SpectraHD 4 • Unplug the power cord from the DC outlet • The vents and other openings in the before cleaning the product. Use a damp cabinet are designed for ventilation. Do not cloth to clean the product. Do not use liquid cover or block these vents and openings cleaners or aerosol cleaners.
-
Page 5: Components
COMPONENTS SpectraHD 4 SpectraHD 4 EVF loupe (optional) HDMI Mini to Standard Cable Junior Joint D-tap to Mini XLR Cable BNC Cable USB Upgrade Cable AC Adapter... -
Page 6: Control & Functions
CONTROL & FUNCTIONS SpectraHD 4 TALLY POWER DC 2.5Φ 6.8-18 V USB 2.0 TALLY SDI IN & OUT POWER SIGNAL FUNCTION TALLY Scroll up Click MENU Scroll down... -
Page 7: Compatible Input Formats
COMPATIBLE INPUT FORMATS SpectraHD 4 The following standards are supported by the SpectraHD 4 field monitor: 1080p(24/25/30/50/60), 1080i(50/60), HDMI 720p(50/60), 576p(50), 576i(50), 480p(60), 480i(60) 1080p(60/59.94/50/30/59.97/25/24/24sf) SMPTE-425M-A/B 1080i(60/59.97/50) 1080p(30/29.97/25/24/24sf) SMPTE-274M 1080i(60/59.94/50) SMPTE-296M 720p(60/59.94/50) SMPTE-125M 480i(59.94) ITU-R BT.656 576i(50) MENU TREE & ADJUSTMENT... - Page 8 MENU TREE & ADJUSTMENT SpectraHD 4 Peaking Filter [Off] (Default), [Mono], [Color] Peaking Level [0], [1], [2], [3], [4], (Default), [6], [7], [8], [9], [10] Advanced Peaking Color [Red] (Default), [Green], [Blue], [White], [Gray], [Black] False Color [Off] (Default), [Color Pattern], [Zebra Pattern]...
-
Page 9: Osd (On-Screen Display) Menu
OSD (On-screen Display) MENU SpectraHD 4 [1] Color • Backlight Use the value range 0 - 100 to adjust the LED Backlight from 10% to 100% (Default: 40). This feature allows you to compensate for the ambient light levels in your shooting environment. -
Page 10: Display
OSD (On-screen Display) MENU SpectraHD 4 [2] Display • Scan Mode Select from one of the following Scan Modes: [Standard], [Over Scan], [Pixel to Pixel]. The proper [Scan Mode] will depend on the aspect ratio of your input signal. • DSLR Camera Select the DSLR Camera to be used, changed between following sequence: [Off], [ON]. -
Page 11: Frame Guide
OSD (On-screen Display) MENU SpectraHD 4 [3] Frame Guide • Thickness Use this setting to change the marker thickness between [2], [4], [6], [8], [10], [12], [14] pixel. • Center Marker Use this setting to change the center marker between [ON], [Off]. -
Page 12: Advanced
OSD (On-screen Display) MENU SpectraHD 4 [4] Advanced • Peaking Filter Use this setting to selected the Peaking Filter, Changed between following sequence: [Off], [Meno], [Color] • Peaking Level Use this setting to change the sensitivity of the Peaking Filter from 0 to 10. -
Page 13: Waveform Check
OSD (On-screen Display) MENU MeticaFM 7 [5] Waveform Check • Histogram Use this setting to activate the Histogram in the bottom, right corner of the screen. Use the Histogram to help understand the overall exposure of your image. • Vector •... -
Page 14: Audio
OSD (On-screen Display) MENU MeticaFM 7 [6] Audio • Volume Use this setting to change the volume from 0 to 100. (Default: 50) • Mute Use this setting to mute the audio output. • Audio Column Use this setting to activate the audio column in the bottom-left corner of the screen. •... -
Page 15: Input & Output
OSD (On-screen Display) MENU MeticaFM 7 [7] Input & Output • Input Source Using this setting to change the input source between following sequance: [HDMI], [SDI]. • F1 (User Defined Function 1) Using this to setting to change the function of Shortcut F1 between following sequance: [Check Field] (Default), [Scan Mode], [DSLR Scale], [Freeze], [Center Marker], [Marker Type], [Safety Area], [Peaking Filter], [False Color], [Vector], [Range Error], [Audio Column],... -
Page 16: System
SPECIFICATIONS MeticaFM 7 [8] System • Language Use this setting to change the language of the OSD. • Reset Using this setting to reset to factory default. • Background Using this to change the Screen background between: [Black], [Blue], [Color Bar] •... - Page 17 SPECIFICATIONS SpectraHD 4 Size 4.3” Resolution 1280 X 720 px Pixel Pitch 0.02475(H)mm×0.07425(W)mm Color Depth 16.7M Viewing Angle 170°(H) / 170°(V) Luminance of white 420cd/ Contrast Ratio 900 : 1 Display Area 95.04 (H) × 53.46 (V) mm 1 X BNC 3G/HD/SD-SDI –...
-
Page 18: Dimensions
DIMENSIONS SpectraHD 4 67 mm 131 mm 100 mm 239 mm... -
Page 19: Maintenance
MAINTENANCE SpectraHD 4 • Screen Cleaning Periodically clean the screen surface using non-abrasive, ammonia-free cleaning wipes. A clean microfiber cloth can also be used. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. - Page 20 F&V Photographic Industry B.V. Steenovenweg 5, 5708HN Helmond, Netherlands For more information visit: fvlight.com TM & © F&V All rights reserved.
