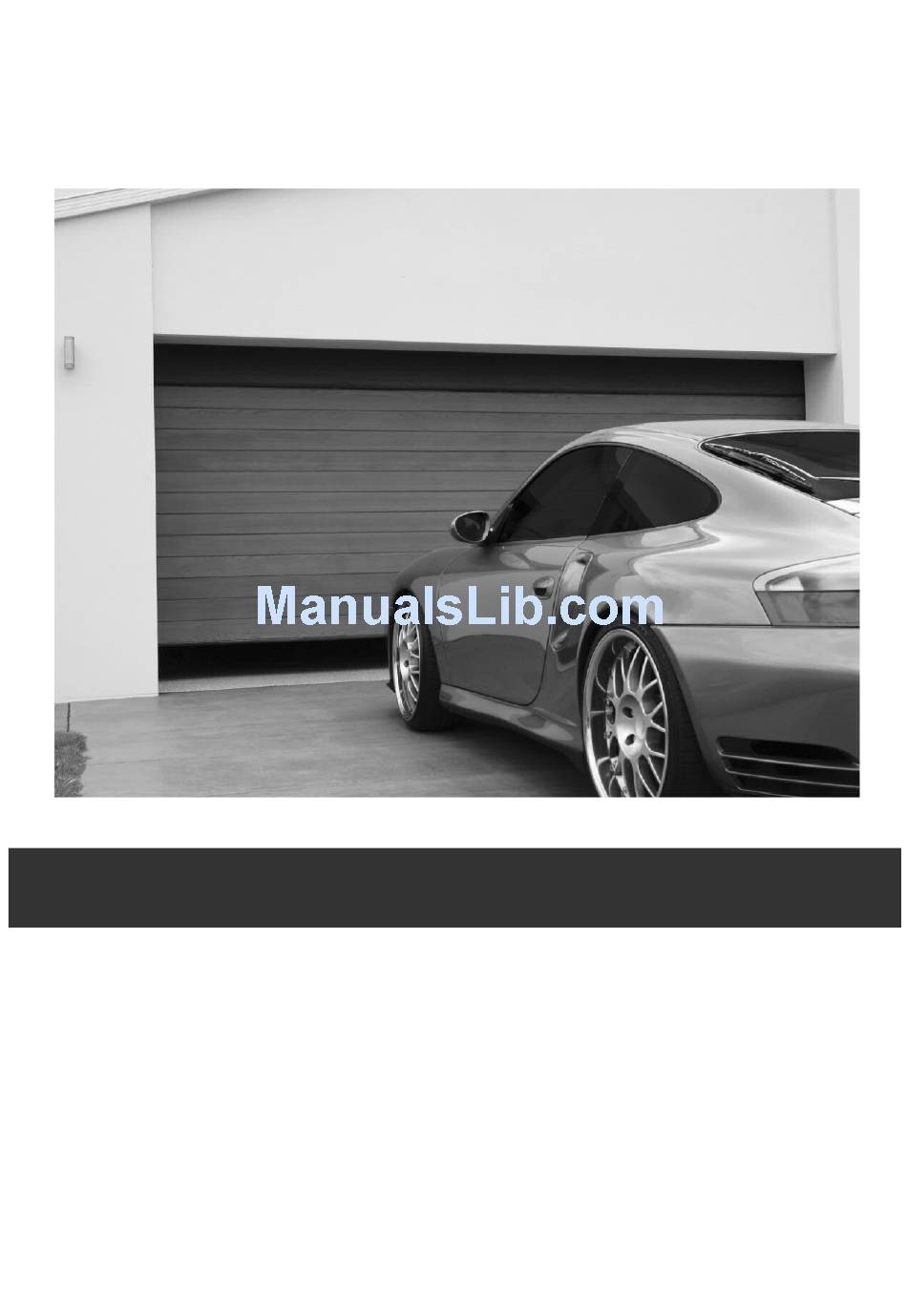

D-FORCE1500PV
GARAGE DOOR OPENER
WARNING: IT IS VITAL FOR THE SAFETY OF ALL PERSONS INSTALLING AND USING THIS OPENER TO
FOLLOW THE INSTALLATION INSTRUCTIONS AND SAFETY WARNINGS. FAILURE TO COMPLY MAY
RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE AND FAILURE OF THE OPENER
SYSTEM。

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1500PV and is the answer not in the manual?

Questions and answers

Related Manuals for D-force 1500PV

Summary of Contents for D-force 1500PV

  • Page 1 D-FORCE1500PV GARAGE DOOR OPENER WARNING: IT IS VITAL FOR THE SAFETY OF ALL PERSONS INSTALLING AND USING THIS OPENER TO FOLLOW THE INSTALLATION INSTRUCTIONS AND SAFETY WARNINGS. FAILURE TO COMPLY MAY RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE AND FAILURE OF THE OPENER SYSTEM。...
  • Page 2 D-FORCE1500PV 1.Functions Micro intellectual control —— One button to control open, stop and close. The light will be on while opening or closing the door, three minutes later the light will be off automatically. Control the unit running by computer program. Test the force of open or close the door, the optional function is photo beam, auto-close, lock door, etc.

  • Page 3: Technical Specifications

    2.Technical Specifications Power input 220VAC±10% 50～60Hz Reception 433.92MHz frequency Motor 24VDC Decoding Rolling code Working temperature -20～50℃ Transmitter 27A 12V Battery power ≦ Relative Humidity Globe 24V 5W Open and close force 1500N Courtesy light 3 minutes time 3.Installation 3.1 Recommended Tools Tools Drill Step ladder...
  • Page 4 3.2 Installing the Operator and Rail...
  • Page 5 4.Control panel and Transmitter Button 1 Button 2 Button 3 Button 4...

  • Page 6: Optional Terminals And Connections

    5.Optional Terminals and Connections 6.Programming the Operator 6.1 Preparing 6.1.1 To tighten the chain,turn adjusting nut-M8 in the direction shown(picture C).Make sure the shuttle is locked, pull or push the door to confirm the shuttle connects with the chain. 6.1.2 Turn on the power, the courtesy light will be light for several seconds, at the same time, the LED displays the number from 99 to 11.Then the operator turns to standby situation.
  • Page 7 >> >> Turn on the power, The LED displays from 99 to 11. At last, it displays “ ”. 6.2 Setting Open and Close Positions >> >> until it displays “P1”, press SET, it displays “OP”. Then press UP , when the Press and hold SET door has reached the open position, press SET.
  • Page 8 6.3 Self Learning Transmitter 6.3.1 when the unit has stored 20 codes, The LED flashes “Fu”, or preventing coding mistakes, it is necessary to cancel all the stored codes. >> >> When it displays “Fu”, press and hold CODE more than 8 seconds until it flashes “dL” , all the codes will be cancelled.
  • Page 9 >> >> Press and hold SET, it displays ”P1”, press UP once, it displays”P2”, press SET once again, it will show the current situation. Press UP to increase the force one degree and press DOWN to decrease one degree. Maximum degree is “F9” and minimum is “F1”. Press SET to confirm. The default setting is “F5”.
  • Page 10 setting is “b0”. ”bo” shows auto-close off. 7.Owners’ Guide 7.1 Attention in use 7.1.1 At the first time of using the door, please test the driving system to see if it moves well. (Test method: unlock the shuttle, pull and push the door by hand.) 7.1.2 Connected with the appropriate power and socket by professionals, and connected the ground wire with earth.
  • Page 11 7.2 Examination Guide Problem Causes Solution The chain is noisy The chain is too loose Adjust nut-M8 referring to 6.1.1 The motor does not The socket is well connected, Check the socket work or the fuse is broken Replace the fuse After setting open The screws of fixing the Hall Tighten the screws...
