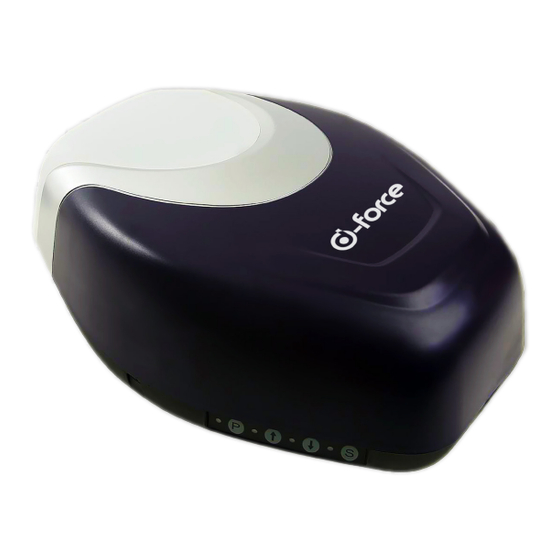

- Page 1 Garage Door Opener DF800N Owner’s Instruction Manual w w w.d fo rc e .c o.z a www.doorzone.co.za...
-
Page 2: Table Of Contents
Garage Door Opener CONTENTS IMPORTANT SAFETY REQUIREMENTS FEATURES SPECIFICATIONS PACKING LIST ASSEMBLY AND INSTALLATION PROGRAMMING THE OPENER 7 - 10 Preparation Programming Buttons and LED’s Open Limit Programming Close Limit Programming Adjust Obstruction Sensing and Force - not recommended Programming Obstruction Sensing and Force Remote Transmitters Programming Coding a Remote Transmitter De-Coding a Remote Transmitter - erase code... -
Page 3: Important Safety Requirements
Garage Door Opener IMPORTANT SAFETY REQUIREMENTS WARNING: It is vital for failure to head this warning. your own safety that you follow all instructions. • DO NOT allow children to operate the Failure to comply with the opener. Serious personal injury and/or installation instructions and the safety property damage can result from failure to warnings may result in serious personal... -
Page 4: Features
Garage Door Opener FEATURES Thank you for purchasing the d-force Overhead Garage Door Opener. Designed to suit sectional overhead and one piece tilt up doors, the components and materials used ensure this opener will provide years of simple and secure operation. Listed below are... -
Page 5: Specifications
Garage Door Opener SPECIFICATIONS Item d-force Opener Power 120W Standard Force 800N Apply Door Area 12m2 Rail Length 3.3m, 3.6m Remote frequency 433.92MHZ Remote Distance 25-35m PACKING LIST Motor 1 Piece Chain Rail 1 Piece 2 Pieces Remotes I Set... -
Page 6: Assembly And Installation
Garage Door Opener ASSEMBLY AND INSTALLATION Wall Bracket Short pin U Connector Bracket M6 Screws M6 Nut Long Pin Door Bracket Manual Release Mechanism String Handle M6 Bolts Ceiling Mount © 2015 DoorZone®... -
Page 7: Programming The Opener
Garage Door Opener PROGRAMMING THE OPENER IMPORTANT Before programming the garage door opener, ensure that the door will open and close easily and smoothly using manual operation. Use the Manual Release Mechanism string handle to disengage the opener from the door, this will allow you to operate the door manually/by hand while holding the rope. -
Page 8: Open Limit Programming
Garage Door Opener Open Limit Programming “↑” •Press the “P” Button for ±3 seconds until the LED flashes. •Release the “P” Button. ↑ •Press and hold the “ ” Button. •Keep pressing until the desired opening position has been reached. “↑”... -
Page 9: Adjust Obstruction Sensing And Force - Not Recommended
Garage Door Opener Adjust Obstruction Sensing and Force - not recommended IMPORTANT Force and Obstruction Sensing The higher the force is set the less sensitive the motor will be at sensing an obstruction while the opener is opening or closing the door. Obstruction sensing should be set at the most sensitive setting to ensure the operating safety of the door. -
Page 10: Remote Transmitters Programming
Garage Door Opener Remote Transmitters Programming IMPORTANT Up to 6 codes can be programmed by the opener. Decoding a Remote Transmitter will cause all coded remotes to be decoded. Coding a Remote Transmitter “ ” •Press the “S” Button for ±2 seconds until the LED glows. -
Page 11: Battery Back-Up Connections
Garage Door Opener BATTERY BACK-UP CONNECTIONS Leads are provided from the opener to connect a Battery Back-up Pack. A short cable is supplied with the package for linking the batteries together. Follow the diagram below to connect the Battery Back-up Pack: After power failures allow enough time (±8 hours) for the batteries to recharge. - Page 12 Garage Door Opener w w w.d fo rc e .c o.z a www.doorzone.co.za © 2015 DoorZone - All Rights Reserved®...
