MasterCool R134a Instruction Manual
Hide thumbs
Also See for R134a:
- Instruction manual (4 pages) ,
- Operating instructions (4 pages) ,
- Instruction manual (22 pages)
Table of Contents
Related Manuals for MasterCool R134a
Summary of Contents for MasterCool R134a

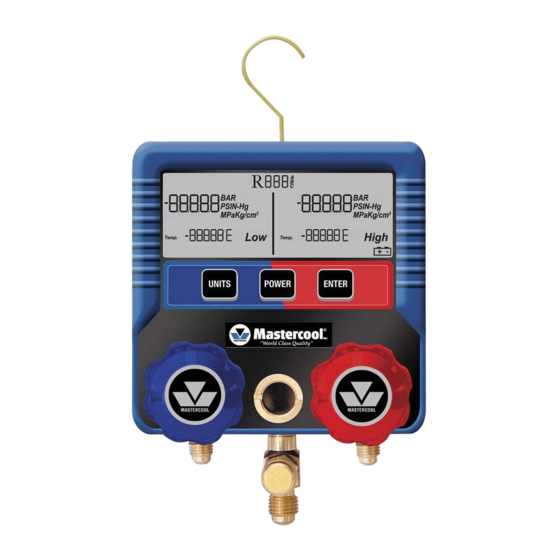

- Page 1 English Instruction Manual R134a DIGITAL MANIFOLD Includes Automotive Refrigerant and Oil Capacity Readings 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
- Page 2 English Instruction Manual R134a DIGITAL MANIFOLD Includes Automotive Refrigerant and Oil Capacity Readings SPECIAL FEATURES • Automotive Refrigerant & Oil Capacity Readings for over 1000 Makes & Models • Automatic Warm-up • Low Battery Indicator • Large Digital Display of Pressures and Temperatures •...
- Page 3 WARNING! If the manifold is connected to a pressure or vacuum source and displays actual readings, do not attempt to zero out the reading by pressing the enter button. This can offset the reading. BASIC SET-UP The following settings are pre-programmed into the unit. •...
- Page 4 fluctuating digital reading, usually indicates faulty reed valves in compressor. • Low side and High side pressures are high. Usually indicates an over charged system. R134a TEMPERATURE PRESSURE CHART Ambient Temperature (˚F) Low Side Gauge High Side Gauge 65˚...
- Page 5 F. Close both high and low side manifold valves. G. Allow system to sit and check gauges to verify vacuum remains. R134a DIGITAL MANIFOLD PARTS LIST A. Complete Stem Assembly w/Knob (2 pcs) B. Piston Seal Assembly w/O-Rings (2 pcs) C.
