Summary of Contents for Inner Range Integriti Elite

  • Page 1 Integriti User Manual Elite / EliteX LCD Terminal Keypads...
  • Page 2 INNER RANGE recommends that all INTEGRITI systems are installed & maintained by FACTORY CERTIFIED TECHNICIANS. For a list of Accredited Dealers in your area refer to the Inner Range Website. http://www.innerrange.com...
  • Page 3 Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Integriti User Manual Integriti User Manual Integriti User Manual Integriti User Manual Integriti User Manual Elite / EliteX Elite / EliteX Elite / EliteX Elite / EliteX Elite / EliteX LCD T LCD T erminal Keypads LCD T...

  • Page 4: System Details

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. SYSTEM DETAILS CUSTOMER: ....................SITE ADDRESS / LOCATION: ..................................PHONE: ........FAX: ......E-MAIL ................. INSTALLED BY: ......................................PHONE: ........FAX: ......E-MAIL ................. MAINTENANCE & SERVICE: ...................................

  • Page 5: Table Of Contents

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. CONTENTS SYSTEM DETAILS ................2 Product images ..................4, 5 Default LCD Display ................6 System Status Messages ................ 7 Indicator Lamps..................7 The Keypad................... 8 If Used. ALARM SYSTEM OPERATIONS ...........

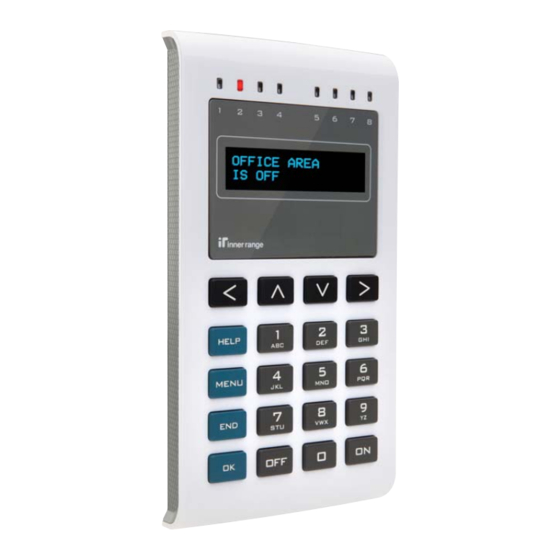

  • Page 6: Product Images

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Elite LCD Terminal...

  • Page 7: Integriti Integriti Integriti Integriti Integriti Lcd Terminal Keypads User Manual

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. EliteX / EliteX-SIFER Keypad...

  • Page 8: Default Lcd Display

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Default LCD Display. The LCD Terminal offers a number of options for the Default display. This is the display that will be shown when there are no User operations being performed, and no Alarms or other messages to be displayed.

  • Page 9: System Status Messages

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual.   CUSTOM MESSAGE.    “LCD Messages” can provide a customized      message for the Site and/or the Terminal. Some common applications are: -The Monitoring Station’s Telephone number. -The Installer’s Telephone number.

  • Page 10: The Keypad

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. The Keypad. Operations & some programming can be performed by using the keypad on an LCD Terminal. (Programming is normally performed via the Integriti Software) Each time a key is pressed, a short “beep” will be emitted to indicate that the key press was accepted.
  • Page 11 Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. The <OK> key must always be pressed after you have entered your secret PIN code (Unless performing a “Quick Arm or Disarm” operation). You have 10 seconds to press the <OK> key after you have completed entering the code.

  • Page 12: Alarm System Operations

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. ALARM SYSTEM OPERATIONS User operations are the basic day-to-day operations performed on the system such as Arming/Disarming, Acknowledging Alarms, viewing the Event Log, etc. Most User operations begin with the same simple Logon procedure described below. When this is done, the system verifies the User and depending on the operations allowed, the User is then able to press another key to select or perform the operation required.
  • Page 13 Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. NOTES: 1) Keypad Lockout. If an invalid PIN Code is entered, an “* Illegal PIN *” message will be displayed.  e.g.  If a Valid PIN code is still not entered after a number of successive tries (usually 3 to 5), the keypad will be totally locked out for a pre-determined period (Normally 60 seconds).

  • Page 14: Turning Area/S Off

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Turning Area/s OFF. Once you have Logged on to a Terminal, and have seen the Area status with the “Press Off” or “Press On” message, you may perform the Area OFF or ON operations. Remember: You have a limited time to turn an Area OFF once you have entered the Area (Usually 30-90 seconds).

  • Page 15: ] Deferred Arming (Timed Disarm)

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. -AREA / AREA LIST SELECTION. You may select other Areas or Area Lists by using the <UP> and <DOWN> Arrow keys and/or the <DIGIT> keys to select the 1st letter that the Area name begins with.

  • Page 16: Turning Area/S On

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Turning Area/s ON. NOTE: Some systems have the Pre-Arm “Walk Test” feature enabled. If so, the procedure below is followed except that after the initial Input Seal test, the system then enters Walk Test mode.
  • Page 17 Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. After pressing the <ON> key, the display may show      a message like this.      It means that the item displayed is either in an alarm state or faulty (Tamper state), and the Area will not turn ON.

  • Page 18: ] Area Walk Testing

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Area Walk Testing. See note at top of page 14. This option allows specified Zone Inputs to be tested prior to turning the Area ON. Testing simply involves activating the devices (usually detectors) and then allowing them to return to their normal state.

  • Page 19: ] Turning 24 Hour (Tamper) Monitoring Off And On

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Turning ”24 Hour” (Tamper) monitoring OFF and ON. The “24Hr” part of an Area continuously monitors the equipment and inputs for faults or deliberate interference and activates “Tamper” alarms when these conditions occur. Occasionally the Installer, or a User with the appropriate level of authority, may need to turn the 24Hr part of an Area Off so that maintenance or changes can be performed on equipment or devices (detectors etc.) in the system.

  • Page 20: ] Activating A Panic Alarm

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Activating a “Panic” Alarm. Your system may be programmed to allow a Panic alarm to be activated from an LCD Terminal without logging on. The resulting action and display will depend on how this feature is programmed in your system.

  • Page 21: Acknowledge An Alarm

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Acknowledge an Alarm. Alarm messages must be acknowledged by a User with the appropriate authority. These messages provide precise information of the type of alarm, the Area it has occurred in, and the Input that generated the alarm.

  • Page 22: Logged Off Operations

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. LOGGED OFF OPERATIONS. Individual LCD Terminals may be programmed to allow Users to view system status and perform a number of operations without Logging on to the Terminal. Quick Event Log Review. Press the <MENU>...

  • Page 23: ] View Area Status

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Area Status. Press the <UP> or <DOWN> arrow key. Area Array Option.      If Area Array is enabled, the display shows 8     ...
  • Page 24 Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Search for a Named Action by name by pressing      the DIGIT key that represents the first letter of the      name. (You may have to press the key 2 or 3 times, depending on the letter required and the names in the system.) If the Named Action you want is not displayed...

  • Page 25: Air Conditioning Control

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Air Conditioning Control. Integriti offers dedicated logic for control of Airconditioning systems. Programming options allow automatic control and/or control by a User at an LCD Terminal. Individual LCD Terminals may be programmed to provide Airconditioning sytem control without requiring a User to Log on to the Terminal.

  • Page 26: Logged On Operations

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. LOGGED ON OPERATIONS Users with the appropriate level of authority can perform many other operations via the User Menu when logged on. The table opposite shows the options typically available while the most common operations are described in detail on the pages that follow.

  • Page 27: Integriti Common User Menu Options

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Integriti Common User Menu Options. This table can be used to determine how to access common Integriti User Menu options. e.g. View number of Users in an Area: Press <MENU>, 1, 7 Lock or Unlock a Door List: Press <MENU>, 9, 2, 2 s l i...

  • Page 28: Information: Menu Option 1

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Information: Menu Option 1 ACCESSING REVIEW. REVIEW Allows a User to view the event log stored in the memory according to their Review Level and Review Category settings. This may be required to find out details of past alarms or user activity, etc.
  • Page 29 Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. REVIEW FILTER: The DIGIT keys, 1 to 8 can be used to alter the degree of detailed Review events shown on the display. The <1> key will cause only the least detailed Review to be displayed, while the <8> key will cause the most detailed Review.

  • Page 30: ] Isolate: Menu Option 3

    Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Isolate: Menu Option 3 If a detector or alarm contact is faulty, or its cabling has been shorted or cut, you may be unable to turn ON any Area that the faulty device is in. Users with the authority to “Isolate on Exit”...
  • Page 31 Integriti Integriti Integriti Integriti Integriti LCD Terminal Keypads User Manual. Input ID selection. If you know the Input ID, press the <ON> key to select the Input ID mode. The display will prompt you to enter the Module/   ...

  • Page 32: Control: Menu Option 9

    Check the Website for updates: www.innerrange.com Enquiries or comments relating to this manual should be sent to: E-MAIL: publications@innerrange.com FAX: +61 3 9753 3499. © 2014 - 2017. Inner Range Pty. Ltd. Part Number: 630026I...
