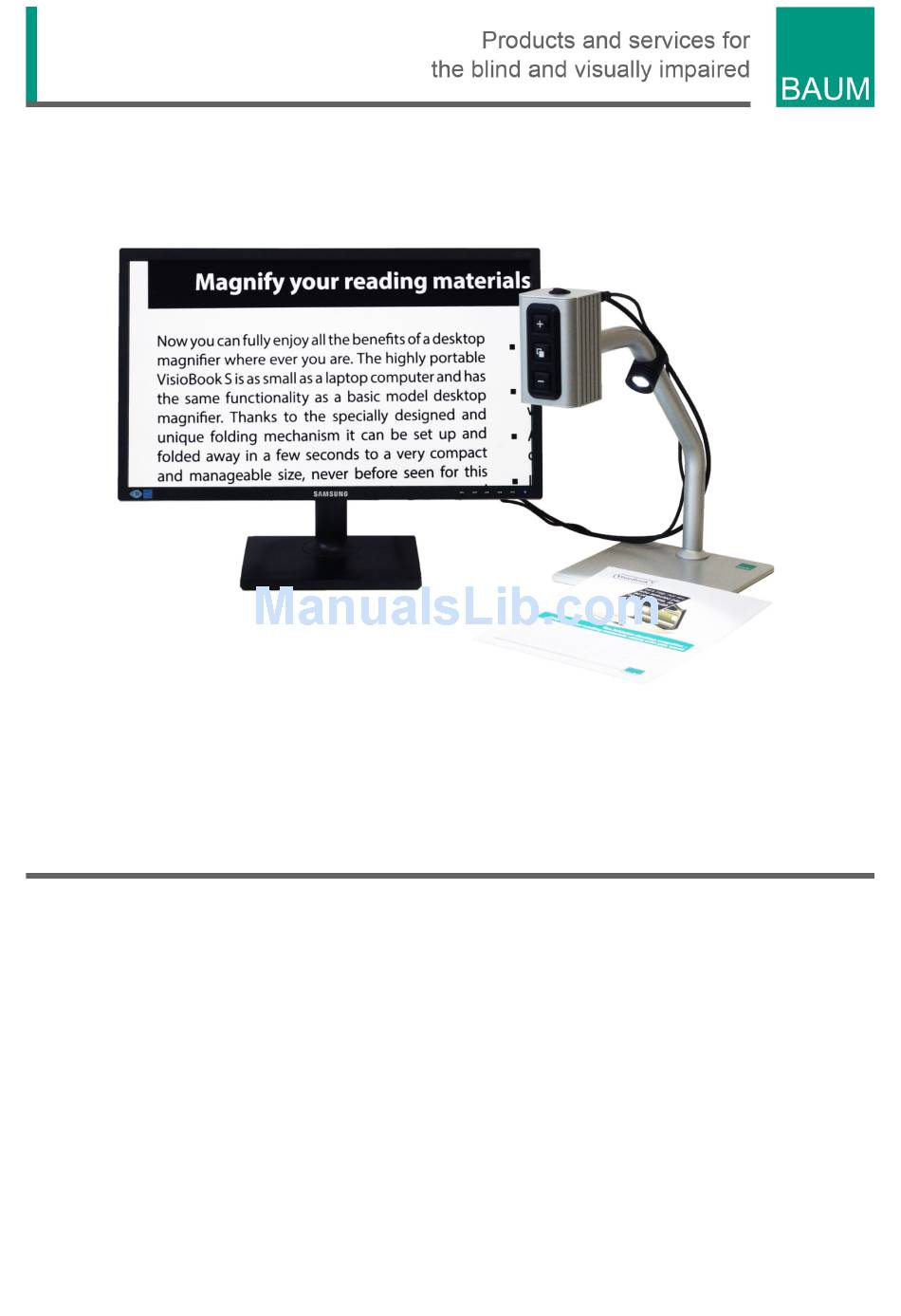

- Page 1 Visio Light User Guide Item number: 105808H04 User guide version: 1.5 English 06/2017...
- Page 3 About BAUM BAUM Retec AG has been a leading provider of products and services for blind and visually impaired people for more than 35 years. The high quality and innovative braille products, desktop magnifiers, reading machines, and software solutions are developed and manufactured in Germany, and are ideal for educational, professional and private use.
-
Page 4: Table Of Contents
Contents ABOUT THIS USER GUIDE ..................... 5 ABOUT VISIO LIGHT ....................... 6 BEFORE YOU START ...................... 7 ’ : ....................7 S IN THE BOX HOW TO POSITION VISIO LIGHT ON YOUR DESK ............8 CONNECTING TO MONITOR AND MAINS ..............9 VERY FIRST TIME POWER ON AFTER INSTALLATION .......... -
Page 5: About This User Guide
BAUM Retec AG. All efforts have been made to ensure that information contained in this document is correct at the time of issue. Neither BAUM Retec AG nor its representatives assume any responsibility for errors or omissions. Nor is any liability assumed for damages resulting from the use of information contained herein. -
Page 6: About Visio Light
2 About Visio Light Handy design, simple to use, excellent picture quality – that is what the name Visio stands for. Visio Light is the basic model of the VISIO product family. With only three buttons, ease of use is guaranteed. Though being one of the smallest and lightweight devices, Visio Light provides all the functionality you expect from an excellent CCTV reader. -
Page 7: Before You Start
3 Before you start Please read the safety instructions at the end and check the contents of the packaging. What’s in the box: 1 Visio Light CCTV Reader device 1 Power supply with cable to mains 1 Users manual ... -
Page 8: How To Position Visio Light On Your Desk
4 How to position Visio Light on your desk Place Visio Light on your desk and set it at least so far back that an A4 page can be moved in all four directions without leaving the surface. Being right handed, you should place the display to the left of the camera. -
Page 9: Connecting To Monitor And Mains
5 Connecting to monitor and mains Normally, you may skip this and the next chapter because the following steps should be performed when delivering the device to you. If not so, please follow the instructions below. At the rear of the camera head, there is a round socket which connects to the power supply that comes with Visio Light. -
Page 10: Very First Time Power On After Installation
6 Very first time power on after installation Power on Visio Light by pushing the power button on top of the camera head to the “1” position. Document illumination will be lit immediately. The monitor will also power on immediately (Power switch and indicator light in lower right corner of monitor will turn blue). - Page 11 The image below shows the monitor control panel at the lower right of the display. The power button is the rightmost button. Use the menu button to access settings like brightness and contrast. In the monitors user guide you find a more detailed description of these settings. Very first time power on after installation...
-
Page 12: Short Description Of Buttons
Visio Light control panel Short description of buttons Power switch Set to „1“ to power on. (Light will be lit immediately). Set to „0“ to power off. Zoom + / Enlarge Press this button to increase magnification. Zoom - / Decrease Press this button to reduce magnification. -
Page 13: Getting Familiar With Your New Visio Light
7 Getting familiar with your new Visio Light You have already learned how to position Visio Light on your desk and you have connected it to power supply and display. You can slightly tilt the display so that you can comfortably view the screen. - Page 14 The upper button is zoom + which enlarges the image. Press and hold this button until you reach the desired magnification level. The lower button is the zoom - which decreases magnification level. Press and hold this button until you reach the desired magnification level. Now, press the zoom –...
- Page 15 higher contrast whereas in picture mode you see all colours and shades of grey. Now press the colour button until you find the option you prefer. Take your time to find out which is best for you. Most users prefer white characters on black background.
-
Page 16: Common Problems And Solutions
8 Common problems and solutions So now it happened. Visio Light does not work as expected and you are clueless if it is broken. Very often, a small reason can cause a big problem, which can be resolved easily. So please read the following checklist and try to find out what is wrong. -
Page 17: Defects And Repair
Do not use a broken device! Unplug broken device from mains! Please do not hesitate to contact your local distributor or BAUM Retec AG. You can reach BAUM Retec AG at telephone number +49 (0) 6223 4909-0 in Germany. We will help you check your Visio Light and in case it is broken we can mail a service box for shipping Visio Light to our repairs department. -
Page 18: Service Box
10 Service box For shipping Visio Light in the service box, proceed as follows: Switch off Visio Light Unplug from mains Unplug all cables to and from power supply and display. Put display in its own box ... -
Page 19: Compliances
11 Compliances 11.1 CE Conformity This product conforms to the guidelines of the European Union and takes the CE- and ROHS Marking. 11.2 Environmentally friendly disposal according to EU-Directive 2012/19/EU The symbol (crossed garbage can), which is also attached to the device, states that this device and its accessories, once come to the end of its lifetime, should not be regarded as household waste. -
Page 21: Warranty
BAUM Retec AG reserves the right to repair or replace with a similar or better product. In no event shall BAUM Retec AG or its distributors be liable for indirect or consequential damages. -
Page 22: For Your Safety
Do not use the device if you find any damages at device or wires. If the device appears to be operating abnormally, or to be damaged in any way, please contact your BAUM dealer as soon as possible. If you smell smoke or an odour coming out of the device, turn off the power immediately. - Page 23 Do not try to repair the device yourself. Opening or removal of housing may cause damage or injury. Do not allow sand or dust to come into contact with the device as this may lead to serious damage and could make repair impossible. Use the device with clean hands only.
- Page 24 Do not pull the plug out by the lead when removing the power plug. Avoid shock. Do not throw or let fall. Repairs may only be carried out by BAUM service personnel or by service technicians authorized by BAUM Retec AG.
- Page 25 Protect the device from extreme heat, e.g. from the sun, heating units, hot cars etc. With extreme cold and frost the device becomes inoperable and must be brought slowly back to room temperature. Under no circumstances must the device be warmed up or “thawed out” in a conventional oven, microwave oven or any other heating device! Avoid any mechanical damage to the housing or accessories.
-
Page 26: Technical Data
14 Technical Data CCTV magnifying device with High-Resolution camera and widescreen display (up to 400% more Pixels as traditional CCTV’s) Refresh rate 60 Hz Display diagonal 54,61 cm (22 in.) in 16:9 format (standard version only) Monitor with LED Backlight (standard version only) ... - Page 28 Hamilton House Email: info@baumuk.com Mabledon Place Web: www.baumuk.com London, WC1H 9BB United Kingdom Please be advised that this user guide may contain errors, and is therefore subject to being changed or updated without prior notice. © 2017 BAUM Retec AG...
