MobiFren Sound Master GBH-S500 User Manual

Stereo bluetooth headset
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

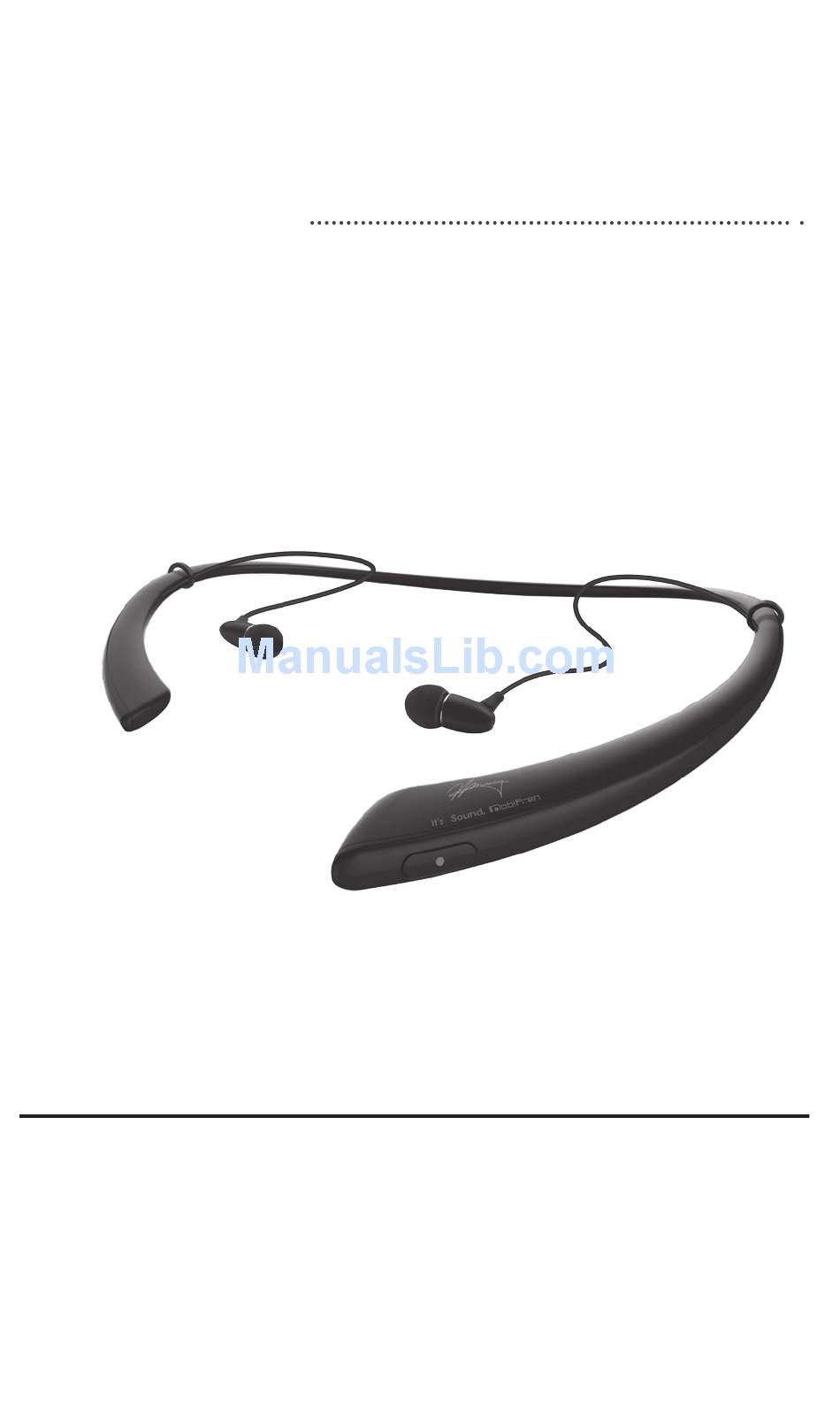

New Concept
of Stereo Bluetooth Headset
Sound Master GBH-S500
User Manual
GBH-S500 delivers premium Hi-Fi sound and freedom of wireless that have never felt, and was
born to dream for all smart phone users to enjoy MobiFren Bluetooth headset happily.
MSTS™ tuning technology presented by MobiFren is created to do away with stereotypes that
wireless can't pass over the wire technology, and it presents heart touching premium sound, sur-
passing first class wire earphone.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sound Master GBH-S500 and is the answer not in the manual?

Questions and answers

Related Manuals for MobiFren Sound Master GBH-S500

Summary of Contents for MobiFren Sound Master GBH-S500

  • Page 1 GBH-S500 delivers premium Hi-Fi sound and freedom of wireless that have never felt, and was born to dream for all smart phone users to enjoy MobiFren Bluetooth headset happily. MSTS™ tuning technology presented by MobiFren is created to do away with stereotypes that wireless can't pass over the wire technology, and it presents heart touching premium sound, sur- passing first class wire earphone.
  • Page 2 - Size : 160 X 190 X 10.5mm - Bluetooth version : 4.0 Thank you for choosing MobiFren GBH-S500. It is high quality stereo Bluetooth headset, designed to provide you convenient and easy way of using your mobile phone. This instruction manual will...

  • Page 3: Table Of Contents

    2. Features 3. Specifications 4. Getting started with your MobiFren (1) Charging your MobiFren (2) Pairing your MobiFren with mobile phone (3) Turning your headset on and off (4) Using your MobiFren headset Call, Playing music, EQ , Multi point, Android app., etc.
  • Page 4 Fig.1 Turn on/off the headset Turn on : Press MFB button for 2 seconds Turn off : Press MFB button for 4 seconds Fig.2 Charging Connecting to PC USB To charge the headset, please connect the headset to PC or AC adapter with ※...

  • Page 5: Headset & Accessories

    Headset & Accessories GBH-S500 Ear pad ( Large, Small ) User Manual Charging cable ※ The drawings and examples in manual are for better understanding to this product, so, it may be different from the real goods. Accessories and design can be changed without prior notice. Safety Instruction - Road safety at all times - Using your mobile phone while driving can distract you and increase...

  • Page 6: About Your Mobifren Gbh-S500

    1. About your MobiFren GBH-S500 ⑴ ⑵ ⑵ ⑶ ⑷ ⑸ ⑹ ⑺ (1) Earphone (2) Earphone holder (3) Charging socket (4) Volume button (5) Microphone (6) LED light (7) Multi Function Button ( MFB )

  • Page 7: Features

    2. Features • Vibration on incoming call • Alarm for loss prevention • Android Application available • Play music • Multi Point • Control Mic volume • Rejecting a call • Voice dialing • Waiting a call • Put calls on hold •...

  • Page 8: Specifications

    3. Specifications • Music play time about 6 hours 30 minutes • Talk time about 6 hours 30 minutes • Standby time about 220 hours • Charging time about 1 hour 30 minutes • Size 160 X 190 X 10.5mm •...

  • Page 9: Getting Started With Your Mobifren

    ※ While using USB hub, charging may not work well, due to low current. (2) Pairing your MobiFren GBH-S500 with mobile phone * Before you use your Mobifren GBH-S500, you need to pair it with your mobile phone or Bluetooth enabled devices. Please pair the headset with the following 2 pairing modes.
  • Page 10 (3) If pairing is successful, it shows that "Connected to Phone and Media Audio" and blue LED glitters 5 times. Now, it's ready to use. Please visit to www.mobifren.com for more information. ※ Pairing process may be different from mobile phone makers. Please refer to mobile phone's manual.

  • Page 11: Turning Your Headset On And Off

    • To turn off your headset, press and hold the MFB for around 4 seconds. Then, ‘Purple’ blinks on LED and power is off. (4) Using your MobiFren Headset • Some functions of the below may be different from mobile phone models or mobile manufacturers.
  • Page 12 6. Waiting a call and put a call on hold - This feature allows you to put a call on hold during conversation and answer a waiting call. - Give the MFB a long press (press approximately 1 second) to put an active call on hold and answer a waiting call. - Give the MFB a long press to switch between two calls - Just press MFB shortly to end a call.
  • Page 13 10. Playing music - On first purchasing, the volume level is set in the middle (8 level) of all 15 levels. (Please adjust volume by (+) / (-) button in GBH-S500.) - Button details for playing music • press MFB shortly : play / pause •...
  • Page 14 12. Multi point setting It's possible to pair up to 8 Bluetooth enabled devices, and can use up ※ to 2 devices. To connect other Bluetooth device, please use it, after disconnecting the device which was connected previously. Multi Point can make the headset to connect 2 devices at the same time. ※...

  • Page 15: Firmware Upgrade

    While pressing ( - ) button, please connect GBH-S500 and PC with charging cable, then, the red LED blinks and it goes to firmware upgrade mode. Firmware is available at www.mobifren.com ※ Do not disconnect the headset from the PC during firmware upgrading.

  • Page 16: What Does Led Color Mean

    5. What does LED color mean? Status LED indication Active on a call Blinks blue light every 8 second Standby LED off. ( If press button, blue LED blinks for 5 times) battery is running low Blinks red light Charging Red light ON Fully charged Blue light ON...

  • Page 17: Voice Prompts

    6. Voice Prompts Functions Voice Prompt Smart pairing Smart pairing Manual Pairing Pairing mode Play Play Stop Stop Vibrator on Vibrator on Vibrator off Vibrator off Mic volume 2 step up Two step higher 1 step up One step higher Default Default 1step Down...

  • Page 18: Troubleshooting & Faq

    Will the MobiFren GBH-S500 work with other Bluetooth equipment? ✽ The MobiFren GBH-S500 is designed to work with Bluetooth mobile, computer or portable audio devices which are built in. It can also work with other Bluetooth devices that are compliant with Bluetooth version.

  • Page 19: Handle Mobifren With Care

    • Avoid storage at extreme temperature. (above 60 ℃/ 140℉ - including direct sunlight -or below -20 ℃ / -4 ℉) This can affect the MobiFren’s battery life and may be the cause of malfunction. High temperature may also degrade performance. • Do not expose the MobiFren GBH-S500 to rain or other liquids •...

  • Page 20: Certification And Safety Approvals

    9. Certification and safety approvals FCC ID : UZCGBH-S500 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de- vice, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a resi- dential installation.

  • Page 21: Glossary

    This makes your phone and the MobiFren GBH-S500 to recognize each other and automatically work together. 5. ‘Standby Mode’ is when the MobiFren GBH-S500 is passively waiting for a call. When you end a call on your mobile phone, the headset goes into standby mode.

  • Page 22: Warranty

    • Any implied warranty on MobiFren products is limited to one year from the date of purchase on all parts, including any cord and connector. But, battery warranty is limited to 6 months.
  • Page 23 New Concept of Stereo Bluetooth Headset GBH-S500 * High sound quality Premium Hi-Fi Stereo created by MobiFren’s specialized DSP tuning technology. Eliminating noise and echo by built-in DSP chip. Optimizing the call condition and music sound quality. * Alarm on incoming call * Phone loss prevention mode - If your mobile is far some distance from the headset, it alarms you to prevent loss of your mobile.
  • Page 24 MSIP-CRM-GTT-GBH-S500 UZCGBH-S500 GT Telecom Co., Ltd. 848-16, Gupyeong-Dong, Gumi-City, Gyeongbuk, KOREA TEL : 82-54-474-2220 FAX : 82-54-474-2251 ISO 9001 Quality Management System Certified Company...
