Quick Installation Guide

STEP 1: CONNECTING THE EQUIPMENTS

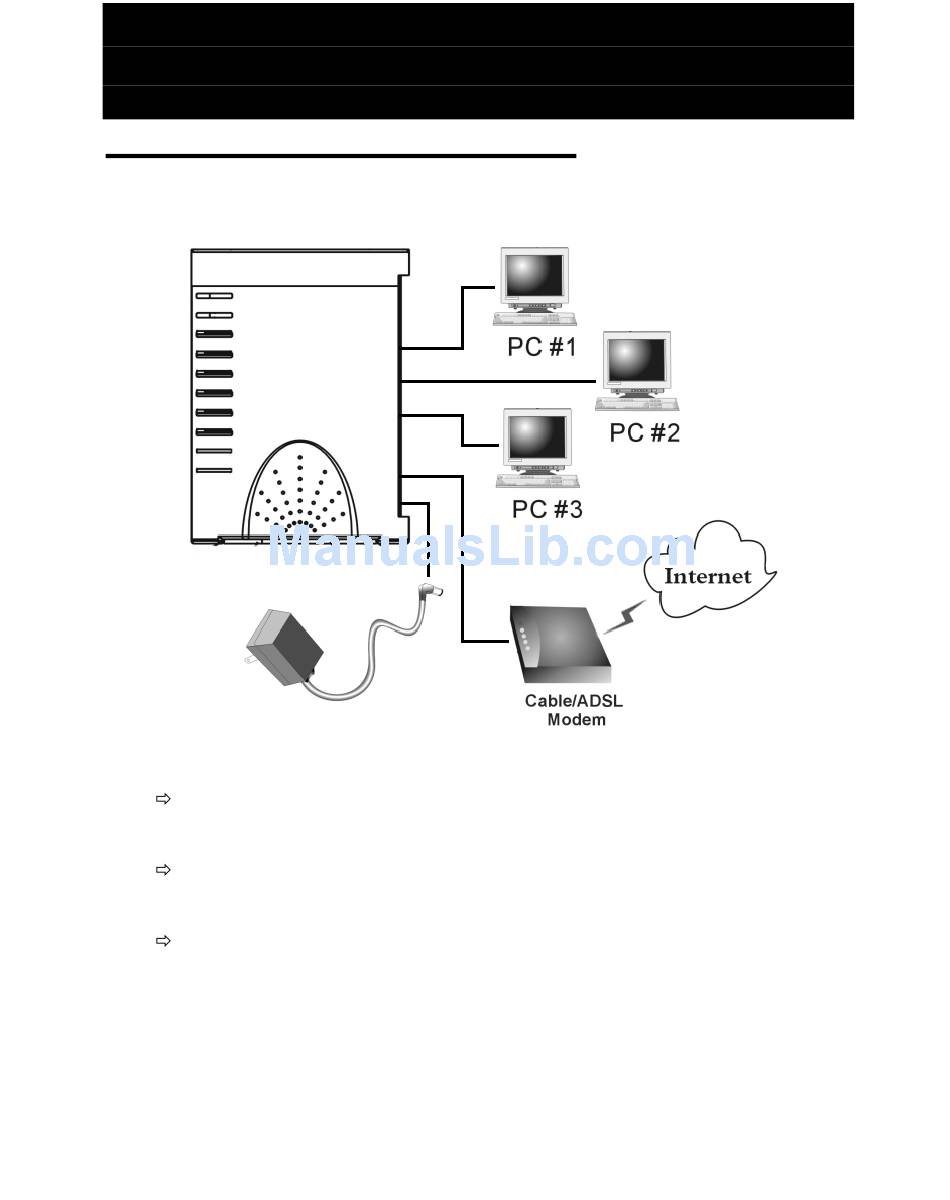

Figure 1
**
Power on your DSL/Cable Modem.
1-1. Connect the power adapter to the Router's power jack and power outlet.
The Power LED will illuminate.
1-2. Use the included UTP RJ-45 network cable, connect one end to the Router's Internet
port and connect the other end to the DSL/Cable modem's network port.
The Internet LED will illuminate.
1-3. Use a network cable and connect your PC's Ethernet network port to one of the
Router's Local LAN (L1 ~ L4) ports.
The LED of the LAN port that you plugged the cable to will illuminate.

STEP 2: QUICK SETUP WIZARD

Note: To configure this device via web browser, you must use Internet Explorer (IE)
4.01 or above.
TW100-S4W1CA
Broadband Router
(with 4-Port Switch)
- 1-
(ver. E)
QIG-SS07232003
