Bluetake Technology BT420Rx SERIES User Manual

I-phono plus bluetooth stereo headphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

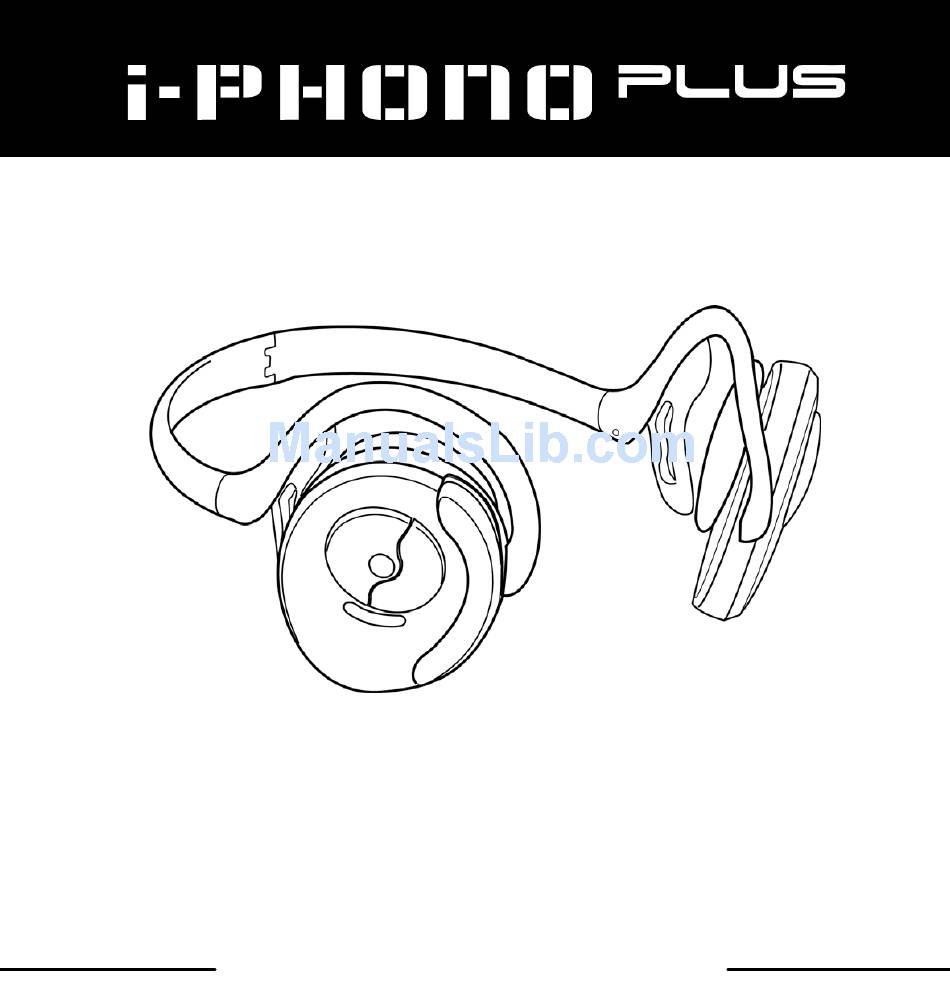

BLUETOOTH STEREO HEADPHONE

USER MANUAL

FOR BT420Rx SERIES
B
L
U
E
T
A
K
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT420Rx SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Bluetake Technology BT420Rx SERIES

Summary of Contents for Bluetake Technology BT420Rx SERIES

  • Page 1: User Manual

    BLUETOOTH STEREO HEADPHONE USER MANUAL FOR BT420Rx SERIES...
  • Page 2 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Index Safety and General Information……………………………... What’s in the Box……………………….……………..……… Hardware introduction……………………….……………..……… Headphone Operation Interface………………..….….…… C o m p a t i b i l i t y … … … … … … … … … . … … … … … . . … … … . Turning On/Off i-PHONO PLUS……….……………………...
  • Page 3 "Bluetake" name and logo are trademarks of Bluetake Technology Co., Ltd. “Bluetooth” word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Bluetake Technology Co., Ltd. is under license. “Microsoft”, “Windows", “Windows Media” and “MSN” are registered trademarks of Microsoft Corporation.

  • Page 4: Safety And General Information

    BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Safety and General Information Please read the following information before using this product (i-PHONO PLUS Bluetooth Stereo Headphone). Users are not permitted to make changes or modify the product and accessories in any way.

  • Page 5: What's In The Box

    BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL What’s in the Box Please check the P/N (product number) of the i-PHONO PLUS retail box you got. Then, please refer to the P/N to check the contents are subject to the retail box.

  • Page 6: Hardware Introduction

    BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Hardware Introduction Stereo Headphone (BT420Rx) 1. Power Switch 2. Charge Socket 3. Charging Indictor 4. Retractable Microphone 5. Status Indictor 6. +/- Volume Button 7.
  • Page 7 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Headphone Operation Interface Function Multi-functional +/- Volume Button Status Button Indicator Pairing Mode Press and Hold Red/Blue for 2 sec. alternately Volume + Press “+“ once per level Volume –...
  • Page 8 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Compatibility A2DP: Advanced Audio Distribution Profile AVRCP: Audio Video Remote Control Profile HSP: Headset Profile HFP: Hands-free Profile Appliance The PC which is installed the A2DP/AVRCP ready Bluetooth hardware, such as the BLUETAKE BT007Ex / BT007Si / BT009Si Bluetooth USB Adapter.
  • Page 9 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Appliance The mobile phone which supports Bluetooth HSP/HFP. Function Hands-free Communication (HSP/HFP) functions included Answer / Make / End that can be applied to phone calls. Appliance BLUETAKE i-PHONO PLUS Bluetooth Stereo Dongle (P/N: BT430Tx)
  • Page 10 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Turn On/Off i-PHONO PLUS < If this is the first time you use the i-PHONO PLUS headphone and Stereo Dongle, please refer to the next lesson to FULLY charge both the devices in advance.
  • Page 11 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Charging i-PHONO PLUS Before you start to charge the i-PHONO PLUS headphone and stereo dongle, please turn off both the devices in advance. Step-1: Mount the AC Power Adapter to the interior wall outlet. Step-2: Connect the AC Power Adapter with the Y-splitter Power Cable.
  • Page 12 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Please refer to the following chart to know the charging status: Charging Indicator of Headphone Red Constant Charging Mode Green Constant Fully Charged Status Indicator of Stereo Dongle Red Constant Charging Mode Light Switched Off...
  • Page 13 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Pairing i-PHONO PLUS Headphone Before you start to use the i-PHONO PLUS headphone with the compatible Bluetooth device such as a stereo dongle, computer, mobile phone, PDA, etc., please pair the headphone with the compatible Bluetooth device in advance.
  • Page 14 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Wearing i-PHONO PLUS Headphone Please consult the following instruction to wear the headphone. Step-1: Please consult the following instruction expand the i-PHONO PLUS headphone. Step-2: After the headphone fully expanded;...
  • Page 15 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Using with General Music Player You can enjoy the stereo music transmitted wirelessly from the music player which is installed the i-PHONO PLUS Bluetooth Stereo Dongle (P/N: BT430Tx), the music player can be a CD Player, MP3 Player, Mini Hi-Fi system, Handheld Game Condole, Portable Media Player, Non-Bluetooth supported computer, etc.
  • Page 16 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Using with the Bluetooth-enabled Computer You can use the i-PHONO PLUS headphone’s stereo (A2DP) and remote control (AVRCP) functions with the Bluetooth-enabled computer which answers the following requirements: Windows XP O.S.
  • Page 17 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Step-5: Connect the computer with the headphone by double-clicking on the A2DP icon which is usually named “Bluetooth AV Service”, “A2DPsink” or “Audio Sink”. After the connection is established, the headphone (headset) icon’s color or figure will be changed in the Bluetooth software window and the Status Indicator of headphone will flash Blue regularly.
  • Page 18 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL < Listen to Music and Player Remote Control > After you connected the i-PHONO PLUS headphone with the paired computer via the Bluetooth AV service (A2DP), you can enjoy the stereo music transmitted from the computer wirelessly.
  • Page 19 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Step-3: If the used media application program is Windows Media Player; you can remote control the music playing from the connected i-PHONO PLUS headphone. Player Function +/- Volume Button Volume Up / Down Press “+ / –”...
  • Page 20 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL < Internet Messenger/Chatting Application > You can use the i-PHONO PLUS headphone’s mono headset (HSP) functions with Bluetooth-enabled computer which answers following requirements: Windows XP/2000 O.S. Internet Messenger/Chatting Application...
  • Page 21 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Step-6: Open the Internet messenger program such as Skype, MSN Messenger, Yahoo! Messenger, etc. If there is no sound emitted from the i-PHONO PLUS headphone while the conversation is beginning, please close the Internet messenger program and open “Control Panel”...
  • Page 22 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Step-7: Make sure that “Bluetooth AV/HS Audio”, “Bluetooth Audio” or “Bluetooth Wave from TOSHIBA” is selected for speaker and microphone settings of the Internet messenger program you used. Afterward the i-PHONO PLUS headphone is ready to be used with the Internet messenger program.
  • Page 23 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Using with the Bluetooth-enabled PDA You can use the i-PHONO PLUS headphone’s stereo (A2DP) and remote control (AVRCP) functions with the Bluetooth-enabled PDA which answers the following requirements: ®...
  • Page 24 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Step-4: Check “Create a shortcut for this connection” and tap “Finish”. Step-5: Once the headphone has made an initial pairing with the PDA, the High Quality Audio shortcut icon for i-PHONO PLUS headphone will appear on the screen of PDA.
  • Page 25 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Player Function +/- Volume Button Volume Up / Down Press “ + / – ” once per level Press “ + ” and Hold 2 sec. Next Press “...

  • Page 26: Answer A Call

    BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Using with the Bluetooth-enabled Mobile Phone Besides the stereo wireless transmission, the i-PHONO PLUS headphone can be used for mobile hands-free communication with mobile phones which support either the Headset or Hands-free profile of Bluetooth wireless technology.

  • Page 27: Make A Call

    BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL < Make a Call > Step-1: Use the mobile phone’s keypad to dial the phone number. Step-2: Press mobile phone’s “Send” or “OK” key. The mobile phone initiates the call and transfer the call from the mobile phone to the headphone.

  • Page 28: Troubleshooting

    BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Troubleshooting Q: What can I do if the i-PHONO PLUS headphone is unable to pair with the stereo dongle? A: Please try the following procedure: 1.
  • Page 29 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Q: How to improve the stereo streaming effectiveness? A: Please try the following instructions under the typical conditions: 1. Bluetooth Bandwidth Limitation - The i-PHONO PLUS headphone uses Bluetooth wireless technology to communicate that requires full bandwidth to stream stereo wirelessly.
  • Page 30 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Specification* (Headphone) UNIT Dimensions: Folded: 100 x 88 x 77 mm (3.94 x 3.46 x 3.03 in.) (Neck-back Band Included) Extended: 150 x 140 x 75 mm (5.91 x 5.51 x 2.95 in.) (Neck-back Band Included) Weight: 98 g (3.46 oz.) (Battery Included) Built-in Speaker: Ø...
  • Page 31 BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Power Power Consumption: 240 mW Power Input: 5 V / 250 mA Built-in Battery: 3.7 V / 550 mAh / Li-Polymer / Rechargeable OPERATION Operating Time: approx. 7 hours* Operating Temperature: -10 C ~ +60 C (+14...

  • Page 32: Battery And Charging Notice

    BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Battery and Charging Notice BATTERY WARNING： Both the i-PHONO PLUS headphone and dongle contain rechargeable Lithium batteries. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

  • Page 33: Wireless Notice

    BLUE TOO TH S TEREO HE ADP HO NE – USE R M ANUAL Wireless Notice In some environments, the use of wireless devices may be restricted. Such restrictions may apply aboard airplanes, in hospitals, near explosives, in hazardous locations, etc. If you are uncertain of the policy that applies to the use of this device, please ask for authorization to use it prior to turning it on.
  • Page 34 BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL Notice Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment.

  • Page 35: Fcc Rf Radiation Exposure Statement

    BLUE TOO T H S TERE O HE ADP HO NE – USE R M ANUAL FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and, 2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could...
