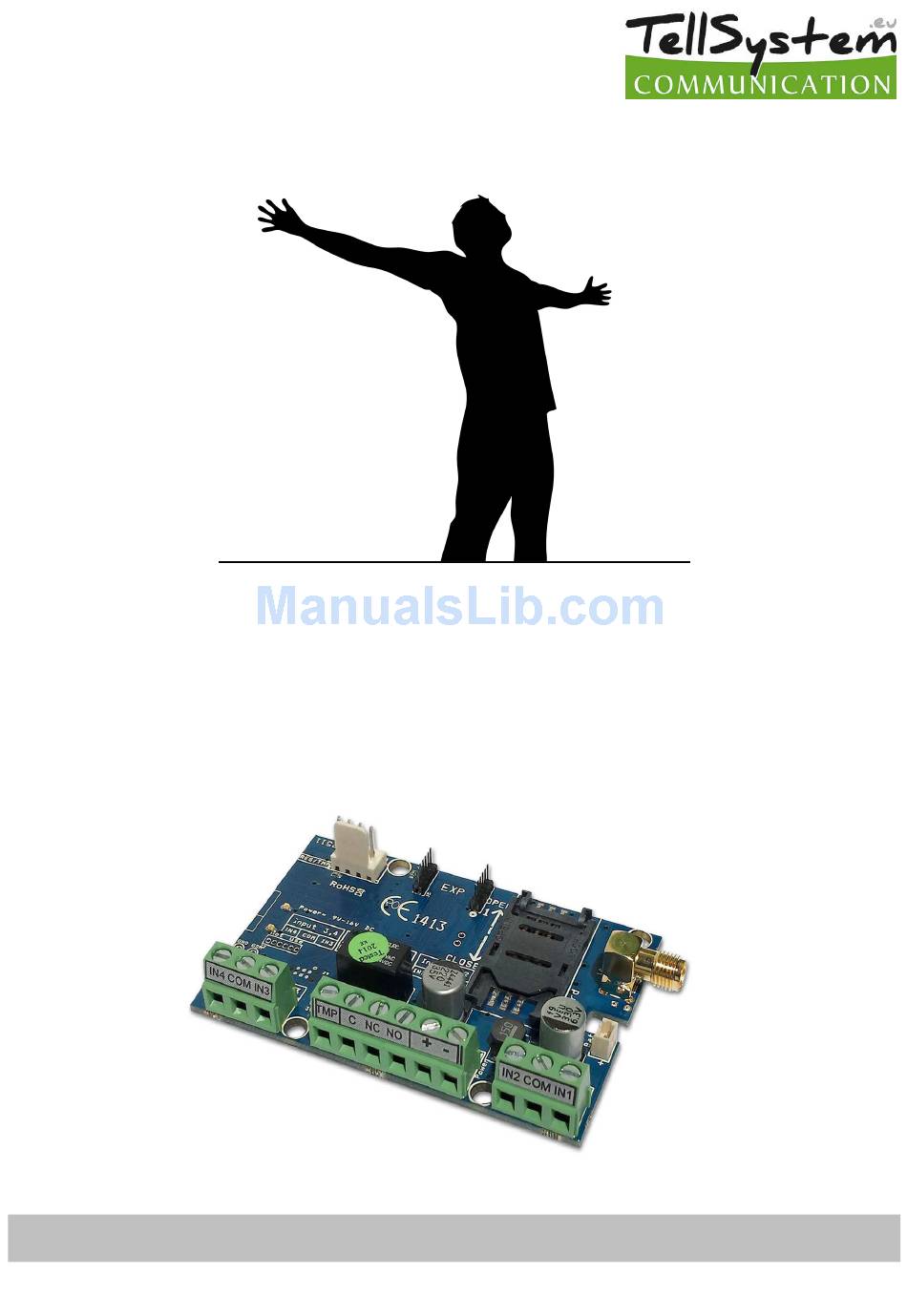

- Page 1 ProCon GSM PROFESSIONAL GSM/GPRS TRANSMITTER INSTALLATIONAL AND USER’S GUIDE Version: 2.1...
-
Page 2: Table Of Contents
ProCon GSM Table of contents Device description and function............................3 Figure 1: Device operation..........................3 Module buildup..................................4 Figure 2: the buildup of the module.......................4 Figure 3: wiring diagram series terminal......................4 Figure 4: Inserting the SIM card........................4 Installation guide...................................5 Technical parameters.............................5 Installation steps.............................5 LED signals..............................6... -
Page 3: Device Description And Function
ProCon GSM Device description and function The GSM/GPRS device can be used for remote controlling (ex.: gate opener), as an accessory to alarm centers and also as a standalone alarm center. The module has 4 contact driven inputs and one implemented relay output (relay type: NO/NC). -
Page 4: Module Buildup
ProCon GSM Module buildup Figure 2: the buildup of the module Figure 3: wiring diagram series terminal Figure 4: Inserting the SIM card Page 4... -
Page 5: Installation Guide
ProCon GSM Installation guide Technical parameters • Power voltage: 9-20 VDC • Standby power drain: 30 mA • Maximum power drain: 700 mA • Relay output load: max. 20V / 500 mA • GSM module type: SIMCOM 900 • GSM frequencies: GSM 850 / EGSM 900 / DCS 1800 / PCS 1900 (Multi- Band) •... -
Page 6: Led Signals
ProCon GSM LED signals Signals give essential information of the module, of GSM signal strength and the actual error codes. By blinking we mean flashes between two longer pauses. • A STATUS LED (green) gives feedback of signal strength value based on the chart below:... -
Page 7: Establishing Connection Using A Bluetooth Adapter
ProCon GSM appropriate folder containing the 32 or 64 bit driver ✔ Click on the Next button to start the installation. 5. Open the Device Manager (click on System→ Properties→Hardware tab → Device manager) 6. Search for a device named USB Serial port (COM…) under Ports 1. -
Page 8: Connecting Process
ProCon GSM Connecting process • To program the module choose between USB or Bluetooth connection. • Below the language selection in the scroll down list (COM 4 in the picture) you can select the port through which you would like to communicate with the module programmer. You can find this value (in Windows operating system) under Device manager →... -
Page 9: Checking Module Status
ProCon GSM • The Reading and Sending buttons at the bottom are for readout and edit of the module configuration. These buttons are accessible everywhere except on the Controlling phone numbers tab. You should send data to the module with the Send button after every significant modification. -
Page 10: Event Log Readout
ProCon GSM Event Log Readout The event log can be viewed by clicking Maintenance →Read Event Log button: • It can store up to 16,000 events in FILO (first in-last out) mode • The acquired list can be saved in ‘’csv” file for later examination. This can be done also in the event list by clicking the ‘’Open csv”... -
Page 11: Saving Phone Numbers For Notification
ProCon GSM Saving phone numbers for notification • In the phone number tab you can set those phone numbers to which SMSs and/or voice messages will be sent • Numbers given in this section must be in international format to ensure safe operation. -
Page 13: Voice Message Settings
ProCon GSM You can set on this tab if there is an alarm event caused by short or open circuit on an input to which phone number you would like to send SMS or voice message notification. It is possible to send both notifications to the same phone number. -
Page 14: Adjusting Outputs
ProCon GSM • During voice recording it records from the default microphone. Sometimes it needs to be adjusted (ex. amplify) for the optimal volume and quality. • By clicking the Play button you can listen to your recording. • If you would like to upload a prerecorded sound file than you can open a file upload window by clicking the appropriate event button. -
Page 15: Tamper Settings
ProCon GSM Tamper settings The GSM module facilitates the connection of a tamper protection. Essential of this protection is that module will trigger an alarm if GSM case is removed. • Its connector is next to the first output shared connector of the main panel. -
Page 16: Anti Jammer System (Ajs) Settings
ProCon GSM • ss → hour of sending on a day • tttttttt → which telephone number will be notified (ex.: 00100000 → it will send the message to the 3 phone number) • You can find more information on SMS commands on page 20. -
Page 17: Remote Surveillance Settings (Voice Call)
ProCon GSM • By using the expansion panel GSM module can be converted to standalone alarm center. • The expansion panel connects to the slot next to the programmer port according to the position on figure 7. • Simultaneously only one expansion panel can be attached to the module. -
Page 18: Other Settings Options
ProCon GSM • Backup servers can also be used to ensure communication. • Frequency of the test message can be set. A special Contact ID code can also be assigned to it. • At GPRS client code module uses the client code saved on the Voice call tab when forwards via GPRS/IP. -
Page 19: Starting The Program
ProCon GSM • OAlso here you can set the SMS programming security code • Daily SMS limit: it can be set how many SMSs can the module send a day. This limit can be removed by entering 255. If you set limit to 0 the module will not send any SMS! •... -
Page 20: Programming With Sms Commands
ProCon GSM Programming with SMS commands Module can also be programmed by SMS commands. SMS starts always with the security code that can be modified whenever you want. Commands can be piled but the SMS length must be under 160 characters. -
Page 21: Sms Command Examples
ProCon GSM Setting up SEND x 1:1 input = ssssssssvvvvvvvv 1234SEND2=0010000011110000 notification sending 2.: 2 input ssssssss→ selecting phone 3.: 3 input numbers for SMS notification 4.: 4 input (0 or 1) 9.: tamper vvvvvvvv→selecting phone 10.: power source numbers for call (0 or 1) monitor 12.: life sign... -
Page 22: Gsm Gate Control Compact View
ProCon GSM GSM gate control compact view Similar to the entryphone compact view GSM gate control settings have their separate interface. The new interface contains every significant function for establishing a GSM based gate control system. To activate the interface on the Connection window the Gate control compact view checkbox has to be marked The new interface contains: •... - Page 23 ProCon GSM Page 23...
