HS-1000

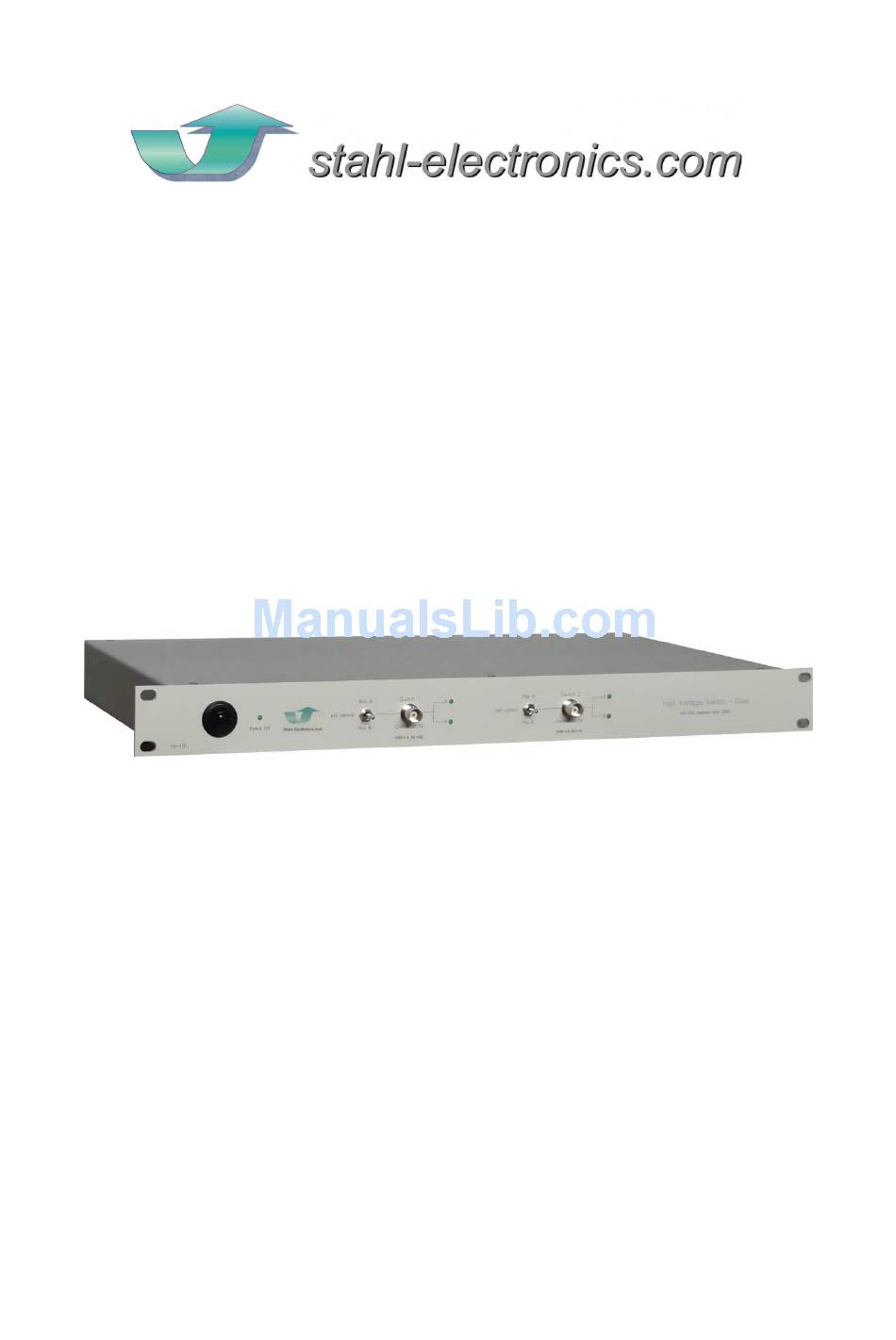

Fast Low Noise High Voltage Switch
HS-1000_User_Manual_1_24.doc
16 - march - 2017
Data Sheet & User Manual
Rev. 1.24
Applications:
● Ion Pulsing / Electrode Switching
● Piezo-Driver
Features:
● fast and low noise switch (SPDT, push-pull)
● max. 1000V switching voltage
● TTL/CMOS level control
● floating up to 800V vs. GND
www.stahl-electronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stahl-electronics HS-1000

  • Page 1 HS-1000 Fast Low Noise High Voltage Switch HS-1000_User_Manual_1_24.doc 16 - march - 2017 Data Sheet & User Manual Rev. 1.24 Applications: ● Ion Pulsing / Electrode Switching ● Piezo-Driver Features: ● fast and low noise switch (SPDT, push-pull) ● max. 1000V switching voltage ●...
  • Page 2: Table Of Contents

    Functional Principle and Block Diagram…………………………. Device Variety……………………………………………………… 3. Installation ……………………………………………………………………..… Mechanical and Electrical Installation……………………………… 4. Operation and Control Elements ……………………………………………….. Elements on the front plate………………………………………… Elements on the rear side..………………………………………… Output Characteristics……………………………………………… 5. Maintenance………………………………………….…………………………. 6. Specifications……………………………………………………………………. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 3: Safety Hints

    No outdoor operation Outdoor operation of the device is not admissible. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 4: General Information And Overview

    MOSFET-transistors, allowing fast switching transitions in the order of 100ns and less. fig 2.2: Block diagram of a HS-1000 device. Inside the DUAL version, the scheme exists twice, i.e. there are two independent switches.
  • Page 5: Device Variety

    SHV connectors. Voltages are referenced to case ground. Note : span is the maximum voltage difference between positive and negative inputs A and B. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 6: Installation

    Please note that wiring may only be done when the device is turned off. Connecting a powered- up output to external circuitry can easily cause sparks and electrical discharges. The resulting overvoltages can severely and permanently damage the device itself and also external circuitry. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 7: Operation And Control Elements

    The rear side of the device contains the ventilation elements, 230V supply connector, power on/off switch (with fuses) and the high voltage inputs and outputs. fig. 4.4: BNC sockets for at inputs and output www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 8: Output Characteristics

    The inputs A and B can be connected to an appropriate high voltage supply, e.g. a device from the stahl-electronics HV-series. The output is supposed to be connected to a switched electrode element or ion trap. Please note that the capacitive load on this output may impair the switching speed performance.
  • Page 9 The output is switched from +500V to -500V and back, resting for 1µs at the negative voltage level. Capacitive load was 180pF for this measurement. fig 4.8: Oscilloscope trace of a negative 1kV pulse, t = 1s duration, C = 180pF load at the output. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 10: Maintenance

    An increased hazard of fire may also occur if the device has been (permanently or temporarily) located in proximity to a strong (e.g. superconducting) magnet. A maximum external field of B = 5mT is admissible. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 11: Specifications

    19.00” wide x 10” deep x 1 height unit. Front-panel mounting holes are Case dimensions configured for M6 rack configurations weight approximately 1.2kg Note *): Inputs A and B feature 1G resistors to ground for protection aginst parasitic charge up. www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
  • Page 12: Declaration Of Conformity

    The product herewith complies with the requirements of the: 1. Low Voltage Directive 73/73EEC; 2. EMC Directive 89/336/EEC (including 93/68/EEC) and carries the CE Marking accordingly Date Of Issue __________________ 8. April 2014 General Director www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884...
