DRIFTER
PLOW-IN-A-BOX
ASSEMBLY / OWNER'S MANUAL
Part No: 10-0550

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRIFTER 10-0550 and is the answer not in the manual?

Questions and answers

Related Manuals for Kolpin DRIFTER 10-0550

Summary of Contents for Kolpin DRIFTER 10-0550

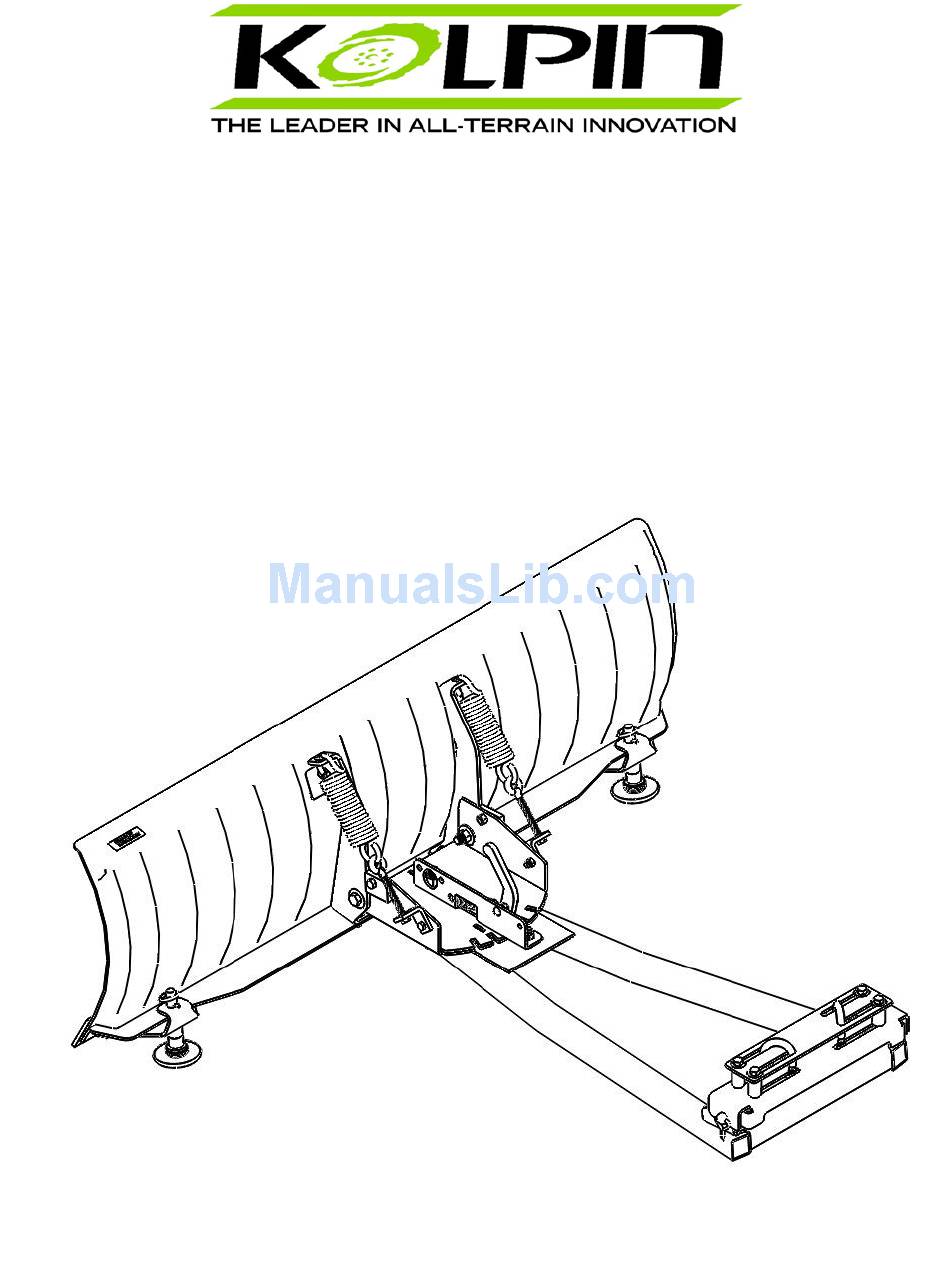

  • Page 1 DRIFTER PLOW-IN-A-BOX ASSEMBLY / OWNER’S MANUAL Part No: 10-0550...

  • Page 2: Operating Instructions

    ATTACH LIFTING HOOK OR ELECTRIC LIFT: Attach the lifting hook from a winch or manual lift kit to the push tube as shown. If using an electric lift kit, install the electric lift at the hole locations shown. Install lift hook or kit at this location only © 2013 Kolpin Outdoors Inc. REV01...

  • Page 3: Safety Information

    ATV. Do not allow forward mount system to interfere with ATV operational items such as brake lines, coolant hoses, control cables, steering or any other function. © 2013 Kolpin Outdoors Inc. REV01...
  • Page 4 Model Number 10-0550 Hardware Pack # 12-0400 Parts List 1 of 3 PARTS ORDERING INFORMATION: Replacement fasteners are common-type and can be purchased locally. Use minimum Metric 8.8 or SAE Grade 5 fasteners. © 2013 Kolpin Outdoors Inc. REV01...
  • Page 5 Model Number 10-0550 Hardware Pack # CYC1010 Parts List 2 of 3 PARTS ORDERING INFORMATION: Replacement fasteners are common-type and can be purchased locally. Use minimum Metric 8.8 or SAE Grade 5 fasteners. © 2013 Kolpin Outdoors Inc. REV01...
  • Page 6 Model Number 10-0550 Hardware Pack # HK-124 Parts List 3 of 3 PARTS ORDERING INFORMATION: Replacement fasteners are common-type and can be purchased locally. Use minimum metric 8.8 or SAE Grade 5 fasteners. © 2013 Kolpin Outdoors Inc. REV01...
  • Page 7 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 8 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 9 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 10 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 11 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 12 © 2013 Kolpin Outdoors Inc. REV01...

  • Page 13: Before You Begin

    Position fasteners of the Forward Mount against the frame as closely as possible - See Illustration Position mount fasteners as shown to create a wedge clamp force at the frame ‘Y’ ATV FRONT INCORRECT © 2013 Kolpin Outdoors Inc. REV01...
  • Page 14 Once the mount position has been determined, position U-bolts to the frame tube walls as close as possible and torque to specification. FASTENER TORQUE: 30 ft. lbs. (41 Nm) GENERIC ROUND TUBE FRAME SECTION ATV FRONT ILL. 1 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 15 Once the mount position has been determined, push the spacers and fasteners to the frame tube walls as close as possible. Torque to specification. REFER TO INSTALLATION NOTES - PAGE 13. FASTENER TORQUE: 30 ft. lbs. (41 Nm) ATV FRONT ILL. 2 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 16 Once the mount has been positioned, orientate fasteners, to the frame tube walls as close as possible and torque to specification. REFER TO INSTALLATION NOTES - PAGE 13. FASTENER TORQUE: 30 ft. lbs. (41 Nm) POLARIS H.O. FRAME SECTION ROCK GUARD ATV FRONT ILL. 3 © 2013 Kolpin Outdoors Inc. REV01...
  • Page 17 Refer to page 10 illustration 7 & 8. 3. Once the desired blade position is obtained, torque the blade stop fasteners to specification. FASTENER TORQUE: 17ft. lbs. (23 Nm) Looking for ATV accessories & parts? Rely on Kolpin for quality and long-lasting products.
