Company: Lifetrons International Limited

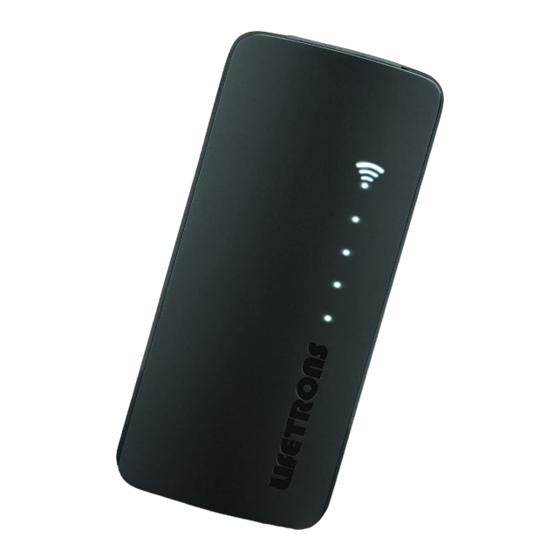

Product: Power Solution Wi-Fi Router & Charger
Model: FG-1060N
User Guide
Thank you for purchasing a Lifetrons® Power Solution Wi-Fi Router & Charger. It is
designed to recharge portable electronic devices. This guide outlines the operating
procedures and safety precautions. Please read it carefully to make sure you are using
your product properly and retain it for future reference.
What's Included
• Power Solution Wi-Fi Router & Charger
• Micro-USB charging cable
• Protective storage case
• User guide

Compatibility

Charger is compatible with most mobile devices such as: iPad®, iPhone®, iPod nano®,
iPod touch®, Nokia®, BlackBerry®, Samsung®, LG®, Sony®, HTC®, Motorola® and
more
Works with most mobile devices via their original USB cable. Purchase additional
connectors or cables online at www.lifetrons.com.
Built-in router is compatible with Windows® 8, Windows® 7, Vista, XP, Mac® OS X,
iPod®, iPhone®, iPad®, most smartphones or mobile devices with Wi-Fi connectivity
and most USB flash drives or portable hard-disks

Features

• Swiss-designed portable Wi-Fi router combined with a high capacity 5200mAh
charger
• The 2.1A USB port quickly charges most smartphones and tablets
• Shares Wi-Fi with all of your portable devices or computers
• 5 level, dual-color LED display indicates remaining battery, USB connection and Wi-Fi
status
• One-touch control for charging, checking the battery status and Wi-Fi connection
• Customized 'LifetronsAir' software for Mac® and PC available for download
• Customized 'LifetronsAir' app for Apple® and AndroidTM devices available for
download
• Use "LifetronsAir" to manage your documents, music, movies and photos via Wi-Fi
connection, USB flash drive or portable hard-disk after pairing your computer or portable
device with the charger

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG-1060N and is the answer not in the manual?

Questions and answers

Summary of Contents for Lifetrons FG-1060N

  • Page 1 Model: FG-1060N User Guide Thank you for purchasing a Lifetrons® Power Solution Wi-Fi Router & Charger. It is designed to recharge portable electronic devices. This guide outlines the operating procedures and safety precautions. Please read it carefully to make sure you are using your product properly and retain it for future reference.
  • Page 2 • Exclusive protective storage case included Specifications • Battery: Korean-made Lithium-ion, 5200mAh • USB port: 5VDC, 2.1A output, USB 2.0 storage sharing • Network standard: IEEE 802.11b/g/n (up to 150Mbps) • Power supply: Recharge via USB port • Charging time: 6-8 hours using a 5W or 10.5W AC charger •...
  • Page 3 To fully use the Wi-Fi router function and data sharing features you need to install the free 'LifetronsAir' software or app on your computer or mobile device. Download the “LifetronsAir” software for Mac® or PC from the official Lifetrons website (www.lifetrons.com). Download the "LifetronsAir" app from the Mac® App Store for Apple®...
  • Page 4 3. Follow the steps in part C to pair your portable device or computer with the charger's Wi-Fi. 4. Login to the "LifetronsAir" software and make sure that the "Wired Access" internet setting is on. Click "Save" to continue. 5. If your computer prompts you for a passkey when you are trying to login to the "LifetronsAir"...
  • Page 5 1. The original invoice or sales receipt with the date of purchase is presented with the defective unit. 2. Lifetrons does not take any responsibility for lost information of any kind and will not reimburse you for any such loss.
  • Page 6 Lifetrons authorized dealer, specifying the date of purchase, is presented with the product to be repaired or replaced. Lifetrons reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.
  • Page 7 FCC Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this  device may not cause harmful interference, and (2) this device must accept any interference received, including  interference that may cause undesired operation. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also  complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with  provided instructions and must not be co‐located or operating in conjunction with any other antenna or  transmitter. End‐users and installers must be provide with antenna installation instructions and consider  removing the no‐collocation statement. Caution!   Any changes or modifications not expressly approved by the party responsible for compliance could void the  user's authority to operate the equipment. SAR information: The distance between antenna to body for SAR test is 10mm.
